BLANCO Subline 700-U 527356 Silgranit Volcanic Grey Sink Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your BLANCO Subline 700-U 527356 Silgranit Volcanic Grey sink. Please read these instructions carefully before installation and use, and retain them for future reference. Adherence to these guidelines will ensure optimal performance and longevity of your product.

2. Safety Information

• Always ensure proper handling during transport and installation due to the weight and material of the sink.
• Follow all local plumbing and building codes during installation to ensure compliance and safety.
• Use appropriate personal protective equipment (PPE) such as gloves and safety glasses during installation to prevent injury.
• Ensure the installation area is clean, dry, and well-lit.

3. Product Overview

The BLANCO Subline 700-U is a single-bowl under-mount kitchen sink crafted from durable Silgranit material in a Volcanic Grey finish. It is designed for seamless integration into your kitchen countertop, offering both aesthetic appeal and high functionality.

Included Components:

• Drain and overflow fitting with space-saving pipe
• 3 1/2" InFino basket strainer
• Fixing kit (including sealing gasket)

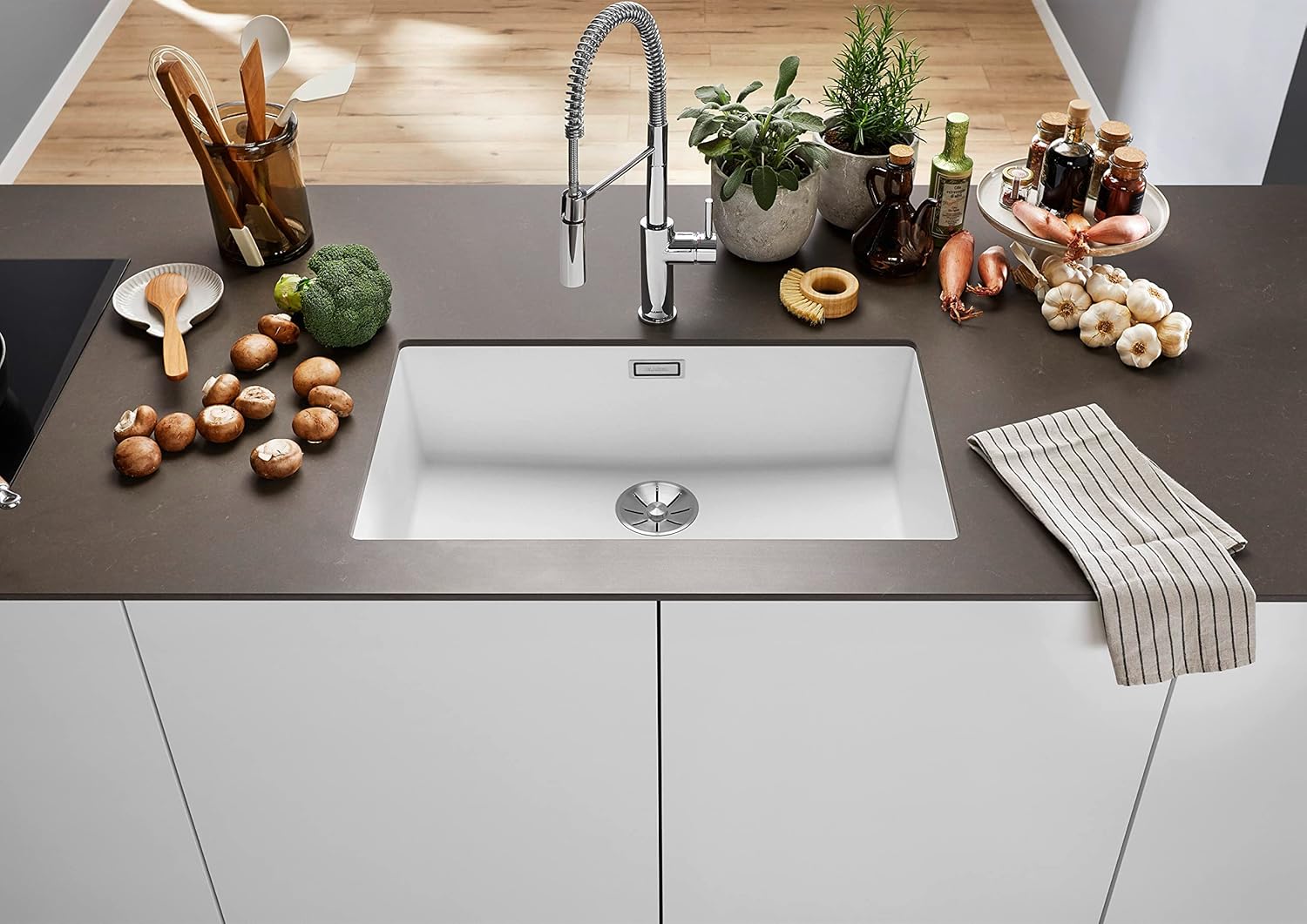

This image shows the BLANCO Subline 700-U sink seamlessly integrated into a kitchen countertop, highlighting its under-mount design and spacious single bowl.

4. Setup & Installation

The BLANCO Subline 700-U sink is specifically designed for under-mount installation. Professional installation is highly recommended to ensure proper sealing, structural support, and adherence to all specifications.

Key Installation Steps:

1. Countertop Preparation: Prepare the countertop cutout precisely according to the provided template (refer to the template included with your product packaging for exact dimensions).
2. Adhesive Application: Apply a suitable waterproof adhesive to the rim of the sink where it will meet the underside of the countertop.
3. Securing the Sink: Position the sink accurately and secure it using the provided fixing clips and screws. Ensure even pressure and a tight seal.
4. Drain and Overflow Installation: Install the drain and overflow fittings, ensuring all connections are watertight. Test for leaks before final sealing.

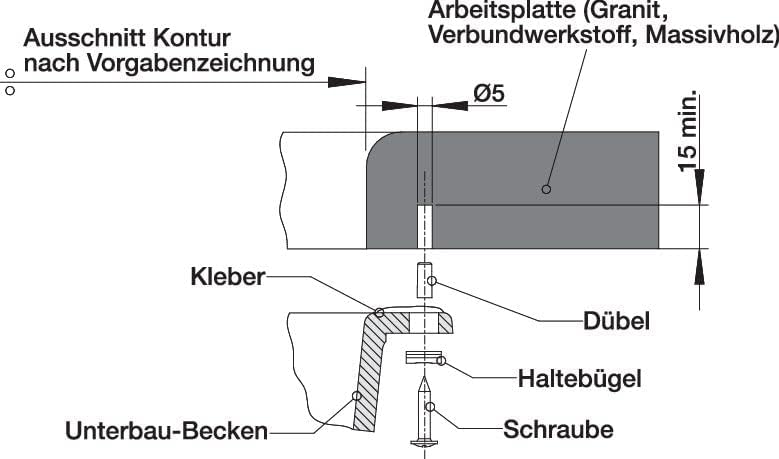

This diagram illustrates the under-mount installation process, detailing how the sink (Unterbau-Becken) is secured to the countertop (Arbeitsplatte) using adhesive (Kleber), dowels (Dübel), fixing brackets (Haltebügel), and screws (Schraube). It also indicates a minimum distance of 15mm from the edge.

5. Operating Instructions

The BLANCO Subline 700-U sink is designed for straightforward operation. Water flow is controlled by your kitchen faucet (not included). The integrated 3 1/2" InFino basket strainer provides efficient drainage and can be used to collect food debris.

• Draining Water: To allow water to drain, ensure the InFino basket strainer is in the open position.
• Retaining Water: To fill the sink and retain water, close the InFino basket strainer by pressing it down.
• Cleaning the Strainer: Regularly remove and clean the basket strainer to prevent blockages and maintain hygiene.

This image demonstrates the practical use of the BLANCO Silgranit sink, showing a person washing vegetables under a faucet, highlighting the sink's depth and functionality for food preparation.

6. Maintenance & Care

The BLANCO Silgranit material is highly durable, scratch-resistant, and easy to clean. Regular and proper care will maintain its pristine appearance and extend its lifespan.

Daily Cleaning:

• Use a soft sponge or cloth with a mild dish soap and warm water.
• Rinse the sink thoroughly with clean water after cleaning.
• Dry the sink with a microfiber cloth to prevent water spots and limescale buildup, especially in hard water areas.

For Stubborn Stains and Limescale:

• For limescale, use a descaling agent safe for granite sinks or a solution of white vinegar and water (1:1 ratio). Apply, let sit briefly (5-10 minutes), then scrub gently, rinse thoroughly, and dry.
• For more persistent stains, a non-abrasive cleaner specifically designed for granite or composite sinks can be used. Always test on an inconspicuous area first.

Avoid:

• Abrasive cleaners, scouring pads, steel wool, or harsh brushes, as these can damage the Silgranit surface.
• Strong acids or alkalis, and harsh chemical drain cleaners. These can cause discoloration or damage to the material.
• Leaving highly pigmented foods (e.g., beetroot, red wine, coffee) or strong dyes on the surface for extended periods, as they may cause temporary staining. Clean immediately.

Heat Resistance: Silgranit is highly heat resistant. However, it is always recommended to use a trivet or heat protection for very hot pots and pans to prevent thermal shock and potential damage over time.

7. Troubleshooting

This section addresses common issues you might encounter with your BLANCO Silgranit sink.

Slow Drainage:

• Check Basket Strainer: Ensure the InFino basket strainer is clear of food debris and fully open.
• Drain Pipe Blockage: If the issue persists, the drain pipe may be partially blocked. Avoid using harsh chemical drain cleaners; try a natural solution like baking soda followed by vinegar, or consult a qualified plumber.

Water Spots / Limescale:

• These are common in hard water areas. Regular drying after use helps prevent buildup.
• Use a descaling agent safe for granite sinks or a solution of white vinegar and water. Apply, let sit briefly, then scrub gently, rinse thoroughly, and dry.

Discoloration:

• Ensure regular cleaning as per the maintenance instructions.
• Some strong dyes or chemicals can stain if left for extended periods. Clean any spills immediately.

8. Specifications

Detailed specifications for the BLANCO Subline 700-U 527356 sink are provided below:

9. Warranty & Support

BLANCO is committed to providing high-quality products and customer satisfaction.

Spare Parts Availability:

Spare parts for the BLANCO Subline 700-U 527356 sink are available for a period of 2 years from the date of purchase.

Customer Support:

For further support, detailed product information, or to inquire about warranty claims, please visit the official BLANCO website or contact your local BLANCO dealer. You can also explore the BLANCO brand store on Amazon for additional products and information:
