1. Introduction
Thank you for choosing the MokerLink 5-Port 2.5 Gigabit PoE Switch with 10G SFP+. This unmanaged network switch is designed to provide high-speed network connectivity and Power over Ethernet (PoE) capabilities for various applications, including home entertainment, small offices, and advanced networking setups. This manual provides detailed instructions for setting up, operating, and maintaining your device to ensure optimal performance and longevity.
2. Product Overview
The MokerLink 5-Port 2.5 Gigabit PoE Switch features five 2.5 Gigabit Ethernet ports, with four of these ports supporting IEEE802.3af/at PoE. Additionally, it includes one 10G SFP+ port for high-speed uplink connections. Its fanless, unmanaged design ensures quiet and stable operation, making it suitable for various environments.
Figure 2.1: Front view of the MokerLink 5-Port 2.5 Gigabit PoE Switch, showing the five Ethernet ports and one SFP+ port.
3. Key Features
- 2.5G Ethernet Ports: Equipped with 5 x 2.5Gigabit Ethernet Ports, compliant with IEEE802.3bz (2.5G) standard, supporting 10/100/1000M/2.5G adaptive speeds.
- 10G SFP+ Uplink: Includes 1 x 10G SFP+ Port, compatible with 1G/2.5G SFP modules (module not included), offering high-bandwidth uplink capabilities.
- PoE Support: Ports 1-4 support IEEE802.3af/at PoE, providing up to 30W per port with a total power budget of 65W. Features a built-in power supply for simplified installation. Note: Does not support passive 24V PoE.
- High Performance: Offers 45Gbps backplane bandwidth and excellent data forwarding performance.
- Plug and Play: Unmanaged design requires no configuration. Simply connect the power cord and Ethernet cables.
- Durable and Quiet: Features a durable metal casing and a fanless design for low energy consumption, quiet operation, and stable performance.
- Easy Maintenance: Power and port LED indicators clearly display the running status and port speed, simplifying monitoring and maintenance.
- Versatile Installation: Supports both desktop placement and wall-mounting, suitable for various environments.

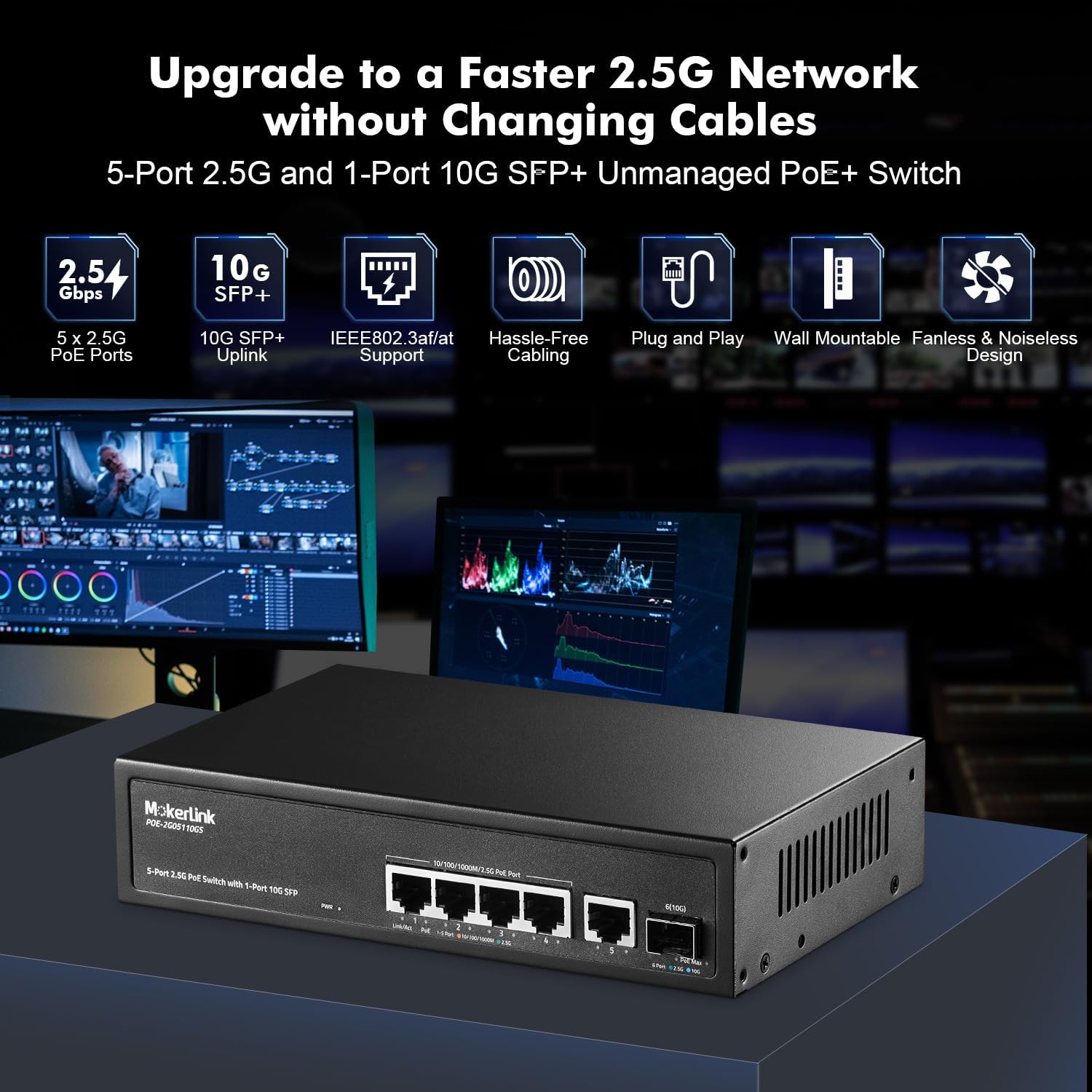

Figure 3.1: Visual representation of the switch's key features, including 2.5G PoE ports, 10G SFP+ uplink, IEEE802.3af/at support, and fanless design.
Figure 3.2: Diagram illustrating how Power over Ethernet (PoE) delivers both power and data to devices like IP cameras, wireless access points, and IP phones.
4. Package Contents
Please verify the contents of your package. If any items are missing or damaged, contact your vendor.
- MokerLink 5-Port 2.5 Gigabit PoE Switch (Model: 5*2.5G POE)
- Power Cord
- User Manual (this document)
5. Setup Instructions
The MokerLink 5-Port 2.5 Gigabit PoE Switch is designed for simple plug-and-play operation. Follow these steps for initial setup:
- Placement: Choose a suitable location for the switch. It can be placed on a desktop or mounted on a wall. Ensure adequate ventilation around the device.
- Connect Power: Connect the included power cord to the AC input port on the switch and then to a standard electrical outlet. The Power LED indicator will illuminate.
- Connect Network Devices:
- For non-PoE devices (e.g., router, computer, NVR), connect an Ethernet cable from the device to any of the 2.5G Ethernet ports (1-5) on the switch.
- For PoE-powered devices (e.g., IP cameras, wireless APs, IP phones), connect an Ethernet cable from the device to PoE-enabled ports (1-4) on the switch.
- For high-speed uplink, insert a compatible 1G/2.5G/10G SFP+ module (not included) into the SFP+ port and connect it to your network backbone using an appropriate fiber optic cable.
- Verify Connections: Check the LED indicators for each connected port. A solid green or orange light indicates a successful link.
Figure 5.1: Detailed view of the switch's ports, including 2.5G PoE ports, 10G SFP+ uplink, and the DC power input, along with LED indicator descriptions.
Figure 5.2: Illustration of the switch's wall-mounting capability and its fanless design for silent operation and good heat dissipation.
6. Operating Instructions
Once connected, the MokerLink switch operates automatically without requiring any software configuration. It supports auto MDI/MDIX and auto-negotiation for port speeds.
LED Indicators:
- PWR (Power Indicator):
- On: Device is powered on.
- Off: Device is powered off.
- Link/Act (Per Port):
- Orange (Left): 10/100/1000Mbps link established.
- Green (Left): 2.5Gbps link established.
- Green (Right): PoE On (for PoE ports 1-4).
- Off: No link or PoE Off.
- PoE Max (PoE Power Light):
- Green: PoE usage < 95%.
- Flashing: PoE usage 95% - 100%.
- Off: PoE usage > 100% or no PoE devices connected.
Figure 6.1: The switch connected to various 2.5G devices such as a WiFi 6 AP, WiFi 6 Router, 2.5G NAS, and 2.5G Gaming PC, demonstrating its application in high-performance networks.
7. Maintenance
To ensure the longevity and optimal performance of your MokerLink switch, consider the following maintenance guidelines:
- Cleaning: Periodically clean the exterior of the switch with a soft, dry cloth. Avoid using liquid or aerosol cleaners.
- Ventilation: Ensure that the ventilation openings on the sides of the switch are not obstructed. Although fanless, proper airflow helps dissipate heat.
- Cable Management: Keep network cables neatly organized to prevent strain on ports and accidental disconnections.
- Environmental Conditions: Operate the switch within its specified temperature and humidity ranges to prevent damage.
8. Troubleshooting
If you encounter issues with your MokerLink switch, refer to the following troubleshooting tips:
- No Power:
- Ensure the power cord is securely connected to the switch and the electrical outlet.
- Verify that the power outlet is functional.
- No Link/Activity on a Port:
- Check if the Ethernet cable is properly connected at both ends.
- Try a different Ethernet cable.
- Ensure the connected device is powered on and functioning correctly.
- For SFP+ port, ensure the SFP+ module is correctly inserted and compatible.
- PoE Device Not Receiving Power:
- Confirm the device is connected to one of the PoE-enabled ports (1-4).
- Verify the PoE device is IEEE802.3af/at compliant. This switch does not support passive 24V PoE.
- Check the PoE Max LED. If it's off or flashing, the total power budget might be exceeded. Disconnect some PoE devices or use an external power source for some devices.
- Ensure the Ethernet cable is capable of carrying PoE (e.g., CAT5e or higher).
- Slow Network Speed:
- Ensure all connected devices and cables support 2.5 Gigabit speeds for optimal performance.
- Check the Link/Act LED color for the port; green indicates 2.5Gbps, orange indicates 10/100/1000Mbps.
- Verify that the SFP+ module and connected fiber are rated for 10G speeds if using the uplink port.
9. Specifications
| Feature | Description |
|---|---|
| Brand | MokerLink |
| Model Number | 5*2.5G POE |
| Interface Type | PoE, SFP+ |
| Number of Ports | 5 x 2.5G Ethernet (4 PoE), 1 x 10G SFP+ |
| PoE Standard | IEEE802.3af/at |
| PoE Power Output | Up to 30W per port, 65W total |
| Data Transfer Rate | 10/100/1000Mbps/2.5Gbps (Ethernet), 1G/2.5G/10Gbps (SFP+) |
| Backplane Bandwidth | 45Gbps |
| Packet Forwarding Rate | 33.48Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 12Kbytes |
| Case Material | Metal |
| Cooling | Fanless |
| Product Dimensions | 9.84 x 7.87 x 3.15 inches |
| Item Weight | 1.94 pounds |
| Voltage | 24 Volts (Internal Power Supply) |
| Compatible Devices | Desktop, Gaming Console, Server, WiFi 6 AP, NAS, IP Cameras |
10. Warranty Information
This MokerLink product comes with a standard manufacturer's warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official MokerLink website. Keep your purchase receipt as proof of purchase for warranty claims.
11. Support
For technical assistance, product inquiries, or further support, please visit the official MokerLink website. The website typically provides FAQs, driver downloads, and contact information for customer service.
