1. Important Safety Information
Please read all instructions carefully before using this appliance to ensure safe operation and to prevent damage. Keep this manual for future reference.
- Ensure the appliance is properly grounded.
- Do not operate the appliance with a damaged power cord or plug.
- Avoid placing flammable materials near the refrigerator.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Unplug the appliance before cleaning or performing maintenance.
- Keep ventilation openings clear of obstruction.
- This appliance is intended for household use only.
2. Product Overview
The WANAI BC-98E is a 3.2 cubic feet beverage refrigerator designed for cooling various drinks. It features a glass door, adjustable shelving, and internal LED lighting.
Figure 2.1: Front view of the WANAI BC-98E Beverage Refrigerator, showcasing its glass door and internal blue LED lighting.
Key Features:
- Capacity: Accommodates 100-120 standard drink cans (3.2 Cu. Ft.).
- Temperature Control: Adjustable 7-level thermostat knob, ranging from 39°F- 61°F (4°C-16°C).
- Visibility: Elegant glass door with a black stainless steel frame.
- Interior Lighting: Soft blue LED lighting for clear visibility.
- Shelving: Three adjustable and removable chrome shelves with raised edges.
- Defrost System: Automatic defrost.
- Installation: Freestanding or undercounter.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any shipping damage. Keep packaging materials for future transport if needed.
3.2 Placement
- Place the refrigerator on a flat, stable surface strong enough to support its weight when fully loaded.
- Allow at least 2-4 inches of space around the back and sides for proper ventilation. This ensures efficient cooling and prevents overheating.
- Avoid direct sunlight or heat sources (e.g., oven, radiator) as these can affect cooling performance and energy consumption.
- This unit is designed for freestanding or undercounter installation. Ensure adequate clearance if installing under a counter.
Figure 3.1: Product dimensions for the WANAI BC-98E, showing a height of 31.18 inches and width/depth of 17.32 inches.
3.3 Leveling
Adjust the leveling feet at the bottom of the refrigerator to ensure it is perfectly level. This is crucial for proper door sealing and efficient operation.
3.4 Power Connection
Plug the refrigerator into a dedicated, grounded electrical outlet. Do not use extension cords or adapter plugs. Allow the unit to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
3.5 Initial Operation
After plugging in, allow the refrigerator to operate empty for approximately 24 hours to reach its set temperature before loading beverages.
4. Operating Instructions
4.1 Temperature Control
The refrigerator is equipped with an adjustable 7-level temperature control knob located inside the unit. Turn the knob to select your desired cooling level. The temperature range is 39°F to 61°F (4°C to 16°C). A lower number on the dial typically indicates a colder setting.
4.2 Loading Beverages
Arrange beverages on the shelves, ensuring not to block the internal airflow. The unit can hold approximately 100-120 standard cans, depending on size and arrangement.
Figure 4.1: The WANAI BC-98E refrigerator storing various items including wine bottles, canned beverages, and indicating suitability for vegetables and fruit.
4.3 Adjustable Shelves
The three chrome shelves are adjustable and removable. To adjust, carefully lift the shelf and slide it out. Reinsert into desired slots. This allows for flexible storage configurations to accommodate different bottle and can sizes.

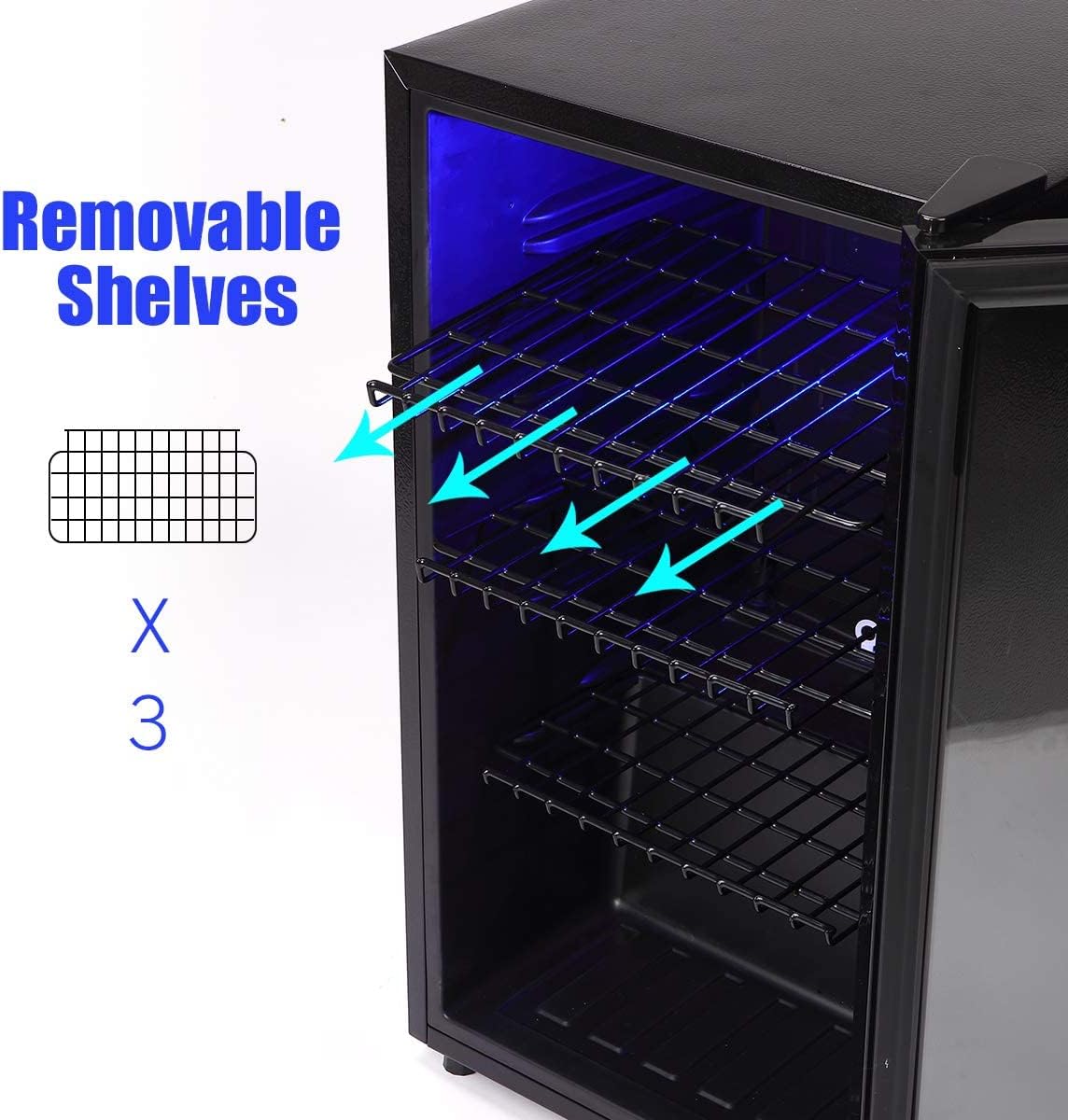

Figure 4.2: Illustration showing the removable and adjustable shelves inside the WANAI BC-98E beverage refrigerator.
4.4 LED Interior Lighting
The soft blue LED interior lighting illuminates the contents of the refrigerator, enhancing visibility without generating excessive heat. The light typically activates when the door is opened.
4.5 Door Seal
The reinforced glass door features an airtight seal to maintain consistent internal temperatures and humidity levels. Ensure the door is fully closed after each use.
Figure 4.3: Depiction of the WANAI BC-98E door opening wide (310°) and highlighting the sturdy seal for temperature maintenance.
5. Maintenance and Cleaning
5.1 Cleaning the Interior
Before cleaning, unplug the refrigerator. Wash the interior surfaces and removable shelves with a mild detergent and warm water. Rinse thoroughly and dry with a soft cloth. Do not use abrasive cleaners or solvents.
5.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth dampened with water and a mild detergent. For the glass door, use a glass cleaner. Avoid getting water on electrical components.
5.3 Automatic Defrost
This refrigerator features an automatic defrost system, minimizing the need for manual defrosting. Any accumulated frost on the back wall will melt periodically and drain away.
5.4 Power Interruption
In case of a power outage, keep the refrigerator door closed to maintain internal temperature for as long as possible. Avoid opening the door unnecessarily.
6. Troubleshooting
Review the following common issues and their potential solutions before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power supply. | Check if the power cord is securely plugged into a working outlet. Check the circuit breaker. |
| Unit is not cold enough. | Temperature setting is too high; Door is opened too frequently; Poor ventilation; Too many items loaded. | Adjust the temperature control to a colder setting. Minimize door openings. Ensure adequate space around the unit for airflow. Reduce the number of items if overloaded. |
| Excessive noise. | Unit is not level; Objects vibrating against the unit. | Adjust leveling feet to ensure the unit is stable. Ensure no objects are touching the refrigerator. |
| Condensation inside. | High humidity; Door not sealed properly; Door opened too often. | Ensure the door gasket is clean and sealing correctly. Minimize door openings. |
Figure 6.1: Diagram illustrating the air-cooled circulation system for quiet operation and consistent cooling within the WANAI BC-98E.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | WANAI |
| Model Number | BC-98E |
| Capacity | 3.2 Cubic Feet (approx. 100-120 cans) |
| Product Dimensions (D x W x H) | 17.5 x 17.5 x 32 inches |
| Item Weight | 24 pounds |
| Temperature Range | 39°F - 61°F (4°C - 16°C) |
| Installation Type | Freestanding, Undercounter |
| Defrost System | Automatic |
| Number of Shelves | 3 (Adjustable, Removable) |
| Door Material | Glass |
| Color | Black |
| Voltage | 220V |
| Certification | ETL |
8. Warranty and Customer Support
WANAI is committed to providing high-quality products and customer satisfaction. For any product-related questions, issues, or warranty inquiries, please contact our customer service team.
Our 24-hour online customer service is available to assist you and provide a satisfactory solution. Please refer to your purchase documentation for specific warranty terms and contact information.
Contact Information: Please visit the official WANAI website or refer to your product packaging for the most current customer support contact details.
