Generic Midea Washing Machine Control Board MG53-8031 Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and effective installation, operation, and maintenance of the Generic Midea Washing Machine Control Board, model MG53-8031. Please read this manual thoroughly before attempting any installation or repair to ensure proper function and safety. Keep this manual for future reference.

Safety Warnings

• Disconnect Power: Always ensure the washing machine is completely disconnected from the power supply before attempting any installation, repair, or maintenance.
• Professional Installation Recommended: Installation of electronic components should ideally be performed by a qualified technician to prevent damage to the product or the appliance, and to ensure user safety.
• Handle with Care: Electronic boards are sensitive. Avoid touching components directly and protect the board from static electricity.
• Compatibility: Verify that this control board is compatible with your specific Midea washing machine model before installation.

2. Product Overview

The MG53-8031 control board is a replacement electronic component designed for specific Midea washing machine models. It manages the various functions of the washing machine, including wash cycles, water levels, spin speeds, and error detection. This board ensures the proper operation of your appliance.

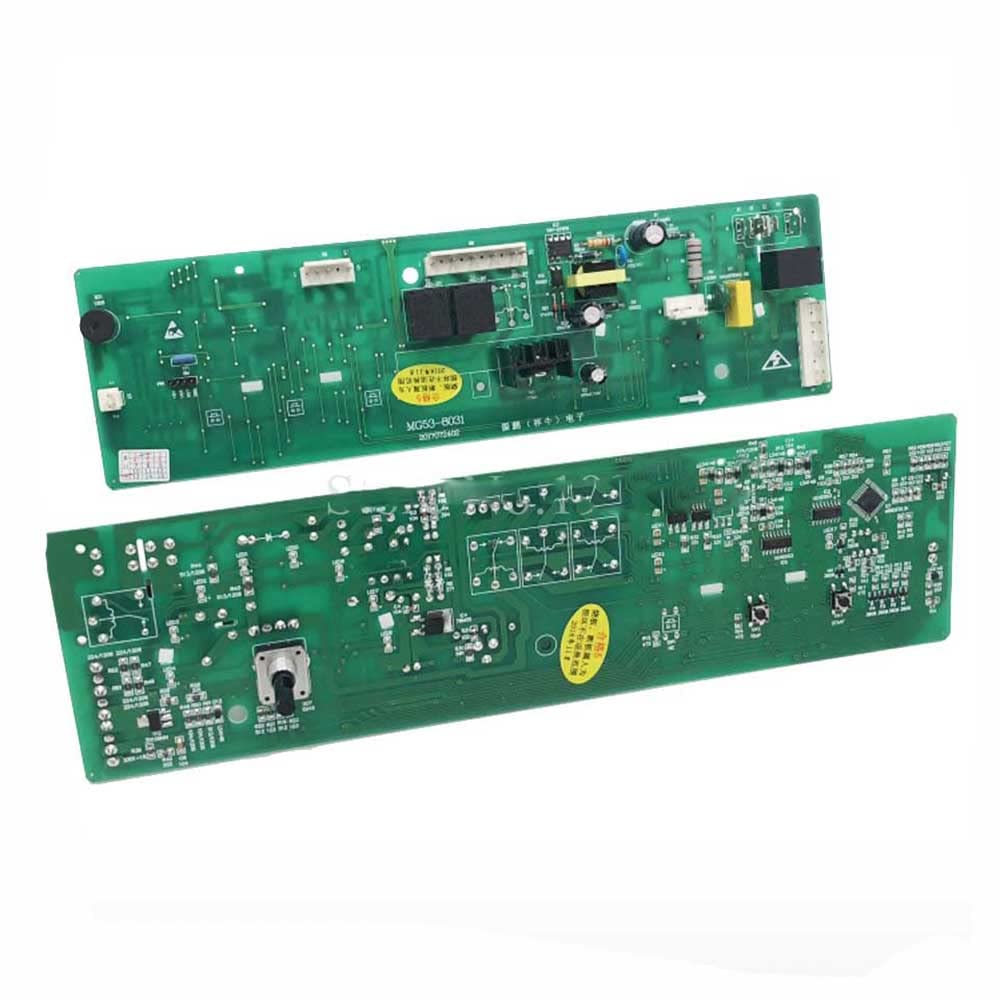

Figure 2.1: Generic Midea Washing Machine Control Board MG53-8031. This image displays both the top and bottom surfaces of the green circuit board, highlighting its various electronic components, connectors, and the model number 'MG53-8031' visible on the top board.

3. Setup and Installation

This section outlines the general steps for replacing a washing machine control board. Specific steps may vary depending on your washing machine model. Always refer to your washing machine's service manual for precise instructions.

1. Power Disconnection: Unplug the washing machine from the wall outlet and turn off the circuit breaker supplying power to the appliance.
2. Access the Control Board: Depending on your washing machine model, you may need to remove the top panel, back panel, or control console to access the existing control board.
3. Document Connections: Before disconnecting any wires, take clear photos or make a diagram of all wire connections to the old control board. This is crucial for correct reassembly.
4. Disconnect Wires: Carefully disconnect all wire harnesses and connectors from the old control board. Note any clips or locking mechanisms.
5. Remove Old Board: Unscrew or unclip the old control board from its mounting brackets.
6. Install New Board: Mount the new MG53-8031 control board in the same position as the old one, securing it with screws or clips.
7. Reconnect Wires: Using your photos or diagrams, carefully reconnect all wire harnesses and connectors to the new control board. Ensure all connections are secure and correctly seated.
8. Reassemble Appliance: Reattach any panels or consoles that were removed.
9. Test Functionality: Restore power to the washing machine and perform a test cycle to ensure the new control board is functioning correctly.

If you encounter any difficulties or are unsure about any step, consult a qualified appliance technician.

4. Operating Instructions

The MG53-8031 control board is an internal component that enables the various functions of your Midea washing machine. Once correctly installed, the operation of your washing machine will follow its standard procedures as outlined in your appliance's user manual. This control board facilitates the execution of wash programs, water intake, draining, and spin cycles based on user selections.

Refer to your Midea washing machine's original user manual for specific instructions on selecting wash cycles, adjusting settings, and general operation.

5. Maintenance

The control board itself requires minimal maintenance. However, proper care of your washing machine can extend the life of all its components, including the control board.

• Keep Dry: Ensure the area around the control board remains dry. Moisture can cause short circuits and damage electronic components.
• Clean Gently: If cleaning is necessary, ensure the washing machine is unplugged. Use a soft, dry cloth to gently wipe away dust. Do not use liquid cleaners or solvents directly on the board.
• Avoid Physical Impact: Protect the control board from any physical shocks or impacts.

6. Troubleshooting

If your washing machine is not functioning correctly after installing the new control board, consider the following troubleshooting steps:

• Check Power Supply: Ensure the washing machine is properly plugged in and receiving power. Check the circuit breaker.
• Verify Connections: Double-check all wire harnesses and connectors on the control board to ensure they are securely and correctly attached according to your documentation. Loose or incorrect connections are a common cause of issues.
• Review Washing Machine Manual: Consult your washing machine's original user manual for specific error codes or troubleshooting guides related to your appliance model.
• Professional Assistance: If the problem persists after checking connections and consulting the washing machine manual, it is recommended to contact a qualified appliance repair technician.

7. Specifications

8. Warranty and Support

Specific warranty information for this Generic Midea Washing Machine Control Board (MG53-8031) is not available in the provided product data. For warranty claims or technical support, please refer to the retailer or manufacturer from whom the product was purchased. It is advisable to retain your proof of purchase for any warranty-related inquiries.
