1. Product Overview
The Cyrusher Rover Electric Bike is a 26-inch aluminum electric bicycle designed for versatile terrain, featuring a powerful 1500W motor, 52V16Ah battery, hydraulic disc brakes, and full suspension. It is built for both men and women seeking a robust and comfortable riding experience across various environments.
Figure 1.1: The Cyrusher Rover Electric Bike, showcasing its robust design and fat tires.
Key Features:
- Powerful Motor & Battery: Equipped with a 1500W motor and a 52V16Ah removable lithium battery, offering up to 62 miles of range with pedal assist.
- Dual Suspension & Fat Tires: Features a front suspension fork and mid-mounted rear shock absorber, combined with 4-inch fat tires for superior comfort and stability on diverse terrains including snow, mountains, beaches, and muddy trails.
- Hydraulic Braking System: Ensures precise control and dependable stopping power in all weather conditions.
- Shimano 7-speed Gear System: Provides smooth and efficient gear changes for optimal riding performance.
- Durable Frame: Constructed with a high-strength 6061 aerospace-grade aluminum alloy 4-linkage frame for exceptional shock absorption.
2. Setup and Assembly
Your Cyrusher Rover Electric Bike requires some assembly before its first use. Please follow these steps carefully. An assembly toolset, manual, wrench, charger, and pump are included with your purchase.
- Unpacking: Carefully remove all components from the packaging. Inspect for any shipping damage.
- Handlebar Installation: Attach the handlebar to the stem, ensuring all bolts are securely tightened with the provided wrench.
- Front Wheel Installation: Install the front wheel, aligning the disc brake rotor with the caliper. Secure the quick-release skewer or axle nuts.
- Pedal Attachment: Identify the left (L) and right (R) pedals. Thread them into the crank arms. Note that the left pedal has a reverse thread. Tighten securely.
- Seat Post and Saddle: Insert the seat post into the frame and adjust the saddle height to your comfort. Ensure the quick-release clamp is firmly closed.
- Battery Installation & Charging: Insert the 52V16Ah removable lithium battery into its compartment in the frame. Charge the battery fully before your first ride using the provided charger. The battery can be charged on or off the bike.
- Tire Inflation: Inflate the 4-inch fat tires to the recommended pressure using the included pump. Refer to the tire sidewall for pressure guidelines.
- Brake and Gear Check: Verify that both hydraulic disc brakes are functioning correctly. Test the Shimano 7-speed gear system to ensure smooth shifting.
Figure 2.1: Key components of the Cyrusher Rover Electric Bike, highlighting the aluminum alloy frame, handlebars, front fork, pedals, crankset, rim, and kickstand.
3. Operating Your Electric Bike
The Cyrusher Rover offers multiple riding modes to suit your preference and terrain.
3.1 Powering On and Display
To power on the bike, press and hold the power button on the LCD display. The vivid LCD display provides real-time information such as battery level, ride time, trip distance, total distance traveled, and assistance level.
Figure 3.1: The vivid LCD display showing battery level, ride time, trip distance, total distance, and 5 assistance levels.
3.2 Riding Modes
- Pedal Assist Mode: The bike's motor provides assistance as you pedal. You can adjust the level of assistance (typically 5 levels) via the controls on the handlebar. This mode offers a range of up to 62 miles on a full charge. The high-performance torque sensor accurately detects the force applied to the pedals for a natural riding experience.
- Throttle Mode: Engage the throttle for power without pedaling. This mode is ideal for quick acceleration or when you need a break from pedaling. Note that using the throttle exclusively will reduce the overall range.
- Manual Mode: Ride the bike like a traditional bicycle without any motor assistance.
Figure 3.2: Visual representation of the extended range up to 101km (62 miles) in pedal-assist mode with the 52V15.6Ah battery.
Figure 3.3: Illustration of the high-performance torque sensor, which provides a more natural pedal-assist feel compared to a speed sensor.
3.3 Gear Shifting
The bike is equipped with a Shimano 7-speed gear system. Use the shift lever on the handlebar to change gears, adapting to different terrains and inclines. Shift smoothly to avoid strain on the drivetrain.

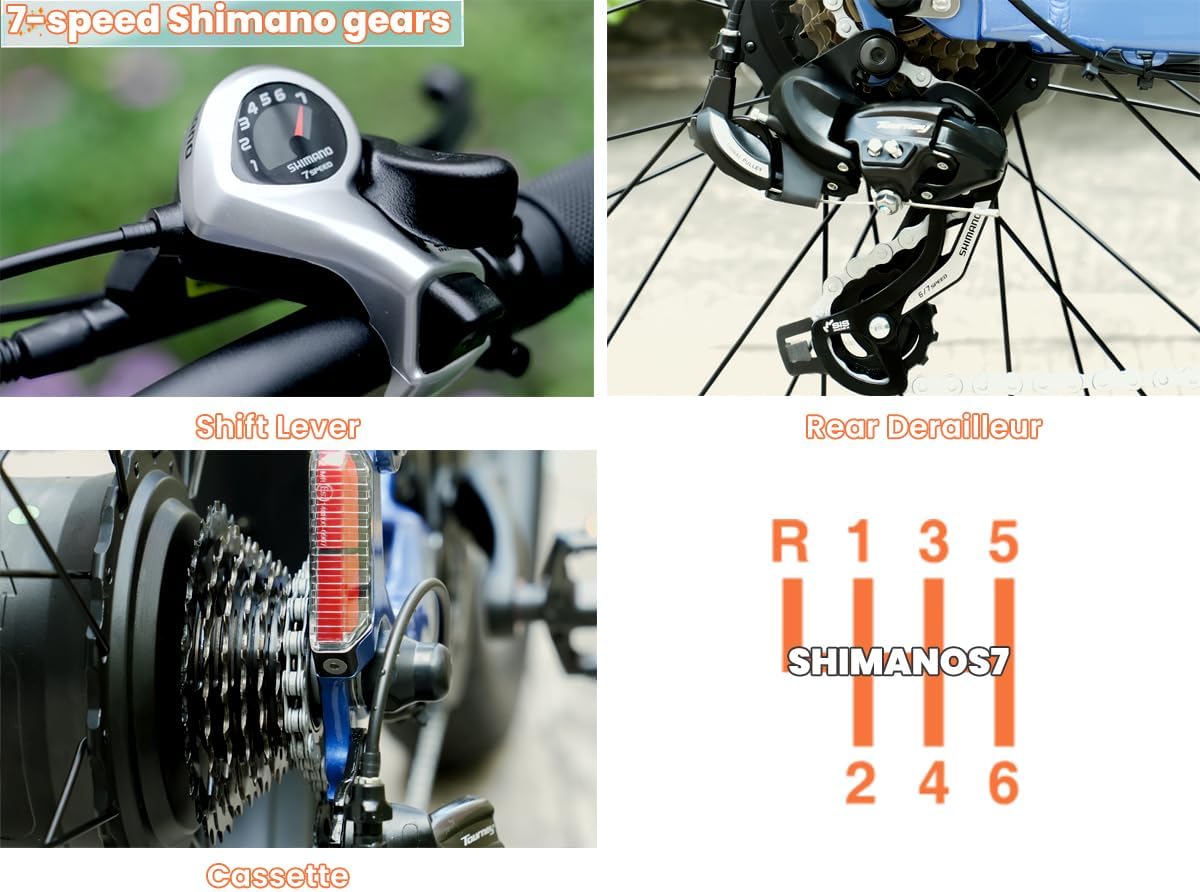

Figure 3.4: Close-up views of the Shimano 7-speed gear components, including the shift lever, rear derailleur, and cassette.
3.4 Braking System
The Cyrusher Rover features hydraulic disc brakes for reliable stopping power. The anti-slip grip brake levers include a motor cutoff switch, which disengages the motor when brakes are applied, enhancing safety. Always apply both brakes simultaneously for optimal control.
Figure 3.5: Details of the Logan Hydraulic Disc Brake system, showing the brake rotors and the aluminum alloy brake lever with fluid fill port.
3.5 Suspension Adjustment
The dual suspension system (front fork and mid-mounted rear shock) can be adjusted for different riding conditions. Use the damping adjustment to set the suspension to a harder or softer feel. The front suspension also features a lockout function for more efficient pedaling on smooth surfaces.
Figure 3.6: Close-up of the high-performance suspension, illustrating the damping adjustment (hard/soft) and suspension lockout (ON/OFF) features.
3.6 Safety Features
For safe night riding, the bike is equipped with high-brightness LED headlights and a highly visible warning taillight. Ensure these are functional before riding in low-light conditions.

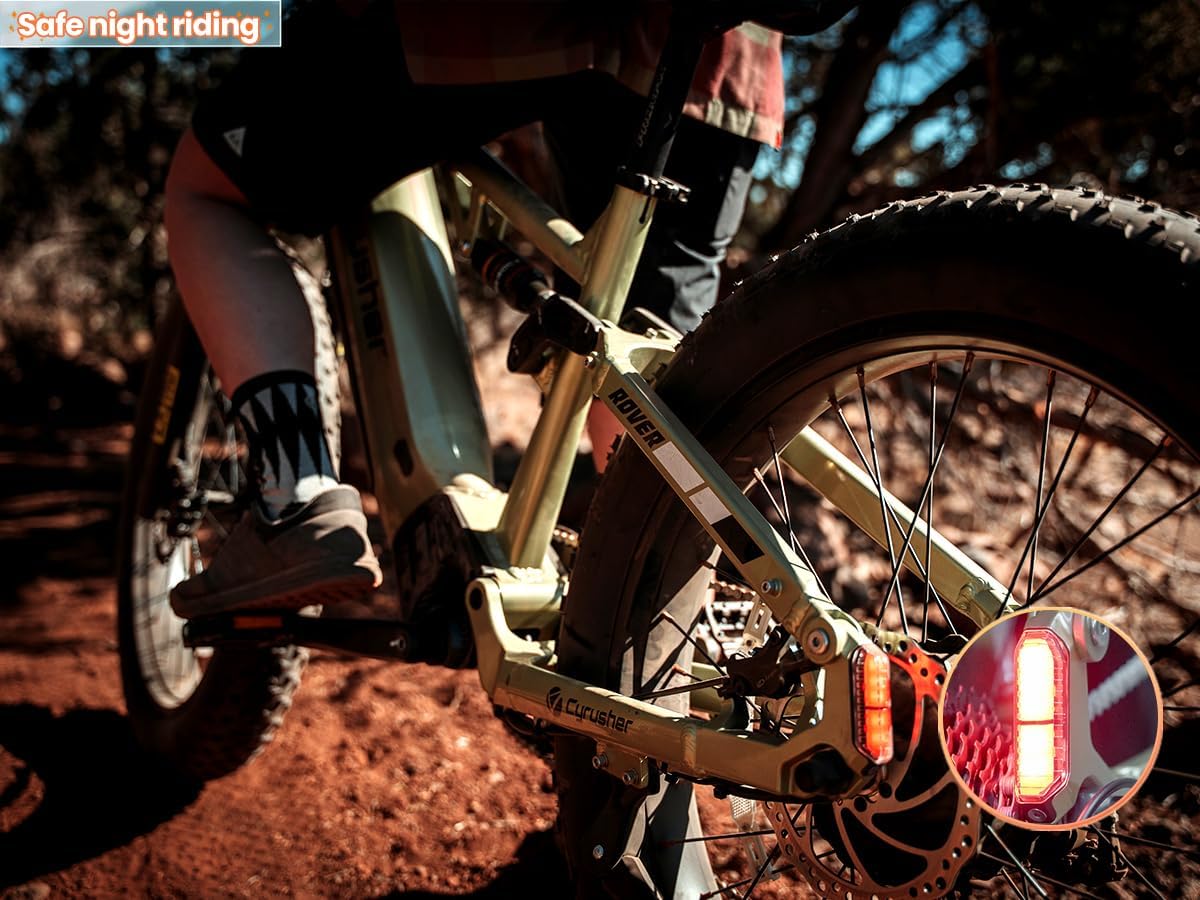

Figure 3.7: Detail of the rear taillight, designed for high visibility to enhance safety during night riding.
3.7 Official Product Video
Video 3.1: Official Cyrusher "Rover Mountain Biking" video, showcasing the bike's performance and features in a mountain biking environment. This video demonstrates the bike's capabilities on various terrains and highlights its design.
4. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Cyrusher Rover Electric Bike.
- Battery Care: Charge the battery regularly, even when not in use, to maintain its health. Store the battery in a cool, dry place. Avoid fully discharging the battery frequently.
- Tire Pressure: Check tire pressure before each ride. Proper inflation improves efficiency, comfort, and prevents punctures.
- Brake Inspection: Regularly inspect brake pads and rotors for wear. Ensure brake levers provide firm and consistent stopping power. Adjust or replace as needed.
- Chain Lubrication: Keep the chain clean and lubricated to ensure smooth gear shifting and prevent premature wear.
- General Cleaning: Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Fastener Check: Periodically check all bolts and fasteners for tightness, especially on critical components like the handlebars, wheels, and seat post.
5. Troubleshooting
This section addresses common issues you might encounter with your electric bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike does not power on. | Battery not charged or not properly seated. | Ensure battery is fully charged and securely inserted. Check connections. |
| Motor not assisting. | Low battery, assistance level set to zero, or brake lever engaged. | Charge battery, increase assistance level on display, release brake levers. |
| Gears are not shifting smoothly. | Dirty or unlubricated chain, misaligned derailleur. | Clean and lubricate chain. If issue persists, consult a bike mechanic for derailleur adjustment. |
| Brakes feel spongy or weak. | Air in hydraulic lines, worn brake pads. | Bleed brake lines or replace brake pads. Professional service recommended for hydraulic brakes. |
| Reduced range. | Under-inflated tires, frequent throttle use, riding uphill, cold weather. | Maintain proper tire pressure. Use pedal assist more often. Battery performance can be affected by extreme temperatures. |
For issues not listed here or if solutions do not resolve the problem, please contact Cyrusher customer support.
6. Specifications
| Feature | Detail |
|---|---|
| Bike Type | Electric Bike |
| Model Name | Rover (Part Number: Montta) |
| Brand | Cyrusher |
| Wheel Size | 26 Inches |
| Frame Material | 6061 Aluminum Alloy (4-linkage frame) |
| Suspension Type | Dual (Adjustable Front Suspension, Mid-Mounted Rear Shock) |
| Motor Wattage | 1500 watts |
| Battery | 52V16Ah (832Wh) Removable Lithium Battery |
| Max Range (Pedal Assist) | Up to 62 Miles (101 km) |
| Number of Speeds | 7 (Shimano Gear System) |
| Brake Style | Hydraulic Disc Brakes |
| Wheel Width | 4 Inches (Fat Tires) |
| Maximum Weight Recommendation | 330 Pounds |
| Minimum User Height | 5.7 Feet |
| Included Components | Assembly Toolset, Manual, Wrench, Charger, Pump, Battery |
| Assembly Required | Yes |
| Specific Uses For Product | Gravel, Road, Snow, Trail |
Figure 6.1: Dimensions of the Cyrusher Rover Electric Bike, including seat height, reach, head tube length, wheelbase, and total length, along with recommended rider height.
7. Warranty and Support
7.1 Warranty Information
The Cyrusher Rover Electric Bike comes with a comprehensive warranty:
- Frame and Motor: 2-year warranty.
- Parts and Battery: 1-year warranty.
Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and material faults under normal use conditions.
7.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact Cyrusher customer support. Refer to the contact information provided in your product packaging or visit the official Cyrusher website.
You can also visit the Cyrusher Store on Amazon for additional information and support: Cyrusher Store
