RUNOLIM Bluetooth Headphones WH204A User Manual

Introduction

Welcome to the user manual for your RUNOLIM Bluetooth Over-Ear Wireless Headphones. This guide provides essential information for setting up, operating, maintaining, and troubleshooting your headphones to ensure optimal performance and an enjoyable audio experience.

What's in the Box

• Wireless Headphones x 1
• 3.5mm Audio Cable x 1
• Charging Cable x 1
• User Manual x 1

Product Overview

The RUNOLIM WH204A headphones are engineered for both comfort and high-quality audio delivery, featuring a robust design and intuitive controls.

Key Features

• Bluetooth 5.3 Technology: Ensures a stable and efficient wireless connection.
• 40mm Large Bezel Driver Units: Delivers high-fidelity stereo sound with deep bass and clear treble.
• 6 EQ Modes: Customize your audio experience with presets for Pop, Rock, Vocal, Jazz, Bass, and Classic.
• Built-in Microphone: Enables clear, hands-free phone communication.
• Extended Playtime: Offers up to 65 hours of listening on a single charge.
• Comfortable Design: Features ultra-soft ear cushions and a padded headband for prolonged wear.
• Foldable and Adjustable: Provides portability and a secure fit for various head sizes.
• Wired Backup: Includes a 3.5mm audio cable for traditional wired connection.

Controls and Ports

• Multi-Function Button: Controls power on/off, play/pause, and answer/end calls.
• Volume Up/Next Track Button: Short press to increase volume; long press for the next track.
• Volume Down/Previous Track Button: Short press to decrease volume; long press for the previous track.
• EQ Button: Cycles through the 6 available equalizer modes.
• Type-C Charging Interface: Used for charging the headphone battery.
• 3.5mm Audio Interface: For connecting the headphones via a wired connection.
• Microphone: Integrated for voice calls and commands.
• LED Indicator: Displays power, charging, and connection status.

Setup

Charging the Headphones

1. Connect the provided Type-C charging cable to the charging port on the headphone.
2. Connect the other end of the cable to a compatible USB power source (e.g., computer, wall adapter).
3. The LED indicator will illuminate (e.g., red) to show charging status and change (e.g., blue) when fully charged.
4. A full charge typically takes approximately 2.5 hours.

Powering On/Off

• Power On: Press and hold the Multi-Function Button until the LED indicator flashes.
• Power Off: Press and hold the Multi-Function Button until the LED indicator turns off.

Bluetooth Pairing

1. Ensure the headphones are powered off.
2. Press and hold the Multi-Function Button for approximately 5 seconds until the LED indicator flashes blue and red alternately, indicating pairing mode.
3. On your device (smartphone, tablet, computer), enable Bluetooth and search for available devices.
4. Select "RUNOLIM WH204A" (or similar name) from the list of detected devices.
5. Once successfully connected, the LED indicator will flash blue slowly.

Operating Instructions

Music Playback

• Play/Pause: Short press the Multi-Function Button.
• Next Track: Long press the Volume Up button.
• Previous Track: Long press the Volume Down button.
• Volume Up: Short press the Volume Up button.
• Volume Down: Short press the Volume Down button.

Call Management

• Answer/End Call: Short press the Multi-Function Button.
• Reject Call: Long press the Multi-Function Button.
• Redial Last Number: Double-press the Multi-Function Button.

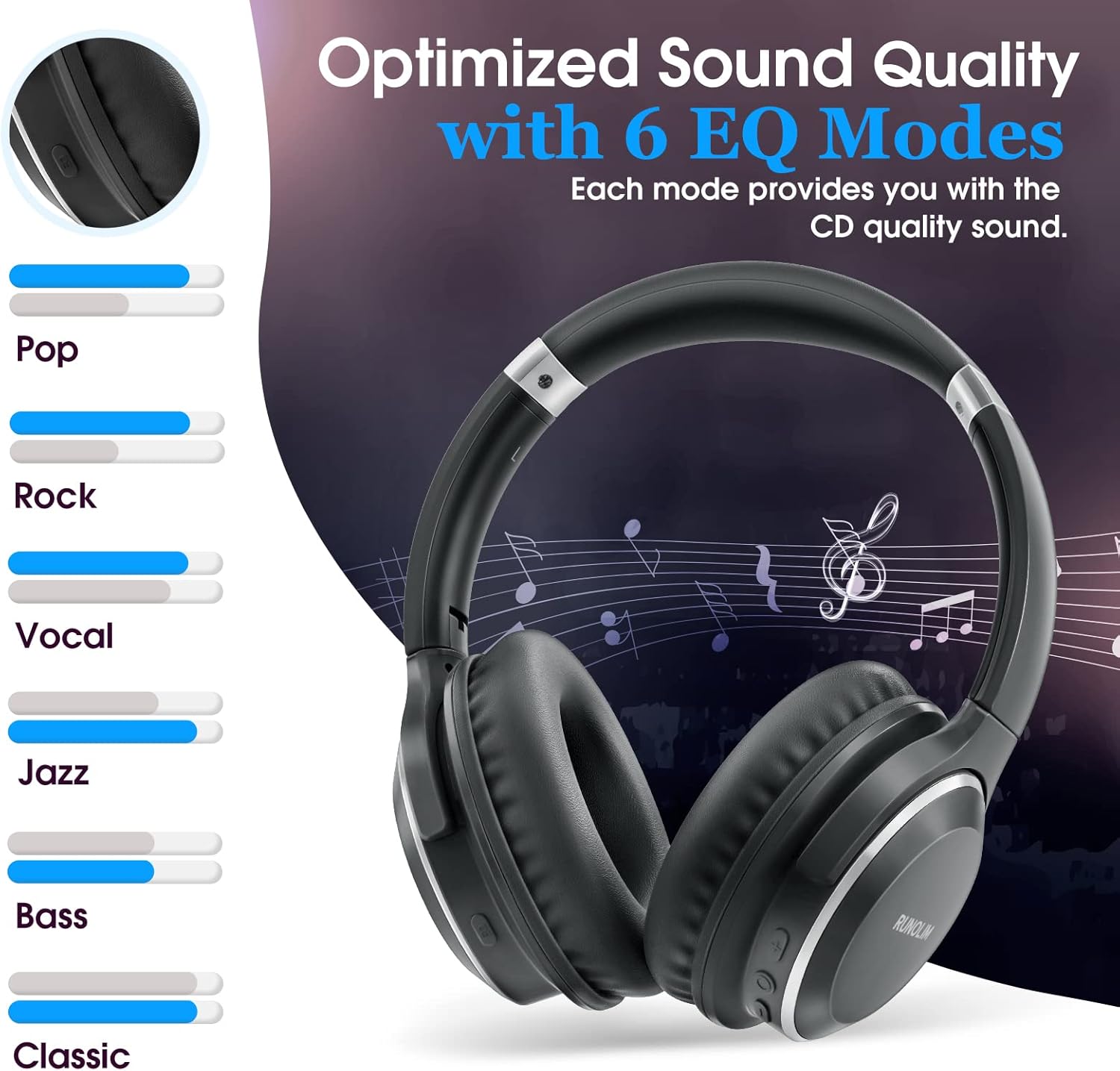

EQ Modes

The headphones feature 6 distinct EQ modes to optimize your listening experience for various music genres:

• Pop
• Rock
• Vocal
• Jazz
• Bass
• Classic

To switch between these modes, short press the EQ Button located on the earcup.

Wired Mode

To use the headphones in wired mode, connect the 3.5mm audio cable to the headphone's audio jack and your device's audio output. Bluetooth functionality will be disabled automatically when the audio cable is inserted.

Maintenance

• Keep the headphones clean by gently wiping them with a soft, dry cloth.
• Avoid exposing the headphones to extreme temperatures, high humidity, or direct contact with liquids.
• Store the headphones in a cool, dry place when not in use. The foldable design facilitates compact and safe storage.
• Do not attempt to disassemble or repair the headphones yourself, as this may void the product warranty and cause damage.

Troubleshooting

No Power

• Ensure the headphones are fully charged.
• Check the charging cable and power source for proper connection and functionality.

Cannot Pair with Device

• Ensure the headphones are in pairing mode (LED flashing blue and red alternately).
• Make sure Bluetooth is enabled on your device.
• Move the headphones closer to your device to reduce potential interference.
• Clear the Bluetooth pairing list on your device and attempt the pairing process again.

No Sound

• Verify the volume levels on both the headphones and your connected device.
• Ensure the headphones are properly paired via Bluetooth or that the 3.5mm audio cable is securely connected.
• If using wired mode, confirm that the headphones are powered off.

Poor Sound Quality

• Move closer to your Bluetooth device to minimize signal interference.
• Try switching between the different EQ modes to find the optimal setting.
• Ensure the audio source itself is of good quality.

Specifications

Warranty and Support

For detailed warranty information and customer support, please refer to the documentation included with your purchase or visit the official RUNOLIM website. It is recommended to retain your proof of purchase for any potential warranty claims or service requests.
