1. Introduction
Thank you for choosing the Yaheetech Metal Bed Frame. This manual provides detailed instructions for the assembly, operation, and maintenance of your new bed frame. Please read this manual carefully before assembly and retain it for future reference.
This sturdy metal bed frame, measuring 140 x 200 x 41.5 cm, is designed for durability and stability, featuring a slatted base that eliminates the need for a box spring. Its minimalist design integrates seamlessly into various bedroom styles, offering ample under-bed storage space.

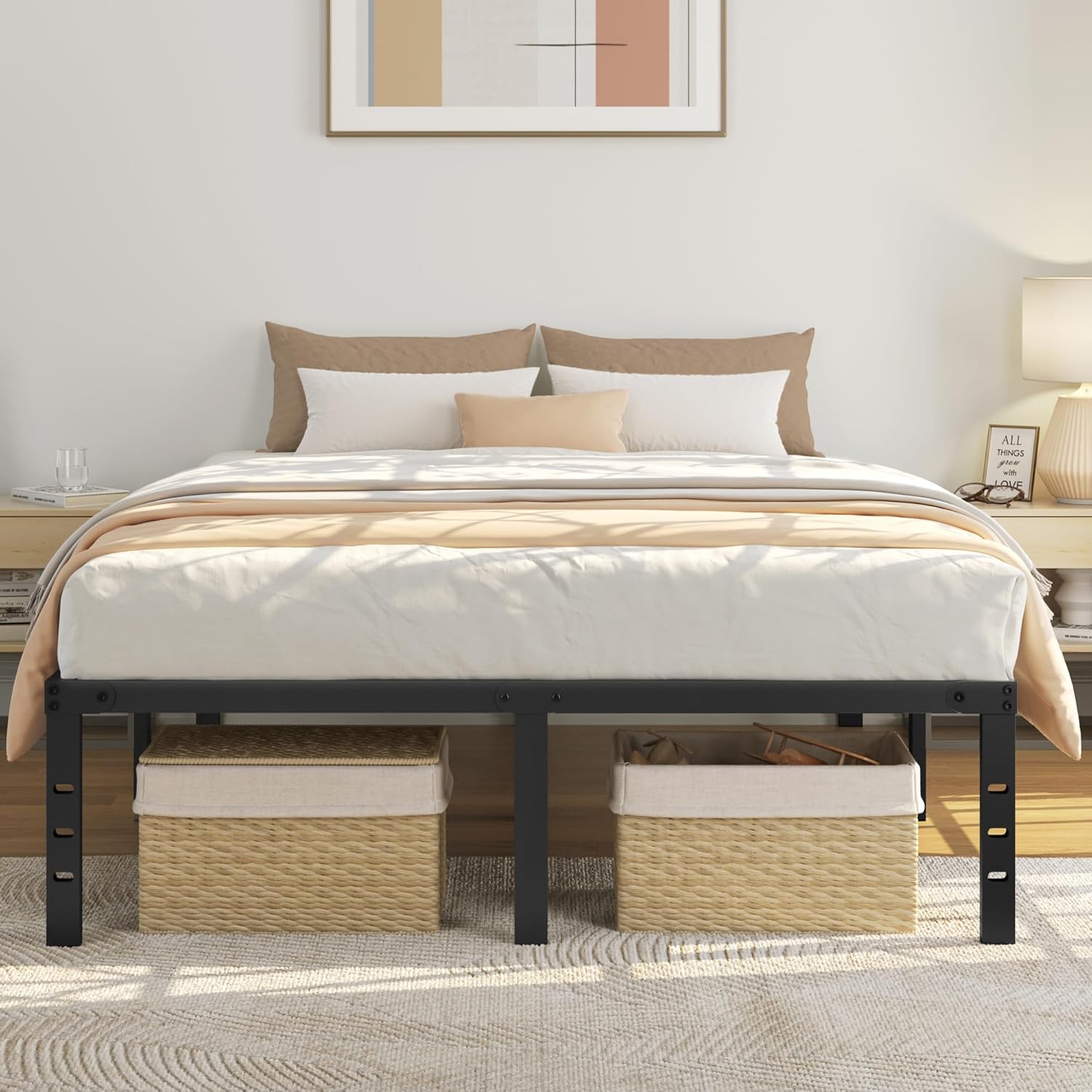

Image: The Yaheetech metal bed frame, fully assembled with a mattress, showcasing its design and under-bed storage capability.
2. Safety Instructions
- Read all instructions before assembly and use.
- Keep all small parts and packaging materials away from children and pets to prevent choking hazards.
- Assemble the bed frame on a soft, clean surface (e.g., carpet) to prevent scratches.
- Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten connections.
- Do not stand or jump on the bed frame.
- Distribute weight evenly across the bed frame. The maximum load capacity is approximately 363 kg (800 lbs).
- Use only the recommended mattress size (140 x 200 cm) to ensure proper fit and support.
3. Package Contents
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Metal Frame Components (Side Rails, Center Support Beams, Legs)
- Slatted Frame (Lattenrost)
- Hardware Pack (Bolts, Screws, Allen Key)
- Instruction Manual
4. Setup and Assembly
Assembly typically requires two adults and takes approximately 30-60 minutes. An Allen key is provided; no additional tools are usually required.
Assembly Steps:
- Unpack and Identify Parts: Carefully unpack all components and lay them out on a soft, clean surface. Identify each part by referring to the parts list in your manual (if provided separately) or by matching them to the diagrams.
- Assemble the Main Frame: Connect the side rails and end rails using the provided bolts and the Allen key. Ensure all connections are snug but do not fully tighten yet.
- Attach Legs and Center Supports: Securely attach the legs to the frame. The bed frame features integrated rails and legs for simplified assembly. Ensure the reserved holes for an optional headboard face the head end of the bed.
- Install the Slatted Frame: The bed frame comes with solid metal slats that replace a traditional box spring. Align the slats with the designated slots on the frame and press them down to secure. The slats are designed to sit flush with the sides, allowing the bed to be placed close to a wall.
- Secure Mattress Stoppers: Two non-slip stoppers are located on each side of the frame to prevent the mattress from sliding. Ensure these are properly positioned.
- Final Tightening: Once all components are assembled, go back and fully tighten all bolts and screws. Do not overtighten.
Image: Detailed view of the bed frame's assembly points, highlighting the slat attachment mechanism and the integrated design of the rails and legs.
Image: Visual guide for installing the metal slats, demonstrating how to align and secure them into the frame.
Image: A close-up of the integrated mattress stopper, designed to keep the mattress securely in place.
5. Operating (Usage)
The Yaheetech Metal Bed Frame is designed for daily use with a standard 140 x 200 cm mattress. No box spring is required, as the robust metal slats provide ample support for various mattress types, including latex, memory foam, or spring mattresses.
A key feature of this bed frame is its generous under-bed clearance of approximately 37.5 cm (or 32 cm in some variants), providing ample space for storing items such as suitcases, storage boxes, or off-season clothing, helping to keep your bedroom tidy and organized.
Image: Illustration of the significant under-bed clearance, highlighting its utility for storage.
6. Maintenance
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
- Regular Checks: Periodically (e.g., every 3-6 months) check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability and prevent squeaking.
- Load Distribution: Always distribute weight evenly on the bed to prevent undue stress on specific areas of the frame.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose bolts or improper assembly. | Ensure all bolts are fully tightened. Review assembly steps to confirm correct installation of all parts. |
| Squeaking noises. | Loose connections or friction between metal parts. | Tighten all bolts. If squeaking persists, apply a small amount of silicone lubricant to connection points. |
| Mattress slides on the frame. | Stoppers not properly positioned or missing. | Ensure the two non-slip stoppers on each side are correctly installed and positioned to hold the mattress. |
| Slats detach or feel unstable. | Slats not fully secured in their slots. | Press down firmly on each slat to ensure it is fully seated and locked into its designated slot. If issues persist, consider using cable ties to further secure the slats to the frame, as suggested by some users. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | YA-00119206 |
| Dimensions (L x W x H) | 201 x 141.5 x 41.5 cm (79.1 x 55.7 x 16.3 inches) |
| Suitable Mattress Size | 140 x 200 cm |
| Material | Metal (Powder-coated) |
| Color | Black |
| Item Weight | 18.6 kg (41 lbs) |
| Maximum Load Capacity | 363 kg (800 lbs) |
| Under-Bed Clearance | Approx. 37.5 cm (14.8 inches) or 32 cm (12.6 inches) depending on variant. |
| Special Feature | Colorfast, No Box Spring Required, Ample Storage Space, Non-slip Mattress Stoppers, Reserved Headboard Holes |

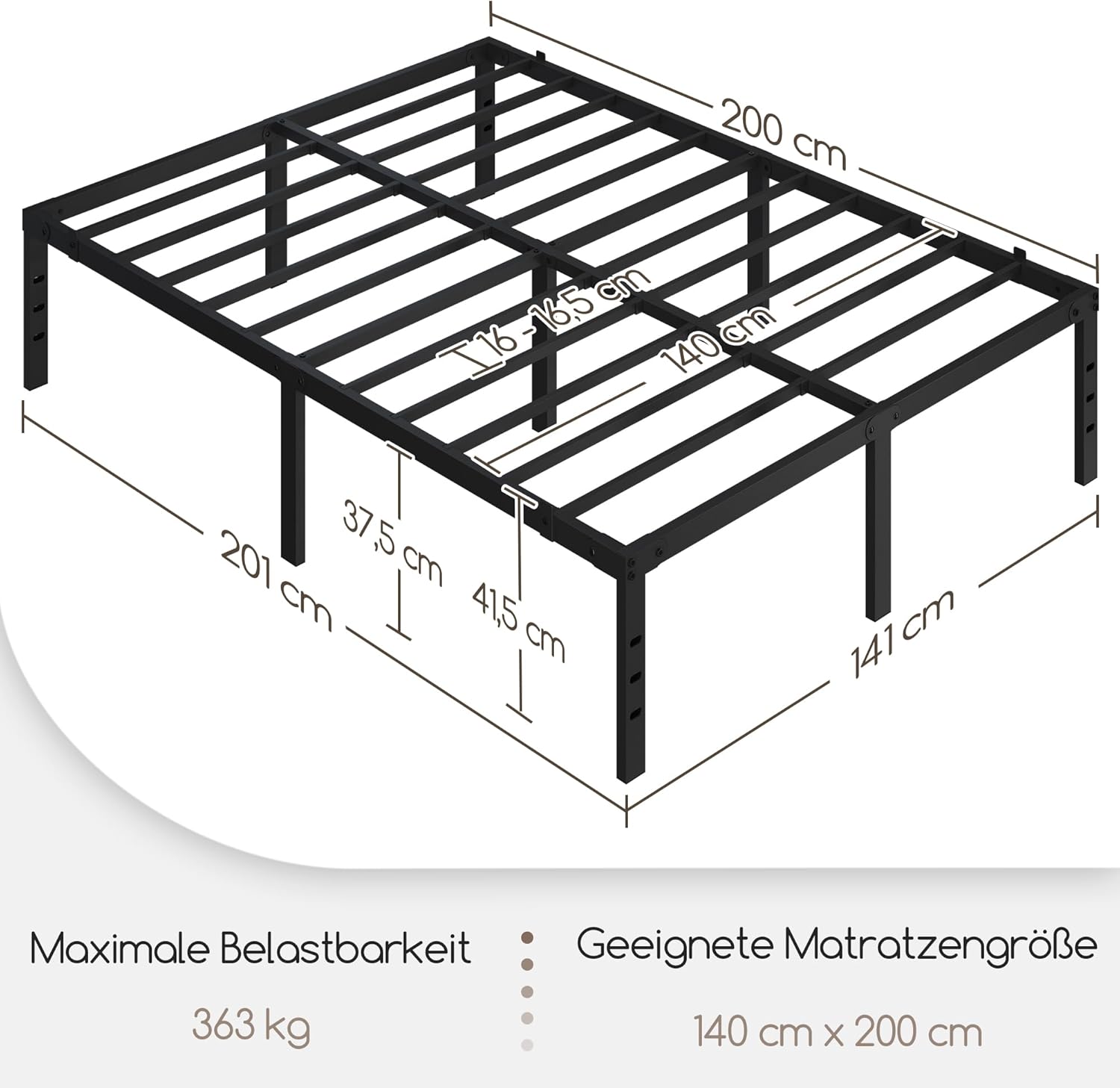

Image: Technical diagram illustrating the bed frame's dimensions and maximum load capacity.
Image: Depiction of the solid metal frame, highlighting its robust construction for stability and durability.
9. Warranty and Support
Yaheetech products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official Yaheetech website.
If you encounter any issues during assembly or use, or if you have questions about your product, please contact Yaheetech customer support. Have your model number (YA-00119206) and purchase details ready for faster service.
