ODK L-Shaped Gaming Desk User Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your ODK L-Shaped Gaming Desk, Model ZJZ-SZWJ. Please read this manual thoroughly before assembly and use to ensure proper setup and to maximize the lifespan of your product. Keep this manual for future reference.

2. Safety Information

• Ensure all parts are present and undamaged before beginning assembly. Do not proceed with assembly if any parts are missing or damaged.
• Assemble the desk on a soft, clean surface to prevent scratches.
• Always use the correct tools as specified in the assembly instructions.
• Do not overtighten screws during assembly, as this may damage the material.
• Keep small parts and packaging materials away from children and pets to prevent choking hazards.
• Do not stand or sit on the desk.
• Place the desk on a level surface to ensure stability. Adjust the leveling feet as needed.
• Avoid placing excessively heavy items on the desk or shelves.

3. Package Contents

Before assembly, verify that all components listed below are included in your package. If any parts are missing, please contact customer support.

• L-shaped desktop panels
• Metal frame components
• Storage shelves (left and right)
• Movable monitor stand
• Two iron hooks
• Assembly hardware (screws, bolts, Allen wrench)
• Instruction manual

4. Setup and Assembly Instructions

Follow these steps carefully to assemble your ODK L-Shaped Gaming Desk. It is recommended to have two people for assembly.

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a clean, soft surface and compare them against the package contents list to ensure everything is present.
2. Assemble the Frame: Begin by connecting the main metal frame components according to the diagrams provided in the separate assembly guide. Ensure all connections are secure but do not fully tighten screws until all frame parts are loosely assembled.
3. Attach Desktop Panels: Carefully place the L-shaped desktop panels onto the assembled frame. Align the pre-drilled holes and secure the panels to the frame using the provided screws. Once all panels are in place, gradually tighten all screws on the frame and desktop.
4. Install Storage Shelves: Attach the left and right storage shelves to their designated positions on the desk frame. These shelves are designed to hold a PC tower, books, or other accessories.
5. Position Monitor Stand: The monitor stand is movable. Place it on the desktop in your desired location. It is designed to elevate your monitor for ergonomic viewing.
6. Attach Iron Hooks: Secure the two iron hooks to the underside of the desk, typically on the side panels, for hanging headphones or other items.
7. Adjust Leveling Feet: Once the desk is fully assembled and in its final position, adjust the adjustable feet at the bottom of the desk legs to ensure the desk is stable and level on uneven floors.

Image 1: An overview of the fully assembled ODK L-Shaped Gaming Desk, showcasing its design and functionality within a gaming environment.

Image 2: A detailed diagram illustrating the dimensions of the L-shaped desk, including lengths of 148cm and 120cm, and a height of 74cm.

5. Operating Instructions

Your ODK L-Shaped Gaming Desk is designed for versatile use in gaming, work, or study environments. Utilize its features as follows:

• Spacious Desktop: The L-shaped design provides ample surface area for multiple monitors, keyboards, mice, and other peripherals.
• Storage Shelves: The integrated two-tier storage shelves on both sides offer convenient space for a PC tower, books, documents, or decorative items.
• Movable Monitor Stand: Use the separate monitor stand to elevate your display to an ergonomic height, reducing neck and eye strain. Its movable design allows for flexible placement.
• Iron Hooks: The two included iron hooks are ideal for hanging headphones, backpacks, or other accessories, keeping your desktop clutter-free.

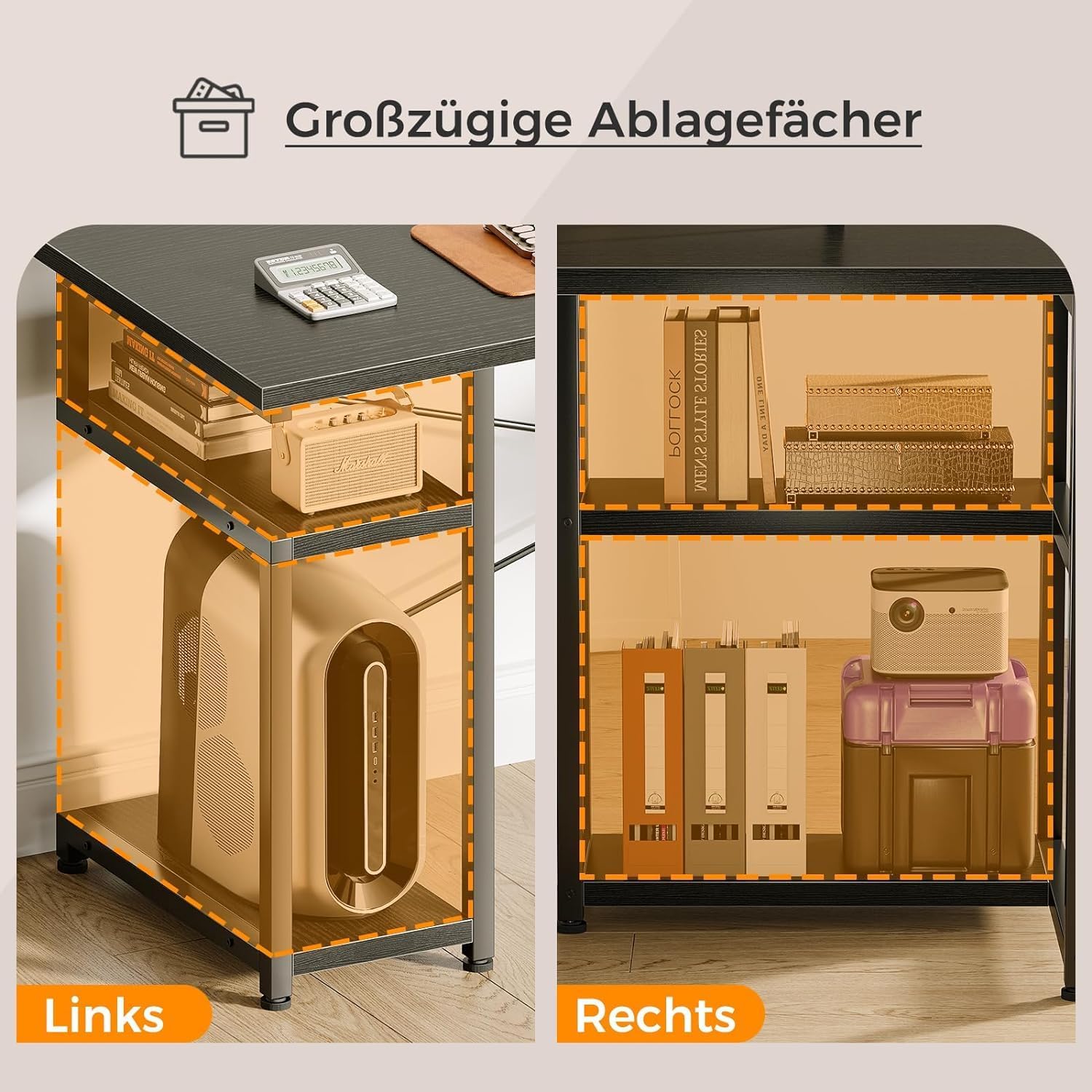

Image 3: A close-up view of the left and right storage shelves, demonstrating their capacity for a PC tower, books, and other items.

Image 4: This image highlights key features including the movable monitor stand, the water-resistant desktop surface, and the practical iron hooks.

Image 5: A detailed view of the iron hooks, demonstrating their use for organizing headphones and other small items.

6. Maintenance

To ensure the longevity and appearance of your ODK L-Shaped Gaming Desk, follow these maintenance guidelines:

• Cleaning: Wipe the desk surface with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish. The textured surface is designed to be easy to clean.
• Spills: The desk surface is water-resistant. In case of spills, wipe them immediately with a dry cloth to prevent any potential damage.
• Stability Check: Periodically check all screws and bolts to ensure they remain tight. Retighten if necessary to maintain desk stability.
• Leveling Feet: Re-adjust the leveling feet if the desk becomes wobbly or if you move it to a new location with an uneven floor.

Image 6: A close-up demonstrating the water-resistant properties of the desk surface, showing water droplets beading on the material.

Image 7: A detailed view of the adjustable leveling feet, which can be rotated to stabilize the desk on uneven surfaces.

7. Troubleshooting

If you encounter any issues with your ODK L-Shaped Gaming Desk, refer to the following common problems and solutions:

• Desk is Wobbly:
  • Ensure all screws and bolts are securely tightened.
  • Adjust the leveling feet at the bottom of each leg to compensate for uneven flooring.
• Parts are Missing:
  • Double-check the packaging and all packing materials. Small parts can sometimes be overlooked.
  • If parts are genuinely missing, contact ODK customer support with your purchase details.
• Difficulty During Assembly:
  • Refer to the detailed assembly guide provided with the product.
  • Ensure you are using the correct hardware for each step.
  • Do not force parts together. If they don't fit, re-check the instructions and orientation.

8. Specifications

9. Warranty and Support

ODK is committed to customer satisfaction. For any questions regarding your product, missing parts, or assembly assistance, please contact ODK customer support. Refer to your purchase documentation for specific warranty details and contact information.
