Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Cecotec Bolero Hexa AF326000 Built-in Multifunction Airfryer Oven. Please read these instructions carefully before using the appliance and keep them for future reference.
Important Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, burns, or injury. This appliance is intended for household use only.
- Ensure the oven is properly installed by a qualified technician before use.
- Do not touch hot surfaces. Use oven mitts or pot holders.
- Keep children away from the appliance during operation and cooling.
- Never use water to extinguish grease fires.
- Unplug the appliance from the power outlet when not in use and before cleaning.
- Do not operate the oven if the power cord or plug is damaged.
- Ensure adequate ventilation around the appliance.
- The oven door features quadruple glazing to reduce external surface temperature, but it may still be warm.
Setup and Installation
Unpacking
Carefully remove all packaging materials. Inspect the oven for any damage. Do not install a damaged appliance.
Installation Requirements
The Cecotec Bolero Hexa AF326000 is a built-in oven. Installation must be performed by a qualified professional in accordance with local regulations and the provided installation diagrams.

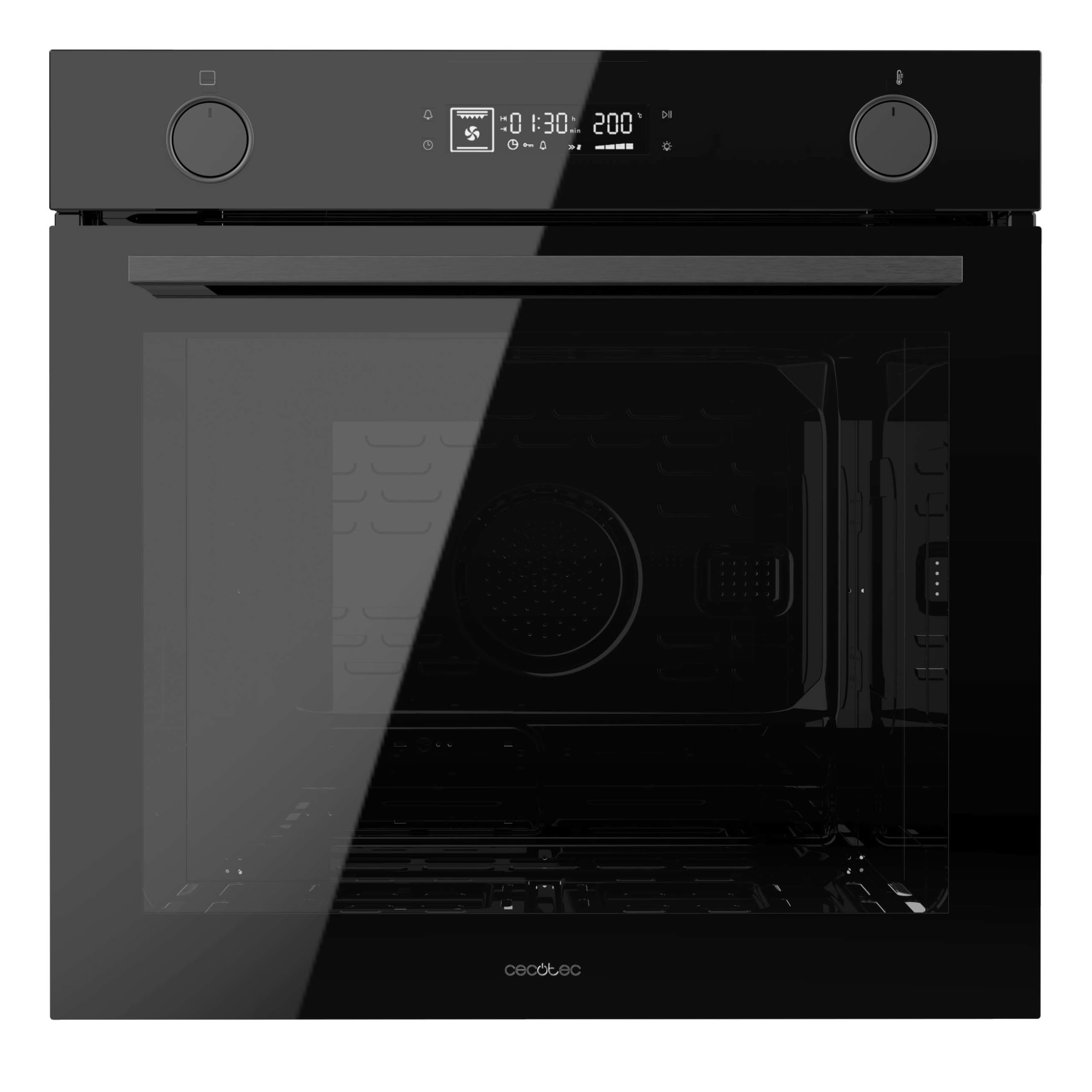

Image: Front view of the Cecotec Bolero Hexa AF326000 oven, showing its dimensions: 59.5 cm width, 59.5 cm height, and 57.5 cm depth.
Image: Technical diagram illustrating the external dimensions of the Cecotec Bolero Hexa AF326000 oven, with measurements in centimeters.
Image: Installation diagram showing the required cutout dimensions for integrating the Cecotec Bolero Hexa AF326000 oven into kitchen cabinetry, including minimum clearances.
Electrical Connection
Connect the oven to a properly grounded electrical outlet. Ensure the voltage (240 Volts) and power (3250 Watts) match your household electrical supply.
Initial Cleaning
Before first use, clean the interior of the oven and all accessories with a damp cloth and mild detergent. Run the oven empty at a high temperature (e.g., 200°C) for about 30 minutes to burn off any manufacturing residues. Ensure good ventilation during this process.
Operating Instructions
Control Panel Overview
The oven features a tactile control screen and rotary knobs for easy operation. Use the knobs to select functions and adjust settings, and the touch buttons for confirmation or specific options.
Image: Close-up of the Cecotec Bolero Hexa AF326000 oven's digital control panel, showing the display with time, temperature, and function icons, along with the rotary knobs.
Oven Functions
Your oven offers 12 functions for versatile cooking:
- Defrost Mode: Gently thaws frozen food.
- Conventional: Top and bottom heating for traditional baking and roasting.
- Convection + Grill: Combines fan-assisted heat with grilling for even browning.
- Medium Grill: Ideal for grilling smaller portions.
- Grill Mode: Intense top heat for grilling and browning.
- Eco Mode: Energy-saving cooking option.
- Pyrolysis: High-temperature self-cleaning function.
- Airfryer Master: Utilizes a dedicated basket and hot air circulation for crispy results.
- Pizza Master: Optimized setting for baking pizzas, often with a pizza stone.
- Additional functions may include Steam Base XXL, Steam Assist, and Steam EasyClean for enhanced cooking and cleaning.
Image: A collage showing various dishes cooked in the Cecotec Bolero Hexa AF326000 oven: chicken wings, french fries, and pizza, highlighting its versatility.
Image: Inside the Cecotec Bolero Hexa AF326000 oven, showing the Airfryer basket filled with chicken wings, ready for cooking.
Image: The Cecotec Bolero Hexa AF326000 oven displaying a pizza baking on a pizza stone, with a "Pizza Master" logo overlay.
Image: A baking tray with whole fish and roasted vegetables being removed from the Cecotec Bolero Hexa AF326000 oven, demonstrating its capacity for larger meals.
Image: A perfectly roasted whole chicken with cherry tomatoes inside the Cecotec Bolero Hexa AF326000 oven, highlighting its even cooking capabilities.
Setting Temperature and Time
Use the rotary knobs to set the desired temperature and cooking time. The digital display will show the current settings. The oven requires a set cooking time, even for preheating. The oven will automatically turn off once the set time is reached.
Preheating
For best results, preheat the oven to the desired temperature before placing food inside. The oven heats up quickly. There is no specific indicator for when the target temperature is reached, so allow sufficient time based on the recipe.
Cooling Fan
The integrated Cooling Fan system ensures optimal cooling of the oven during and after cooking. This fan may continue to operate for a period after the oven is turned off to dissipate residual heat.
Oven Door
The oven features a quadruple-glazed door designed to keep the exterior surface cooler and prevent heat loss. While the outer glass remains cooler than traditional oven doors, it may still be warm to the touch during operation. The oven will stop heating if the door is opened during cooking.
Image: The open door of the Cecotec Bolero Hexa AF326000 oven, with an inset diagram illustrating the quadruple glass layers for insulation.
Maintenance and Cleaning
Pyrolytic Cleaning
The Pyrolysis function uses high temperatures to decompose food residues into ash, which can then be easily wiped away once the oven has cooled. Follow the specific instructions in the oven's display for initiating a pyrolytic cycle.
Steam EasyClean
For lighter cleaning, the Steam EasyClean function uses steam to loosen dirt and grease, making manual cleaning easier. Consult the oven's display or dedicated section in the full manual for detailed steps.
Image: A split image showing the interior of the Cecotec Bolero Hexa AF326000 oven before and after cleaning, demonstrating the effectiveness of its cleaning functions.
General Cleaning
Regularly clean the oven interior and exterior with a soft cloth and mild, non-abrasive cleaning agents. Remove all accessories (trays, racks) before cleaning. Do not use harsh chemicals or abrasive pads.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not heat up. | No power supply; incorrect settings. | Check power connection and circuit breaker. Ensure a cooking function and temperature are selected. |
| Temperature not reached or takes too long. | Door opened during preheating; incorrect temperature setting. | Keep the oven door closed during preheating. Verify the set temperature. Allow sufficient time for preheating. |
| Oven makes unusual noise. | Cooling fan operation; loose components. | The cooling fan operates during and after cooking; this is normal. If the noise is excessive or unusual, contact support. |
| Exterior surfaces are hot. | Normal operation; prolonged use at high temperatures. | While the quadruple glazed door reduces heat, some surfaces may still be warm. Use caution and avoid prolonged contact. |
| Oven stops heating when door is opened. | Safety feature. | This is a normal safety feature to prevent heat loss and ensure efficient operation. Close the door to resume heating. |
Technical Specifications
| Feature | Detail |
|---|---|
| Model Name | Bolero Hexa AF326000 Glass Black A |
| Capacity | 73 Liters |
| Power | 3250 Watts |
| Energy Class | A |
| Dimensions (D x W x H) | 57.5 cm x 59.5 cm x 59.5 cm |
| Weight | 31.1 Kilograms |
| Voltage | 240 Volts |
| Heating Method | Conduction |
| Finish Type | Glass Black |
| Material | Glass |
| Door Opening | Right |
| Timer Function | Available |
| Manufacturer Part Number | 04733 |
| Country of Origin | Spain |
What's in the Box
Upon unpacking, you should find the following items:
- Cecotec Bolero Hexa AF326000 Multifunction Oven
- User Manual
- Baking Tray
- Grill Rack
- XXL Pizza Stone
- Airfryer Basket
Warranty and Support
Warranty Information
This product comes with a 3-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal household use.
Spare parts availability is guaranteed for 10 years.
Customer Support
For technical assistance, troubleshooting not covered in this manual, or warranty service, please contact Cecotec customer support. Refer to the official Cecotec website or the contact information provided in your purchase documentation for details.
