1. Introduction

This manual provides essential information for the safe and efficient operation of your Cecotec Flux TT 905500 Glass White 90cm Wall-Mounted Extractor Hood. Please read these instructions carefully before installation and use, and retain them for future reference. This appliance is designed to remove smoke, steam, and odors from your cooking area, ensuring a cleaner kitchen environment.

Image 1.1: Front view of the Cecotec Flux TT 905500 Extractor Hood, displaying its A++ energy efficiency rating, 550m³/h extraction capacity, and 90cm width.

2. Safety Instructions

To prevent personal injury or damage to the appliance, always observe the following safety precautions:

• Ensure the electrical installation complies with local regulations.
• Do not operate the hood if the power cord is damaged. Contact qualified personnel for repairs.
• Maintain a minimum distance between the hob and the lower part of the hood as specified in the installation section.
• Never leave frying food unattended, as overheated oil can ignite.
• Clean grease filters regularly to prevent grease buildup, which can be a fire hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Ensure adequate ventilation in the room when the hood is used simultaneously with appliances burning gas or other fuels.

3. Package Contents

Verify that all components are present and undamaged upon unpacking:

• Cecotec Flux TT 905500 Extractor Hood
• Mounting Kit (screws, wall plugs, brackets)
• User Manual
• Charcoal Filter (if included for recirculation mode)

4. Setup and Installation

The Cecotec Flux TT 905500 is a wall-mounted extractor hood. Proper installation is crucial for performance and safety. It can operate in extraction mode (ducting air outside) or recirculation mode (filtering air and returning it to the kitchen).

4.1 Planning and Dimensions

Before installation, ensure sufficient space and proper clearances. Refer to the technical drawing for precise measurements.

Image 4.1: Technical drawing illustrating the dimensions and mounting points of the extractor hood. Dimensions are in centimeters.

4.2 Mounting the Hood

1. Mark the drilling points on the wall according to the provided template and technical drawing.
2. Drill holes and insert wall plugs.
3. Secure the mounting bracket to the wall.
4. Carefully lift and attach the hood to the mounting bracket.
5. Connect the exhaust ducting (for extraction mode) or install charcoal filters (for recirculation mode).
6. Connect the power supply.

Image 4.2: The extractor hood installed in a kitchen setting, demonstrating its integration above a cooking hob.

5. Operating Instructions

The Cecotec Flux TT 905500 features a touch control panel and Hand Movement Control for intuitive operation.

5.1 Control Panel Overview

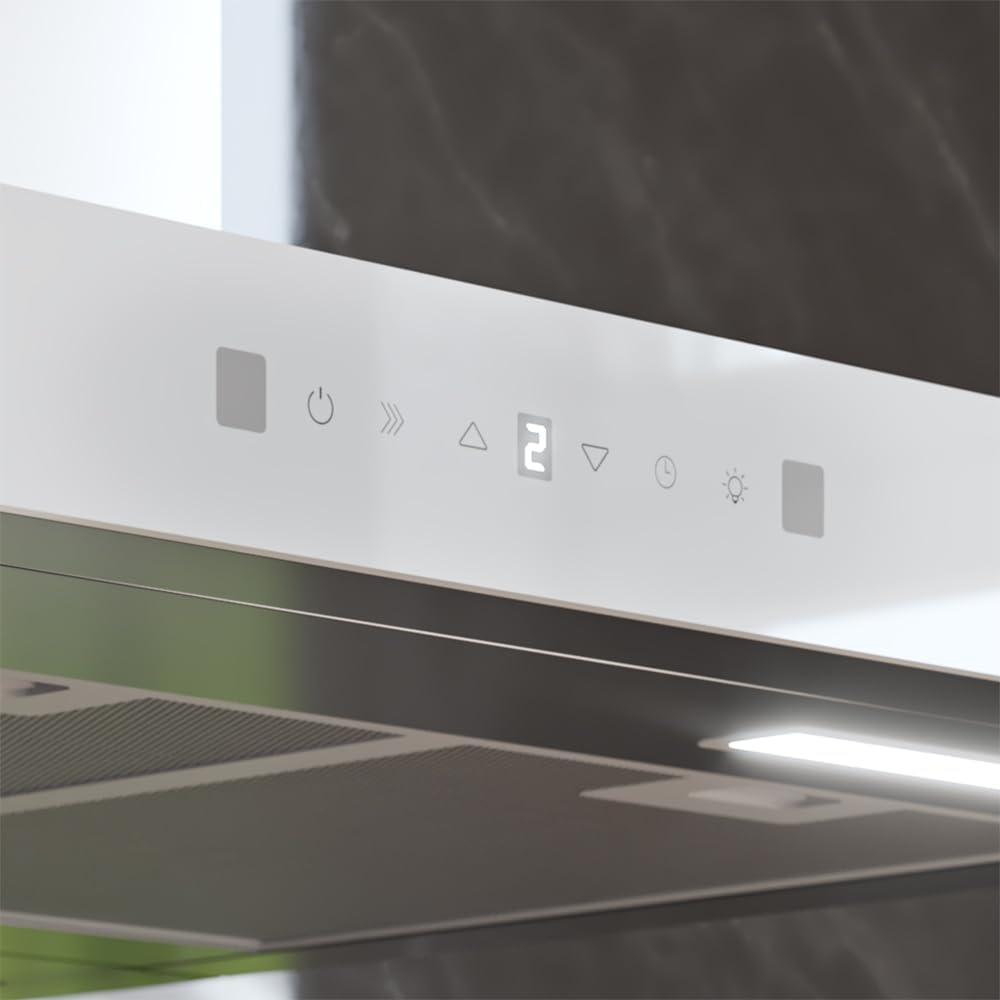

Image 5.1: Detailed view of the touch control panel, showing icons for power, speed levels, lighting, and delay function.

5.2 Functions

• Power On/Off: Touch the power icon to turn the hood on or off.
• Speed Selection: The hood offers 3 power levels plus a Booster function. Use the '+' and '-' icons to adjust the extraction speed according to your cooking needs.
• LED Lighting: Touch the light bulb icon to turn the integrated LED lights on or off, illuminating your cooking area.
• Hand Movement Control: This feature allows you to control the hood with simple hand gestures. Wave your hand left or right in front of the sensor to adjust settings without touching the panel.
• Delay Function: Activate the delay function to allow the hood to continue operating for a set period after cooking, ensuring all residual odors are removed before automatically switching off.

Image 5.2: Visual representation of the Hand Movement Control feature, showing hand gestures interacting with the hood's sensors.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your extractor hood.

6.1 Cleaning Grease Filters

The 5-layer aluminum grease filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain effective grease removal. They can be washed by hand with hot soapy water or in a dishwasher.

1. Ensure the hood is switched off and disconnected from the power supply.
2. Locate the release clips on the filters and gently pull them down to remove.
3. Clean the filters thoroughly.
4. Allow filters to dry completely before re-installing.

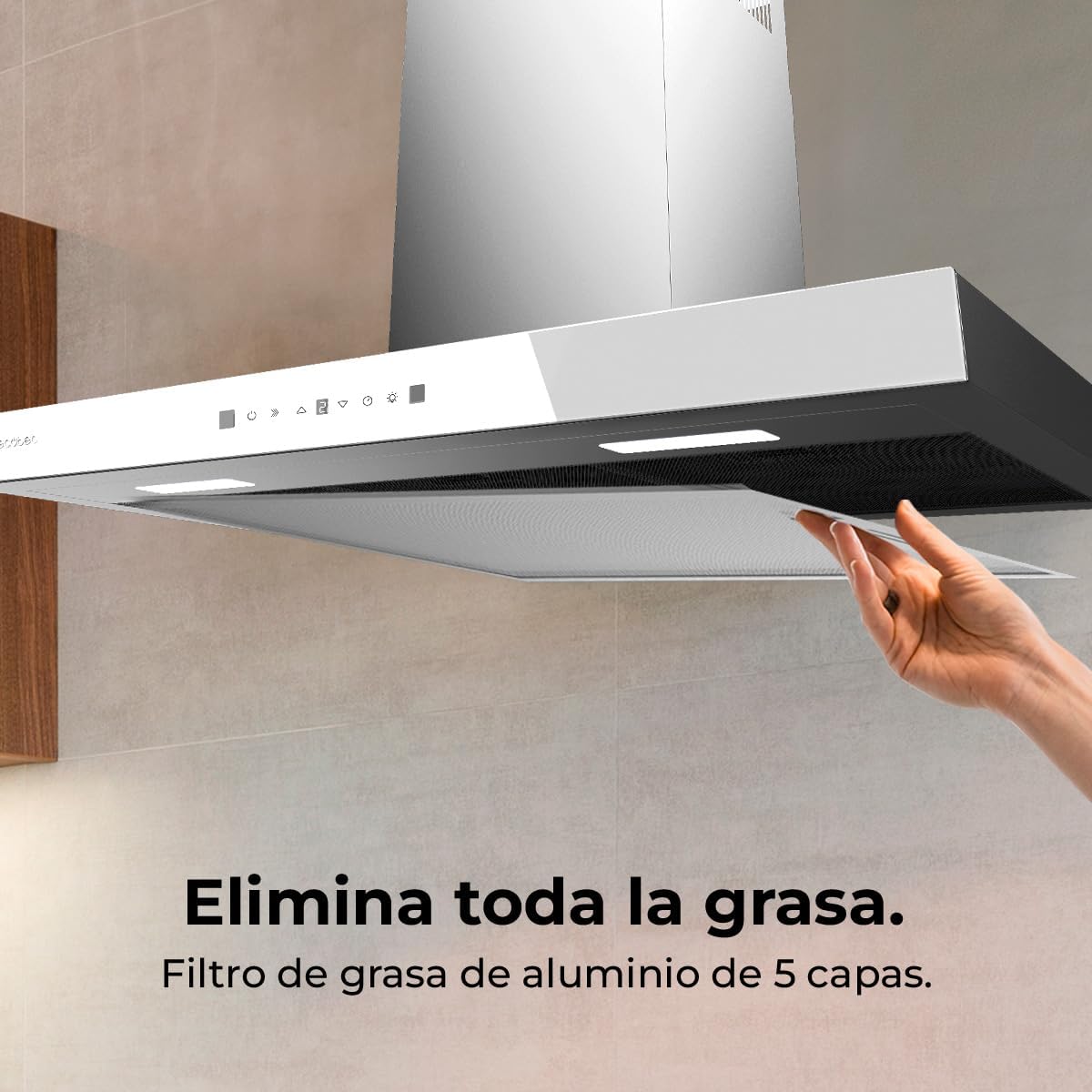

Image 6.1: A hand demonstrating the removal of a 5-layer aluminum grease filter for cleaning.

6.2 Replacing Charcoal Filters (Recirculation Mode Only)

If your hood operates in recirculation mode, the charcoal filters absorb odors and should be replaced every 3-6 months, depending on usage. These filters are not washable.

1. Ensure the hood is switched off and disconnected from the power supply.
2. Remove the aluminum grease filters as described above.
3. Twist or unclip the old charcoal filters from their housing.
4. Install new charcoal filters, ensuring they are securely in place.
5. Re-install the aluminum grease filters.

Image 6.2: A graphic representation of two circular charcoal filters, used for odor absorption in recirculation mode.

7. Troubleshooting

Refer to the following table for common issues and their solutions:

8. Specifications

Detailed technical specifications for the Cecotec Flux TT 905500 Extractor Hood:

Image 8.1: The energy label for the Cecotec Flux TT 905500, indicating its A++ energy efficiency and other performance metrics.

9. Warranty and Support

9.1 Warranty Information

This Cecotec Flux TT 905500 Extractor Hood comes with a 3-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions.

9.2 Customer Support

For technical assistance, spare parts, or warranty inquiries, please contact Cecotec customer service. Spare parts are available for a period of 10 years from the date of purchase within the EU.

Manufacturer: Cecotec
