1. Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Cecotec Power Espresso 20 Pro coffee machine. Please read this manual thoroughly before first use and keep it for future reference.
2. Safety Instructions
Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Ensure the voltage indicated on the appliance corresponds to your mains voltage before connecting.
- Do not immerse the appliance, power cord, or plug in water or any other liquid.
- Unplug the appliance from the outlet when not in use and before cleaning. Allow it to cool before attaching or removing parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Keep hands and cord away from hot parts of the appliance during operation.
- Use only accessories recommended by the manufacturer.
- This appliance is for household use only. Do not use outdoors.
- Extreme caution must be used when moving an appliance containing hot liquids.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
3. Product Overview and Components
Familiarize yourself with the parts of your coffee machine for proper operation.
Figure 3.1: Front view of the Cecotec Power Espresso 20 Pro coffee machine, showing the control panel, portafilter, and drip tray.
Key Components:
- Control Panel: Power button, single espresso button, steam button, pressure gauge.
- Portafilter: Holds ground coffee.
- Steam Wand: For frothing milk and dispensing hot water.
- Removable Water Tank: Located at the back, 1.5 L capacity.
- Drip Tray: Collects excess liquid, removable for cleaning.
- Cup Warmer Tray: Located on top of the machine.
4. Initial Setup
Before using your coffee machine for the first time, follow these steps:
- Unpacking: Remove all packaging materials and ensure all components are present.
- Cleaning: Wash the water tank, portafilter, and filter baskets with warm soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp cloth.
- Fill Water Tank: Remove the water tank from the back of the machine. Fill it with fresh, cold water up to the MAX level. Replace the tank securely.
- First Flush (Priming the Pump):
- Place a large cup under the portafilter outlet (without coffee).
- Press the Power button (U) to turn on the machine. The indicator light will flash while heating.
- Once the indicator light is solid, press the single espresso button (☕). Water will flow through. Let it run for about 30 seconds.
- Repeat this process for the steam wand: turn the steam knob to open the steam, press the steam button (💨), and let water flow for 30 seconds. Close the steam knob.
Figure 4.1: Removing the water tank for filling or cleaning.
5. Operating Instructions
5.1 Making Espresso
- Preheat: Ensure the machine is powered on and the indicator light is solid. Place your espresso cups on the cup warmer tray to preheat them.
- Prepare Portafilter: Insert the desired filter basket (single or double) into the portafilter. Fill with finely ground coffee.
- Tamp Coffee: Level the coffee grounds and tamp them firmly with a tamper. Wipe any excess coffee from the rim of the portafilter.
- Attach Portafilter: Insert the portafilter into the group head and turn it firmly to the right until it is securely locked.
- Place Cup(s): Place one or two preheated espresso cups under the portafilter spouts.
- Brew Espresso: Press the single espresso button (☕) for a single shot, or press it again for a double shot (if applicable to your model's programming). The machine will start brewing.
- Stop Brewing: The machine may stop automatically, or you may need to press the espresso button again to stop the flow when the desired volume is reached.
- Remove Portafilter: Carefully remove the portafilter by turning it to the left. Dispose of the used coffee grounds.
Figure 5.1: Cups placed on the top tray for preheating.

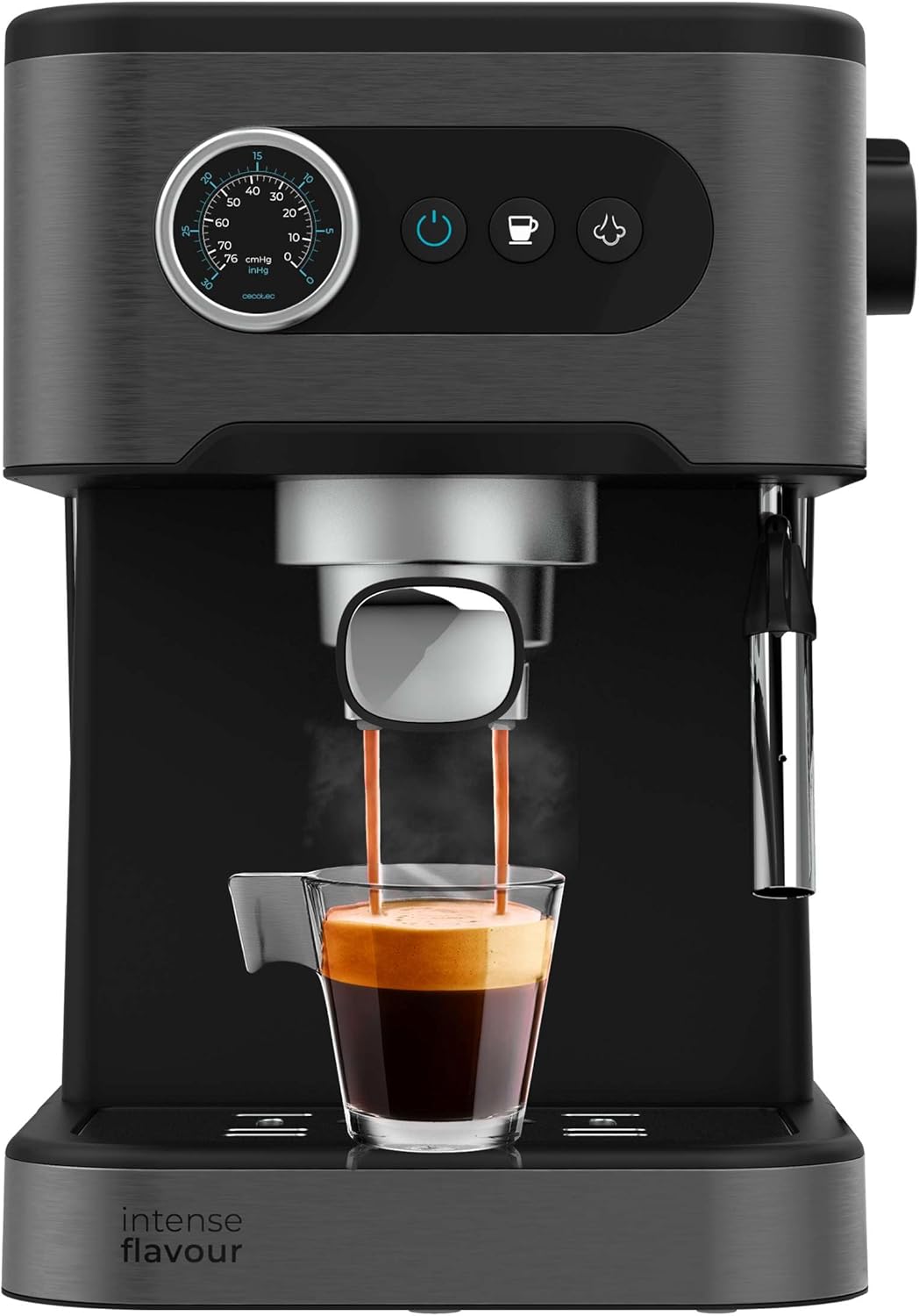

Figure 5.2: Brewing two espressos simultaneously.
5.2 Using the Steam Wand (Frothing Milk)
- Prepare Milk: Fill a stainless steel frothing pitcher with cold milk (dairy or non-dairy) up to one-third full.
- Activate Steam: Press the steam button (💨). The indicator light will flash while the machine heats up to steam temperature. Once solid, the machine is ready.
- Purge Steam Wand: Position the steam wand over the drip tray and briefly open the steam knob to release any condensed water. Close the knob.
- Froth Milk: Immerse the tip of the steam wand just below the surface of the milk. Open the steam knob. Move the pitcher up and down slowly to create foam.
- Stop Steaming: Once the desired texture and temperature are reached, close the steam knob and press the steam button (💨) to deactivate steam mode.
- Clean Steam Wand: Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying. Briefly open the steam knob again to clear any milk from inside the wand.

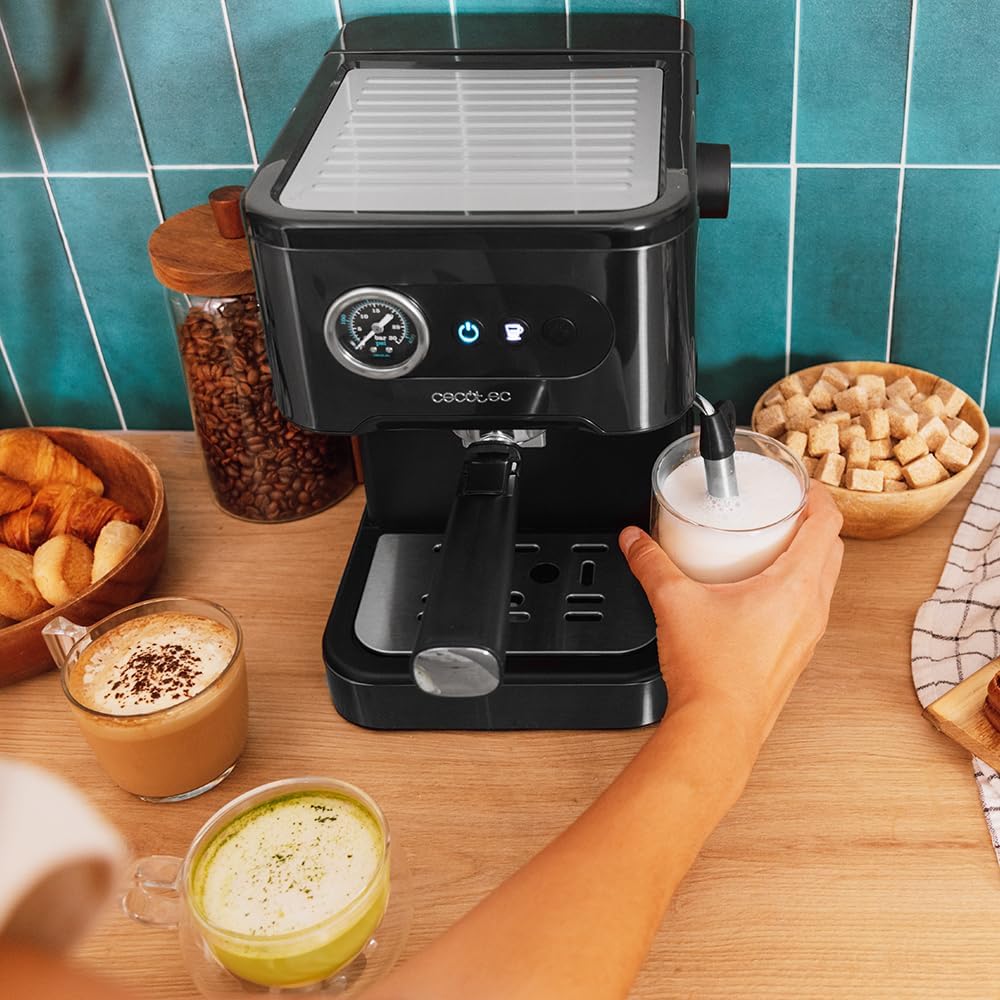

Figure 5.3: Using the adjustable steam wand to froth milk.
5.3 ColdBrew System
The Cecotec Power Espresso 20 Pro features a ColdBrew system. For specific instructions on preparing cold brew coffee, please refer to the detailed recipe or guide provided separately, as the operational steps for this feature may vary.
6. Cleaning and Maintenance
Regular cleaning ensures optimal performance and extends the lifespan of your coffee machine.
6.1 Daily Cleaning
- Portafilter and Filter Baskets: After each use, remove the portafilter, discard coffee grounds, and rinse the portafilter and filter basket under running water.
- Steam Wand: Wipe immediately after each use with a damp cloth. Purge steam to clear internal residue.
- Drip Tray: Empty and rinse the drip tray daily.
- Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners.
Figure 6.1: Cleaning the portafilter after use.
6.2 Descaling
Descaling is necessary to remove mineral buildup and maintain machine performance. The frequency depends on water hardness and usage. It is recommended every 2-3 months or when you notice reduced water flow.
- Use a commercial descaling solution suitable for coffee machines, following the manufacturer's instructions.
- Fill the water tank with the descaling solution mixed with water as per instructions.
- Place a large container under the group head and steam wand.
- Run half of the solution through the group head by pressing the espresso button.
- Run the remaining solution through the steam wand by activating steam mode and opening the steam knob.
- After descaling, rinse the water tank thoroughly and fill it with fresh water. Run several full tanks of fresh water through both the group head and steam wand to flush out any remaining descaling solution.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No coffee dispenses. | No water in tank; tank not properly seated; machine not primed; clogged filter. | Fill water tank; ensure tank is seated correctly; perform first flush; clean filter basket. |
| Coffee flows too slowly. | Coffee ground too fine; too much coffee in filter; machine needs descaling. | Use coarser grind; reduce coffee amount; descale the machine. |
| Coffee flows too quickly. | Coffee ground too coarse; not enough coffee in filter; coffee not tamped firmly. | Use finer grind; increase coffee amount; tamp coffee more firmly. |
| Steam wand not producing steam. | Machine not at steam temperature; steam wand clogged. | Wait for steam indicator light to be solid; clean steam wand. |
| Water leaking from machine. | Water tank not properly seated; drip tray full; seal issue. | Ensure water tank is secure; empty drip tray; contact customer support if issue persists. |
8. Technical Specifications
- Brand: Cecotec
- Model: Power Espresso 20 Pro (00271)
- Pressure Pump: 20 Bars
- Water Tank Capacity: 1.5 Liters
- Voltage: 230 Volts
- Dimensions (L x W x H): 27 x 30 x 22 cm
- Weight: 3.02 kg
- Special Features: Adjustable steam wand, ColdBrew system, Metallic finish
- Included Components: Espresso machine, user manual
9. Warranty and Customer Support
Your Cecotec Power Espresso 20 Pro coffee machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including coverage duration and how to make a claim.
For technical assistance, spare parts, or any questions not covered in this manual, please contact Cecotec customer support. Contact information can typically be found on the official Cecotec website or on your warranty documentation.
Spare parts are generally available for up to 10 years from the date of purchase.
