1. Introduction
Welcome to the instruction manual for your new Cecotec Cecofry DuoHeat 6000 Air Fryer. This appliance is designed to provide a versatile and healthy cooking experience, combining air frying, grilling, and pizza making functions. With its innovative dual heating resistance and 6-liter capacity, you can prepare a wide variety of delicious meals with less oil. Please read this manual thoroughly before first use to ensure safe and optimal operation.
2. Important Safety Instructions
WARNING: Failure to follow these safety instructions may result in electric shock, fire, or serious injury.
- Always ensure the appliance is connected to a grounded power outlet with the correct voltage (240 Volts).
- Do not immerse the main unit, cord, or plug in water or any other liquid.
- Keep the appliance out of reach of children and pets. Close supervision is necessary when the appliance is used by or near children.
- Do not operate the appliance if the cord, plug, or any other part is damaged. Contact authorized service personnel for repair.
- Place the air fryer on a stable, heat-resistant surface, away from walls or other appliances to allow for proper ventilation.
- Do not block the air inlet or outlet vents during operation.
- The appliance generates heat and steam during use. Keep hands and face away from hot surfaces and steam vents.
- Do not overfill the basket. Refer to the maximum fill line.
- Always unplug the appliance when not in use and before cleaning. Allow it to cool down completely before handling or storing.
- Do not use accessories or attachments not recommended by the manufacturer.
- This appliance is intended for household use only. Do not use outdoors.
3. Product Overview
Components
- Main Unit with Control Panel
- Removable Cooking Basket
- Grill Plate (for Grillin Style function)
- Pizza Plate (for Pizza Maker function)
- Viewing Window
- Upper and Lower Heating Elements
Key Features
- Multifunctional Design: Air fryer, meat grill, and pizza maker in one appliance.
- Dual Heating Resistance: Upper and lower heating elements for perfect browning and even cooking.
- 3D Cooking Technology: Ensures uniform heat distribution without the need to constantly turn food.
- Grillin Style Function: Achieve perfect grill marks and flavor on meats.
- Pizza Maker Function: For toasted and crispy pizza bases.
- 6-Liter Capacity: Ideal for cooking for two people.
- 2200W Power: High power for efficient and fast cooking.
- Adjustable Thermostat: Temperature range from 80-200°C.
- 8 Pre-configured Menus: Simplify cooking with one-touch presets.
- Panoramic Window: Monitor cooking progress without opening the basket.
The Cecofry DuoHeat 6000, showcasing its innovative dual heating system and the versatility of its grill and pizza plates.
The air fryer's removable basket, demonstrating its capacity for air-fried foods like chicken nuggets.
The air fryer unit with its specialized grill and pizza plates, highlighting its multi-functional capabilities.
The air fryer in a kitchen setting, demonstrating its ability to prepare a diverse range of healthy meals.
An internal view of the air fryer, illustrating the upper heating element at work, ensuring thorough cooking.
The air fryer in action, with a clear view of the lower heating element contributing to even cooking.
Detail of the Grillin Style function, showing a steak being perfectly seared on the grill plate.
The Pizza Maker function in use, with a pizza baking inside the air fryer and the temperature displayed.
The convenience of removing the cooking basket, filled with freshly prepared potatoes.

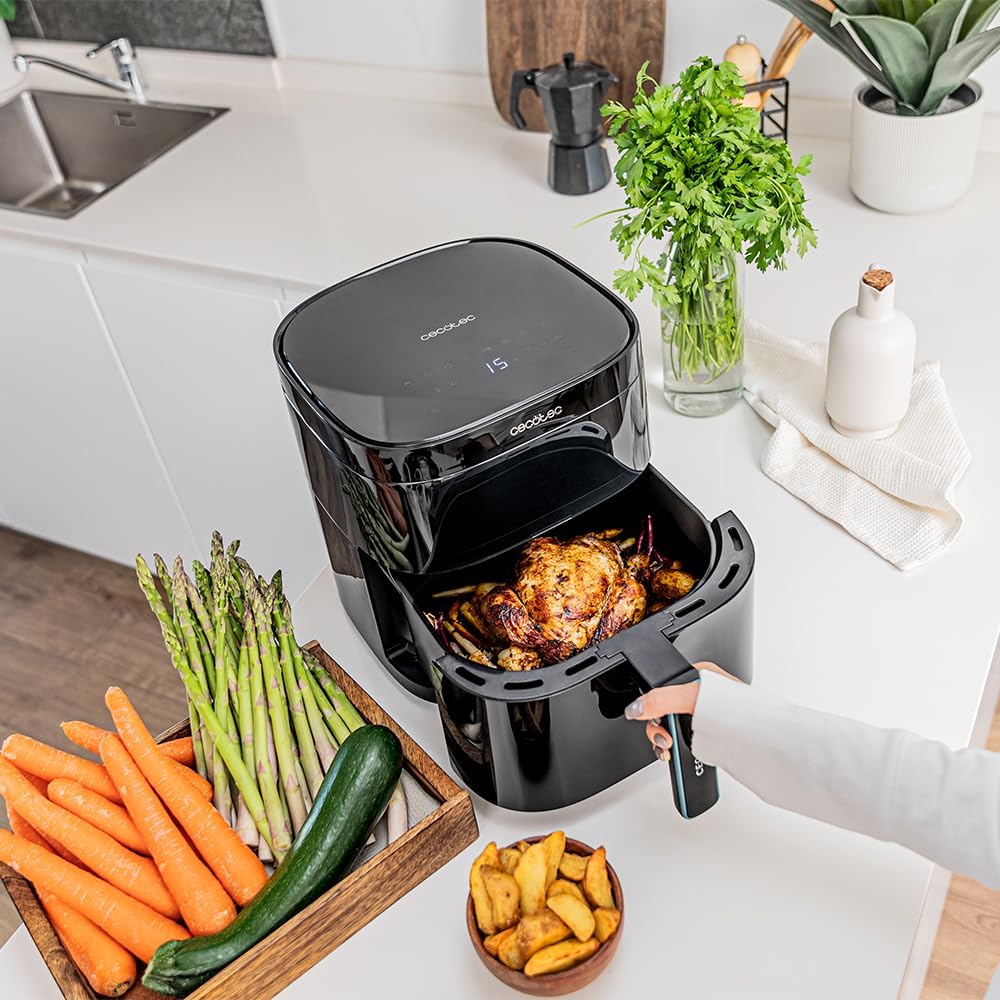

The air fryer's capacity to cook larger items like a whole roasted chicken, alongside vegetables.
The panoramic window allows for easy monitoring of food as it cooks, without opening the basket.
The air fryer's versatility in preparing a wide array of dishes, from savory to sweet.
The intuitive digital control panel, showing the adjustable temperature setting for precise cooking.
4. Setup and First Use
- Unpacking: Carefully remove all packaging materials from the air fryer. Retain the packaging for future storage or transport if needed.
- Cleaning: Before first use, clean the cooking basket, grill plate, and pizza plate with warm soapy water. Wipe the main unit with a damp cloth. Ensure all parts are completely dry before assembly.
- Placement: Place the air fryer on a stable, flat, heat-resistant surface. Ensure there is at least 10 cm (4 inches) of clear space around the back and sides of the appliance for proper air circulation.
- Initial Run (Optional but Recommended): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C (356°F) to eliminate any manufacturing odors. A slight odor may be present, which is normal and will dissipate. Ensure the area is well-ventilated during this process.
- Power Connection: Plug the power cord into a grounded electrical outlet. The appliance is now ready for use.
5. Operating Instructions
Basic Operation
- Place the desired cooking plate (grill or pizza) or use the basket directly inside the main unit.
- Add your ingredients to the cooking basket or plate. Do not overfill.
- Close the cooking basket securely.
- Plug in the appliance. The control panel will illuminate.
- Use the temperature control to set the desired cooking temperature (80-200°C).
- Use the timer control to set the desired cooking time.
- Press the Start/Pause button to begin cooking.
- Monitor cooking progress through the panoramic window.
- Once cooking is complete, the appliance will beep. Carefully remove the basket/plate using heat-resistant gloves.
Using Pre-set Menus
The Cecofry DuoHeat 6000 features 8 pre-configured menus for common dishes. To use them:
- After placing food in the basket, press the Menu button repeatedly to cycle through the pre-set options.
- Once you select a menu, the appliance will automatically set the optimal temperature and time.
- Press the Start/Pause button to begin cooking.
3D Cooking Technology
This technology utilizes both upper and lower heating elements to ensure heat is distributed evenly throughout the cooking chamber. This means your food cooks uniformly from all sides, often eliminating the need to shake or flip ingredients during the cooking process, resulting in consistent and delicious results.
Grillin Style Function
To achieve perfect grill marks and a smoky flavor on your meats, use the dedicated grill plate. Insert the grill plate into the air fryer, place your meat on it, and select the appropriate temperature and time, or use a pre-set menu if available for grilling. The dual heating elements will ensure thorough cooking and excellent searing.
Pizza Maker Function
For crispy and perfectly baked pizzas, utilize the pizza plate. Place your pizza on the plate, insert it into the air fryer, and set the desired temperature and time. The dual heating system helps achieve a golden, crispy crust and perfectly melted toppings.
Temperature and Time Adjustment
You can manually adjust the temperature between 80°C and 200°C and the cooking time as needed for your recipes. Use the dedicated temperature and time buttons on the control panel to fine-tune your cooking settings.
6. Maintenance and Cleaning
Regular cleaning ensures the longevity and optimal performance of your Cecofry DuoHeat 6000 Air Fryer.
- Always unplug the appliance from the power outlet and allow it to cool down completely before cleaning.
- Cooking Basket and Plates: The cooking basket, grill plate, and pizza plate are non-stick. Clean them with warm water, a mild dish soap, and a non-abrasive sponge. For stubborn residue, soak them in warm soapy water for a few minutes before cleaning. These parts may also be dishwasher safe (check product specifications for confirmation).
- Main Unit: Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads, as they can damage the surface.
- Interior Chamber: Gently wipe the interior of the air fryer with a damp cloth. For baked-on food residue, a soft brush or sponge can be used. Ensure no water enters the heating elements.
- Heating Elements: If necessary, gently clean the heating elements with a dry brush to remove any food particles. Do not use water or liquid cleaners on the heating elements.
- Storage: Ensure all parts are clean and dry before storing the appliance. Store it in a cool, dry place.
7. Troubleshooting
If you encounter any issues with your air fryer, please refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Not plugged in; power outlet issue; appliance malfunction. | Ensure the power cord is securely plugged into a working outlet. Check your home's circuit breaker. If the issue persists, contact customer support. |
| Food is not cooked evenly. | Basket overloaded; incorrect temperature/time; food not spread out. | Do not overload the basket. Ensure food is in a single layer for best results. Adjust temperature and time as needed. The 3D cooking technology minimizes the need to shake, but for very dense items, a mid-cycle shake might help. |
| White smoke coming from the appliance. | Excess oil/grease from food; food with high fat content. | This is usually normal. Ensure the basket and interior are clean. For fatty foods, drain excess oil during cooking. |
| Appliance smells during first use. | New appliance odor. | This is normal. Run the appliance empty for 10-15 minutes in a well-ventilated area before first use. The smell will dissipate. |
| Food is not crispy. | Too much moisture; not enough oil (for air frying); basket overloaded. | Pat food dry before cooking. A light spray of oil can help achieve crispiness. Do not overload the basket. |
8. Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Cecotec |
| Model Number | 03292 |
| Color | Black | Double Resistance |
| Product Dimensions (L x W x H) | 28.1 x 37 x 30 cm |
| Capacity | 6 Liters |
| Power | 2200 Watts |
| Voltage | 240 Volts |
| Material | Plastic |
| Item Weight | 5.3 Kilograms |
| Special Feature | Automatic |
| Recommended Uses | Bake, Fry, Reheat, Roast, Grill |
| Temperature Range | 80-200°C |
9. Warranty and Support
Cecotec products are manufactured to high-quality standards. For information regarding the warranty period and terms, please refer to the warranty card included with your purchase or visit the official Cecotec website.
Spare Parts Availability: Spare parts for this product are available for a period of 10 years from the date of purchase.
For technical support, service, or to inquire about spare parts, please contact Cecotec customer service through their official channels. Always provide your product model number (03292) and purchase details when seeking support.
