multicomp PRO MP700005 Handheld Loop Calibrator User Manual

1. Introduction

This manual provides comprehensive instructions for the safe and effective operation of the multicomp PRO MP700005 Handheld Loop Calibrator. Please read this manual thoroughly before using the device and retain it for future reference.

2. Safety Information

Always observe standard safety precautions when operating electrical equipment.

• Do not operate the calibrator if it appears damaged.
• Ensure correct battery installation.
• Refer to local regulations for proper disposal of batteries and the device.

3. Package Contents

Verify that all items listed below are present in your package:

• MP700005 Handheld Loop Calibrator
• Test Leads
• PP3 Battery

4. Product Overview

The multicomp PRO MP700005 is a versatile handheld loop calibrator designed for measuring and sourcing DC voltage, DC current, and 4-20mA loop current. It features manual stepping, automatic stepping, and ramping output capabilities, along with 24V loop power provision.

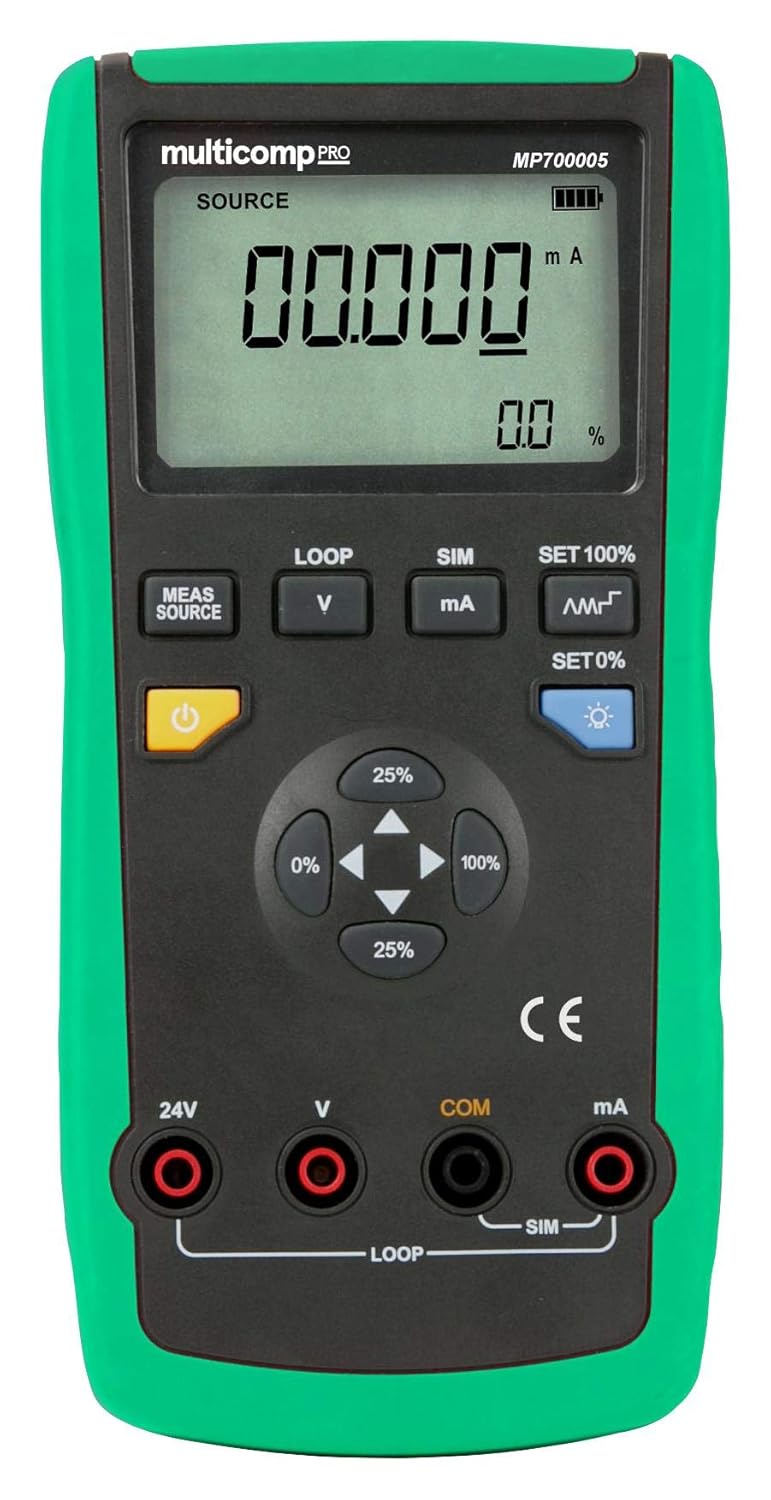

Figure 1: Front view of the multicomp PRO MP700005 Handheld Loop Calibrator, showing the LCD display, function buttons, and input/output terminals. The device has a green protective casing.

4.1. Key Features

• Measures: DC voltage, DC current, 4-20mA loop current
• Output functions: DC current, analog transmitter, 24V loop
• Manual stepping, automatic stepping, and ramping output
• Stores and recalls setup configurations
• Provides 24V loop power to transmitters while simultaneously measuring mA current
• Automatic ramp for DC current output

5. Setup

5.1. Battery Installation

1. Locate the battery compartment cover on the rear of the calibrator.
2. Use a screwdriver to open the compartment.
3. Insert the supplied PP3 9V battery, observing correct polarity.
4. Securely close the battery compartment cover.

5.2. Initial Power-On

Press the power button (typically marked with a ⑁ symbol) to turn on the calibrator. The LCD display will illuminate and show the default measurement or source mode.

6. Operating Instructions

6.1. Connecting Test Leads

Connect the test leads to the appropriate input/output terminals (24V, V, COM, mA) on the calibrator based on the desired measurement or sourcing function. Ensure connections are secure.

6.2. Measuring DC Voltage/Current

1. Select the desired measurement mode (e.g., V for voltage, mA for current) using the MEAS/SOURCE button or dedicated function buttons.
2. Connect the test leads to the circuit under test.
3. Read the measurement value on the LCD display.

6.3. Sourcing DC Current (4-20mA Loop)

1. Select the source mode for mA output.
2. Use the directional buttons (25%, 0%, 100%) or SET 100%/SET 0% buttons to adjust the output current.
3. The calibrator supports manual stepping, automatic stepping, and ramping output for precise control. Refer to the on-screen indicators for current output status.

6.4. Providing 24V Loop Power

The calibrator can provide 24V loop power to a transmitter while simultaneously measuring the mA current. Connect the transmitter to the designated 24V and mA terminals.

6.5. Storing and Recalling Setups

The device allows users to store and recall frequently used setup configurations. Consult the on-screen menu or dedicated buttons for these functions.

7. Maintenance

7.1. Cleaning

Wipe the calibrator with a soft, damp cloth. Do not use abrasive cleaners or solvents.

7.2. Battery Replacement

When the low battery indicator appears on the display, replace the 9V battery as described in the "Battery Installation" section.

8. Troubleshooting

• No Power: Check battery installation and ensure the battery is not depleted.
• Incorrect Readings: Verify test lead connections and ensure the correct measurement mode is selected.
• Output Not Functioning: Check connections to the device under test and ensure the calibrator is in the correct source mode.

If issues persist, contact customer support.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or contact multicomp PRO customer service.
