1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your LOVMOR 30"W Shaker Grey Base Cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image 1.1: The LOVMOR 30"W Shaker Grey Base Cabinet.
2. Safety Information
Always follow basic safety precautions when assembling or using this product to reduce the risk of injury or damage. Keep children and pets away from the assembly area. Use appropriate tools and wear safety gear as needed.
- Ensure all parts are present and undamaged before assembly.
- Do not overtighten screws, as this may damage the material.
- Always use the provided anti-tip screws to secure the cabinet to a wall, preventing accidental falls.
- Do not exceed the weight capacity of shelves or drawers.
3. Package Contents
Verify that all components are included in your package. If any parts are missing or damaged, please contact customer support.
- Cabinet panels (sides, back, bottom, top supports)
- 2 Drawer fronts and components
- 2 Cabinet doors
- Adjustable shelf
- Soft-closing hinges and drawer glides
- Assembly hardware (screws, dowels, anti-tip kit)
- Instruction manual
4. Setup and Assembly
Assembly typically takes approximately 40-45 minutes. Follow the step-by-step instructions provided in the included assembly guide. Ensure you have a clear, flat workspace.
- Prepare Components: Unpack all parts and lay them out. Identify each component using the diagrams in the separate assembly guide.
- Assemble Cabinet Frame: Connect the side panels to the bottom and back panels using the provided hardware. Ensure all connections are secure.
- Install Drawer Glides: Attach the drawer glides to the interior side panels of the cabinet frame. The glides are designed for smooth, soft-closing operation.
- Assemble Drawers: Construct the two drawers according to the assembly guide. Insert the assembled drawers onto the installed glides.
- Attach Cabinet Doors: Mount the soft-closing hinges to the cabinet doors and then attach the doors to the cabinet frame. Adjust hinges for proper alignment.
- Insert Adjustable Shelf: Place the adjustable shelf at your desired height within the cabinet.
- Secure to Wall: For stability and safety, use the anti-tip screws to firmly attach the cabinet to a wall stud.

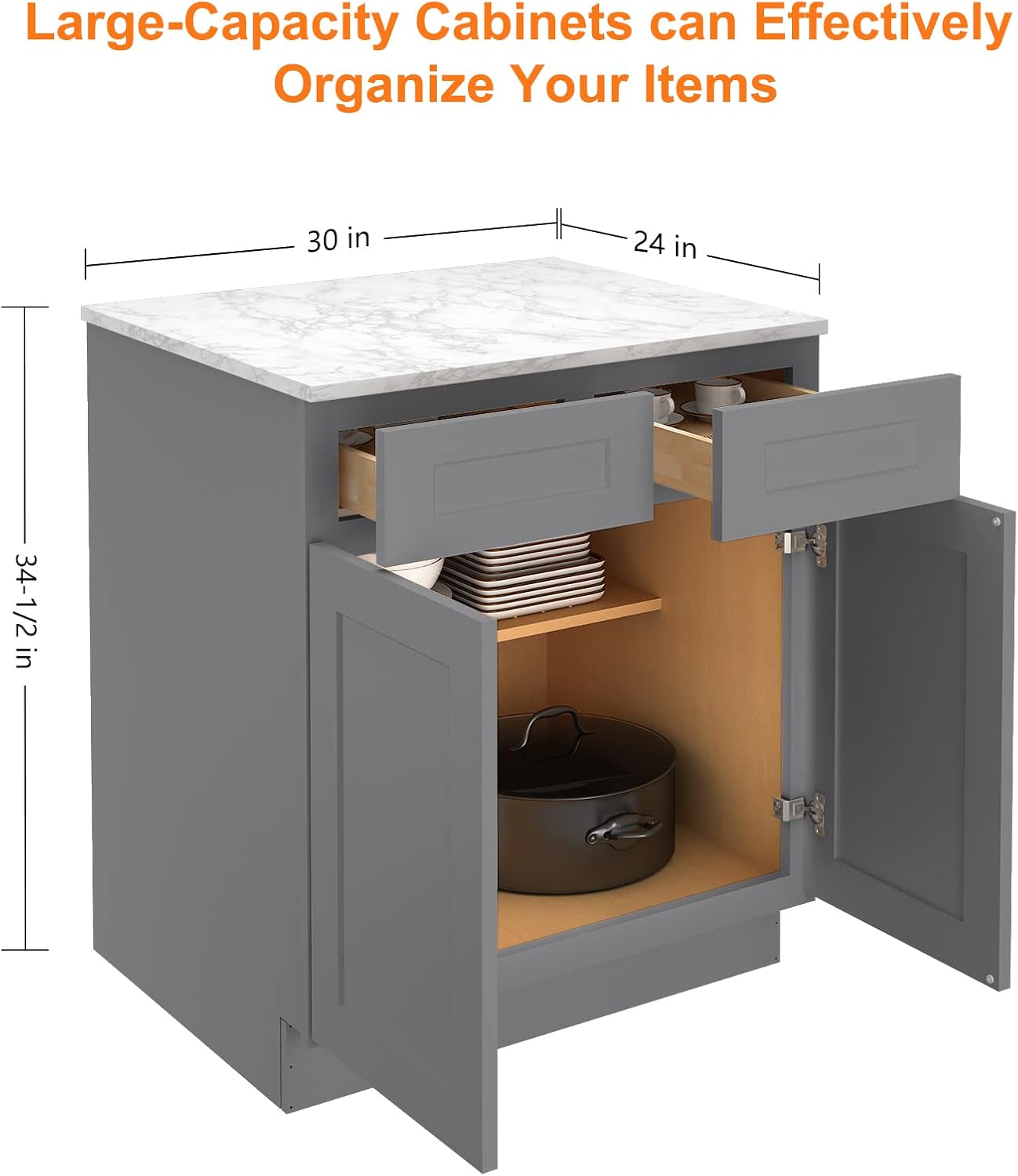

Image 4.1: Cabinet dimensions and internal storage view.
Image 4.2: Internal view of the cabinet with two drawers and an adjustable shelf.
Image 4.3: Details of durable metal hinges, large capacity space, and soft-close drawer glides.
5. Operating Instructions
Your LOVMOR base cabinet is designed for versatile storage in various rooms such as kitchens, entryways, or living rooms.
- Drawers: The two top drawers feature undermount full extension soft-close glides, allowing for smooth and quiet opening and closing.
- Cabinet Doors: The two lower cabinet doors are equipped with soft-closing hinges to prevent slamming and ensure quiet operation.
- Adjustable Shelf: The interior shelf can be adjusted to different heights to accommodate items of various sizes. Simply remove the shelf and reposition the support pins to a new set of holes.
6. Maintenance and Care
To ensure the longevity and appearance of your cabinet, follow these maintenance guidelines:
- Cleaning: The painted surface is waterproof and easy to clean. Use a soft, damp cloth with mild soap and water to wipe down surfaces. Avoid abrasive cleaners or harsh chemicals.
- Spills: Wipe up spills immediately to prevent moisture damage, especially on the top surface if no countertop is installed.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
Image 6.1: The cabinet is constructed from HDF Plywood with UV painting, offering durability, water resistance, and ease of cleaning.
7. Troubleshooting
If you encounter any issues with your LOVMOR base cabinet, refer to the following common solutions:
- Difficulty with Assembly: Review the assembly instructions carefully. Ensure all parts are oriented correctly. If specific steps are unclear, refer to the diagrams.
- Drawers or Doors Not Closing Smoothly: Check the alignment of the drawer glides and door hinges. Adjust as needed. Ensure no obstructions are present.
- Cabinet Instability: Verify that all screws are tightened. Ensure the cabinet is placed on a level surface. Always use the anti-tip kit to secure the cabinet to the wall.
- Missing Parts: If any parts were missing upon delivery, contact LOVMOR customer support for assistance.
8. Specifications
| Feature | Specification |
|---|---|
| Brand | LOVMOR |
| Model Name | S-B30-SG-US-DF |
| Color | Shaker Grey |
| Product Dimensions (D x W x H) | 24"D x 30"W x 34.5"H |
| Material | Wood (High-Density Fiberboard) |
| Special Features | Adjustable Shelf, Durable, Waterproof Finish |
| Mounting Type | Floor Mount |
| Assembly Required | Yes |
| Item Weight | 75 Pounds |
| Number of Shelves | 2 (1 adjustable) |
| UPC | 727198890397 |
9. Warranty and Support
For warranty information or customer support, please refer to the contact details provided with your purchase documentation or visit the official LOVMOR website. Ensure you have your model number (S-B30-SG-US-DF) and purchase date available when contacting support.
