1. Product Overview
The Maclean MCE447 is an energy-efficient solar street light designed for outdoor use. It features two adjustable light sources, a remote control, and integrated motion and dusk sensors for automated operation. This lamp is ideal for illuminating entrances, driveways, yards, and garages.
Figure 1: Maclean MCE447 Solar Street Light with its remote control, showcasing its dual light heads and integrated sensor unit.
Key Features:
- Dual Light Sources: Each light source provides 450 lumens for a total of 900 lumens.
- Adjustable Heads: Each light head can be adjusted 180 degrees vertically and 90 degrees horizontally.
- Integrated Sensors: Equipped with a PIR motion sensor (120° detection angle, 0.6 to 1.5 m/s detection speed) and a dusk sensor.
- Remote Control: Allows selection of three independent lighting modes.
- Solar Powered: Charges during the day using solar energy, providing up to 12 hours of light.
- Durable Design: IP54 rated for protection against splashing water and dust, suitable for outdoor environments.
2. Package Contents
Please verify that all components are present and undamaged before proceeding with installation.
- Maclean MCE447 Solar Street Light Unit
- Remote Control
- Mounting Hardware (screws, wall plugs)
- User Manual (this document)

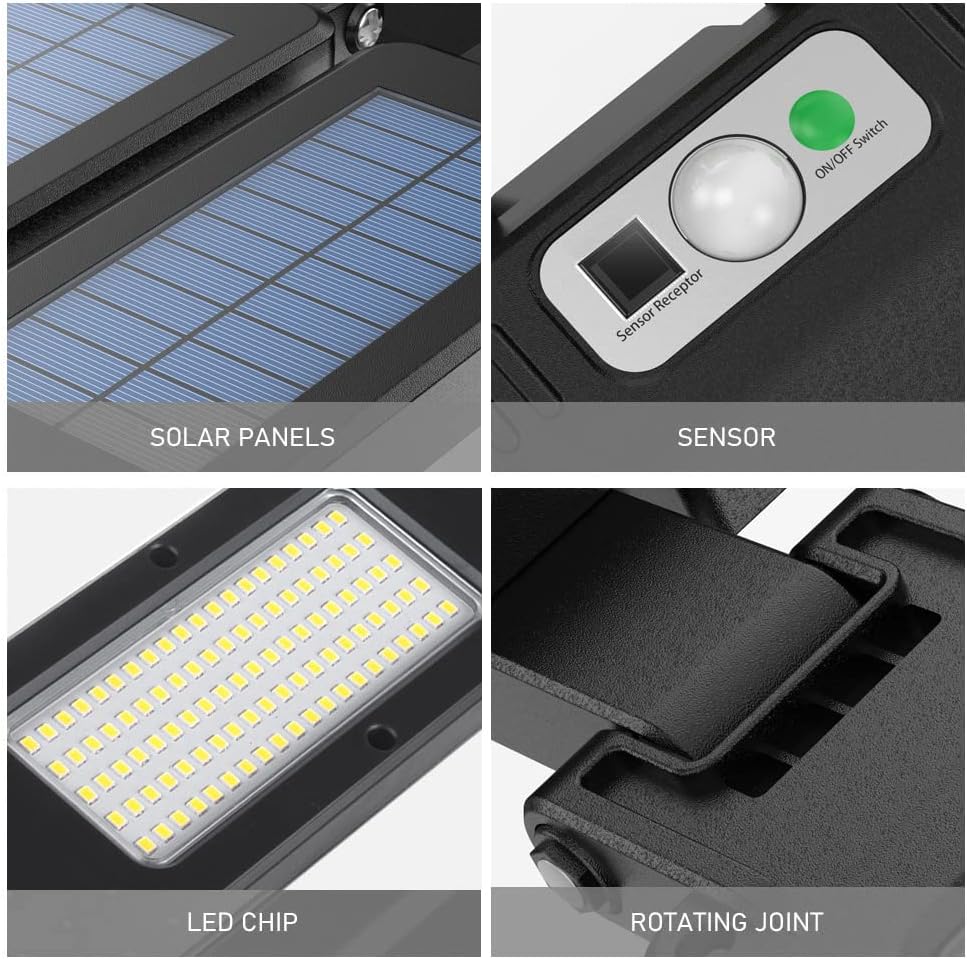

Figure 2: Detailed view of the solar panels, motion sensor, LED chip array, and the adjustable rotating joint on the MCE447 lamp.
3. Setup and Installation
3.1 Choosing a Location
Select a location that receives direct sunlight for at least 6-8 hours daily to ensure optimal charging of the solar panel. Avoid areas under eaves, trees, or other obstructions that might block sunlight or cast shadows on the solar panel.
3.2 Mounting the Lamp
The lamp can be mounted on a wall or ceiling. Use the provided mounting hardware to securely attach the lamp to a solid surface.
- Mark the drilling points on the desired mounting surface using the lamp's base as a template.
- Drill holes at the marked points.
- Insert wall plugs (if necessary for your surface type).
- Align the lamp's base with the holes and secure it with screws.
Figure 3: The solar street light mounted on a brick wall, demonstrating its outdoor application and remote control functionality.
3.3 Adjusting Light Heads
Each light head can be adjusted to direct illumination precisely where needed. The heads can rotate 180 degrees vertically and 90 degrees horizontally from their central axis.
Figure 4: This diagram shows the flexible adjustment angles of the two light heads, allowing for wide coverage.
4. Operating Instructions
4.1 Initial Activation
Before first use, ensure the lamp is fully charged by placing it in direct sunlight for at least 8-10 hours. The lamp has an internal Lithium-ion battery.
4.2 Using the Remote Control
The remote control allows you to select between three independent lighting modes and manually turn the lamp on or off.
- ON/OFF Button: Manually turns the lamp on or off.
- MODE 1: Light turns on at 100% brightness when motion is detected, then turns off after 20-30 seconds of no motion.
- MODE 2: Light stays on at 30% brightness from dusk to dawn, and switches to 100% brightness when motion is detected, returning to 30% after 20-30 seconds of no motion.
- MODE 3: Light stays on at 50% brightness from dusk to dawn, without motion detection.
Figure 5: The remote control allows for easy selection of lighting modes and manual control of the lamp.
4.3 Sensor Operation
The integrated dusk sensor automatically activates the lamp at night and deactivates it during the day. The PIR motion sensor detects movement within its 120-degree detection angle, triggering full brightness in certain modes.
Figure 6: The lamp's automatic operation, transitioning from charging during the day to providing illumination at night.
5. Maintenance
To ensure optimal performance and longevity of your Maclean MCE447 Solar Street Light, follow these maintenance guidelines:
- Clean Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, leaves, or snow. A clean panel ensures efficient charging.
- Clean Light Heads: Periodically clean the LED light covers to maintain maximum light output.
- Inspect for Damage: Check the lamp and mounting hardware for any signs of wear, corrosion, or damage. Address any issues promptly.
- Battery Care: While the battery is integrated, ensure the lamp receives sufficient sunlight to prevent deep discharge, which can reduce battery lifespan.
6. Troubleshooting
If you encounter issues with your solar street light, refer to the following common troubleshooting steps:
- Lamp not turning on at night:
- Ensure the lamp is switched ON via the remote control or the manual switch.
- Verify the solar panel is clean and receiving direct sunlight for adequate charging.
- Check if the lamp is installed in a location with too much ambient light at night, which might prevent the dusk sensor from activating.
- Allow the lamp to charge for a full day (8-10 hours) in direct sunlight.
- Motion sensor not detecting:
- Ensure the lamp is in a mode that utilizes the motion sensor (MODE 1 or MODE 2).
- Check for obstructions blocking the sensor's field of view.
- Verify the distance and speed of movement are within the sensor's specifications (0.6 to 1.5 m/s detection speed).
- Reduced light duration:
- Insufficient charging due to cloudy weather, dirty solar panel, or poor placement.
- Battery degradation over time (typical for rechargeable batteries).
7. Specifications
Detailed technical specifications for the Maclean MCE447 Solar Street Light:
| Feature | Specification |
|---|---|
| Model Number | MCE447 |
| Brand | Maclean |
| Power (per light source) | 5W |
| Luminous Flux (per light source) | 450 Lumen |
| Total Luminous Flux | 900 Lumen (2 x 450 Lumen) |
| Color Temperature | 6500K (Cool White) |
| Ingress Protection (IP) Rating | IP54 |
| Motion Sensor Detection Angle | 120° |
| Motion Sensor Detection Speed | 0.6 to 1.5 m/s |
| Light Duration (fully charged) | Up to 12 hours |
| Product Dimensions | 38.5 x 13 x 3.5 cm |
| Weight | 560 g |
| Battery Type | 1 Lithium-ion battery (included) |
| Material | Plastic |
| Color | Black |
8. Warranty Information
The Maclean MCE447 Solar Street Light comes with a 24-month warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
Please retain your proof of purchase for warranty claims.
9. Customer Support
For further assistance, technical support, or warranty inquiries, please contact Maclean customer service through the retailer where the product was purchased. You may also visit the official Maclean website for additional resources and contact information.
We recommend having your model number (MCE447) and purchase details ready when contacting support.
