1. Introduction
This manual provides essential information for the safe and efficient operation of your BOMGIE 1/6 HP Submersible Water Pump (Model UTL-166P). This high-efficiency utility pump is designed for various water removal tasks, including draining swimming pools, hot tubs, basements, ponds, window wells, and rain barrels. It is also suitable for irrigation and garden watering. Please read this manual thoroughly before initial use and retain it for future reference.
2. Safety Information
Always prioritize safety when operating electrical equipment near water. The BOMGIE Submersible Water Pump is UL certified, ensuring it meets recognized safety standards. It is equipped with a built-in automatic thermal overload protector to prevent damage from overheating.
- Always use a Ground Fault Circuit Interrupter (GFCI) protected outlet when operating the pump to prevent electrical shock hazards.
- Never operate the pump dry. Ensure the pump is fully submerged in water before plugging it in.
- Do not lift or carry the pump by its power cord or discharge hose. Use the integrated ergonomic handle.
- Ensure all connections are tight to minimize leaks and maintain proper pressure.
- Do not disassemble the motor housing. This pump has no user-serviceable internal parts.
- Protect the power cord from sharp objects, hot surfaces, oil, and chemicals. Avoid kinking the cord.

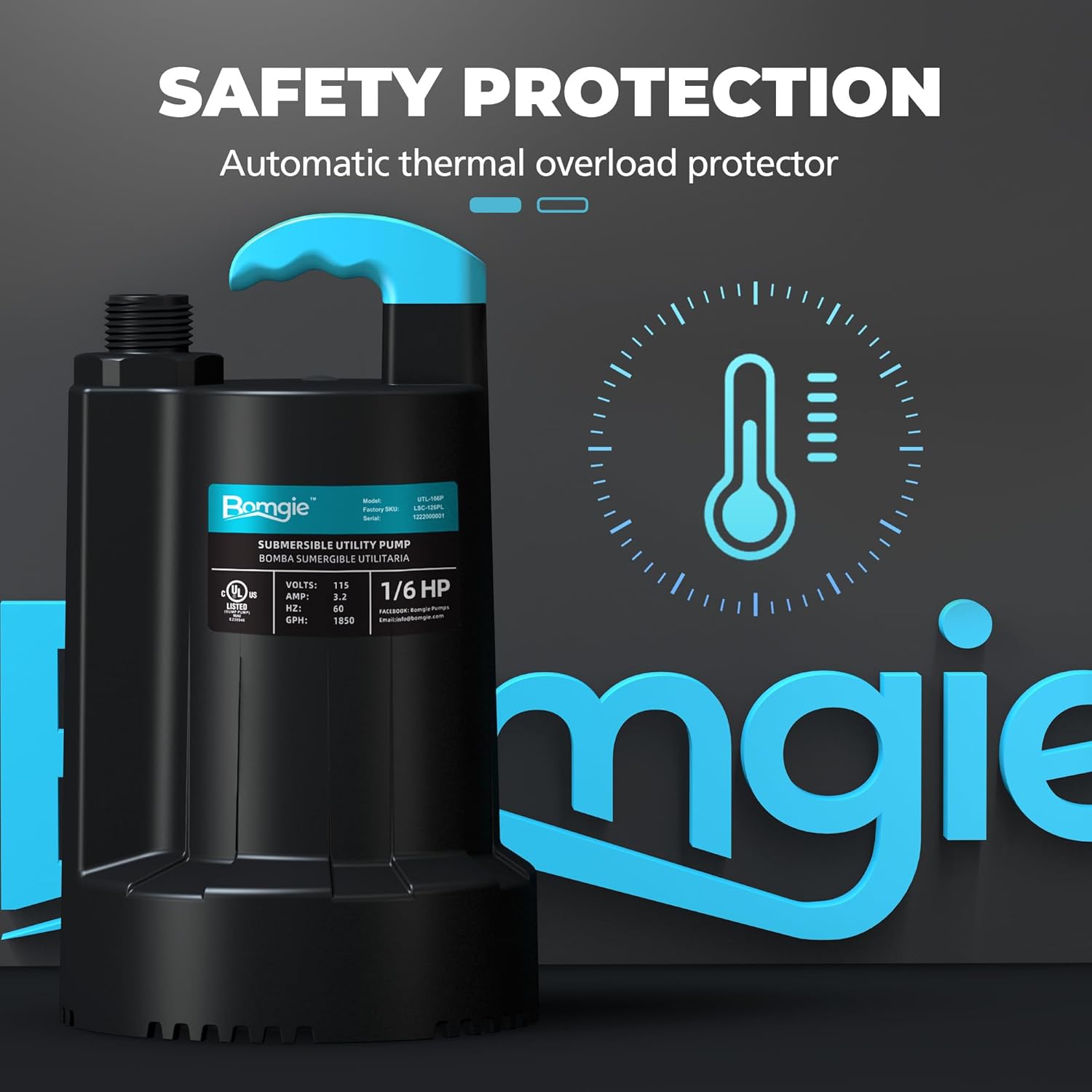

Image: The pump features an automatic thermal overload protector for enhanced safety during operation.
3. Product Features
- High Efficiency: 1/6 HP motor, capable of draining up to 1850 Gallons Per Hour (30.8 gallons per minute) at zero feet. Maximum vertical lift is 29.5 feet.
- Portable Design: Features a unique ergonomic handle for easy portability. Its compact size and lightweight construction facilitate easy storage. Made of corrosion-resistant thermoplastic for extended durability.
- Detachable Suction Screen: Designed with a removable suction screen that filters debris and protects the pump from damage. It can handle solids up to 1/8 inch in diameter.
- Versatile Discharge Options: Comes with a 3/4" garden hose adapter and a 1-1/4" NPT discharge for higher flow. Compatible with 5/8-inch diameter or larger garden hoses.
- Durable Power Cord: Equipped with a 10-foot power cord featuring pure copper wire for energy efficiency and high productivity.
Image: Illustrates the pump's powerful 360-degree bottom suction for fast water movement, with specifications for max head and flow rate.

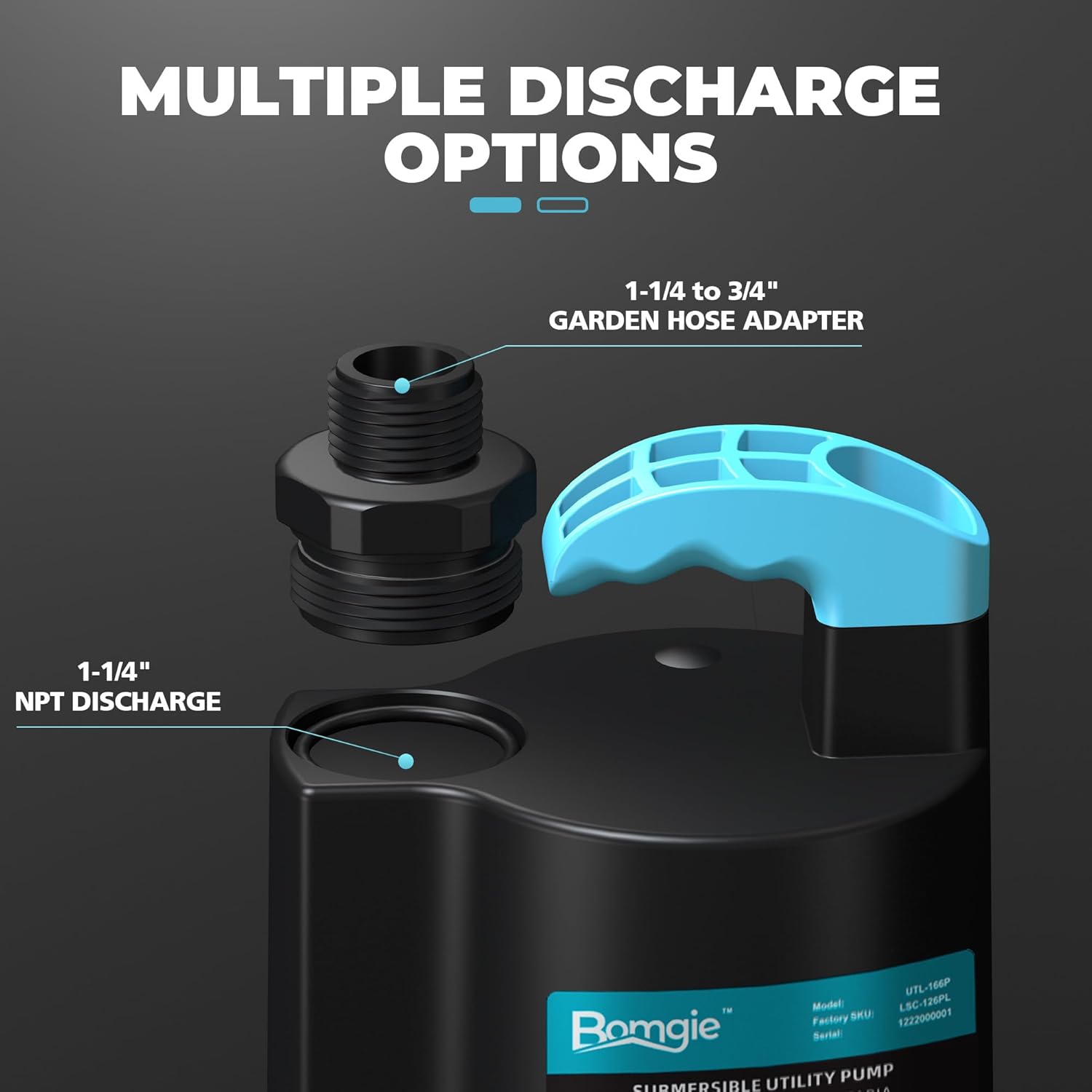

Image: Details the pump's versatile discharge options, including the 1-1/4 inch NPT and the included 3/4 inch garden hose adapter.
4. Setup
- Attach Discharge Hose: Screw the desired discharge hose adapter (either the 1-1/4" NPT or the 3/4" garden hose adapter) firmly onto the pump's discharge port. Ensure a rubber washer is used with the garden hose adapter to prevent leaks.
- Connect Hose: Attach your discharge hose (5/8-inch diameter or larger garden hose, or a 1-1/4 inch discharge hose) to the adapter. Ensure the hose is free of kinks or sharp bends that could restrict water flow.
- Position the Pump: Place the pump on a solid, level base in the area to be drained. Do not place the pump directly on sand or dirt, as this can block the suction screen.
- Priming Requirement: A minimum water level of 1 inch is required to prime the pump.
5. Operating Instructions
- Submerge Pump: Ensure the pump is fully submerged in water, with at least 1 inch of water covering the suction screen for proper priming.
- Connect to Power: Plug the pump into a 115-volt GFCI protected power outlet. The pump will start operating immediately upon connection.
- Monitor Operation: The pump will continue to operate until the water level is reduced to approximately 1/4 inch.
- Stop Operation: Unplug the pump from the power supply to stop it.
- Avoid Dry Running: Do not allow the pump to run dry, as this can cause damage to the motor and void the warranty. The thermal overload protector will shut off the pump if it overheats.
Video: Official BOMGIE video demonstrating the 1/6 HP Submersible Water Utility Sump Pump in operation, highlighting its features and ease of use.
Video: A short official BOMGIE video showcasing the 1/6 HP Submersible Water Pump, demonstrating its functionality and compact design.
6. Maintenance
- Clean Suction Screen: Regularly inspect and clean the detachable suction screen to ensure optimal performance and prevent blockages.
- Hose Inspection: Check the discharge hose for any kinks, sharp bends, or damage that could impede water flow. Straighten any kinks before operation.
- Storage: After use, remove the pump from the water and drain any remaining water from the pump and hose. Store in a dry, protected area.
7. Troubleshooting
| Problem | Possible Cause | Corrective Action |
|---|---|---|
| Pump does not start or run | Blown fuse | Replace fuse |
| Tripped breaker | Reset breaker | |
| Plug disconnected | Secure plug | |
| Thermal overload | Unplug the pump for 30 minutes, then plug in | |
| Corroded plug | Clean plug prongs | |
| Motor failed | Contact support | |
| Pump cannot pump water out | Screen blocked | Clean screen |
| Hose kinked, bent sharply, or coiled | Straighten hose | |
| Airlock | Clean airlock release feature | |
| Hose diameter too small | Use larger diameter hose | |
| Hose length too long | Use shorter hose | |
| Impeller loose on shaft | Reassemble impeller | |
| Impeller broken | Contact support |
8. Specifications
| Property | Specification |
|---|---|
| Model | UTL-166P |
| Voltage | 115V/60Hz |
| Horsepower | 1/6 HP (0.16 HP) |
| Amps | 3.2 A |
| Max. Head | 29.5 ft |
| Max. Flow Rate | 1850 GPH (30.8 GPM) |
| Discharge Size | 1-1/4 inch NPT, 3/4 inch Garden Hose Adapter |
| Power Cord Length | 10 ft |
| Material | Thermoplastic |
| Item Weight | 8.3 lbs |
| Product Dimensions | 5.8"L x 5.8"W x 9.7"H |
Image: Performance chart detailing the pump's capacity (GPH) at different discharge head heights.
9. Warranty and Support
The BOMGIE Submersible Water Pump (Model UTL-166P) comes with a 2-year warranty. For any concerns or issues, please do not hesitate to contact the BOMGIE Service Team. They are available to assist within 24 hours.
- Warranty Duration: 2 Years
- Contact: Refer to the product packaging or manufacturer's website for the most current service contact information.
