HTZSAFE Driveway Alarm System User Manual

1. Introduction

The HTZSAFE Driveway Alarm System provides a reliable and effective solution for monitoring your property. This system utilizes advanced solar-powered motion sensors and a plug-in receiver to alert you to activity such as people, vehicles, or large animals entering a monitored area. Designed for outdoor use, the sensors are fully weatherproof and offer a wide detection range and long wireless transmission capabilities.

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your HTZSAFE Driveway Alarm System to ensure optimal performance and longevity.

2. Package Contents

Your HTZSAFE Driveway Alarm System (1 Receiver + 2 Sensors KIT) package should include the following components:

• 1 x HTZSAFE Plug-in Alarm Receiver
• 2 x HTZSAFE Solar Wireless Motion Sensors
• Mounting hardware (screws, anchors, mounting brackets)
• User Manual (this document)

Image: The HTZSAFE Driveway Alarm System kit, showing two brown solar-powered motion sensors and a black plug-in receiver unit. The receiver has four illuminated numbers (1, 2, 3, 4) indicating zones, and a musical note icon suggests sound alerts. One sensor shows a red detection beam.

3. Setup and Installation

3.1. Sensor Placement Considerations

Proper placement of the solar motion sensors is crucial for optimal performance. Consider the following:

• Line of Sight: Ensure a clear line of sight between the sensor and the area you wish to monitor (e.g., driveway, gate, path).
• Sunlight Exposure: Position sensors where they receive adequate sunlight for solar charging. Even on cloudy or rainy days, the sensors can charge.
• Detection Range: The sensor has a detection range of up to 70 feet. Adjust sensitivity as needed (High=70ft, Medium=50ft, Low=25ft).
• Avoid Obstructions: Minimize obstructions like dense foliage or large objects that could block the detection beam or wireless signal.
• Height: Mount sensors at a height that allows for effective detection of desired targets (people, vehicles) while minimizing false alarms from small animals.

Image: An illustration depicting a white SUV on a driveway leading to a house. A brown solar sensor is mounted on a tree near the driveway, showing a red detection beam. Text overlays indicate "1/2 MILE WIRELESS TRANSMISSION RANGE" and "MAX. 70 FEET DETECTION RANGE" with adjustable sensitivities.

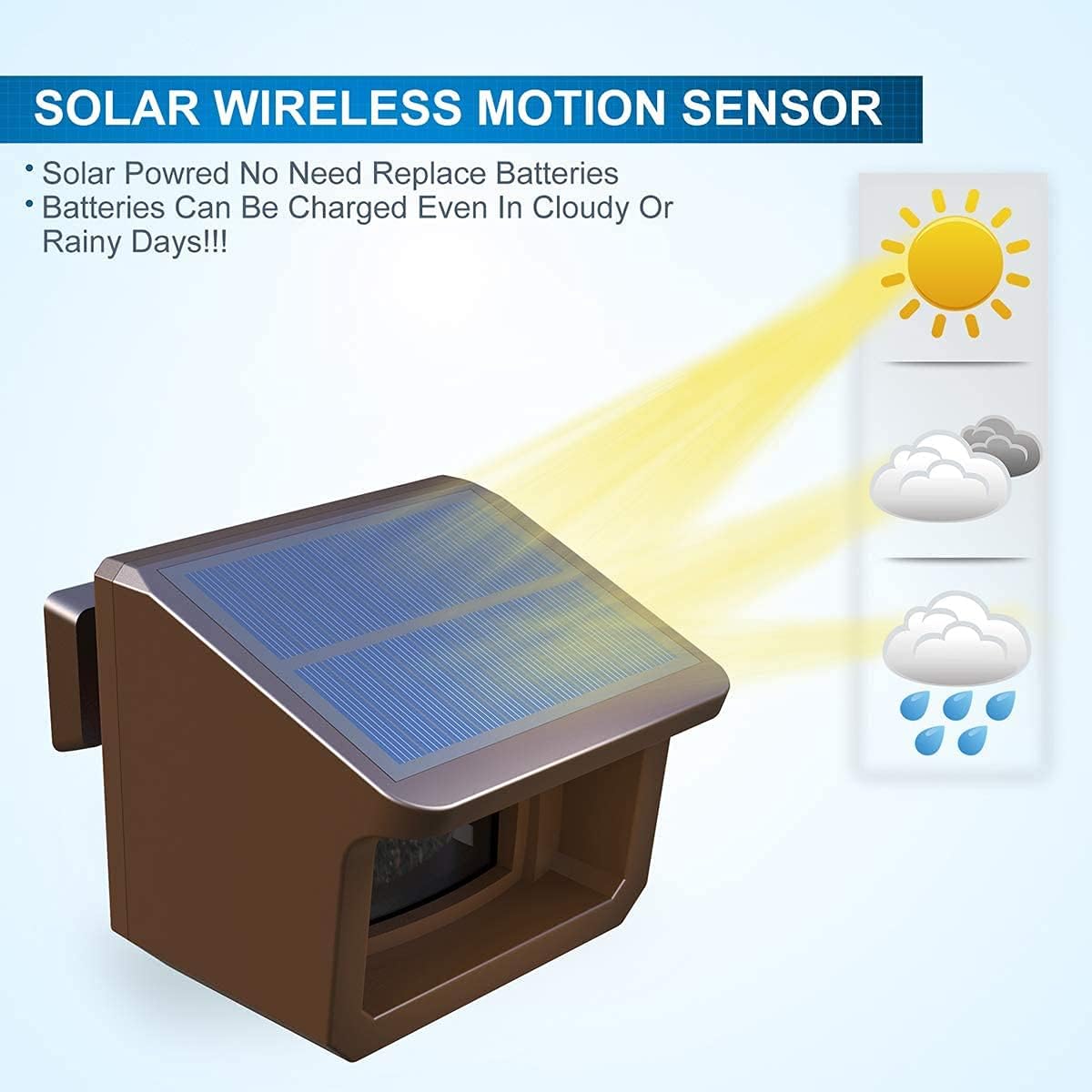

Image: A close-up of the brown solar wireless motion sensor, highlighting its solar panel. Icons above it depict a sun, a cloud, and rain, with text stating "Batteries Can Be Charged Even In Cloudy Or Rainy Days!!!"

3.2. Mounting the Sensors

1. Choose a suitable mounting location based on the considerations above.
2. Use the provided mounting hardware (screws and anchors) to securely attach the sensor to a wall, fence post, or tree. Ensure the sensor is stable and not prone to movement from wind.
3. Adjust the angle of the sensor to cover the desired detection area.

3.3. Receiver Setup

1. Plug the HTZSAFE Alarm Receiver into a standard electrical outlet indoors.
2. Place the receiver in a central location within your home or office, ensuring it is within the wireless transmission range of the sensors (up to 1/2 mile in ideal conditions).
3. The receiver will power on automatically.

Image: The black plug-in alarm receiver inserted into a wall outlet. Musical notes emanate from it, illustrating its sound capabilities. Text highlights its features: "4 CHANNELS & EXPANDABLE UP TO 4 SENSORS", "4 ADJUSTABLE VOLUME LEVELS", and "35 OPTIONAL MELODIES".

3.4. Pairing Sensors with Receiver

Your sensors and receiver should be pre-paired from the factory. If re-pairing is necessary or if adding new sensors:

1. Refer to the specific pairing instructions provided in the full manual or on the HTZSAFE support website. Generally, this involves putting the receiver into pairing mode and then triggering the sensor.
2. Assign each sensor to a specific channel (1-4) on the receiver to differentiate detection zones.

4. Operating the System

4.1. Motion Detection

The solar motion sensors detect heat movements from objects such as people, vehicles, or large animals. When motion is detected within the sensor's adjustable range (25ft, 50ft, or 70ft), it sends a wireless signal to the receiver.

Image: A collage of four scenarios demonstrating the sensor's versatility: detecting a person walking on a driveway, a vehicle entering a gate, a potential burglar near a fence, and an animal (deer) in a yard. Each scenario shows a red detection beam from a sensor.

4.2. Receiver Alerts

Upon receiving a signal from a sensor, the indoor receiver will:

• Sound an Alarm: Play a selected melody (from 35 options) corresponding to the triggered sensor's channel.
• Visual Alert: Illuminate the corresponding channel number (1, 2, 3, or 4) on the receiver.

You can adjust the volume of the alerts using the controls on the receiver (4 adjustable levels).

4.3. System Expansion

The HTZSAFE system is fully expandable. You can add up to 4 sensors to a single receiver. Conversely, one sensor can be paired with an unlimited number of receivers, allowing for comprehensive coverage of large properties.

Image: An illustration showing a house with a driveway and two solar sensors. One sensor is paired with a receiver inside the house, playing a "Ding Dong" melody. Another sensor is shown potentially paired with a second receiver, playing "Other music sounds," demonstrating the system's expandability.

5. Maintenance

To ensure the longevity and optimal performance of your HTZSAFE Driveway Alarm System, follow these maintenance guidelines:

• Sensor Cleaning: Periodically wipe the solar panel and the detection lens of the sensors with a soft, damp cloth to remove dust, dirt, or debris that may hinder charging or detection.
• Clear Obstructions: Regularly check the area around the sensors for new obstructions (e.g., overgrown plants, fallen branches) that could block the detection path.
• Battery Health (Sensors): The solar sensors are designed for continuous operation. If a sensor consistently fails to detect or transmit, ensure it is receiving adequate sunlight. The internal lithium battery is rechargeable via solar power.
• Receiver Care: Keep the receiver clean and free from dust. Do not expose it to moisture or extreme temperatures.

6. Troubleshooting

7. Product Specifications

8. Warranty and Support

HTZSAFE products are designed for durability and reliability. For specific warranty information regarding your Driveway Alarm System, please refer to the warranty card included in your product packaging or visit the official HTZSAFE website.

For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact HTZSAFE customer service through their official channels. You can typically find contact information on the HTZSAFE website or through the retailer where you purchased the product.
