1. Product Overview
The Hisense FV298N4AWE is an upright freezer designed for optimal storage of frozen foods. It features a generous 240-liter capacity, Total NoFrost technology to prevent ice buildup, and a FastFreeze function for rapid freezing of new items. The appliance also includes Multi AirFlow for even temperature distribution, LED lighting for clear visibility, and a reversible door for flexible installation.

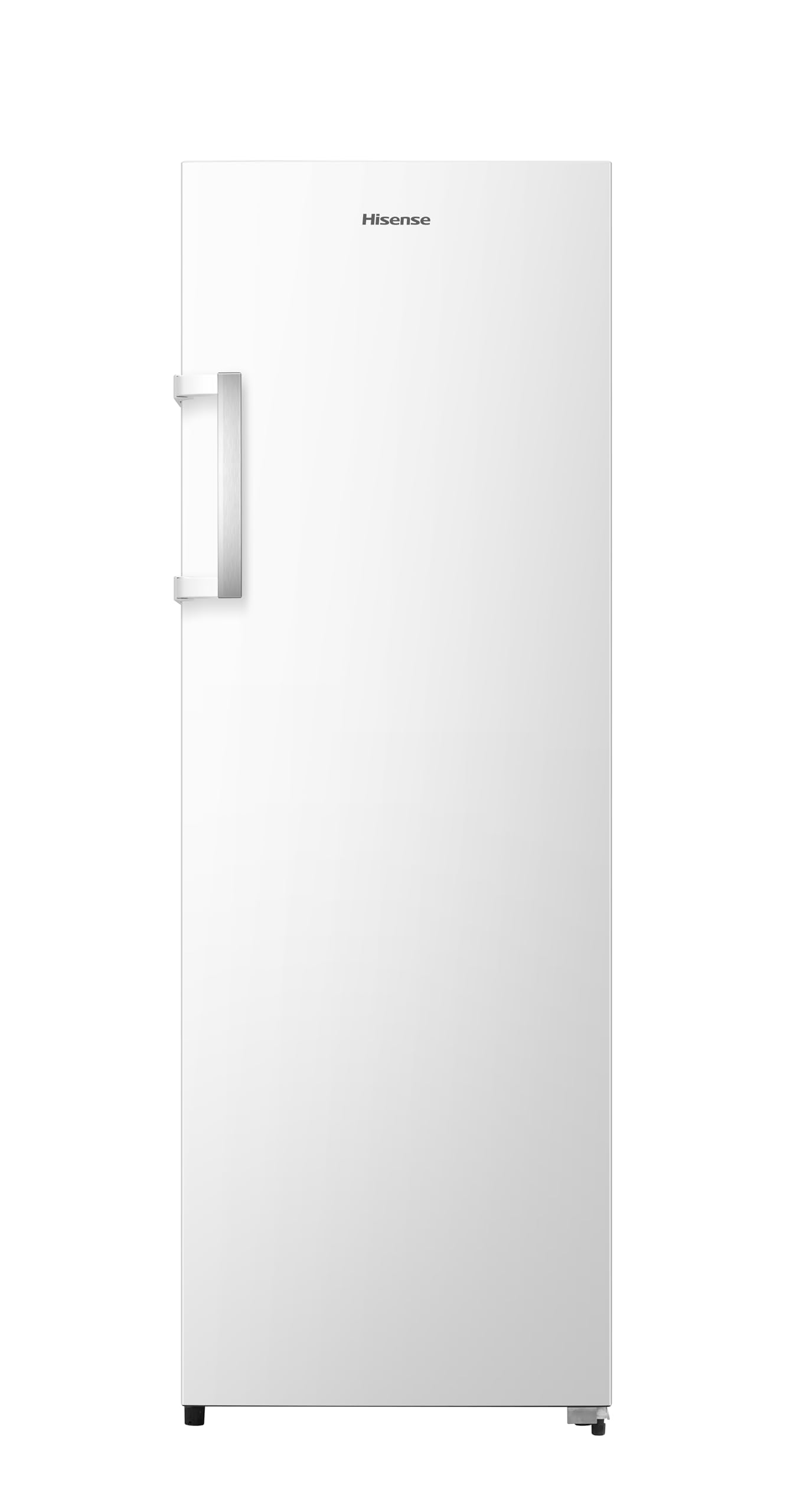

Figure 1: Front view of the Hisense FV298N4AWE freezer.
2. Important Safety Information
Read all instructions before using the appliance to ensure safe operation and prevent injury or damage. Keep this manual for future reference.
- Ensure the appliance is properly grounded.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the freezer compartments unless they are of the type recommended by the manufacturer.
- Keep ventilation openings clear of obstruction.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Unplug the appliance before cleaning or performing maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials, including foam, tape, and protective films. Inspect the freezer for any damage during transit. Report any damage to your retailer immediately.
3.2 Placement
- Place the freezer on a firm, level surface to prevent vibrations and noise.
- Ensure adequate ventilation around the appliance. Leave at least 10 cm of space at the back and sides for proper air circulation.
- Avoid placing the freezer in direct sunlight or near heat sources such as stoves, radiators, or heaters, as this will increase energy consumption.
- The appliance is designed for indoor use only.
3.3 Door Reversal
The door hinge is reversible, allowing you to change the opening direction to suit your kitchen layout. This procedure requires specific tools and careful handling. Refer to the detailed diagrams in the full printed manual for step-by-step instructions. It is recommended to have this done by a qualified technician if you are unsure.
3.4 Initial Power-On
After placing the freezer in its final position, wait at least 2-4 hours before plugging it into the power outlet. This allows the refrigerant to settle. Once plugged in, set the desired temperature using the control panel. Allow the freezer to run for several hours (e.g., 4-6 hours) to reach its operating temperature before loading it with food.
4. Operating Instructions
4.1 Temperature Control (LED Display)
The freezer is equipped with an LED display for easy and intuitive temperature control. Use the control buttons on the display to adjust the temperature setting. The recommended temperature for general frozen food storage is -18°C.
4.2 FastFreeze Function
The FastFreeze function is designed for rapidly freezing large quantities of fresh food. Activating this function will lower the freezer temperature to -24°C for 48 hours. This helps to preserve the nutritional value and texture of newly added items. After 48 hours, the freezer will automatically return to its previously set temperature. Activate FastFreeze approximately 24 hours before placing large amounts of fresh food into the freezer.
4.3 Total NoFrost Technology
This freezer features Total NoFrost technology, which prevents ice buildup in the freezer compartment. This eliminates the need for manual defrosting, saving you time and effort. The system circulates cold air evenly, maintaining a consistent temperature and humidity level.
4.4 Multi AirFlow System
The Multi AirFlow system ensures uniform cooling throughout the freezer. Multiple air vents distribute cold air to every shelf level, helping to maintain a stable temperature and quickly restore the temperature after the door has been opened.
4.5 LED Lighting
Internal LED lighting provides bright and energy-efficient illumination, offering a clear overview of your frozen goods.
5. Care and Maintenance
5.1 Cleaning the Interior
Before cleaning, always unplug the freezer. Clean the interior regularly with a soft cloth dampened with a solution of lukewarm water and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly. Do not use harsh chemicals, abrasive cleaners, or sharp objects, as these can damage the surfaces.
5.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. For stubborn stains, use a mild detergent. Ensure no water enters the electrical components. Regularly clean the condenser coils at the back of the appliance (if accessible) with a soft brush or vacuum cleaner to maintain efficiency.
5.3 Defrosting
Thanks to the Total NoFrost feature, manual defrosting of the freezer compartment is not required. If ice buildup occurs due to frequent door opening or humidity, it will be automatically managed by the system. Ensure the door seal is clean and intact to prevent excessive moisture entry.
6. Troubleshooting Guide
Before contacting customer service, review the following common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Freezer does not operate. | No power supply. | Check if the power cord is plugged in correctly. Check the fuse or circuit breaker. |
| Temperature is not cold enough. | Door not closed properly; excessive door opening; large amount of warm food added; poor ventilation. | Ensure door is sealed; reduce door opening frequency; allow new food to cool slightly before placing in freezer; ensure adequate space around the appliance. |
| Unusual noise. | Appliance not level; contact with wall or other objects; normal operating sounds. | Adjust leveling feet; move appliance away from obstructions; gurgling or humming sounds are normal for refrigerants. |
| Water on the floor. | Drainage hole blocked (not applicable for NoFrost freezer compartment); excessive humidity. | Ensure door is closed properly to prevent excessive humidity. For NoFrost, this is usually not an issue. |
7. Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | FV298N4AWE |
| Capacity | 240 Liters |
| Dimensions (D x W x H) | 59D x 59.5W x 172H cm |
| Weight | 61 Kilograms |
| Color | White |
| Door Material Type | Stainless Steel |
| Door Reversibility | Yes |
| Defrost System | Total NoFrost |
| FastFreeze Function | Yes |
| LED Lighting | Yes |
| Voltage | 220 Volts |
| Wattage | 234 Watts |
| Installation Type | Freestanding |
8. Warranty and Customer Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Hisense website. In case of any issues not covered in the troubleshooting section, or for service requests, please contact Hisense customer support. Have your model number (FV298N4AWE) and purchase date ready when contacting support.
You can find contact information for Hisense customer service on their official website: www.hisense.com
