1. Introduction
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your ZWHEEL ZRino SE Electric Scooter. Please read this manual thoroughly before using the scooter to ensure proper function and to prevent damage or injury.
The ZWHEEL ZRino SE is an all-terrain electric scooter designed for urban commuting and recreational use, featuring a powerful motor, long-range battery, and dual suspension for a comfortable ride.
2. Safety Information
Always prioritize safety when operating the ZWHEEL ZRino SE Electric Scooter. Failure to follow safety guidelines can result in serious injury or property damage.
- Always wear a helmet and appropriate protective gear (knee pads, elbow pads) when riding.
- Do not ride in wet conditions, heavy rain, or through puddles.
- Avoid riding on slippery surfaces, loose gravel, or uneven terrain at high speeds.
- Ensure both hands are on the handlebars at all times during operation.
- Do not exceed the maximum weight capacity of 120 kg.
- Observe all local traffic laws and regulations.
- Do not allow children under the age of 16 to operate the scooter.
- Regularly inspect the scooter for any signs of damage, loose parts, or wear before each ride.
- Be aware of your surroundings and other road users, including pedestrians and vehicles.
3. Package Contents
The ZWHEEL ZRino SE Electric Scooter package typically includes:
- ZWHEEL ZRino SE Electric Scooter (1 unit)
- Power Adapter/Charger
- User Manual
- Assembly Tools (if required for minor assembly)
4. Product Overview
Familiarize yourself with the main components and features of your ZWHEEL ZRino SE Electric Scooter.
Image: ZWHEEL ZRino SE Electric Scooter with a smartphone displaying the companion app interface.
Key Features:
- Powerful Motor: Equipped with a 600W rated motor, capable of reaching a maximum power output of 1200W, providing strong and stable performance.
- Long Range Battery: Features a 48V 10Ah high-capacity battery, offering an autonomy of up to 35 km on a single charge.
- Double Suspension System: Front and rear double shock absorbers enhance control and improve riding comfort, minimizing impacts from uneven surfaces.
- 10-inch Tubeless Tires: Provides a smooth ride and reduces the risk of punctures.
- Advanced Lighting System: Includes front headlights, brake lights, turn indicators, and lower position LEDs for maximum visibility and safer riding in low-light conditions.
- Large LED Display: The handlebar-mounted display shows speed, battery level, trip distance, and allows switching between four speed modes.
- Adjustable Handlebar Height: The handlebar height can be adjusted from 106 cm to 137 cm to suit different rider heights.
- Foldable Design: Allows for easy storage and portability.
Image: ZWHEEL ZRino SE Electric Scooter highlighting key features like 600W rated power, 1200W max power, 10-inch tubeless tires, 35KM autonomy, and 25KM/H max legal speed.
Image: Diagram of the ZRino SE brushless motor, highlighting high power, low heat generation, and high energy efficiency, with specifications of 1200W maximum power, <=20° climbing angle, and 35KM autonomy.
Image: Illustration of the ZRino SE battery with BMS (Battery Management System), indicating a large capacity of 48V 10Ah and a fast charge time of 5-6 hours, emphasizing protection against overheating and over-discharge.
Image: Diagram illustrating the front and rear double shock absorbers of the ZRino SE, designed for enhanced control and improved driving comfort.
Image: Detailed view of the ZRino SE lighting system, including the front headlight, brake lights, turn indicators, and lower position LEDs for comprehensive visibility.
5. Setup
5.1 Unpacking and Initial Assembly
- Carefully remove the scooter and all components from the packaging.
- Unfold the scooter by releasing the folding mechanism. Ensure it locks securely into the upright position.
- Attach the handlebars if they are not pre-installed. Ensure all screws are tightened firmly.
- Adjust the handlebar height to a comfortable position using the quick-release lever or adjustment mechanism.
Image: Diagram showing the adjustable handlebar height of the ZRino SE, with minimum height at 106cm and maximum at 137cm, indicating a 31cm adjustment range.
5.2 Initial Charging
Before first use, fully charge the scooter's battery. This typically takes 5-6 hours.
- Locate the charging port on the scooter.
- Connect the charger to the charging port, then plug the charger into a power outlet.
- The indicator light on the charger will typically change color (e.g., red to green) when charging is complete.
- Do not overcharge the battery. Disconnect the charger once fully charged.
6. Operating Instructions
6.1 Power On/Off
- To power on: Press and hold the power button on the display for a few seconds.
- To power off: Press and hold the power button again until the display turns off.
6.2 Riding the Scooter
- Place one foot firmly on the deck and push off with the other foot to gain initial momentum.
- Once moving, gently press the acceleration button (throttle) to engage the motor.
- To brake, release the acceleration button and use the brake levers. The scooter features a regenerative braking system.
- To turn, lean your body in the desired direction and gently steer the handlebars.
6.3 Speed Modes
The ZRino SE offers four distinct speed modes, selectable via the function button on the handlebars:
- Walk Mode: Approximately 6 km/h
- Eco Mode: Approximately 10 km/h
- Standard Mode: Approximately 15 km/h
- Turbo Mode: Up to 25 km/h (maximum legal speed)

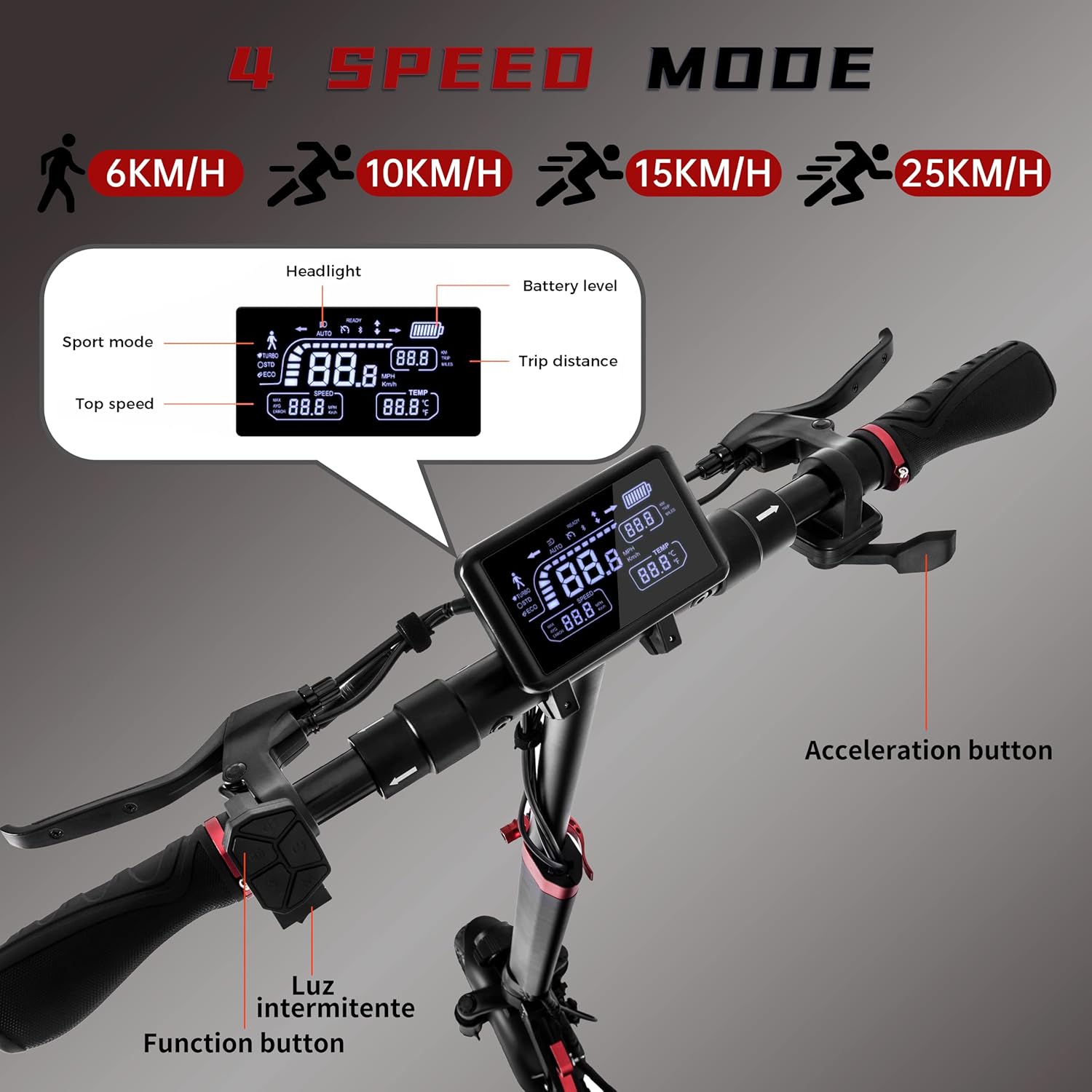

Image: Close-up of the ZRino SE LED display showing four speed modes, headlight indicator, battery level, and trip distance. Acceleration and function buttons are also visible on the handlebars.
6.4 App Connectivity
The ZWHEEL ZRino SE can connect to a smartphone application for additional features and controls. Refer to the app's instructions for pairing and usage.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your scooter.
7.1 Cleaning
- Wipe the scooter with a damp cloth after each use. Avoid using high-pressure water jets or harsh chemicals.
- Do not immerse the scooter in water.
7.2 Battery Care
- Charge the battery regularly, even if the scooter is not in use, to maintain battery health.
- Store the scooter in a cool, dry place, away from direct sunlight and extreme temperatures.
- If storing for an extended period, ensure the battery is charged to approximately 50-70%.
7.3 Tire Maintenance
The ZRino SE uses 10-inch tubeless tires. Regularly check tire pressure and inspect for any damage or excessive wear.
7.4 General Inspection
- Check all bolts and screws for tightness.
- Inspect brake levers and cables for proper function and adjustment.
- Ensure the folding mechanism operates smoothly and locks securely.
8. Troubleshooting
This section addresses common issues you might encounter with your ZWHEEL ZRino SE Electric Scooter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Low battery; Loose battery connection; Faulty power button | Charge the battery; Check battery connections; Contact support if issue persists. |
| Reduced range or power | Undercharged battery; Old battery; Riding uphill frequently; Heavy load | Fully charge battery; Consider battery replacement if old; Adjust riding style. |
| Brakes not effective | Brake cable loose; Worn brake pads | Adjust brake cable tension; Replace worn brake pads. |
| Unusual noises during operation | Loose components; Debris in wheels; Motor issue | Inspect for loose parts and tighten; Clean wheels; Contact support. |
9. Specifications
Detailed technical specifications for the ZWHEEL ZRino SE Electric Scooter.
| Feature | Specification |
|---|---|
| Model Name | ZRino SE (also referred to as T4) |
| Motor Power (Rated) | 600 W |
| Motor Power (Max) | 1200 W |
| Battery Capacity | 48 V, 10 Ah |
| Max Range | Up to 35 km |
| Max Speed | 25 km/h (legal limit) |
| Wheel Size | 10 inches (Tubeless) |
| Suspension | Double Suspension (Front and Rear) |
| Brakes | Regenerative Brake |
| Frame Material | Carbon Fiber |
| Max Load Capacity | 120 kg |
| Product Dimensions (Unfolded) | 118 cm (L) x 60 cm (W) x 106-137 cm (H) |
| Product Dimensions (Folded) | 118 cm (L) x 21 cm (W) x 46 cm (H) |
| Item Weight | 27 kg |
| Charging Time | 5-6 hours |
| Age Recommendation | Adult |
Image: Technical drawing showing the dimensions of the ZRino SE in both unfolded and folded states.
10. Warranty and Support
ZWHEEL is committed to providing quality products and customer service.
For any questions, technical assistance, or warranty claims, please contact ZWHEEL customer support. ZWHEEL offers official technical assistance points. Refer to your purchase documentation or the official ZWHEEL website for specific warranty terms and contact information.
Image: ZWHEEL After-Sales Service icon with text indicating over 50 official technical assistance points and an invitation to contact for professional service.
