Introduction
Thank you for choosing the Goplus Gaming Desk and Chair Combo Set. This manual provides essential information for the safe assembly, operation, and maintenance of your new gaming workstation. Please read these instructions carefully before assembly and retain them for future reference.
Image: The Goplus Gaming Desk and Chair Combo Set, featuring a black desk with orange accents and a black and white gaming chair.
Safety Information
- Always follow the assembly instructions carefully.
- Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as needed.
- Do not exceed the maximum weight capacity: 175 lbs for the desk and 330 lbs for the chair.
- Keep small parts away from children during assembly to prevent choking hazards.
- Use the product on a level surface to prevent tipping.
- Avoid standing on the chair or desk.
- Do not expose the product to direct sunlight or extreme temperatures.
Package Contents
Your Goplus Gaming Desk and Chair Combo Set is shipped in two separate boxes and may arrive at different times. Please verify all components are present before beginning assembly. The package includes:
- 1 x Massage Gaming Chair
- 1 x Gaming Desk
- 2 x Instruction Manuals (one for desk, one for chair)
- All necessary hardware for assembly
Setup and Assembly
Gaming Desk Assembly
Refer to the dedicated instruction manual included with the desk for detailed, step-by-step assembly. Ensure all parts are identified and laid out before starting. The desk features a sturdy R-frame design with round leveling feet for stability on uneven surfaces.
Image: Diagram highlighting the desk's features including rounded corners, ergonomic curved processing, R-frame design, and round leveling feet.
Image: The Goplus Gaming Desk set up with a computer monitor, keyboard, and mouse, demonstrating its spacious desktop.
Gaming Chair Assembly
Refer to the dedicated instruction manual included with the chair for detailed, step-by-step assembly. Pay close attention to the attachment of the base, gas lift, and backrest. Ensure the massage lumbar pillow's USB cable is accessible for power connection.

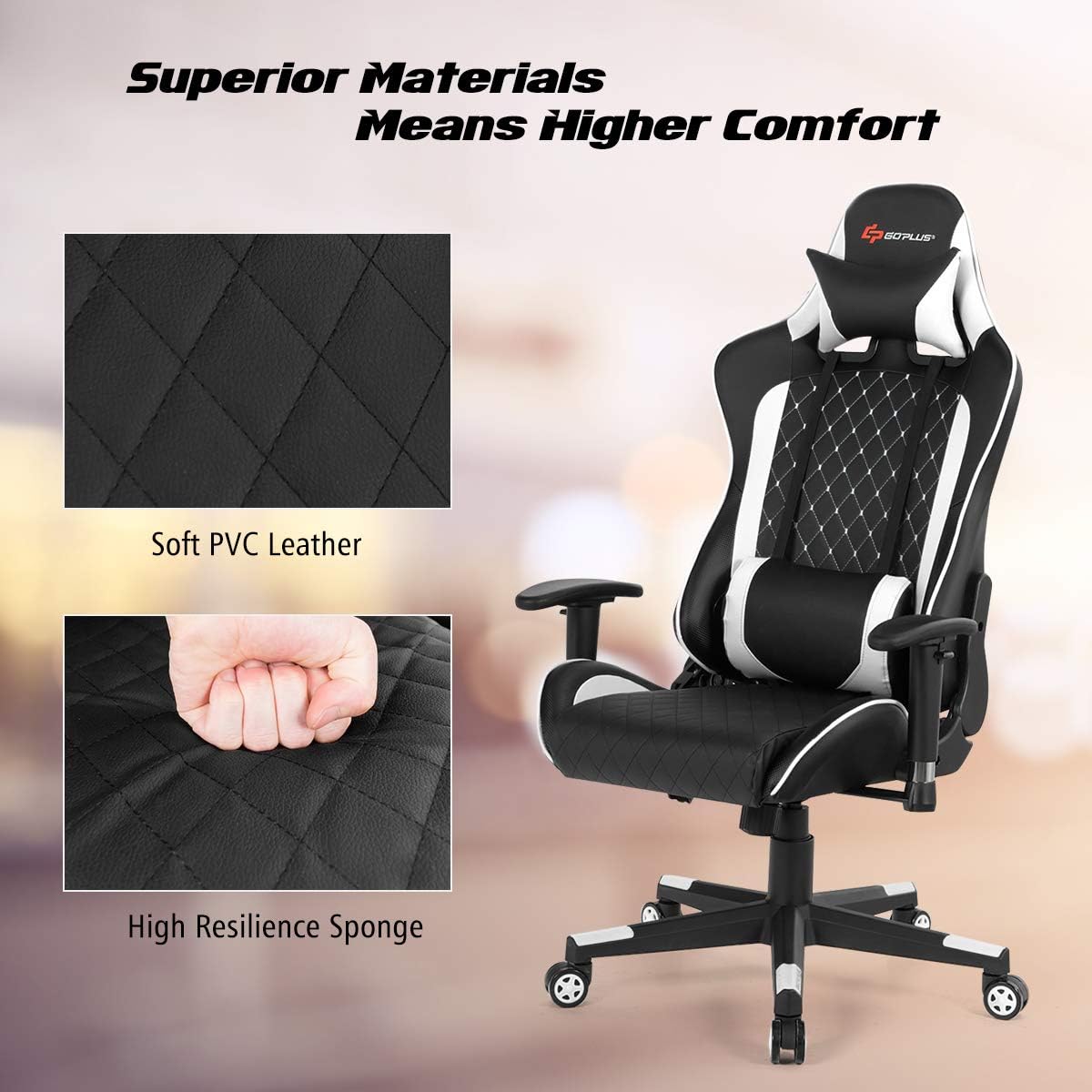

Image: Close-up view of the chair's materials, showing soft PVC leather and high resilience sponge for comfort.
Operating Instructions
Chair Adjustments
- Height Adjustment: Use the lever located under the seat on the right side to adjust the chair's height. Pull the lever up to raise the seat; sit on the chair and pull the lever up to lower it.
- Backrest Recline: The backrest can be reclined from 90° to 180°. Use the lever on the right side of the chair to adjust the angle. Lean back to your desired position and release the lever to lock.
- Rocking Function: The chair features a rocking function. This can typically be enabled or disabled using a knob or lever under the seat.
- 360° Swivel: The chair is designed to swivel 360 degrees for ease of movement.
- Armrest Adjustment: Adjust the height of the armrests by pressing the button on the side of each armrest and moving them up or down.

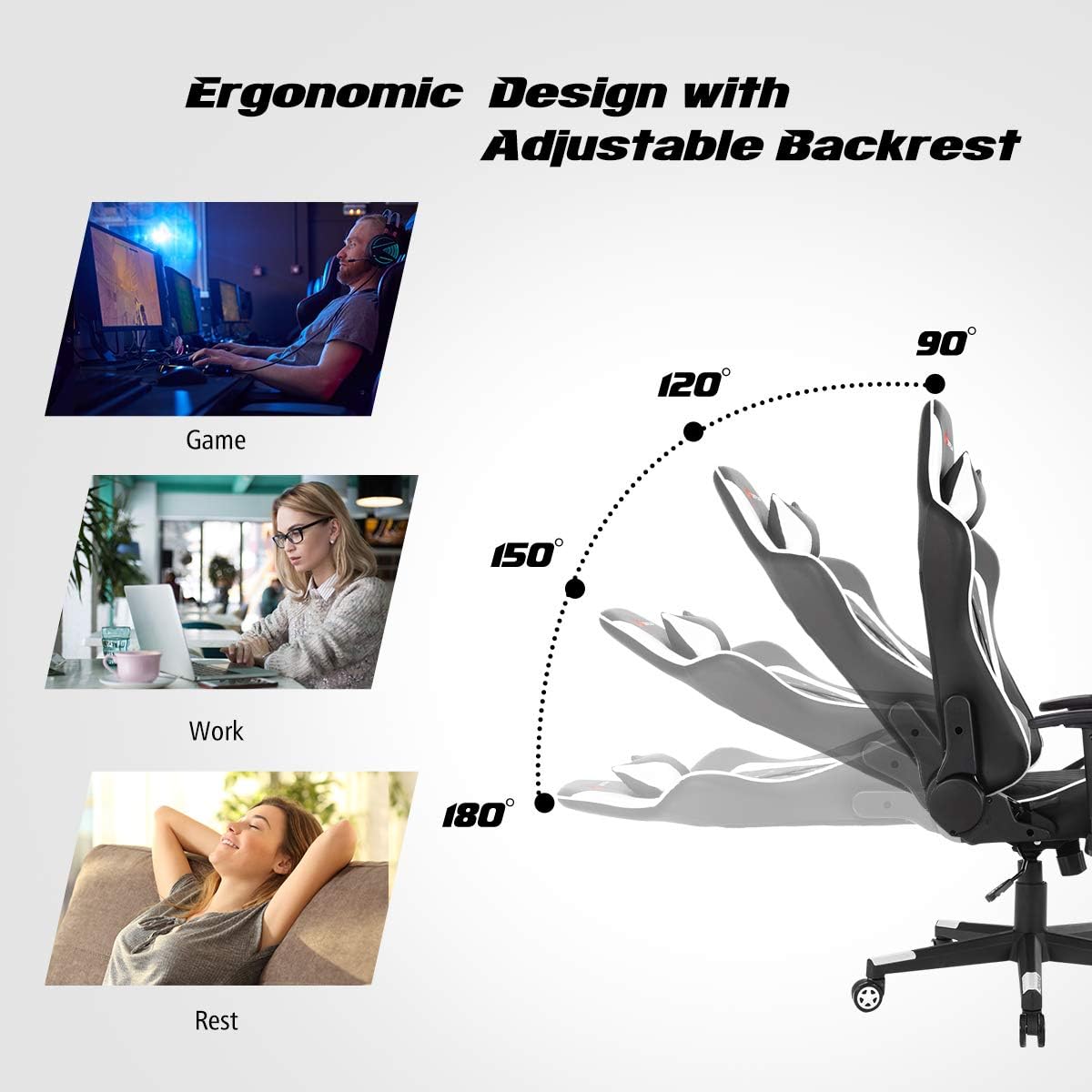

Image: Diagram illustrating the adjustable backrest of the gaming chair, showing recline angles from 90° to 180° for gaming, working, and resting positions.
Image: A user sitting in the gaming chair, with insets showing the rocking function, 360° swivel, and adjustable height mechanism.
Massage Function
The lumbar pillow includes a USB-powered massage function. To activate, connect the USB cable from the lumbar pillow to a power bank (not included) or a suitable USB power source. A dedicated pocket beneath the seat is provided for convenient storage of your power bank.
Image: A close-up of the gaming chair's lumbar pillow, showing the USB connection for the massage function and the power bank storage pocket.
Maintenance
- Cleaning: The desktop features an anti-scratch and waterproof finish, making it easy to clean. Wipe surfaces with a soft, damp cloth. For the PVC leather chair, use a mild soap solution and a soft cloth, then wipe dry. Avoid harsh chemicals or abrasive cleaners.
- Inspection: Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability and safety.
- Moving: When moving the desk, lift it rather than dragging to prevent damage to the legs or floor. For the chair, utilize its smooth-rolling wheels.
Troubleshooting
- Missing Parts: If any parts are missing upon delivery, please contact Goplus customer support immediately. Refer to the parts list in your assembly manual.
- Instability: Ensure all screws are fully tightened. For the desk, adjust the round leveling feet to compensate for uneven floors. For the chair, ensure the base is correctly assembled and the gas lift is properly seated.
- Chair Not Adjusting: Check that the adjustment levers are not obstructed and are functioning correctly. Ensure the gas lift is properly installed.
- Massage Function Not Working: Verify that the USB cable is securely connected to a functioning power source (e.g., a charged power bank).
Specifications
Image: Detailed diagram showing the dimensions and weight capacities for both the Goplus Gaming Desk and Chair.
Gaming Desk
- Overall Size: 46" x 29.5" x 28" (L x W x H)
- Material: Metal + MDF
- Net Weight: 42 lbs
- Weight Capacity: 175 lbs
- Color: Black (with orange accents)
Gaming Chair
- Overall Size: 29" x 29" x 50"-54" (L x W x H)
- Backrest Size: 21.5" x 33" (L x W)
- Seat Size: 21" x 20" (L x D)
- Adjustable Seat Height: 18.5" to 22.5"
- Material: Sponge, PU, PVC, Iron
- Net Weight: 40 lbs
- Weight Capacity: 330 lbs
- Reclining Angle: 90-180°
- Color: White (with black accents)
Warranty and Support
For any questions regarding assembly, missing parts, or product performance, please contact Goplus customer support. Refer to the contact information provided with your purchase documentation or visit the official Goplus website for assistance.
Please retain your proof of purchase for any warranty claims. Specific warranty details may vary and are typically outlined in the documentation included with your product.
