Amewi Gantry Cross-Country Truck 1:16 Instruction Manual

Safety Information

Warning! Not suitable for children under three years due to small parts which may present a choking hazard.

Always operate the vehicle in a safe environment, away from people, pets, and obstacles. Do not operate near public roads or in crowded areas. Ensure the battery is charged correctly and never leave charging batteries unattended. Disconnect the battery after use and before storage. Avoid contact with moving parts to prevent injury. Adult supervision is recommended for users under 14 years of age.

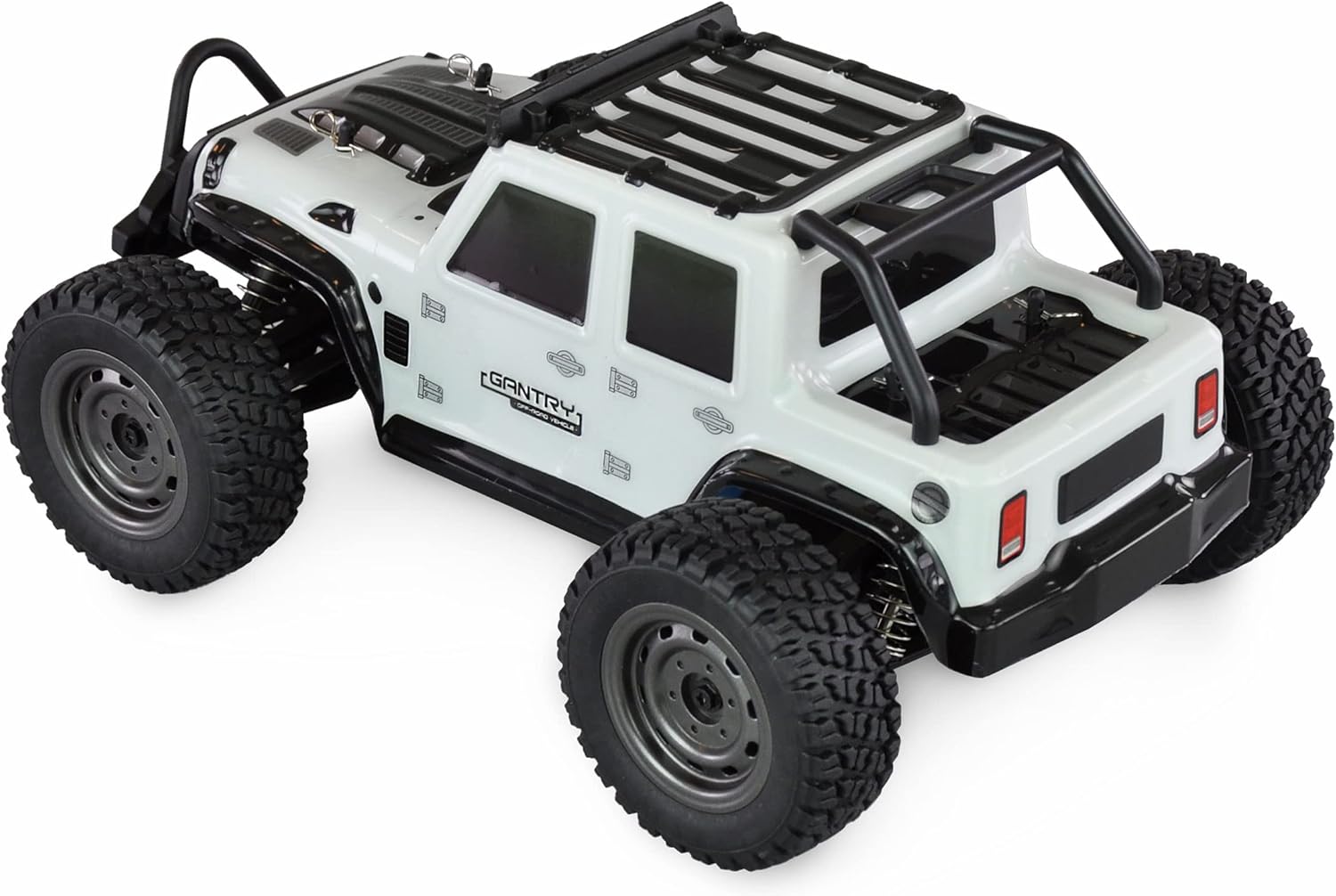

Product Overview

The Amewi Gantry Cross-Country Truck, scaled at 1:16, is designed for robust off-road performance. It features metal cardan shafts and front CVD drive shafts for direct power transfer to the wheels. Powered by a 390 Racing Brushed Motor and Li-Ion battery, it can reach speeds up to 40 km/h. An aluminum top deck enhances overall model rigidity. Bright LED lighting ensures visibility in low-light conditions. Large, soft rubber tires provide excellent grip on various surfaces. All electronics are splash-proof, allowing for outdoor use. The 2.4GHz remote control ensures interference-free operation and allows multiple models to be used simultaneously. This truck comes as a Ready-to-Run (RTR) package, including the remote control, battery, and charging cable. After the initial battery charge, the vehicle is ready for immediate use.

Key Features:

• Aluminum Top Deck: Enhances overall model rigidity and durability.
• 390 Brushed Motor: Provides powerful off-road racing capability.
• CVD Drive Shafts: Located on the front axles for wear-free power transmission to the wheels.
• 2S Li-Ion Power: 7.4V 1300mAh battery for extended run times up to 15 minutes.
• Fast Steering Servo: Enables agile direction changes on any surface.
• Splash-proof Electronics: Allows for unrestricted outdoor use.
• 2.4GHz Remote Control: Ensures interference-free operation.

Package Contents

The Amewi Gantry Cross-Country Truck comes as a Ready-to-Run (RTR) package, including everything needed to start operating the vehicle after an initial charge.

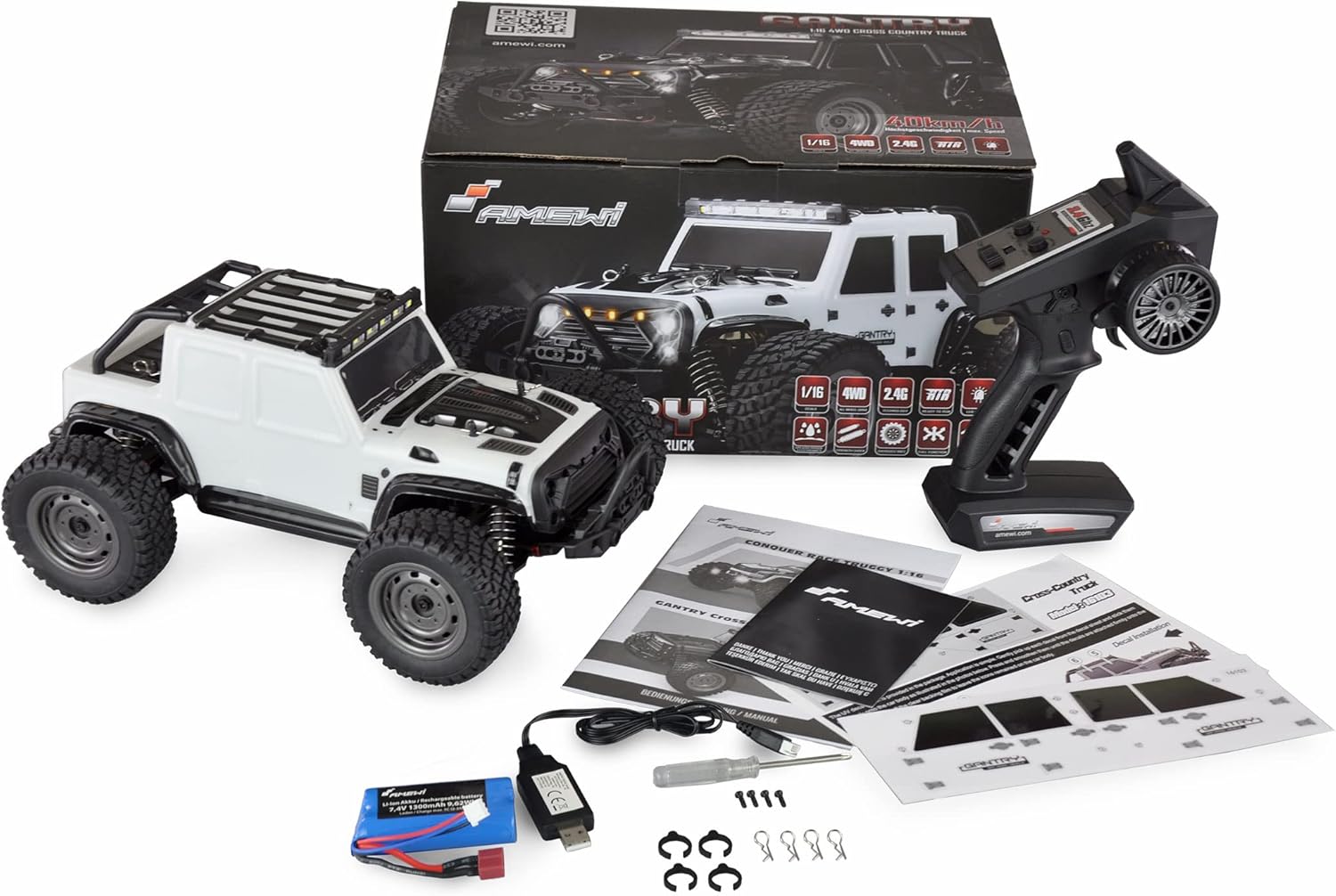

Your package should contain the following items:

• Amewi Gantry Cross-Country Truck (1:16 Scale)
• 2.4GHz Remote Control
• 7.4V 1300mAh Li-Ion Battery
• USB Charging Cable
• AA Batteries for Remote Control (1x)
• Small Screwdriver / Hex Wrench
• Instruction Manual

Setup

1. Charging the Vehicle Battery

1. Connect the USB charging cable to a suitable USB power adapter (not included, e.g., smartphone charger, computer USB port).
2. Connect the 7.4V Li-Ion battery to the charging cable. Ensure correct polarity.
3. The charging indicator on the USB cable will show the charging status (e.g., red for charging, green for fully charged).
4. Allow approximately 2-3 hours for a full charge. Do not overcharge the battery.
5. Always supervise the battery during charging.

2. Installing Remote Control Batteries

1. Open the battery compartment on the back of the remote control.
2. Insert 1 AA battery, observing the correct polarity (+/-).
3. Close the battery compartment securely.

3. Installing the Vehicle Battery

1. Remove the body clips to detach the truck's body shell.
2. Locate the battery compartment or tray within the chassis.
3. Place the fully charged Li-Ion battery into the compartment.
4. Connect the battery connector to the vehicle's ESC (Electronic Speed Controller) connector. Ensure a secure connection.
5. Reattach the body shell using the body clips.

Operating Instructions

1. Powering On

1. Turn on the remote control first. The indicator light should illuminate.
2. Turn on the power switch on the vehicle. The vehicle's lights should turn on, and it will bind with the remote control.
3. If the vehicle and remote do not bind automatically, turn both off and repeat the process.

2. Basic Controls

• Steering Wheel: Turn left or right to control the vehicle's direction.
• Throttle Trigger: Pull to move forward, push to brake/reverse.
• Steering Trim: Adjusts the steering to ensure the vehicle drives straight when the steering wheel is centered.
• Throttle Trim: Adjusts the neutral point of the throttle.

3. Driving Tips

• Start with slow speeds to get accustomed to the controls.
• Avoid driving into water deeper than the vehicle's chassis, despite splash-proof electronics.
• Practice in open areas before attempting more challenging terrain.
• Be mindful of battery life; performance will decrease as the battery drains.

Maintenance

1. Cleaning

• After each use, especially off-road, clean the vehicle to remove dirt, dust, and debris.
• Use a soft brush or compressed air to clean hard-to-reach areas.
• Wipe the body with a damp cloth. Avoid using harsh chemicals.
• Inspect the wheels and suspension for any trapped debris.

2. Battery Care

• Always disconnect the battery from the vehicle when not in use.
• Store batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
• Do not fully discharge Li-Ion batteries; charge them to storage voltage (around 3.8V per cell) if storing for extended periods.
• If the battery shows signs of damage (swelling, leakage), discontinue use immediately and dispose of it properly.

3. General Inspection

• Regularly check all screws and fasteners for tightness.
• Inspect the drive shafts, gears, and suspension components for wear or damage.
• Ensure all cables and connectors are secure and free from damage.

Troubleshooting

Specifications

Warranty and Support

For warranty information, technical support, or replacement parts, please contact Amewi customer service directly. Refer to the official Amewi website or the packaging for contact details. Please have your model number (22606) and proof of purchase ready when contacting support.
