EXTENSILO 18V 5000mAh Li-ion Replacement Battery User Manual

1. Introduction

Thank you for choosing the EXTENSILO 18V 5000mAh Li-ion Replacement Battery. This high-quality battery is designed to provide reliable power for your compatible Berner power tools. This manual contains important information regarding the safe operation, maintenance, and disposal of your battery. Please read it thoroughly before use and retain it for future reference.

2. Safety Information

Always observe the following safety precautions to prevent injury or damage to the battery and tool:

• DO NOT DISASSEMBLE: Attempting to disassemble the battery can lead to electric shock, fire, or exposure to hazardous materials.
• USE ONLY WITH ORIGINAL CHARGER: Always use the charger specifically designed for your power tool's battery type. Using an incompatible charger may cause fire or explosion.
• INSPECT FOR DAMAGE: If the battery pack is cracked or damaged, do not use it. Contact support for assistance.
• DO NOT INSERT IN CHARGER IF DAMAGED: Never attempt to charge a damaged battery.
• DO NOT INCINERATE: Do not dispose of the battery in fire. It may explode.
• AVOID SHORT CIRCUITS: Do not short-circuit the battery terminals. Keep the battery away from metal objects that could bridge the terminals.
• PROTECT FROM EXTREMES: Do not expose the battery to water, rain, or extreme temperatures (above 50°C / 122°F or below -10°C / 14°F).
• STORE PROPERLY: Store the battery in a cool, dry place away from direct sunlight and heat sources.
• KEEP OUT OF REACH OF CHILDREN: Batteries can be dangerous if swallowed or misused.

Image 1: Battery label displaying important safety warnings and technical specifications, including the model number and manufacturer information.

3. Product Features

The EXTENSILO replacement battery offers the following features:

• High Capacity: 5000 mAh for extended runtime.
• Lithium-ion Technology: Provides consistent power output and no memory effect.
• Voltage: 18 Volts, compatible with specified Berner tools.
• LED Charge Indicator: Allows for quick assessment of remaining battery charge.
• Safety Protections: Built-in protection against short circuits, overheating, and overvoltage.
• Durable Design: Robust construction for demanding work environments.

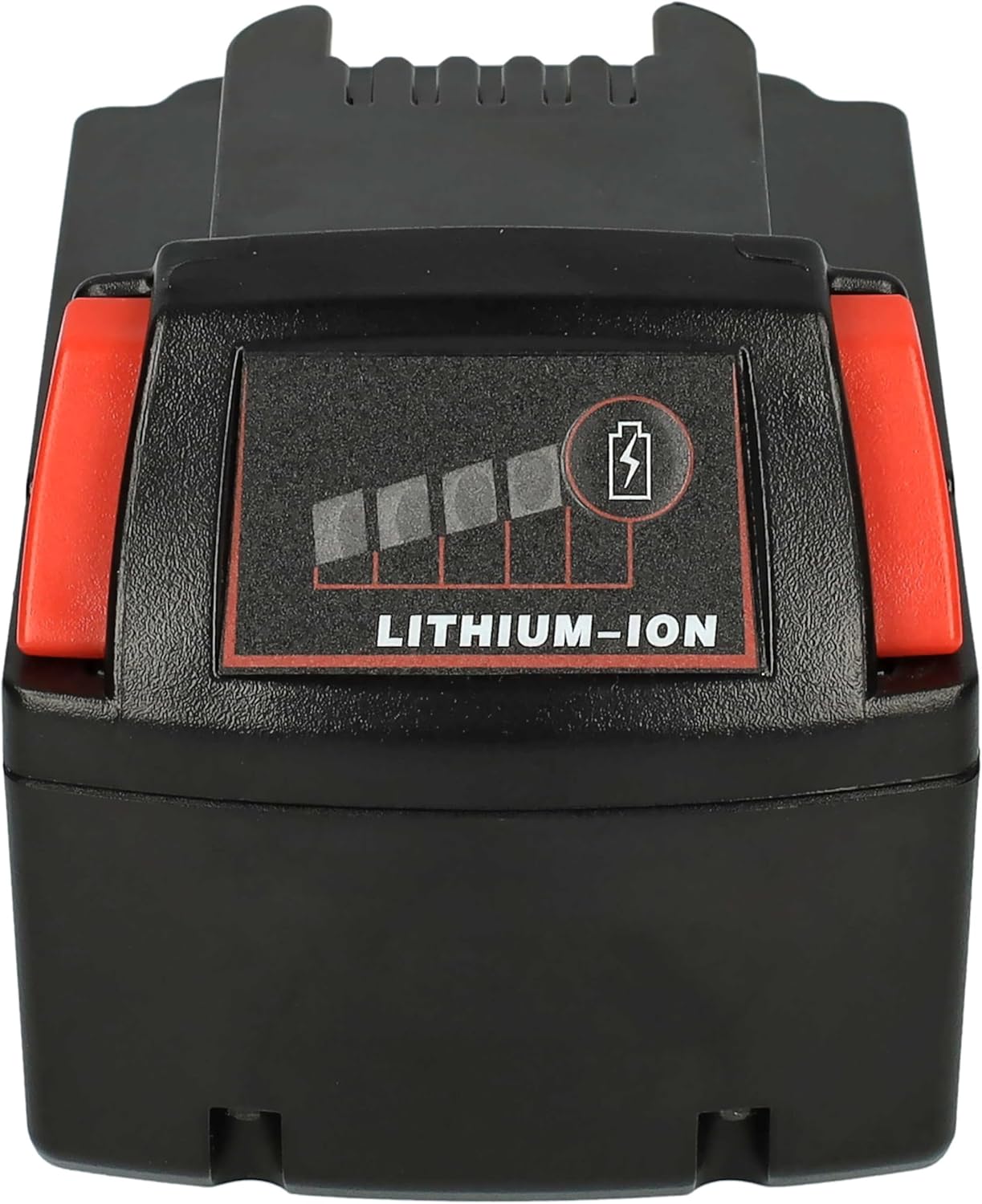

Image 2: Top view of the battery, highlighting the 'LITHIUM-ION' branding and the LED charge indicator for monitoring battery status.

4. Setup

4.1 Initial Charging

Before first use, fully charge the battery. Connect the battery to a compatible Berner charger. The charger's indicator lights will show the charging status. Refer to your charger's manual for specific charging instructions.

4.2 Installing the Battery

1. Ensure the power tool is turned off and disconnected from any power source.
2. Align the battery with the battery port on your compatible Berner power tool.
3. Slide the battery firmly into the tool until it clicks into place. Ensure it is securely latched.

Image 3: Angled view of the EXTENSILO battery, illustrating its form factor and the red release buttons for secure tool attachment.

4.3 Removing the Battery

1. Turn off the power tool.
2. Press the battery release buttons (typically red, as shown in images).
3. Slide the battery out of the tool.

5. Operating Instructions

5.1 Powering Your Tool

Once the battery is securely installed, your power tool is ready for use. Operate the tool according to its specific instruction manual.

5.2 Checking Battery Charge

Press the button on the battery to activate the LED charge indicator. The number of illuminated LEDs indicates the approximate remaining charge:

• 4 LEDs: Full charge
• 3 LEDs: Approximately 75% charge
• 2 LEDs: Approximately 50% charge
• 1 LED: Low charge, recharge soon
• No LEDs: Battery is discharged.

6. Maintenance

6.1 Charging

Recharge the battery when the charge indicator shows low power. Avoid completely draining the battery frequently, as this can reduce its overall lifespan. Always use a compatible charger.

6.2 Storage

For long-term storage, charge the battery to approximately 50-70% capacity. Store it in a cool, dry place (between 10°C and 20°C / 50°F and 68°F) away from direct sunlight and moisture. Avoid storing fully charged or fully discharged batteries for extended periods.

6.3 Cleaning

Keep the battery terminals clean and free of dirt or debris. Use a dry, soft cloth to wipe the battery. Do not use solvents or abrasive cleaners.

7. Troubleshooting

If you encounter issues with your EXTENSILO battery, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact EXTENSILO customer support.

8. Specifications

Detailed technical specifications for your EXTENSILO replacement battery:

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official EXTENSILO website. Ensure you have your model number (VHBW4064115120196) available when contacting support.
