1. Introduction
This instruction manual provides essential information for the safe and efficient use of your Hitachi HT-M60S-S 60cm Built-in IH Cooking Heater. Please read this manual thoroughly before installation and operation, and keep it for future reference. Proper installation, operation, and maintenance are crucial for optimal performance and safety.
2. Safety Information
Please observe the following safety precautions to prevent accidents, injury, or damage to property. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Electrical Requirements: Ensure your home's electrical system provides 200V to the breaker. If not, installation is not possible. A dedicated breaker for the IH cooking heater is required; if absent, additional wiring work will be necessary.
- Gas Stove Replacement: If replacing an existing gas stove, professional gas shut-off and dedicated electrical wiring work are mandatory. The customer is responsible for arranging gas shut-off with their contracted gas company.
- Appliance Compatibility: Confirm the model name of your current appliance, typically found on its information sticker, to ensure compatibility with the new unit.
- Installation Services: Damages arising from sales or installation services are exempt from our responsibility, except in cases of intentional or gross negligence on our part.
- Overheat Prevention: The unit is equipped with automatic overheat prevention for both cooking zones and the grill. Do not obstruct ventilation openings.
- Cookware: Use only iron or stainless steel cookware compatible with IH heating. Non-compatible cookware may not heat or could damage the unit.
Figure 2.1: Important points to note regarding installation and safety, including electrical requirements and gas stove replacement procedures.
3. Product Overview
The Hitachi HT-M60S-S is a 60cm wide built-in IH cooking heater designed for modern kitchens. It features a sleek silver finish and offers efficient cooking with advanced safety features.
Key Features:
- Cooking Zones: Two IH cooking zones and one radiant heater.
- Cookware Compatibility: Suitable for iron and stainless steel pots and pans.
- Grill: Waterless double-sided grill for convenient cooking.
- Power Levels:
- Left/Right IH: 100W equivalent to 3.0kW (8 levels)
- Central Heater: 300W equivalent to 1.2kW (3 levels)
- Grill: Manual 270W equivalent to 700W equivalent (3 levels)
- Safety Functions: Automatic shutdown for no pot detection, small metal object detection, warped frying pan detection, auto-off timer, and overheat prevention for both cooking zones and the grill.

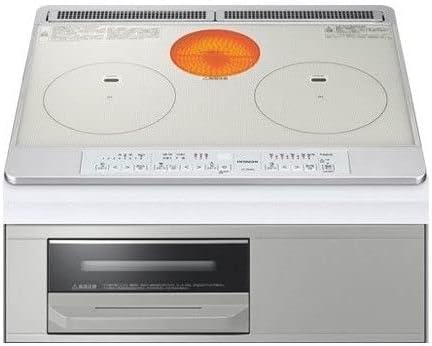

Figure 3.1: Front view of the Hitachi HT-M60S-S Built-in IH Cooking Heater, showing the two IH zones, radiant heater, and control panel.
4. Setup and Installation
The installation of this built-in IH cooking heater requires professional expertise. Please follow the general flow and standard installation procedures outlined below.
4.1. Installation Process Flow
- Order Product: Place your order for the IH cooking heater.
- Reply to Hearing Sheet: A hearing sheet will be sent to your registered email address after your order. Please complete and return it to confirm your home's conditions and desired installation schedule.
- Schedule Confirmation: You will be contacted via email to confirm the installation date.
- Product Delivery: The product will be delivered to your location by the day before the scheduled installation.
- Inspect Product: Before installation, verify the packaging and product condition upon delivery.
- On-site Installation: A technician will visit to perform the installation.
Figure 4.1: Visual representation of the steps from product purchase to final installation.
4.2. Standard Installation Work Details
- Product Delivery: Delivery of the IH cooking heater by the day before installation.
- Removal of Existing Unit: Disassembly and removal of your existing built-in IH cooking heater. (Note: Disposal of the old unit is the responsibility of the customer. Please contact your local municipality for disposal procedures.)
- New Unit Installation: Unpacking and installation of the new IH cooking heater.
- Countertop Cleaning: Cleaning of the countertop area around the installation.
- Test Run and Explanation: A test run of the newly installed unit and an explanation of its operation and handling.
Important Considerations:
- If replacing a gas stove, gas shut-off work and dedicated electrical wiring work are required.
- This IH cooking heater cannot be combined with a gas oven. It is only compatible with a built-in electric oven range.

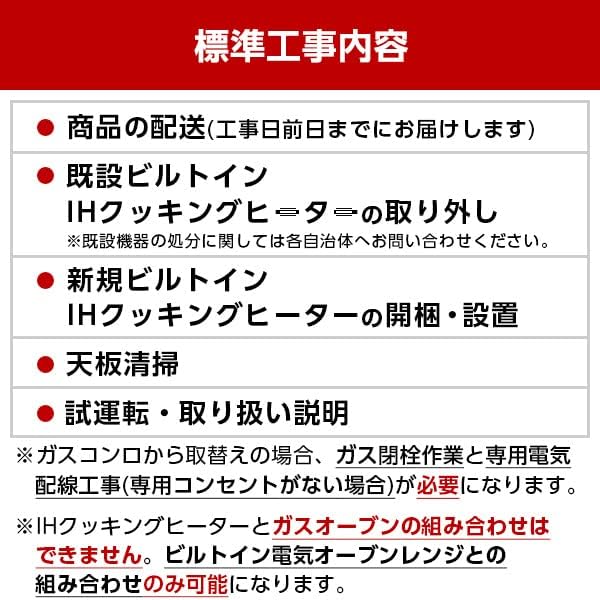

Figure 4.2: Detailed breakdown of the standard installation services included with the product.
4.3. Additional Charges
Additional charges may apply if materials not included with the product are required, or for specific types of work. These charges are to be paid directly to the installation technician.
| Work Content | Additional Charge (Tax Included) |
|---|---|
| Gas Shut-off | 3,300 JPY |
| Dedicated Electrical Wiring (30A 200V, within 10m) | 26,400 JPY (+1,650 JPY per additional 1m) |
Note: Dedicated electrical wiring is typically exposed. If you require the wiring to be finished within a conduit, an additional cost of 550 JPY per 1m will be incurred.
Disposal of Existing Equipment: Our service does not include the disposal of your old appliance. Please contact your local government or a certified industrial waste contractor for proper disposal.
Figure 4.3: A table detailing potential additional costs for installation services, such as gas shut-off and electrical wiring.
5. Operating Instructions
This section provides general guidance on operating your IH cooking heater. Refer to the control panel and specific indicators for precise operation.
5.1. Powering On and Off
- To power on, press the main power button.
- To power off, press the main power button again. The unit will automatically shut off after a period of inactivity (auto-off timer).
5.2. Using IH Cooking Zones
- Place compatible cookware (iron or stainless steel) centrally on the desired IH zone.
- Select the IH zone and adjust the power level using the dedicated controls. The left and right IH zones offer 8 power levels, from 100W equivalent to 3.0kW.
- The unit features automatic detection for cookware presence and type. If no pot is detected or an incompatible pot is used, heating will not start or will stop automatically.
5.3. Using the Radiant Heater
- The central heater is a radiant type. Place cookware on the zone.
- Select the central heater and adjust the power level. It offers 3 power levels, from 300W equivalent to 1.2kW.
5.4. Using the Grill
- The unit includes a waterless double-sided grill.
- Place food in the grill pan and slide it into the grill compartment.
- Select the grill function and choose one of the 3 manual power levels (270W equivalent to 700W equivalent).
- Monitor food during grilling to prevent overcooking.
5.5. Safety Features During Operation
- No Pot Automatic Stop: Heating stops if no pot is detected on an IH zone.
- Small Metal Object Detection: Heating stops if small metal objects are detected on an IH zone.
- Warped Frying Pan Detection: Heating stops if a warped frying pan is detected, preventing uneven heating and potential hazards.
- Auto-Off Timer: The unit automatically shuts off after a preset period of continuous operation without user input.
- Overheat Prevention: Automatic shutdown occurs if cooking zones or the grill reach excessively high temperatures.
6. Maintenance
Regular cleaning and maintenance ensure the longevity and safe operation of your IH cooking heater.
6.1. Cooktop Cleaning
- Allow the cooktop to cool completely before cleaning.
- Wipe the ceramic glass surface with a soft cloth dampened with mild detergent. For stubborn stains, use a specialized ceramic cooktop cleaner.
- Avoid abrasive cleaners, scouring pads, or sharp objects that can scratch the surface.
6.2. Grill Cleaning
- After each use, allow the grill to cool.
- Remove the grill pan and rack. Wash them with warm, soapy water.
- Wipe the interior of the grill compartment with a damp cloth. Ensure all food residues are removed to prevent odors and smoke during future use.
6.3. Exterior Cleaning
- Wipe the exterior surfaces with a soft, damp cloth.
- Do not use harsh chemicals or solvents.
7. Troubleshooting
This section addresses common issues and frequently asked questions. For problems not covered here, please contact customer support.
7.1. Frequently Asked Questions (FAQ)
- Q: Can you take away the removed product (old IH/stove)?
- A: Our service does not include the collection or recycling of old IH cooking heaters or stoves. Please contact your local municipality or a certified industrial waste contractor for proper disposal.
- Q: What is the policy regarding cancellation?
- A: If delivery or installation is not possible after the product has been shipped, the order will be considered a cancellation, and a cancellation fee may be incurred.
- Q: What if a defect occurs in the delivered product?
- A: If a product defect is confirmed during the initial operation check, we will arrange for an initial defect replacement. If a defect occurs during the installation warranty period, please contact us or our affiliated installation company. We will address the issue in accordance with our installation warranty regulations.
Figure 7.1: Common questions and answers related to product handling, cancellations, and defect resolution.
8. Specifications
Detailed technical specifications for the Hitachi HT-M60S-S Built-in IH Cooking Heater.
| Feature | Specification |
|---|---|
| Brand | Hitachi |
| Model Number | HT-M60S-S |
| Special Features | Timer, Temperature Control |
| Ignition Method | Induction |
| Number of Heating Zones | 3 (2 IH, 1 Radiant) |
| Color | Silver |
| Product Dimensions (D x W x H) | 55.9 x 60 x 23.4 cm |
| Weight | Approx. 14.0 kg |
| Power Source | Electric (Power cord type) |
9. Warranty and Support
Your Hitachi HT-M60S-S Built-in IH Cooking Heater comes with specific warranty coverage and support options.
9.1. Installation Warranty
A 3-year installation warranty is included with the standard installation service. This warranty covers issues related to the installation itself.
- If a defect occurs during the installation warranty period, please contact the seller or the affiliated installation company for assistance.
- The warranty is subject to specific regulations. Please refer to the warranty terms provided at the time of purchase.
9.2. Product Support
For any questions or issues regarding the product's operation, features, or troubleshooting not covered in this manual, please contact the seller or Hitachi customer service.
