SoBuy Bathroom Cabinet with Laundry Basket

Introduction

Thank you for choosing the SoBuy Bathroom Cabinet with Laundry Basket, Model BZR33-DG. This cabinet is designed to provide practical storage and laundry sorting solutions for your bathroom or utility area. It features two spacious drawers and two tilt-out laundry baskets with removable bags. This manual provides essential information for safe assembly, operation, and maintenance of your new furniture.

Safety Information

• Read all instructions carefully before assembly and use.
• Keep all small parts and packaging materials away from children and pets to prevent choking hazards.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Do not stand or climb on the cabinet.
• Place the cabinet on a flat, stable surface to prevent tipping.
• If wall-mounting hardware is provided, it is highly recommended to secure the cabinet to a wall to prevent accidental tipping, especially in households with children.
• Avoid exposing the cabinet to excessive moisture or direct sunlight for prolonged periods.

Package Contents

Please verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact SoBuy customer support.

• Cabinet panels (top, bottom, sides, back, drawer fronts, basket fronts)
• 2 x Drawers
• 2 x Removable Laundry Bags (45L each)
• Hardware kit (screws, dowels, hinges, drawer slides, handles/knobs)
• Assembly instructions

Setup and Assembly

Assembly typically requires two people. Ensure you have a clear, spacious area for assembly. Tools required (not included): Phillips head screwdriver, hammer.

Assembly Steps:

1. Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the included parts list to identify each piece.
2. Assemble the Main Frame: Attach the side panels to the bottom panel using the provided screws and dowels. Ensure the grooves for the back panel are correctly aligned.
3. Install Drawer Slides: Secure the drawer slides to the inner side panels of the cabinet frame according to the instructions.
4. Assemble Drawers: Construct the two drawers, attaching the drawer fronts and installing the corresponding drawer slides.
5. Install Laundry Basket Mechanisms: Attach the tilt-out mechanisms and hinges to the lower section of the cabinet frame and to the laundry basket fronts.
6. Attach Top Panel: Secure the top panel to the assembled frame.
7. Insert Back Panel: Slide the back panel into the grooves and secure it with small nails or screws.
8. Attach Handles/Knobs: Install the desired handles or knobs onto the drawer fronts and laundry basket fronts. The product includes options for both chrome and black knobs.
9. Insert Laundry Bags: Place the two removable laundry bags into their respective compartments.
10. Final Check: Ensure all connections are tight and the cabinet is stable.

Image: Fully assembled SoBuy Bathroom Cabinet with two drawers and two tilt-out laundry baskets, shown in a bathroom setting.

Operating Instructions

Using the Drawers:

The two top drawers are designed for storing smaller bathroom essentials such as toiletries, towels, or cleaning supplies. Gently pull the knob to open and push to close. Avoid overloading the drawers to ensure smooth operation of the slides.

Image: Close-up view of an open drawer, demonstrating its storage capacity and smooth sliding mechanism.

Using the Laundry Baskets:

The two lower compartments feature tilt-out doors, each containing a removable 45L laundry bag. To access a laundry bag, gently pull the knob on the lower door. The door will tilt forward, allowing easy access to the bag. The bags are designed for sorting laundry and can be lifted out for transport to your washing machine.

Image: The SoBuy Bathroom Cabinet with one of its lower doors tilted open, revealing a laundry basket inside.

Image: A detailed view of the tilt-out laundry compartment with the removable fabric bag in place, ready for use.

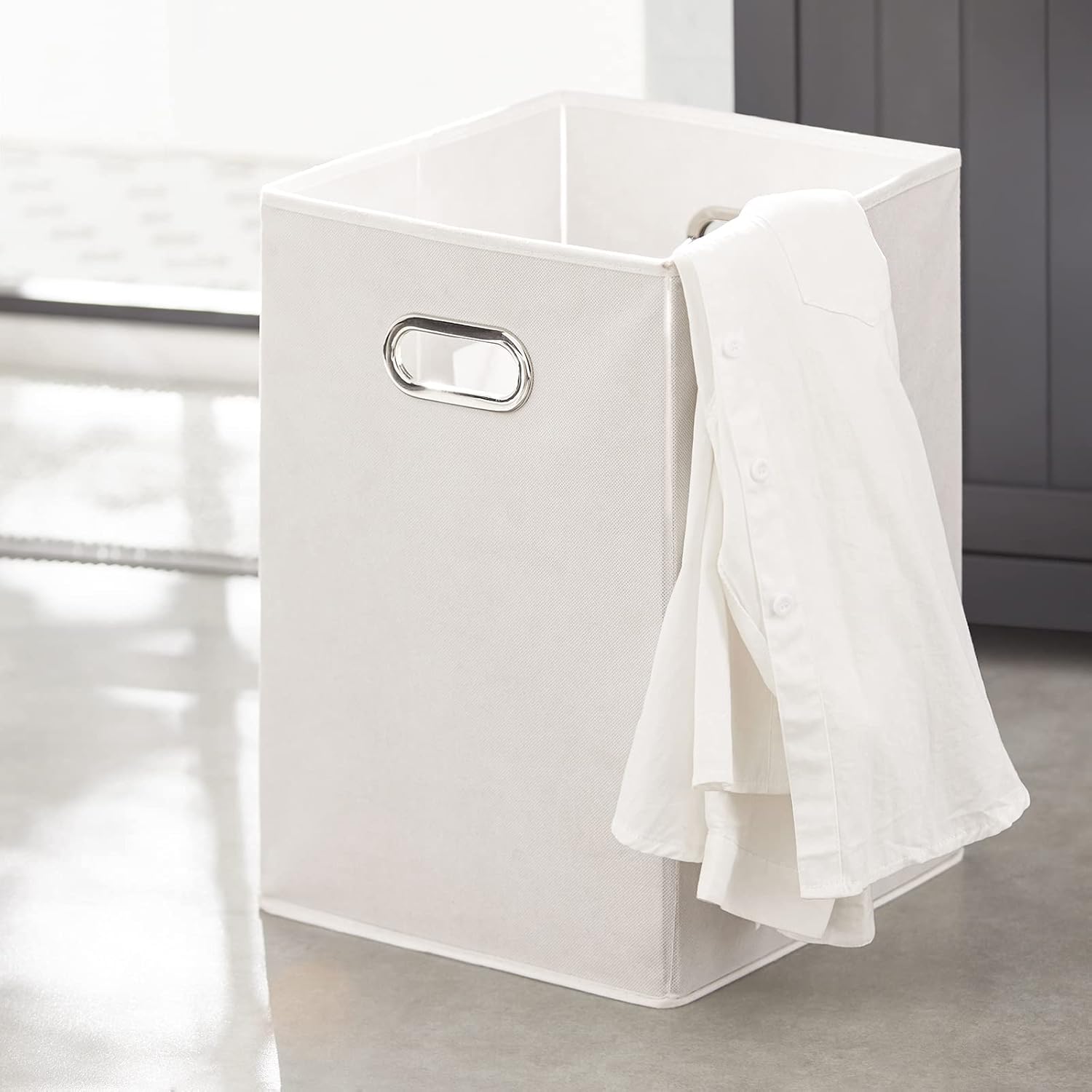

Image: The removable fabric laundry bag, shown outside the cabinet, highlighting its portability and capacity.

Maintenance

Cleaning:

• Wipe the cabinet surfaces with a soft, damp cloth.
• Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• For spills, wipe immediately with a dry cloth to prevent moisture absorption.
• The laundry bags can be spot cleaned with a mild detergent and air-dried. Do not machine wash or tumble dry.

Care:

• Periodically check all screws and fittings to ensure they remain tight. Re-tighten if necessary.
• Keep the cabinet away from direct heat sources and extreme temperature changes.
• The engineered wood material is moisture-resistant, but prolonged exposure to standing water should be avoided.

Troubleshooting

If you encounter issues not listed here or require further assistance, please contact SoBuy customer support.

Specifications

• Model: BZR33-DG
• Brand: SoBuy
• Material: E1 certified Engineered Wood (MDF)
• Color: Grey
• Overall Dimensions (L x W x H): 78 cm x 38.5 cm x 90.5 cm (approximately 30.7 x 15.2 x 35.6 inches)
• Product Weight: 25.5 kg (approximately 56.2 lbs)
• Maximum Load Capacity:
  • Total: 70 kg (154 lbs)
  • Per Drawer: 5 kg (11 lbs)
  • Per Laundry Basket: 5 kg (11 lbs)
  • Top Surface: 50 kg (110 lbs)
• Laundry Bag Capacity: 2 x 45 Liters
• Special Features: Moisture-resistant material, elevated feet for ventilation, customizable knobs (chrome or black options).

Image: Technical drawing illustrating the dimensions of the SoBuy Bathroom Cabinet (78cm width, 38cm depth, 91cm height).

Warranty and Support

SoBuy products are manufactured to high-quality standards. For any warranty claims, missing parts, or technical support, please contact SoBuy customer service directly. Please retain your proof of purchase for warranty validation. Specific warranty terms and conditions may vary by region; refer to your purchase documentation or the SoBuy official website for detailed information.

Contact Information: Please visit the official SoBuy website or refer to your purchase platform for the most current customer support contact details.
