Baybee BRB001 Baby Rocker and Cot Instruction Manual

1. Introduction and Overview

Thank you for choosing the Baybee BRB001 Baby Rocker and Cot. This versatile product is designed to provide a safe and comfortable sleeping and resting environment for your baby. It functions as a 3-in-1 convertible baby bed, offering a bedside sleeper, a standalone cot, and a rocking bassinet. This manual provides essential information for proper assembly, operation, and maintenance to ensure the safety and longevity of your product.

Image 1.1: The Baybee BRB001 Baby Rocker and Cot with mosquito net installed.

2. Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Always ensure all assembly components are securely fastened before placing your baby in the cot.
• Do not use this product if any parts are missing, damaged, or broken. Contact customer support for replacement parts.
• Never leave your child unattended in the cot.
• Ensure the cot is placed on a flat, stable surface.
• Keep small parts and packaging materials away from children to prevent choking hazards.
• Do not use additional mattresses or padding inside the cot. Use only the mattress provided by the manufacturer.
• When using the bedside sleeper mode, always secure the cot to the adult bed using the provided straps.
• Regularly check for loose screws, worn parts, or damaged fabric.

3. Package Contents

Verify that all components are present in the package:

• One Baby Cradle (main unit)
• Mattress
• Mosquito Net
• Attachment Straps for Bedside Sleeper Mode (2 units)
• Carry Bag
• Instruction Manual

4. Setup and Assembly

The Baybee BRB001 is designed for tool-free assembly. Follow these steps to set up your baby rocker and cot:

1. Unfold the Frame: Carefully unfold the main frame of the cot until it locks into place. Ensure all locking mechanisms are engaged.
2. Install the Mattress: Place the provided mattress securely inside the cot.
3. Attach Mosquito Net (Optional): If desired, attach the mosquito net to the designated points on the cot frame.
4. Adjust Height: Refer to Section 5.2 for detailed instructions on adjusting the cot's height.
5. Bedside Sleeper Mode Setup:
   • Unzip both co-sleeping side zippers to lower the side panel.
   • Push the buttons on the retractable feet and pull out the tubes to move the cot closer to your bed.
   • Use the two included straps to securely fasten the cot to your adult bed. Thread the straps as shown in the diagram below and tighten them to prevent any gaps between the cot and your bed.

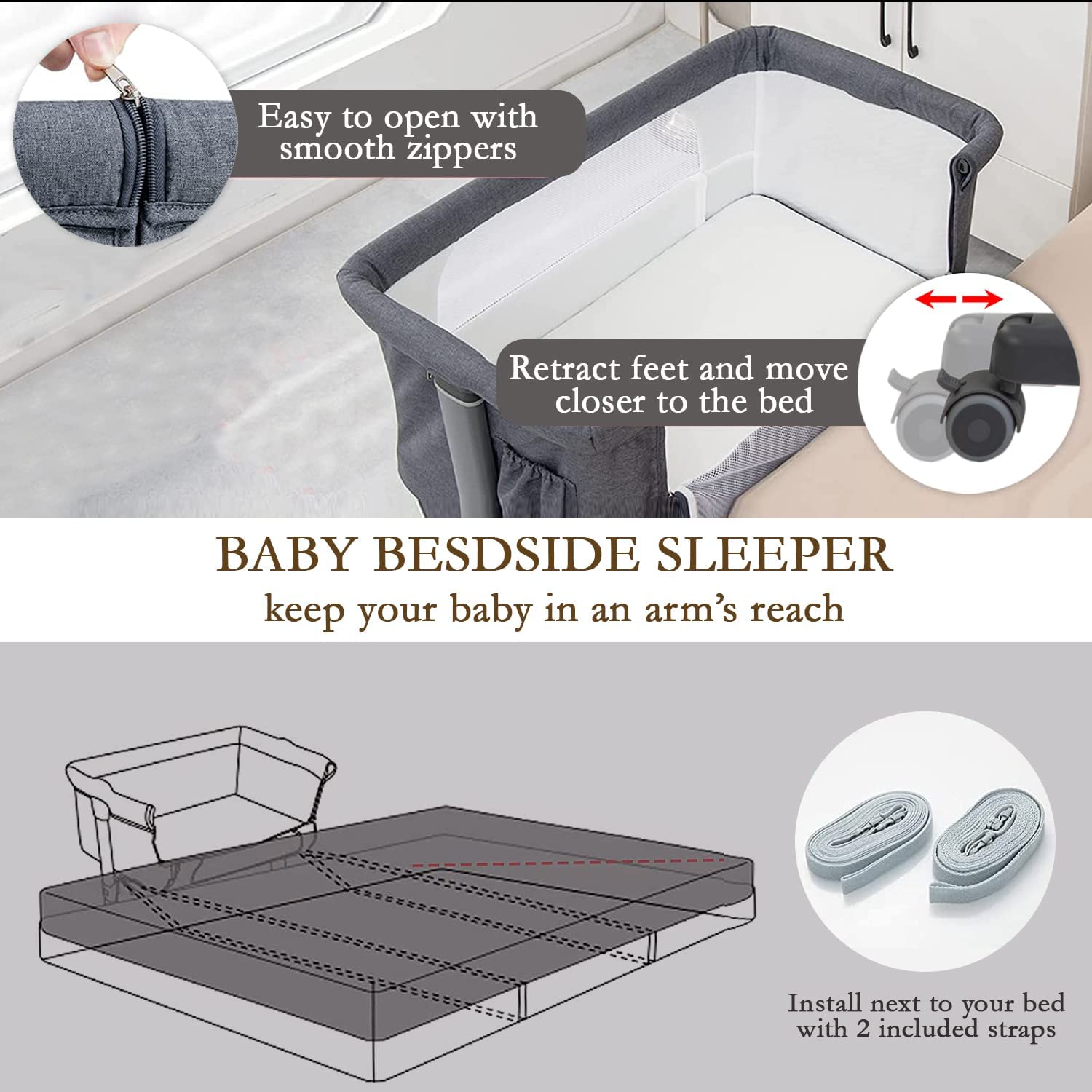

Image 4.1: Retracting feet and securing the cot to an adult bed using straps for bedside sleeper mode.

For a visual guide on assembly and usage, please refer to the video below:

5. Operating Instructions

5.1. Usage Modes

The Baybee BRB001 offers two primary usage modes:

• Stationary Mode: The cot remains stable on its wheels. Ensure the wheel locks are engaged for maximum stability.
• Rocking Mode: By turning the wheels upward, the cot can be converted into a rocking bassinet, providing a gentle 10-degree rocking motion to soothe your baby.

Image 5.1: Switching between Stationary Mode and Rocking Mode by adjusting the wheels.

5.2. Height Adjustment

The cot features 5 adjustable height levels to match various adult bed heights. To adjust the height:

1. Locate the height adjuster buttons on each side of the cot frame.
2. Press the buttons (labeled 1 and 2 in the image) simultaneously and slide the cot frame up or down to your desired height.
3. Ensure both sides are adjusted to the same height and the locking mechanism is fully engaged before use. The height adjuster includes an anti-misoperation system for safety.

Image 5.2: Detail of the 5-level adjustable height mechanism.

5.3. Anti-Reflux Design

To help prevent reflux and vomiting, you can incline one side of the bassinet. This is achieved by setting one side of the cot to a slightly higher height level than the other. Ensure the incline is gentle and safe for your baby.

Image 5.3: Demonstrating the anti-reflux incline feature.

5.4. Additional Features

• Storage Pockets: The cot is equipped with storage pockets on both sides, allowing you to keep baby essentials within easy reach.
• Lockable Universal Wheels: The 4 wheels provide easy movement of the cot from room to room. Engage the locks when the cot is in a stationary position.
• Breathable Mesh Cloth: The cot features breathable mesh cloth for optimal airflow and visibility of your baby.
• Thick, Skin-Friendly Mattress: The 1.2-inch thick mattress offers comfortable support for your baby's spine.

Image 5.4: Key features including mattress, mesh, storage pocket, and lockable wheels.

6. Maintenance

Proper maintenance ensures the longevity and hygiene of your Baybee BRB001 Baby Rocker and Cot.

• Cleaning: The fabric components, including the mattress cover, are recommended for hand wash only. Use mild soap and cold water. Do not bleach. Air dry thoroughly.
• Frame Cleaning: Wipe the metal frame with a damp cloth and mild soap. Dry immediately to prevent rust.
• Regular Checks: Periodically inspect all screws, bolts, and fasteners to ensure they are tight. Check for any signs of wear or damage to the fabric, mesh, or frame.
• Storage: When not in use, fold the cot and store it in the provided carry bag in a cool, dry place away from direct sunlight.

7. Troubleshooting

If you encounter any issues with your Baybee BRB001, please refer to the following common solutions:

• Cot not stable: Ensure all frame components are fully unfolded and locked into place. Check that the wheels are either locked (for stationary mode) or properly turned upward (for rocking mode).
• Difficulty adjusting height: Ensure you are pressing both height adjustment buttons simultaneously. Check for any obstructions in the adjustment mechanism.
• Side panel not lowering/raising smoothly: Check for any fabric caught in the zippers or tracks. Ensure zippers are fully unzipped when lowering.
• Wheels not moving freely: Check for debris caught in the wheels. Ensure wheel locks are disengaged if you intend to move the cot.

If the problem persists or you have concerns not addressed here, please contact Baybee customer support for assistance.

8. Specifications

Image 8.1: Product dimensions for the Baybee BRB001.

9. Warranty and Support

For warranty information or to contact customer support, please refer to the documentation included with your purchase or visit the official BAYBEE website. Keep your proof of purchase for any warranty claims.
