1. Introduction
This manual provides essential information for the safe installation, operation, and maintenance of your MONDAWE 23-Inch 64-Color LED Music Thermostatic Shower Jet System. Please read all instructions carefully before installation and use to ensure optimal performance and safety.
Figure 1: MONDAWE 23-Inch 64-Color LED Music Thermostatic Shower System.
2. Safety Information
WARNING: Improper installation or use can lead to serious injury or property damage. Always consult a qualified professional for plumbing and electrical work.
- Ensure all local plumbing and electrical codes are met during installation.
- Turn off the main water supply and electrical power before beginning any installation or maintenance.
- Verify water pressure is within the recommended range for optimal system performance.
- The thermostatic valve is designed to prevent scalding; do not tamper with its factory settings.
- Keep the remote control dry and away from water to prevent damage.
- Use appropriate personal protective equipment (PPE) during installation.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
Figure 2: Included components of the MONDAWE Shower System.
- 23-Inch Shower Head
- Controller (Thermostatic Valve Panel)
- 7.87 Inch Handheld Shower
- 59 Inch Shower Hose
- Hand Shower Holder
- Main Body (Valve Rough-in)
- 2 Inch Body Jets (6 pieces)
- Instruction Manual (This document)
- Other Accessories (Mounting hardware, seals, etc.)
- Safety Gloves
4. Installation
Professional installation is highly recommended for this shower system. Ensure all necessary tools and materials are available before starting.
4.1 Pre-Installation Checks
- Confirm wall and ceiling structural integrity to support the shower system.
- Verify water supply lines (hot and cold) are accessible and correctly sized (American standard 1/2 NPT connectors).
- Ensure adequate space for the ceiling-mounted shower head and body jets.
4.2 Installation Diagram and Dimensions
Figure 3: Recommended installation dimensions (Unit: mm/inch).
4.3 Step-by-Step Installation Guide
For a detailed visual guide, please refer to the installation video below:
Video 1: Detailed installation instructions for the MONDAWE WF6345 shower system.
- Prepare the Wall and Ceiling: Create openings in the wall and ceiling according to the provided dimensions for the main valve body, shower head, handheld shower holder, and body jets. Ensure proper framing and support.
- Install the Main Valve Body: Secure the thermostatic valve body within the wall cavity. Connect the hot and cold water inlet pipes and the outlet pipes for the shower head, handheld shower, and body jets. Ensure all connections are watertight.
- Install the Shower Head Bracket: Mount the ceiling shower head bracket securely in the ceiling opening. Connect the water supply line to the bracket.
- Install Body Jets and Handheld Holder: Secure the body jet rough-ins and handheld shower holder rough-in into their respective wall openings. Connect them to the appropriate water lines from the main valve body.
- Leak Test: Before closing the wall and ceiling, turn on the main water supply and thoroughly check all connections for leaks. Address any leaks immediately.
- Install Finishing Plates and Components: Once leak-tested and wall/ceiling finishes are complete, install the decorative plates for the thermostatic valve, body jets, and handheld shower holder.
- Connect Shower Head: Attach the 23-inch shower head to its ceiling bracket. Connect the LED power cable to the controller.
- Connect Handheld Shower: Attach the shower hose to the handheld shower and the holder.
- Electrical Connections: Connect the LED power supply and music player components as per the electrical diagram. Ensure all electrical connections are secure and insulated.
5. Operating Instructions
5.1 Thermostatic Valve Operation
Figure 4: Thermostatic Valve Controls.
- The bottom knob controls the water temperature. Set it to your desired temperature, typically 38°C/100°F for anti-scald protection.
- The upper knobs control the ON/OFF function for each spray pattern: Waterfall, Rainfall, Handheld Shower, and Body Jets. Turn a knob to the 'ON' position to activate the corresponding function.
- Multiple spray functions can be operated simultaneously.
5.2 LED Lighting and Music Player
Figure 5: LED Lighting and Remote Control.

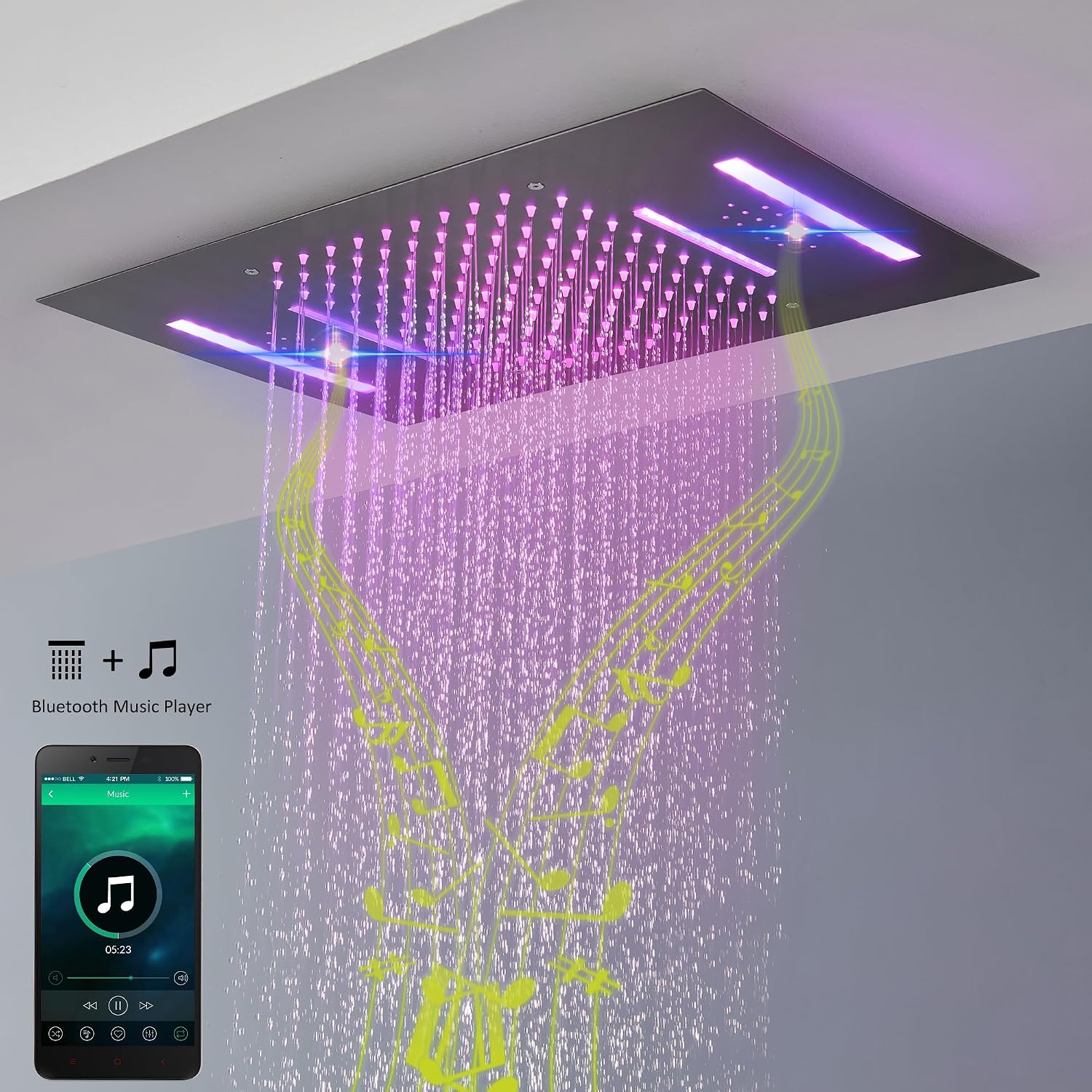

Figure 6: Bluetooth Music Player Integration.
- LED Control: Use the provided remote control to turn the LED lights ON/OFF, change between 64 colors, adjust color temperature, dynamic speed, and brightness.
- Music Player: The shower system includes a Bluetooth music player. Pair your mobile device with the shower system via Bluetooth to stream audio. Use your device or the remote control (if applicable) to manage playback.
5.3 Spray Functions
Figure 7: Adjustable Body Jets.
Figure 8: Handheld Shower Spray.
- Waterfall: Provides a broad, cascading sheet of water.
- Rainfall: Delivers a gentle, widespread rain-like spray.
- Handheld Shower: Offers a focused, high-pressure spray for targeted rinsing.
- Body Jets: Six adjustable body jets provide a revitalizing, full-body massage experience.
5.4 Product Demonstration Videos
Video 2: Demonstration of Luxury LED Shower System.
Video 3: Showcase of 64-Color LED Thermostatic Shower System.
Video 4: 3D Simulation of LED 64-Color Thermostatic Shower System.
Video 5: 64-Color LED Thermostatic Shower System in action.
6. Maintenance
- Cleaning: Clean the shower head, handheld shower, and body jets regularly with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals that can damage the finish.
- Nozzle Cleaning: For shower heads and body jets with rubber nozzles, gently rub the nozzles to dislodge any mineral buildup.
- Thermostatic Valve: Periodically check the thermostatic valve for proper temperature regulation. If issues arise, consult a professional.
- LED and Electrical Components: Ensure all electrical connections remain dry. If any LED lights malfunction, contact customer support.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flow or low pressure | Main water supply off, clogged nozzles, low house water pressure. | Check main water supply. Clean shower head/jet nozzles. Consult a plumber for house water pressure issues. |
| Water temperature is too hot or too cold | Thermostatic valve setting incorrect, hot/cold water supply issues. | Adjust the thermostatic valve. Check hot/cold water supply to the house. If issue persists, contact support. |
| LED lights not working | Power supply disconnected, remote control battery dead, LED controller malfunction. | Check power connections. Replace remote control batteries. Ensure LED controller is properly connected. |
| Music player not connecting/playing | Bluetooth not paired, device too far, music player power issue. | Ensure Bluetooth is enabled and paired. Keep device within range. Check power to the music player component. |
| Leaks from connections | Loose connections, damaged seals. | Turn off water supply. Tighten connections. Replace damaged seals. Professional assistance may be required. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | MONDAWE |
| Model Number | M6345NWI |
| Color | Brushed Nickel |
| Material | Brass, Stainless Steel |
| Finish Type | Brushed |
| Number of Handles | 1 (Thermostatic control) |
| Mounting Type | Ceiling Mount |
| Head Size | 23 inches |
| LED Colors | 64 Colors |
| Music Feature | Bluetooth Music Player |
| Body Jets | 6 adjustable pieces |
| Certifications | CE, ROHS, cUPC, CEC |
| Connection Standard | American standard 1/2 NPT |
9. Warranty and Support
MONDAWE Thermostatic Shower System holds CE, ROHS, cUPC, and CEC certifications. The product comes with lifetime limited support, ensuring exchange replacement for any defective parts.
For technical assistance, warranty claims, or any inquiries, please contact MONDAWE customer service:
- Email: service@mondawe.com
- Website: MONDAWE Store on Amazon
Our professional customer service team is available 24 hours/7 days/365 days to provide quick response and support.
