Introduction
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your LAOTIE Ti30 Electric Scooter. Please read this manual thoroughly before first use to ensure proper handling and to maximize the lifespan of your scooter.
Setup
Unboxing and Initial Assembly
Upon receiving your LAOTIE Ti30 Electric Scooter, carefully remove all components from the packaging. The scooter is designed with a quick-folding mechanism for compact storage and transport. You may need to unfold the handlebars and secure them in place. Ensure all connections are firm and secure before proceeding.
Figure 1: The LAOTIE Ti30 Electric Scooter in its fully assembled state, showcasing its robust design and off-road tires.
Figure 2: The LAOTIE Ti30 Electric Scooter demonstrating its foldable design, making it easy to store and transport.
Charging the Battery
Before your first ride, fully charge the scooter's 60V/38.6Ah 21700 Lithium Battery. The charging process typically takes approximately 5 hours. The charging device includes overcharge and over-current protection. Two chargers are included to halve the charging time.
Figure 3: Illustration of the LAOTIE Ti30 Electric Scooter's fast charging capability, achieving full charge in approximately 5 hours for an 87-mile range.
Connect the charger to the charging port on the scooter and then to a power outlet. The indicator light on the charger will change to indicate a full charge.
Operating the Scooter
Controls and Display
The LAOTIE Ti30 features an LCD display on the handlebars that provides real-time riding data. The handlebars are adjustable for rider comfort. A remote control is also included for enhanced security, allowing you to lock and unlock the scooter.
Riding Performance
Equipped with two powerful 2800W brushless motors, the Ti30 offers a maximum speed of 50 MPH and a climbing angle of 55°. The 11-inch tubeless tires are designed to easily cope with various terrains, providing an ultimate off-road competitive experience.
Figure 4: The LAOTIE Ti30 Electric Scooter in action, highlighting its 5600W dual motors, 52mph max speed, and 55° climbing angle for off-road performance.
Braking System
The scooter is fitted with a dual brake system, combining oil brakes and EABS (Electric Anti-lock Braking System) on both front and rear wheels. This system ensures sensitive and rapid braking in emergency situations, enhancing rider safety.

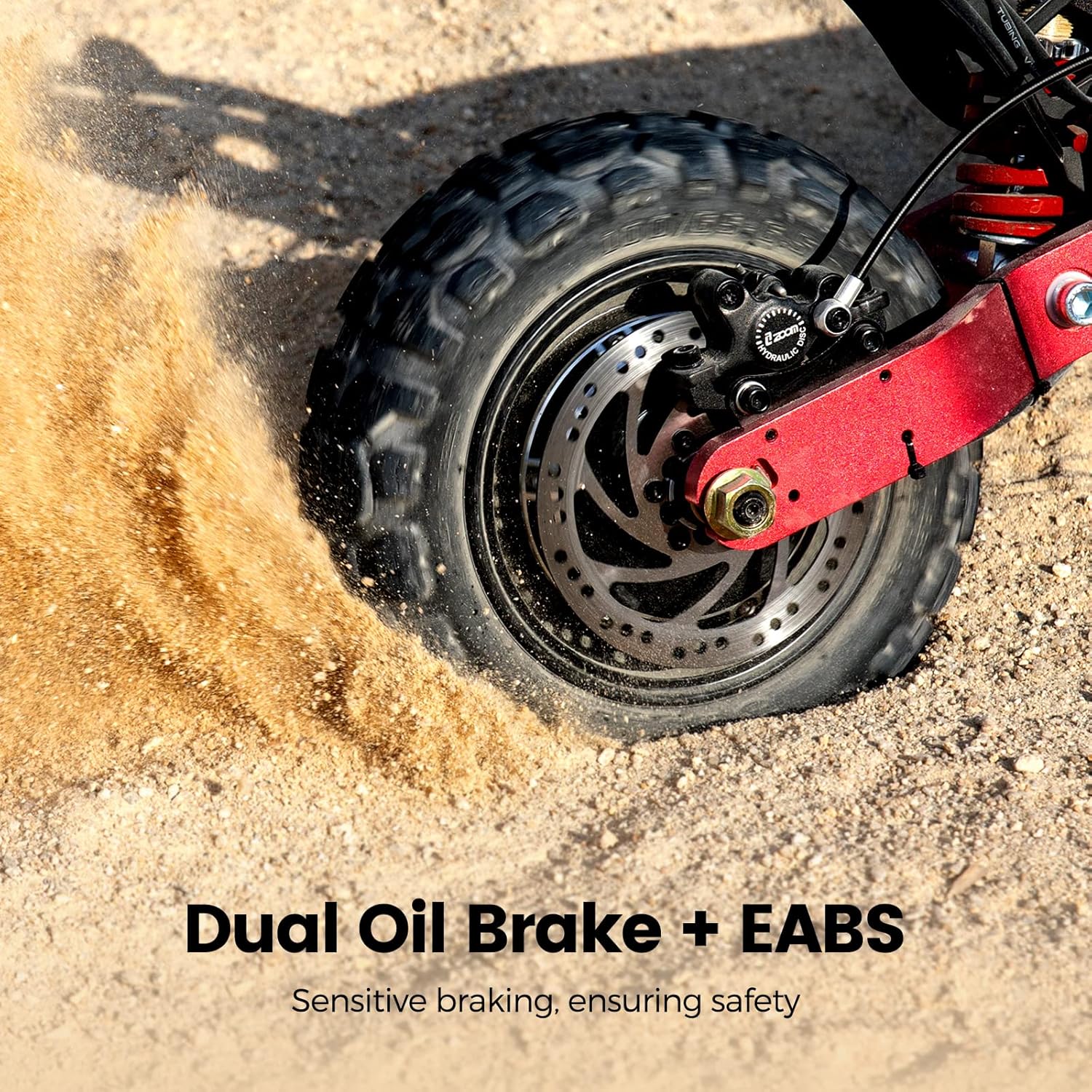

Figure 5: A close-up view of the LAOTIE Ti30's dual oil brake and EABS system, designed for sensitive and safe braking.
Suspension System
Dual shock absorbers on both the front and rear wheels, combined with the large 11-inch tubeless tires, provide maximum comfort even when riding on rough roads or over speed bumps.
Figure 6: The dual suspension system of the LAOTIE Ti30 Electric Scooter, engineered to provide maximum comfort on varied terrains.
Official Product Videos
Watch these official videos from the seller for a comprehensive overview of the LAOTIE Ti30 Electric Scooter's features and performance.
Video 1: LAOTIE Ti30 2800W*2 Electric Scooter (Off Road Tires). This video showcases the scooter's off-road capabilities and powerful dual motors.
Video 2: LAOTIE Ti30 2800W*2 Electric Scooter. This video provides a general overview of the scooter's design and key features.
Maintenance
Regular maintenance is crucial for the longevity and safe operation of your LAOTIE Ti30 Electric Scooter. It is necessary to check and maintain the product itself and its parts on a daily basis.
General Care
- Keep the scooter clean by wiping it with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
- Store the scooter in a dry, cool place away from direct sunlight and extreme temperatures.
- Regularly inspect all bolts and fasteners to ensure they are tightened securely.
Tire Care
The 11-inch tubeless tires require periodic inspection for wear and tear, punctures, or damage. Maintain proper tire pressure as specified in the detailed product documentation (if available, otherwise general recommendation). Proper tire pressure ensures optimal performance and safety.
Brake Maintenance
Regularly check the responsiveness of both the oil brakes and the EABS. If you notice any decrease in braking performance or unusual noises, have the brake system inspected by a qualified technician. Ensure brake levers are not loose and cables are not frayed.
Battery Care
To prolong battery life, avoid completely draining the battery before recharging. If storing the scooter for an extended period, ensure the battery is charged to approximately 50-70% and recharge it every few months.
Troubleshooting
This section addresses common issues you might encounter with your LAOTIE Ti30 Electric Scooter. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Low battery; loose connections; power button issue. | Charge the battery fully. Check all visible cable connections. Ensure the power button is pressed correctly. |
| Reduced speed or range. | Low battery charge; tire pressure too low; heavy load; extreme temperatures. | Ensure battery is fully charged. Check and adjust tire pressure. Reduce load if possible. Operate within recommended temperature ranges. |
| Brakes feel weak or make noise. | Worn brake pads; air in hydraulic system (oil brakes); misaligned components. | Inspect brake pads for wear and replace if necessary. Consult a technician for hydraulic system bleeding or component alignment. |
| Unusual noises during operation. | Loose components; motor issue; suspension issue. | Check all visible bolts and fasteners. Inspect motor area for obstructions. If noise persists, seek professional inspection. |
Specifications
Key technical specifications for the LAOTIE Ti30 Electric Scooter:
| Feature | Detail |
|---|---|
| Brand | LAOTIE |
| Model Name | Ti30 |
| Motor Power | 5600W (2 x 2800W Brushless Motors) |
| Max Speed | 50 MPH |
| Max Range | 87 Miles |
| Battery | 60V/38.6Ah 21700 Lithium Battery |
| Charging Time | 5 Hours (with 2 chargers) |
| Tire Size | 11 Inches (Tubeless, Off-Road) |
| Brake System | Dual Oil Brake + EABS |
| Suspension | Dual Suspension |
| Max Load Capacity | 440 Pounds |
| Frame Material | Aluminum |
| Item Weight | 111 Pounds |
| Foldable Design | Yes |
| Special Features | Lights, Foldable, LCD Display, Remote Control |
| UPC | 729162161649 |
Warranty
The LAOTIE Ti30 Electric Scooter comes with a limited warranty. It is important to perform daily checks and maintenance on the product and its parts to ensure continued safe operation. Please refer to the official warranty documentation provided at the time of purchase for full terms and conditions.
Support
For any questions, technical assistance, or support regarding your LAOTIE Ti30 Electric Scooter, please contact the seller or manufacturer directly. Ensure you have your product model number (Ti30) and proof of purchase available when seeking support.
