Herneum XO-0201B-US Vintage Turntable User Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your Herneum XO-0201B-US Vintage Turntable. This belt-drive manual turntable features built-in stereo speakers, Bluetooth input and output capabilities, and supports double-speed vinyl records. Please read this manual thoroughly before use to ensure proper function and longevity of your device.

Image: The Herneum XO-0201B-US Vintage Turntable, showcasing its wooden finish, clear dust cover, and a vinyl record on the platter.

What's in the Box

Verify that all components are present upon unpacking:

• Herneum XO-0201B-US Record Player
• Record Cleaning Kit (includes velvet brush, stylus brush, small nylon brush)
• Power Adapter (not explicitly listed but implied for operation)
• User Manual (this document)

Image: A visual representation of the turntable's dimensions, along with icons for Aux-in, Bluetooth, Headphone jack, and Belt drive. Below, a close-up of the removable dust cover and the components of the record cleaning kit: a velvet brush, a stylus brush, and a small nylon brush.

Product Features

Bluetooth Input & Output

The turntable features built-in Bluetooth with high-resolution encoding, allowing you to pair with compatible Bluetooth devices. This enables wireless audio playback to headphones or external speakers, and also allows you to stream music from your smartphone or tablet to the turntable's built-in speakers. The effective range is approximately 10 meters.

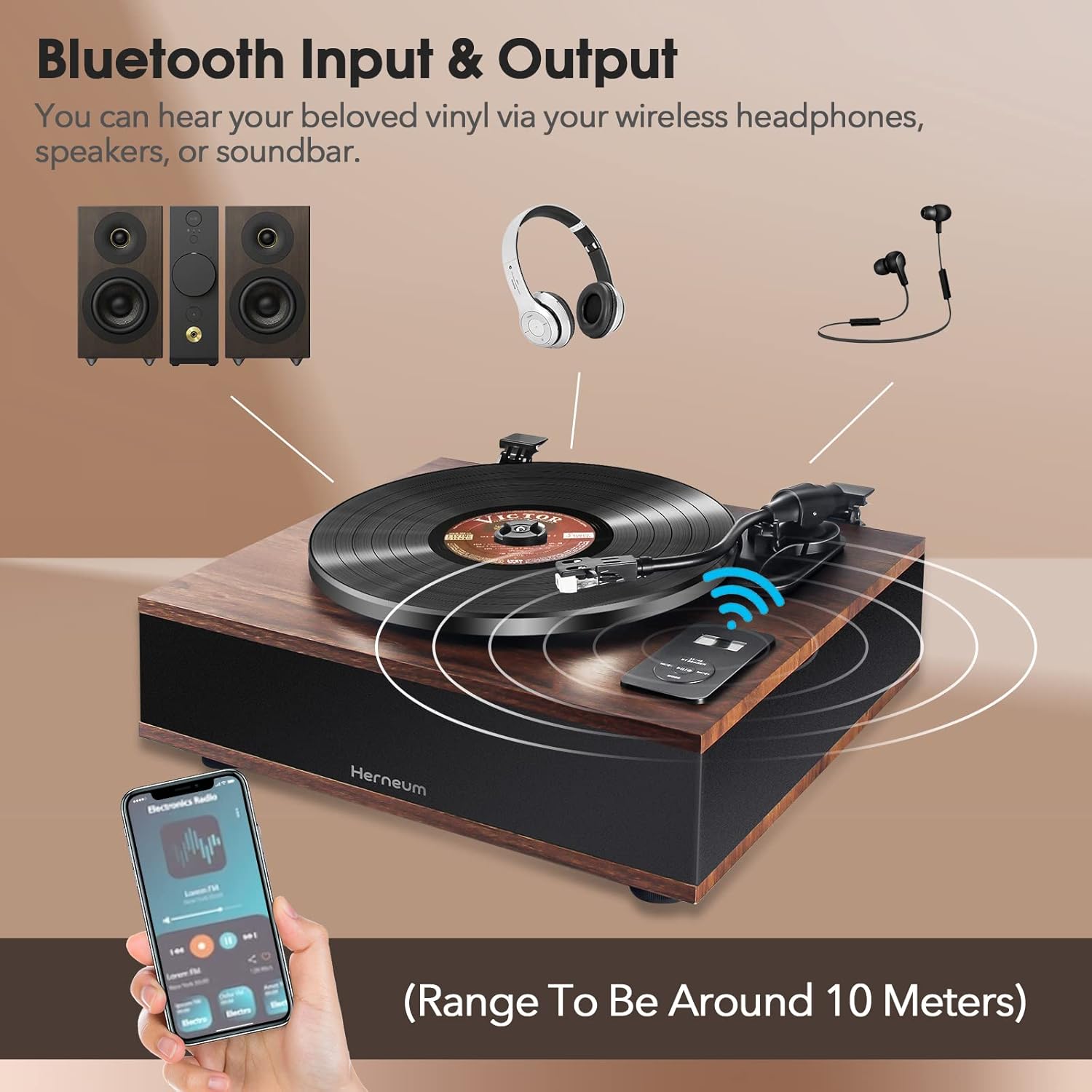

Image: A diagram illustrating the Herneum turntable's Bluetooth capabilities, showing connections to external speakers, wireless headphones, and a smartphone for both input and output.

High-Output Magnetic Cartridge

Equipped with an exclusive moving magnet stylus, this turntable provides a flat frequency response for natural sound reproduction. The stylus tracks at a mere 2.0 grams of force, ensuring rich audio playback from your vinyl records.

Image: A detailed close-up of the turntable's tonearm and the moving magnet cartridge with its stylus resting on the grooves of a vinyl record.

Auto-Stop Functionality

This manual turntable includes an automatic stop feature. At the end of a vinyl record, the platter will cease rotation, preventing unnecessary wear on the stylus and record. The tonearm must be manually returned to its resting position.

Precise Construction

The turntable features a heavy base designed to minimize external vibrations, contributing to stable playback. The belt-driven die-cast aluminum platter ensures excellent rotational stability and reduces friction for smooth, quiet operation. The static balance straight tonearm is adjustable and includes a stable hydraulic lift and an anti-skating mechanism for precise tracking performance.

High-Fidelity Sound

With four built-in speakers and extra-large cavities, the system delivers powerful bass and clear treble. The full-range speaker system provides high-resolution stereo sound. A built-in phono preamp allows for wired connection to external receivers, integrated amplifiers, or powered speakers.

Setup Instructions

1. Unpack the Turntable: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
2. Place the Platter: Gently place the aluminum platter onto the spindle. Ensure it sits flat and securely.
3. Install the Belt: Locate the drive belt under the platter. Stretch the belt around the motor pulley.
4. Remove Stylus Protector: Carefully remove the clear plastic protector from the stylus tip. Avoid touching the stylus.
5. Connect Power: Plug the power adapter into the turntable's power input and then into a wall outlet.
6. Position the Dust Cover: Place the removable dust cover onto the hinges at the back of the turntable.

Operating Instructions

Playing Records

1. Select Speed: Choose the appropriate speed (33 or 45 RPM) using the speed selector switch, typically located on the turntable's control panel.
2. Place Record: Carefully place a vinyl record onto the platter. For 45 RPM records with a large center hole, use the included 45 RPM adapter.
3. Lift Tonearm: Use the cueing lever to gently lift the tonearm.
4. Position Stylus: Manually move the tonearm and position the stylus directly over the desired starting groove of the record.
5. Lower Tonearm: Slowly lower the cueing lever to allow the stylus to descend onto the record. The record will begin to play.
6. Auto-Stop: When the record finishes, the platter will automatically stop rotating. Manually lift the tonearm and return it to its rest.

Image: A person's hands carefully placing a vinyl record onto the turntable, with an indication that the device supports 7-inch, 10-inch, and 12-inch records at 33 and 45 RPM.

Bluetooth Connectivity (Input)

1. Power On: Ensure the turntable is powered on.
2. Activate Bluetooth Mode: Press the 'MODE' button on the turntable's control panel until the Bluetooth indicator light flashes, indicating pairing mode.
3. Pair Device: On your smartphone or other Bluetooth device, search for available devices and select 'Herneum Turntable' (or similar name).
4. Confirm Connection: Once paired, the Bluetooth indicator light will become solid. You can now stream audio from your device to the turntable's built-in speakers.

Bluetooth Connectivity (Output)

1. Power On: Ensure the turntable is powered on and in record playing mode.
2. Activate Bluetooth Output: Refer to the turntable's control panel for a dedicated Bluetooth output button or mode. Activate it to put the turntable in output pairing mode (indicator light may flash differently).
3. Pair External Device: Put your Bluetooth headphones or external speaker into pairing mode.
4. Confirm Connection: The turntable will automatically connect to the nearest available Bluetooth audio device. Once connected, audio from the playing record will be transmitted wirelessly.

Maintenance

Cleaning the Turntable and Records

• Dust Cover: Regularly wipe the dust cover with a soft, dry, anti-static cloth to prevent dust buildup.
• Turntable Body: Use a soft, slightly damp cloth to clean the turntable's exterior. Avoid abrasive cleaners or solvents.
• Records: Use the provided velvet brush to gently wipe dust and debris from your vinyl records before and after each play. Brush in the direction of the grooves.
• Stylus: Use the small stylus brush to carefully clean the stylus tip. Brush gently from back to front (away from the tonearm pivot). Never brush side-to-side.

Image: A close-up of the record cleaning kit, showing the velvet brush, stylus brush, and small nylon brush, essential tools for maintaining your vinyl collection and turntable.

Troubleshooting

Specifications

Warranty and Support

Your Herneum XO-0201B-US Turntable is covered by a manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the warranty card included with your product or visit the official Herneum store online.

For further assistance, you may visit the Herneum Store on Amazon.
