Magnat Signature 503 3-Way Bass Reflex Shelf Speaker Instruction Manual

Introduction

Thank you for choosing the Magnat Signature 503 3-Way Bass Reflex Shelf Speakers. These speakers are designed to deliver high-fidelity audio performance for your home audio system. This manual provides essential information for the proper setup, operation, and maintenance of your new speakers to ensure optimal sound quality and longevity.

What's in the Box

Upon unpacking, please verify that all components are present and in good condition:

• 2x Magnat Signature 503 170W 3-Way Bass Reflex Shelf Speakers
• Instruction Manual (this document)

Image: A pair of Magnat Signature 503 speakers shown from the front, highlighting their design and drivers. Both speakers are in a Mocca finish.

Key Features

The Magnat Signature 503 speakers incorporate advanced technologies for superior audio reproduction:

• Hi-Res Certified Dual Tweeter Module: Features two fmax domes for extended high-frequency response.
• Three-Way Speaker Design: Utilizes bass reflex technology for enhanced low-frequency performance.
• Klippel-Optimized Bass-Midrange Unit: Engineered for precise and dynamic sound reproduction.
• Ventilated Voice-Coil Unit: Designed for maximum resilience and dynamic range.

Image: A single Magnat Signature 503 speaker viewed from an angle, showcasing the tweeter module and bass-midrange driver without the grille.

Setup

1. Speaker Placement

Optimal speaker placement is crucial for achieving the best sound quality. Consider the following guidelines:

• Stereo Imaging: Place the speakers equidistant from your primary listening position, forming an equilateral triangle.
• Distance from Walls: Position speakers a few inches to a foot away from walls to allow the bass reflex port to function optimally and prevent excessive bass resonance.
• Height: Ideally, the tweeters should be at ear level when you are seated in your listening position.
• Symmetry: Ensure both speakers are placed symmetrically within the room to create a balanced soundstage.

2. Connecting to an Amplifier/Receiver

Follow these steps to connect your speakers to your audio system:

1. Power Off: Ensure your amplifier or receiver is turned off and unplugged from the power outlet before making any connections.
2. Speaker Wire: Use high-quality speaker wire of appropriate gauge for your setup.
3. Polarity: Connect the positive (+) terminal (usually red) on the speaker to the positive (+) terminal on your amplifier. Similarly, connect the negative (-) terminal (usually black) on the speaker to the negative (-) terminal on your amplifier. Maintaining correct polarity for both speakers is essential for proper sound reproduction.
4. Secure Connections: Ensure all connections are tight and secure to prevent signal loss or short circuits.
5. Power On: Once all connections are made, plug in and power on your amplifier/receiver.

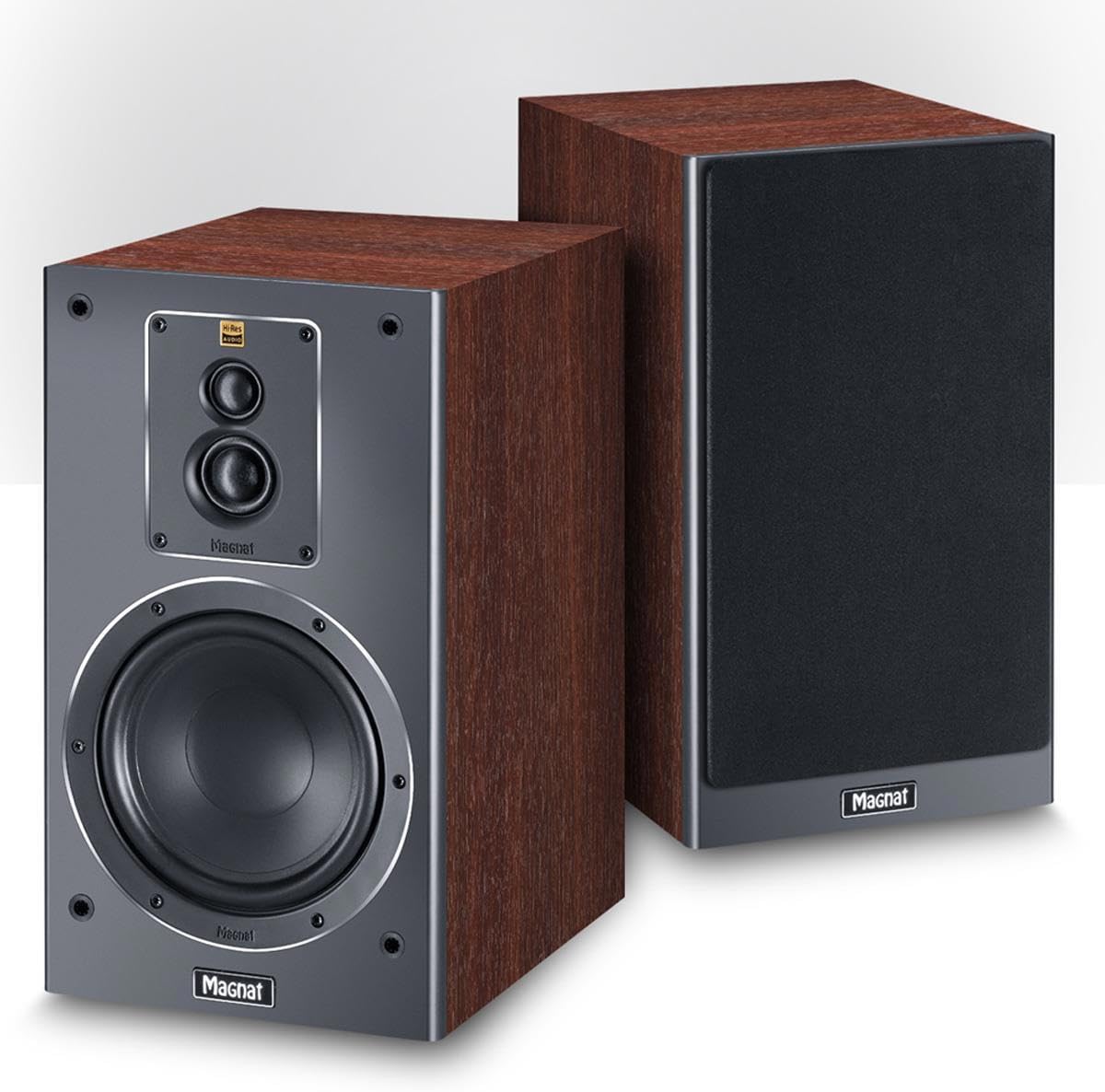

Image: A pair of Magnat Signature 503 speakers, one shown with its protective grille attached and the other with the grille removed, revealing the drivers.

Operating Instructions

After successful setup, operating your Magnat Signature 503 speakers is straightforward:

• Source Selection: Select the appropriate audio input source on your amplifier or receiver.
• Volume Control: Start with the volume at a low level and gradually increase it to your desired listening level. Avoid excessively high volumes to prevent damage to the speakers or your hearing.
• Break-in Period: Like many high-fidelity speakers, the Magnat Signature 503 may benefit from a break-in period of several hours of normal use to achieve their full sonic potential.

Image: A single Magnat Signature 503 speaker shown from the front with its protective grille attached, presenting a clean and integrated appearance.

Maintenance

To maintain the appearance and performance of your speakers, follow these simple guidelines:

• Cleaning Cabinets: Use a soft, dry cloth to wipe down the speaker cabinets. For stubborn marks, a slightly damp cloth can be used, followed immediately by a dry cloth. Avoid abrasive cleaners or solvents.
• Cleaning Grilles: If the grilles become dusty, gently vacuum them with a soft brush attachment or use a lint roller.
• Avoid Direct Sunlight/Heat: Do not expose speakers to direct sunlight for extended periods or place them near heat sources, as this can affect the cabinet finish and driver materials.

Troubleshooting

If you encounter issues with your Magnat Signature 503 speakers, refer to the following common problems and solutions:

• No Sound:
  • Check all speaker wire connections at both the speaker and amplifier ends for proper seating and polarity.
  • Ensure the amplifier/receiver is powered on and the correct input source is selected.
  • Verify that the volume is not muted or set to a very low level.
• Distorted Sound:
  • Reduce the volume level on your amplifier/receiver.
  • Check speaker wire connections for any loose strands that might be causing a short circuit.
  • Ensure the amplifier is not overdriven or clipping.
  • Verify that the audio source is clean and not distorted.
• Unbalanced Sound (one speaker louder/softer):
  • Check the balance settings on your amplifier/receiver.
  • Ensure both speakers are connected with correct polarity.
  • Verify that both speakers are receiving a signal. Swap speaker wires at the amplifier to determine if the issue follows the speaker or the amplifier channel.

Specifications

Detailed technical specifications for the Magnat Signature 503 speakers:

Image: A Magnat Signature 503 speaker with its dimensions clearly indicated: 14.17 inches deep, 20.08 inches wide, and 17.32 inches high.

Warranty and Support

The Magnat Signature 503 speakers come with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Magnat website. For technical support or service inquiries, please contact Magnat customer service through their official channels.
