Nekteck Cordless Neck and Back Massager User Manual

Model: NK-NM03

Introduction

Thank you for choosing the Nekteck Cordless Neck and Back Massager. This device is designed to provide deep tissue shiatsu massage with heat, offering relief for muscle pain, stiffness, and soreness in various body areas. Its cordless and portable design allows for convenient use at home, in the office, or in your car.

Please read this manual thoroughly before operating the massager to ensure safe and effective use. Keep this manual for future reference.

Nekteck Cordless Neck and Back Massager

Image: The Nekteck Cordless Neck and Back Massager, showcasing its ergonomic design and control panel.

Safety Information

Your safety is paramount. Please adhere to the following safety guidelines:

  • Avoid placing the massager on or near heat sources.
  • Do not use while sleeping or bathing.
  • Keep away from children and pets.
  • Charge on a flat, stable surface.
  • Do not overcharge the battery.
  • Allow the massager to cool down after use.
  • Unplug and store the charger separately when not in use.
  • Always follow the instructions provided in this user manual for safe operation and maintenance.

What's Included

Upon opening the package, please verify that all components are present and in good condition:

  • 1 x Nekteck Cordless Neck and Back Massager
  • 1 x User Manual (this document)
  • 1 x USB Charging Cable

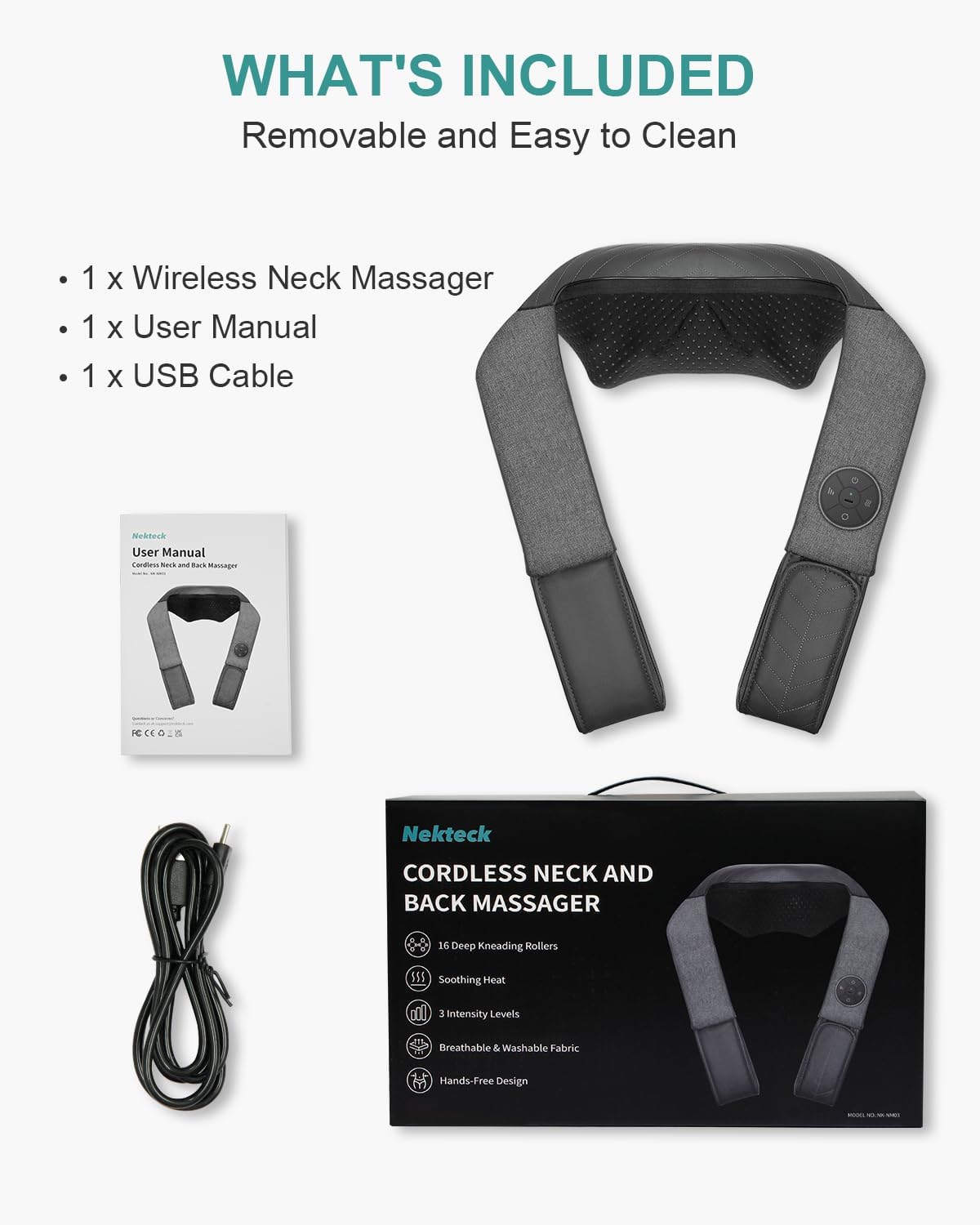

Contents of the Nekteck Massager package

Image: A visual representation of the package contents, including the massager, user manual, and USB cable.

Setup

Charging the Massager

The Nekteck Cordless Neck and Back Massager is equipped with a built-in rechargeable Lithium Ion battery. Before first use, or when the battery is low, fully charge the device.

  1. Locate the Type-C charging port on the massager.
  2. Connect the provided USB charging cable to the massager's charging port.
  3. Plug the other end of the USB cable into a compatible USB power adapter (not included) or a computer's USB port.
  4. The indicator light will show charging status (refer to the device's specific light indicators for full/charging status).
  5. Once fully charged, disconnect the charging cable. The massager offers approximately 80 minutes of running time on a full charge.
Cordless Neck Massager with Type C Port

Image: The cordless neck massager highlighting its Type-C charging port for convenient charging anywhere.

Operating Instructions

Control Panel Overview

Control panel buttons for Nekteck Massager

Image: Detailed view of the control panel on the massager, showing the function of each button.

  • Power Button: Press to turn the massager ON/OFF.
  • Heat Button: Press to turn the soothing heat function ON/OFF. The heat helps to increase blood flow and circulation.
  • Speed Level Button: Cycle through 3 intensity levels (Low, Medium, High) to customize your massage experience.
  • Direction Button: Change the rotation direction of the massage nodes (bi-directional massage).

Using the Massager

The massager features 16 deep-kneading nodes that mimic the movements of a professional masseuse. It is designed with a 15-minute auto-shut off function and built-in overheating protection for safety.

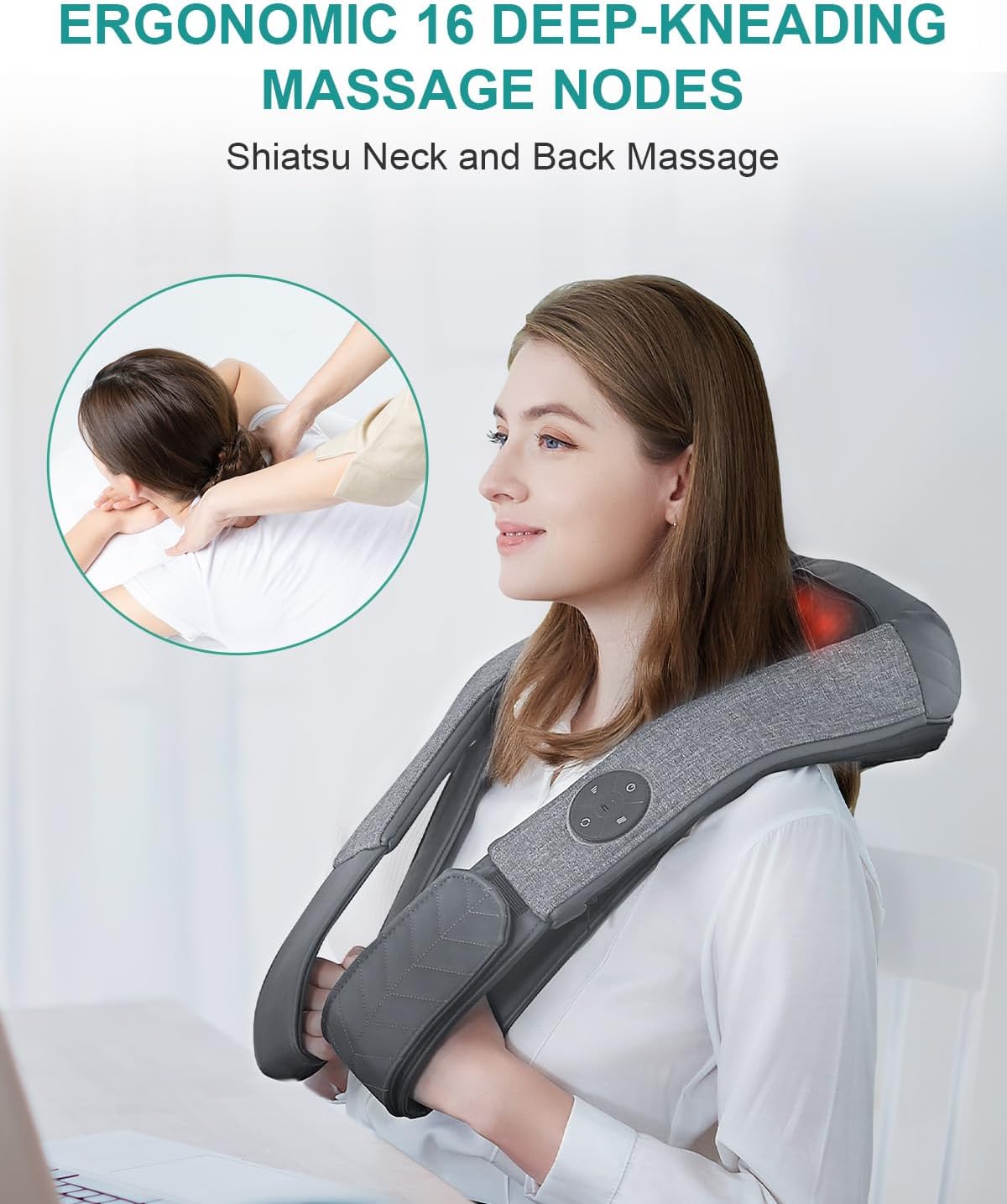

Ergonomic 16 Deep-Kneading Massage Nodes

Image: Illustration showing the ergonomic design and the 16 deep-kneading massage nodes in action.

Soothing Heat Function

Image: A user experiencing the soothing heat function of the massager, illustrating its benefit for muscle relaxation.

Hands-Free Design and Versatile Use

The massager's hands-free design allows you to enjoy a relaxing massage while engaging in other activities. Its adjustable straps ensure a comfortable fit for most body types.

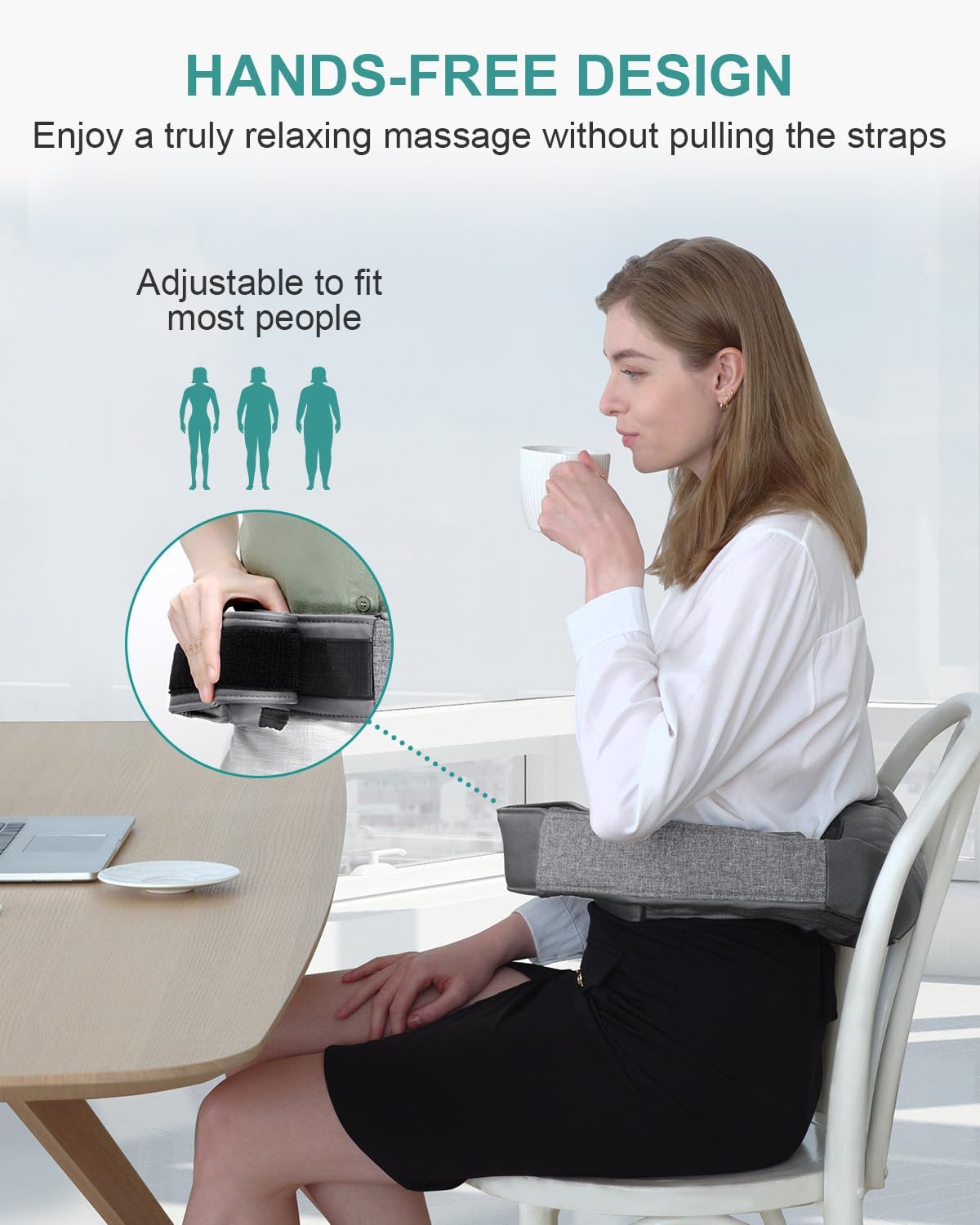

Hands-Free Design of Massager

Image: A user demonstrating the hands-free design, with the massager secured around the waist while working.

This versatile massager can be used on various parts of the body to target specific areas of discomfort:

  • Neck: For stiffness and soreness in the neck area.
  • Shoulder: To alleviate tension and pain in the shoulders.
  • Back: Ideal for upper back pain, lower back discomfort, and general back muscle relaxation.
  • Belly: Can be used for gentle abdominal massage.
  • Legs/Calves: To soothe tired leg muscles and improve circulation.
Massager used on various body parts

Image: A collage demonstrating the massager's versatility, showing it applied to the neck, belly, back, and calves.

Maintenance

Cleaning

The Nekteck massager is made with soft PU leather and comfortable Lycra material, designed for easy cleaning.

Skin-friendly fabric of massager

Image: Close-up view of the soft PU leather and comfortable Lycra material used in the massager's construction.

  • Before cleaning, ensure the massager is turned off and unplugged from any power source.
  • Wipe the surface of the massager with a soft, slightly damp cloth.
  • Do not use abrasive cleaners, solvents, or harsh chemicals.
  • Do not immerse the massager in water or any other liquid.
  • Allow the massager to air dry completely before storing or next use.

Storage

  • Store the massager in a cool, dry place, away from direct sunlight and extreme temperatures.
  • Keep it out of reach of children and pets.
  • Avoid placing heavy objects on the massager during storage.

Troubleshooting

If you encounter any issues with your Nekteck Cordless Neck and Back Massager, please refer to the following common solutions:

ProblemPossible CauseSolution
Massager does not turn on.Battery is depleted.Charge the massager fully using the provided USB cable.
Heat function is not working.Heat function is not activated or device is in auto-shutoff.Press the Heat button to activate. If recently used, allow the device to cool down before reactivating.
Massage intensity feels too weak/strong.Incorrect intensity level selected.Adjust the intensity using the Speed Level button (Low/Medium/High).
Massager stops unexpectedly.15-minute auto-shutoff activated or overheating protection.This is a normal safety feature. Wait a few minutes for the device to cool down before restarting.

If the problem persists after trying these solutions, please contact Nekteck customer support for assistance.

Specifications

Product Dimensions15 x 8 x 7 inches; 3.77 Pounds
Item Model NumberNK-NM03
Batteries1 Lithium Ion batteries required (included)
Power SourceBattery Powered
MaterialFaux Leather, Lycra
BrandNekteck
ColorGray Cordless
Auto Shut-off Timer15 minutes
Running Time (Full Charge)Approx. 80 minutes

Warranty and Support

Nekteck products are manufactured with quality and performance in mind. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Nekteck website.

For technical support, troubleshooting assistance, or any inquiries about your Nekteck Cordless Neck and Back Massager, please contact Nekteck Customer Service:

Please have your model number (NK-NM03) and purchase details ready when contacting support.
