Vente-unique NAZARIO Electric Sliding Gate User Manual

1. Product Overview

The Vente-unique NAZARIO electric sliding gate is designed to provide security and privacy for your entrance. Constructed from durable aluminum, this gate offers excellent resistance to various weather conditions. Its solid design ensures privacy, shielding your property from external views. The NAZARIO model is available in both manual and electric versions, offering flexibility to suit your needs. This particular model is an electric sliding gate, complete with a motor and rail system for automated operation.

The gate features a modern anthracite grey finish (RAL 7016) and is designed for easy cleaning and maintenance. It includes a handle, a key lock with 5 keys, and a damper for smooth operation. The gate's opening direction is reversible, allowing for left or right-hand installation.

Figure 1: The Vente-unique NAZARIO Electric Sliding Gate in a closed position, showcasing its full aluminum anthracite design.

2. Safety Information

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in serious injury or property damage.

• Professional Installation Recommended: Due to the complexity and weight of the gate, professional installation is highly recommended to ensure proper function and safety.
• Keep Clear: Always ensure the gate's path is clear of people, pets, and objects before and during operation.
• Children and Pets: Keep children and pets away from the gate and its operating mechanisms. Do not allow children to play with or near the gate.
• Emergency Stop: Familiarize yourself with the emergency stop procedure for the motor.
• Power Disconnection: Disconnect power to the gate motor before performing any maintenance or repairs.
• Pinch Points: Be aware of potential pinch points during gate movement.
• Wind Resistance: The gate is designed to resist wind up to 72 km/h. In extreme weather conditions, consider operating the gate manually or securing it.

3. Package Contents

Verify that all components are present and undamaged before beginning installation.

• 1 x NAZARIO Sliding Gate (Aluminum, Anthracite Grey)
• 1 x CODY Sliding Gate Rail (Steel, Silver, 4 traction rails)
• 1 x CODY Sliding Gate Motor (PVC, Grey, for outdoor use)
• 1 x Gate Handle
• 1 x Key Lock mechanism
• 5 x Keys
• 1 x Damper
• 1 x Sliding Gate Opener (part of motor kit)
• 1 x Motor User Manual

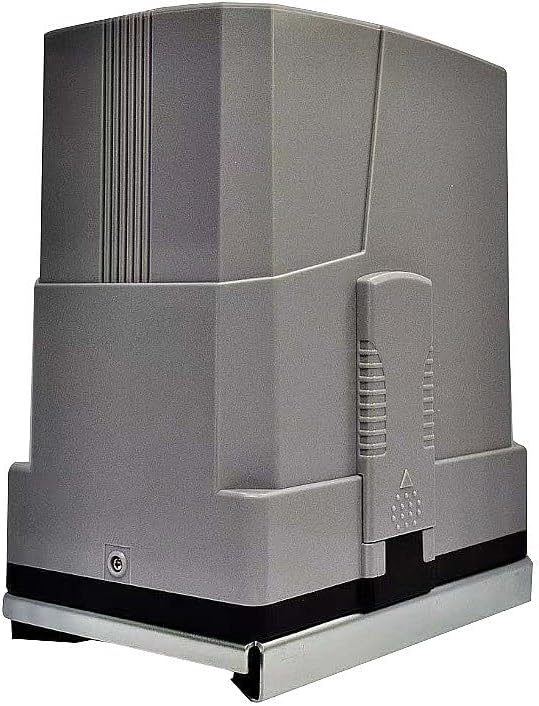

Figure 2: The CODY sliding gate motor unit, essential for electric operation.

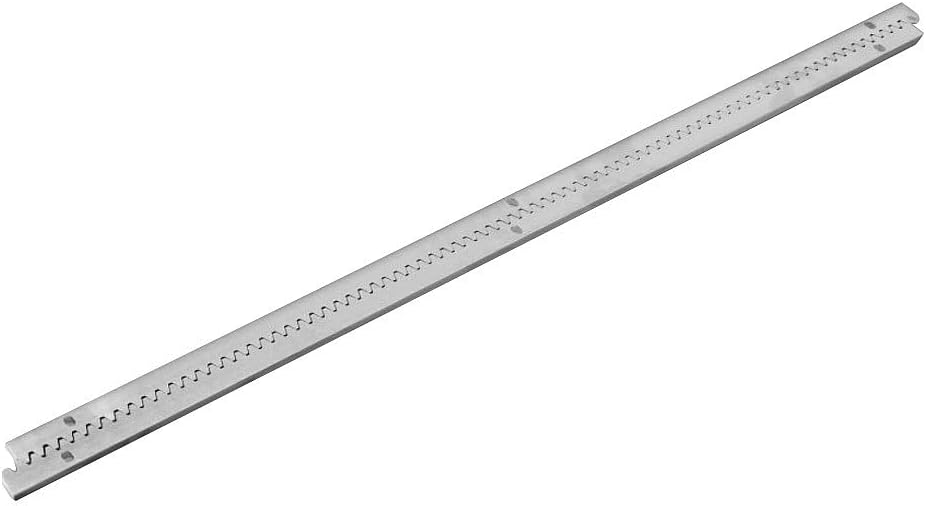

Figure 3: The CODY sliding gate rail, providing the track for the gate's movement.

4. Specifications

5. Setup and Installation

Installation of the Vente-unique NAZARIO electric sliding gate requires careful planning and execution. It is strongly recommended to consult with or hire a qualified professional for installation to ensure safety and optimal performance.

5.1 Site Preparation

• Ensure the ground where the gate will slide is level and clear of obstructions.
• Prepare the foundation for the gate pillars and the motor unit according to local building codes and the specific requirements of your installation.
• Confirm adequate space for the gate to slide fully open without obstruction.

5.2 Pillar and Gate Mounting

• Install the gate pillars securely. These pillars must be robust enough to support the gate's weight and operational forces.
• Mount the gate panels to the rollers and guides. The gate is reversible, allowing you to choose the opening direction (left or right slide) during installation.

Figure 4: The NAZARIO gate installed, showing its appearance from the front.

Figure 5: The NAZARIO gate fully open, integrated with concrete pillars.

5.3 Rail and Motor Installation

• Install the CODY sliding gate rail along the gate's path, ensuring it is perfectly level and aligned.
• Mount the CODY sliding gate motor unit securely to its foundation, adjacent to the gate.
• Attach the rack to the gate, ensuring it meshes correctly with the motor's gear.

5.4 Electrical Connection

• All electrical connections must be performed by a qualified electrician in accordance with local electrical codes.
• Connect the motor to the power supply and any control accessories (e.g., remote receiver, safety sensors).
• Refer to the separate motor user manual for detailed wiring diagrams and electrical specifications.

6. Operating Instructions

Once installed and tested, the NAZARIO electric sliding gate offers convenient automated operation.

6.1 Electric Operation

• Use the provided remote control or wall-mounted switch to open or close the gate.
• Press the button once to initiate movement. Pressing it again during movement will typically stop the gate.
• Ensure the gate path is clear before activating.

6.2 Manual Override

In case of power failure or motor malfunction, the gate can be operated manually.

• Locate the manual release mechanism on the motor unit (refer to the motor manual for exact location).
• Use the provided key or lever to disengage the motor, allowing the gate to be pushed open or closed by hand.
• Remember to re-engage the motor after manual operation to restore electric functionality.

7. Maintenance

Regular maintenance ensures the longevity and reliable operation of your NAZARIO gate.

• Cleaning: Clean the gate panels periodically with a soft cloth and mild detergent to remove dirt and debris. The thermolacquered paint finish is designed for easy cleaning. Avoid abrasive cleaners.
• Rail and Rollers: Keep the sliding rail and gate rollers clean and free of obstructions. Remove any leaves, dirt, or small stones that could impede movement.
• Lubrication: Periodically lubricate moving parts such as rollers, hinges, and the motor's gear rack with a suitable lubricant (e.g., silicone spray or grease). Refer to the motor manual for specific lubrication points.
• Inspection: Regularly inspect all components for signs of wear, damage, or loose fasteners. Pay close attention to electrical wiring, safety sensors, and the integrity of the gate structure.
• Professional Check-up: Consider an annual professional inspection to ensure all safety features and mechanical components are functioning correctly.

8. Troubleshooting

This section addresses common issues you might encounter with your electric sliding gate.

8.1 Gate Not Responding to Remote

• Check Power: Ensure the gate motor is receiving power. Check circuit breakers.
• Remote Battery: Replace the battery in the remote control.
• Obstructions: Verify there are no obstructions in the gate's path or blocking safety sensors.
• Manual Override: Check if the manual override is engaged. Disengage it to restore electric operation.

8.2 Gate Stops Mid-Movement

• Obstruction: The safety sensors may have detected an obstruction. Clear the path and try again.
• Overheating: The motor might have overheated due to continuous use. Allow it to cool down.
• Power Fluctuation: Brief power interruptions can cause the gate to stop.

8.3 Unusual Noises from Motor

• Lubrication: The motor or gate mechanism may require lubrication.
• Debris: Check for debris in the motor's gear or along the gate rail.
• Alignment: The gate or rack might be misaligned. Professional inspection is recommended.

For issues not covered here or if troubleshooting steps do not resolve the problem, please contact customer support.

9. Warranty and Support

For warranty information, specific terms, and conditions, please refer to your purchase documentation or contact Vente-unique customer service directly. Vente-unique is committed to customer satisfaction and provides specialized customer assistance.

For technical support, spare parts, or any inquiries regarding your NAZARIO electric sliding gate, please visit the official Vente-unique website or contact their customer support team.

Vente-unique Official Website: www.vente-unique.com
