1. Introduction
This manual provides comprehensive instructions for the safe installation, efficient operation, and proper maintenance of your Kalamera KRC-108BV-D Beverage Fridge. This compact unit is designed to store and cool up to 102 cans of beverages, featuring a sleek black finish and a stainless steel glass door. Please read this manual thoroughly before using your appliance to ensure optimal performance and longevity.
Image 1.1: Overview of the Kalamera KRC-108BV-D Beverage Fridge highlighting key features such as interior lighting, cold air circulation, temperature memory, and UV isolation for beverage protection.
2. Safety Information
To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:
- Read all instructions before using the appliance.
- Do not touch cold surfaces immediately after the unit has been plugged in.
- Ensure the appliance is properly grounded.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Unplug the appliance before cleaning or performing any maintenance.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials, including foam and tape. Inspect the appliance for any shipping damage. Keep packaging materials until you are satisfied with the product's condition. Remove any protective film from the stainless steel surfaces.
3.2 Placement
This beverage fridge is designed for freestanding installation. Ensure the unit is placed on a flat, stable surface capable of supporting its weight when fully loaded. Allow sufficient space around the unit for proper ventilation (at least 5 cm on sides and back, 10 cm on top) to ensure efficient cooling and prevent overheating.
The dimensions of the unit are approximately 42.9 cm (16.9 inches) wide, 73.9 cm (29.1 inches) high, and 45 cm (17.7 inches) deep.
Image 3.1: The Kalamera KRC-108BV-D Beverage Fridge with its compact dimensions clearly marked, illustrating its small footprint for versatile placement.

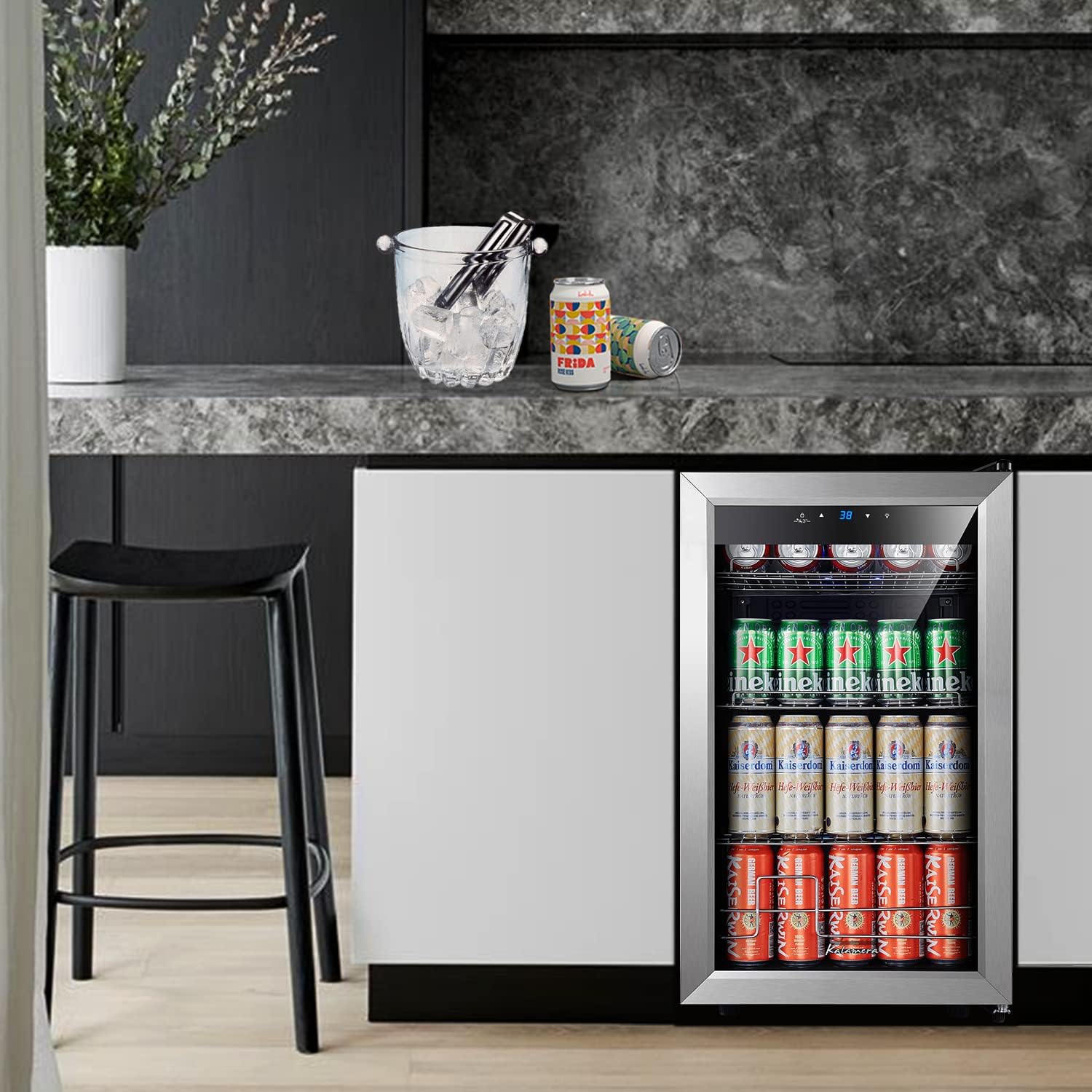

Image 3.2: The beverage fridge positioned under a kitchen counter, demonstrating a common installation scenario.
Image 3.3: The beverage fridge standing freely next to a kitchen island, showcasing its freestanding installation flexibility.
3.3 Leveling
Adjust the leveling legs at the bottom of the unit to ensure it is perfectly level. This is crucial for proper door alignment and efficient operation of the cooling system.
3.4 Initial Power-On
After placing and leveling the unit, allow it to stand upright for at least 24 hours before plugging it into a power outlet. This allows the refrigerant to settle, preventing potential damage to the cooling system. Plug the unit into a dedicated 120V AC outlet.
3.5 Door Handle Installation
The door handle is included and typically requires minor assembly. Align the handle with the pre-drilled holes on the door and secure it with the provided screws. Do not overtighten.
4. Operating Instructions
4.1 Temperature Control
The beverage fridge features an LED control display for easy temperature adjustment. The temperature range is 38-50°F (approximately 3-10°C). Use the up and down arrows on the control panel to set your desired temperature. The display will show the current internal temperature.

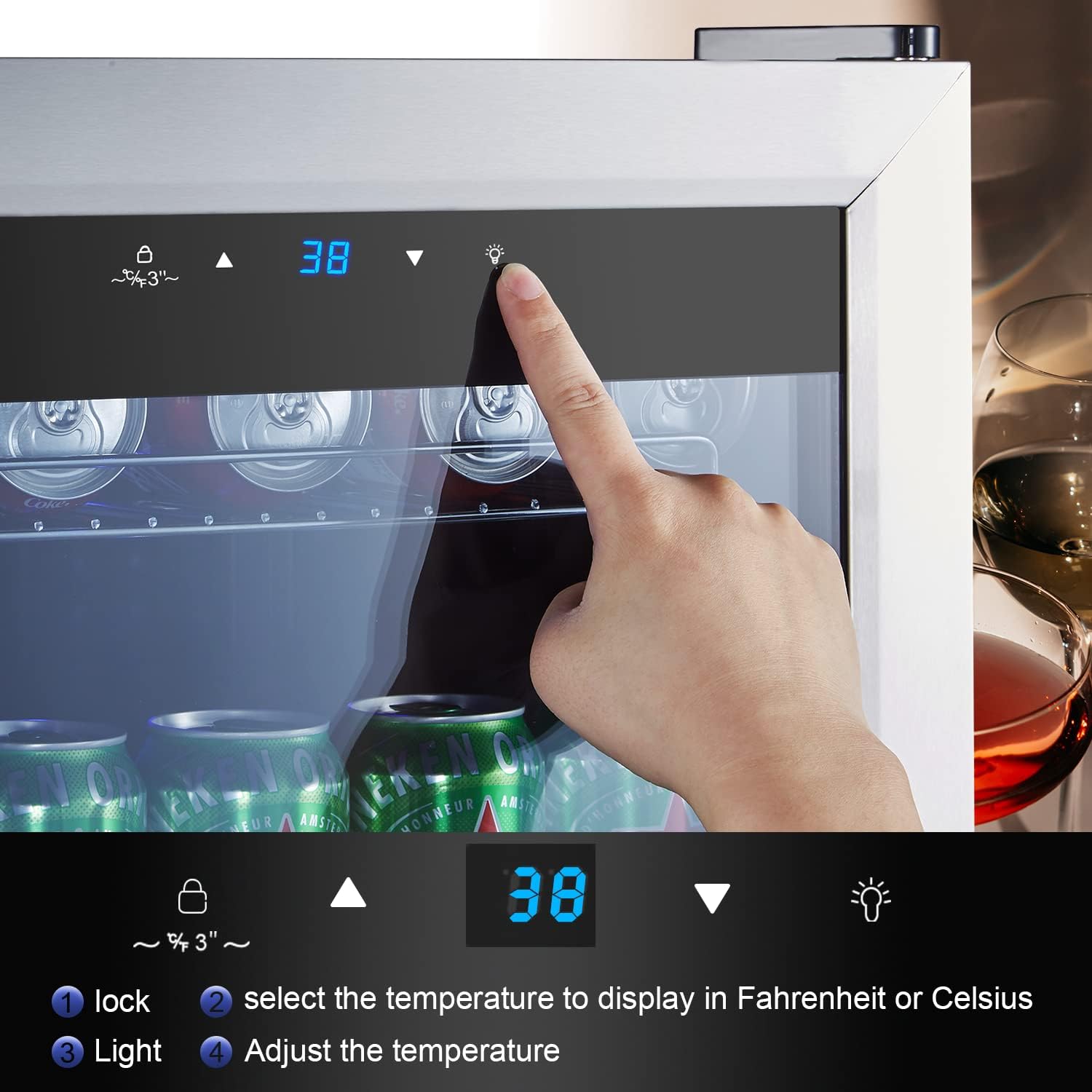

Image 4.1: The control panel of the beverage fridge, showing the digital temperature display and touch controls for temperature adjustment and lighting.
4.2 Temperature Memory Function
This unit is equipped with a temperature memory function. In the event of a power loss, the fridge will automatically restore the previously set temperature once power is re-established, ensuring your beverages remain at the desired temperature without manual reset.
4.3 Interior Lighting
The fridge includes soft white LED lights to illuminate the interior, allowing for easy visibility of your beverages. The light can be controlled via a dedicated button on the control panel.
Image 4.2: A detailed view of the white LED cold light system, designed to illuminate the interior without affecting beverage quality.
4.4 Shelves
The fridge comes with 4 high-quality wire shelves. These shelves are removable and feature stoppers on both sides to prevent accidental dislodgement. Arrange the shelves to accommodate different sizes of cans and bottles.
Image 4.3: The interior of the beverage fridge, showcasing the removable wire shelves for flexible storage configurations.
4.5 Air Cooled Technology
The unit utilizes an air-cooled technology with powerful circulating fans to ensure the entire interior is cooled uniformly to your desired temperature.
Image 4.4: Visual representation of the air-cooled technology within the fridge, illustrating how circulating fans distribute cool air evenly.
5. Maintenance
5.1 Cleaning
Always unplug the appliance before cleaning. Clean the interior with a mild detergent and warm water. Wipe down the exterior with a soft cloth. For the stainless steel door, use a stainless steel cleaner. Do not use abrasive cleaners or harsh chemicals.
5.2 Defrosting
The Kalamera KRC-108BV-D Beverage Fridge features an automatic defrosting function that operates approximately every six hours. During this cycle, any accumulated frost on the evaporator will melt and drain into an evaporation tray. No manual defrosting is typically required.
6. Troubleshooting
Before contacting customer service, please refer to the following troubleshooting guide for common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate | Not plugged in; circuit breaker tripped; temperature set too high. | Ensure plug is secure; reset circuit breaker; lower temperature setting. |
| Temperature is not cold enough | Door not closed properly; frequent door openings; warm beverages added; poor ventilation; unit exposed to direct sunlight. | Check door seal; reduce door openings; allow time for new beverages to cool; ensure adequate clearance for ventilation; relocate unit away from heat sources. |
| Excessive noise | Unit not level; vibrating against a wall or cabinet; normal compressor operation. | Adjust leveling legs; move unit slightly; some operational noise from the compressor is normal. |
| Door fogging | High humidity; frequent door openings. | This unit features 2 layers of tempered glass to stabilize temperature and minimize fogging. In high humidity environments or with frequent door openings, some condensation may occur temporarily. |
7. Specifications
| Feature | Specification |
|---|---|
| Model Name | KRC-108BV-D |
| Brand | Kalamera |
| Product Dimensions (D x W x H) | 45D x 42.9W x 73.9H centimetres (17.7D x 16.9W x 29.1H inches) |
| Capacity | 3.2 cubic feet (approx. 102 cans) |
| Configuration | Freezerless |
| Colour | Black |
| Special Features | Compact, Touch Control, Temperature Memory |
| Installation Type | Freestanding |
| Number of Doors | 1 |
| Defrost System | Automatic |
| Voltage | 120V |
| Shelf Type | Wire |
| Number of Shelves | 4 |
| Adjustable Temperature Control | Yes (38-50°F) |
| Door Orientation | Left |
| Lock Type | Key |
| Item Weight | 26.76 kg |
| Annual Energy Consumption | 146 Kilowatt Hours Per Year |
| Refrigerant | R-600A |
| Finish Type | Stainless Steel |
| Door Material Type | Stainless Steel |
8. Warranty and Support
Kalamera is committed to providing quality products. For specific warranty details regarding your KRC-108BV-D Beverage Fridge, please refer to the warranty card included with your purchase or visit the official Kalamera website. For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Kalamera customer service directly. Contact information can typically be found on the manufacturer's website or in your purchase documentation.
