KastKing Megatron 100 & 200 Baitcasting Reels Instruction Manual

1. Product Overview

The KastKing Megatron 100 and 200 series baitcasting reels are designed for both freshwater and saltwater fishing, offering high capacity and robust performance. These low-profile reels feature a durable graphite frame, a powerful carbon fiber drag system, and an advanced magnetic braking system to enhance casting control.

Key features include:

• High Capacity Spool: Designed to accommodate significant line lengths for various fishing conditions.
• Low Profile Design: Ergonomically shaped for comfortable, extended use.
• Triple Disc Carbon Drag: Provides smooth and powerful stopping power, up to 28.6 lbs.
• 7+1 Double Shielded Stainless Steel Ball Bearings: Ensures smooth operation and durability in diverse environments.
• 8-Button Magnetic Braking System: Offers precise casting control and minimizes backlashes.
• Precision Machined Brass Gears: For exceptional strength and long-term durability.

2. Setup

2.1 Unpacking and Inspection

Upon receiving your KastKing Megatron baitcasting reel, carefully remove it from the packaging. Inspect the reel for any visible damage or missing components. Ensure all parts, including the handle and knobs, are securely attached.

2.2 Spooling Fishing Line

The Megatron 200 model has a standard mono line capacity of 17 lb/130 yds and a standard braided line capacity of 65 lb/110 yds. When spooling line, ensure it is wound evenly and tightly onto the spool to prevent issues during casting. For optimal performance, avoid overfilling the spool.

Image: KastKing Megatron 200 Baitcasting Reel with high capacity spool. This image illustrates the reel's design and capacity.

Image: KastKing Megatron 200 Baitcasting Reel with high capacity spool. This image illustrates the reel's design and capacity.

Image: KastKing Megatron 200 Baitcasting Reel with high capacity spool. This image illustrates the reel's design and capacity.

Image: KastKing Megatron 200 Baitcasting Reel with high capacity spool. This image illustrates the reel's design and capacity.

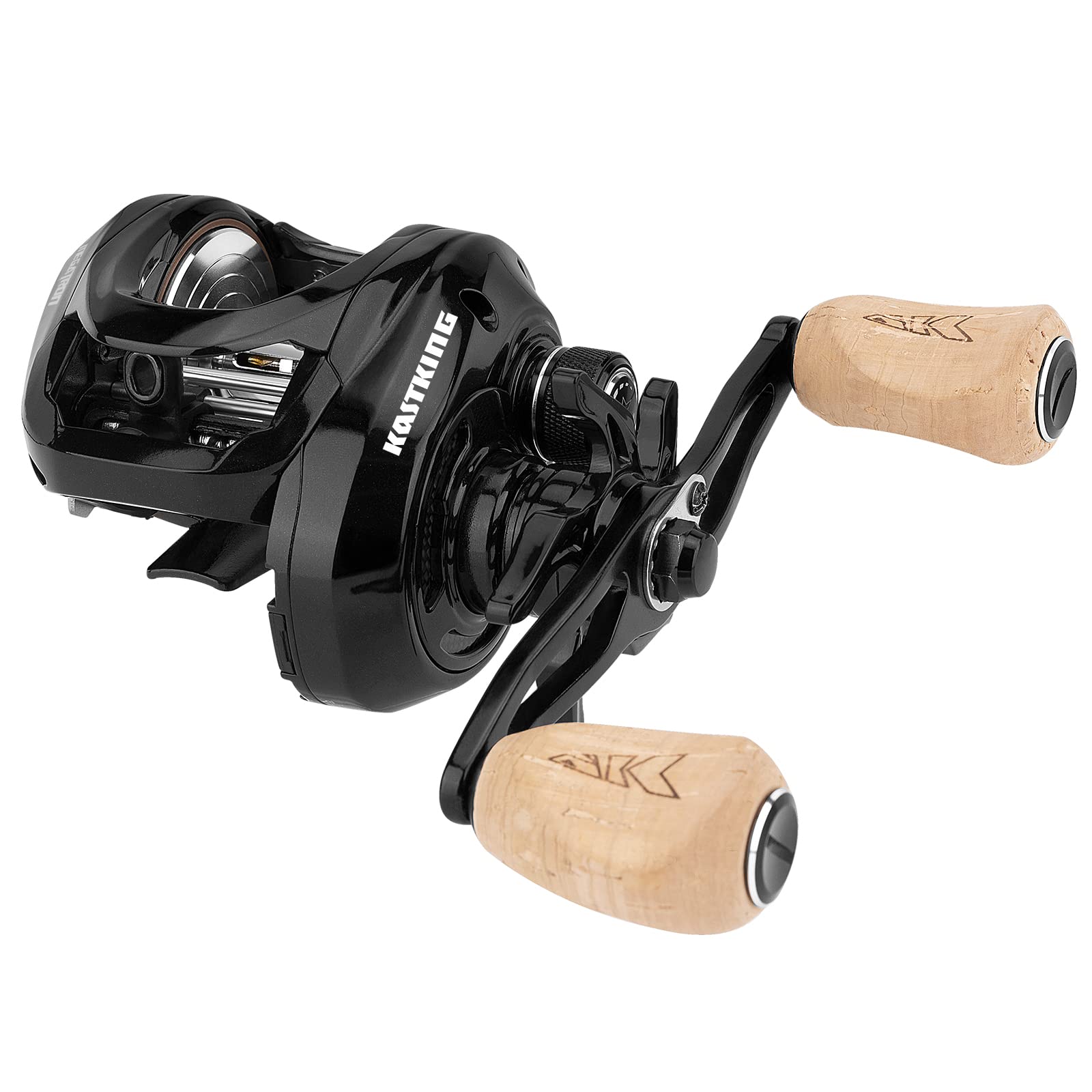

Image: Main product image of the KastKing Megatron 200 Baitcasting Reel, Left-6.4:1 model.

2.3 Braking System Adjustment

The Megatron reels feature an 8-button magnetic braking system to control spool rotation and prevent backlashes. The braking force can be adjusted externally using the dial on the side plate. Start with a higher setting (more brake) and gradually reduce it as you become more comfortable with casting. This system is crucial for maximizing casting distance while maintaining control.

Image: Detailed view of the Cross-Fire 8-Button Magnetic Braking System, showing the internal magnets and external adjustment dial.

2.4 Spool Tension Adjustment

The spool tension knob, located near the handle, controls the free fall of the lure. To set, attach your lure, engage the spool release, and slowly tighten the tension knob until the lure falls slowly and steadily. There should be no overrun of the spool when the lure hits the ground. Adjust as needed for different lure weights and wind conditions.

3. Operating Instructions

3.1 Casting

To cast, press the thumb bar to disengage the spool. With your thumb resting lightly on the spool, make your cast. Release your thumb as the rod loads and the lure begins its forward motion. Apply light thumb pressure to the spool as the lure approaches the water to prevent backlash. The magnetic braking system assists in this process.

3.2 Retrieving

The Megatron 200 features a 6.4:1 gear ratio, providing a versatile retrieve speed suitable for various lure types and fishing techniques. Turn the handle to engage the gears and retrieve your line. The 7+1 shielded stainless steel ball bearings ensure a smooth retrieve even under load.

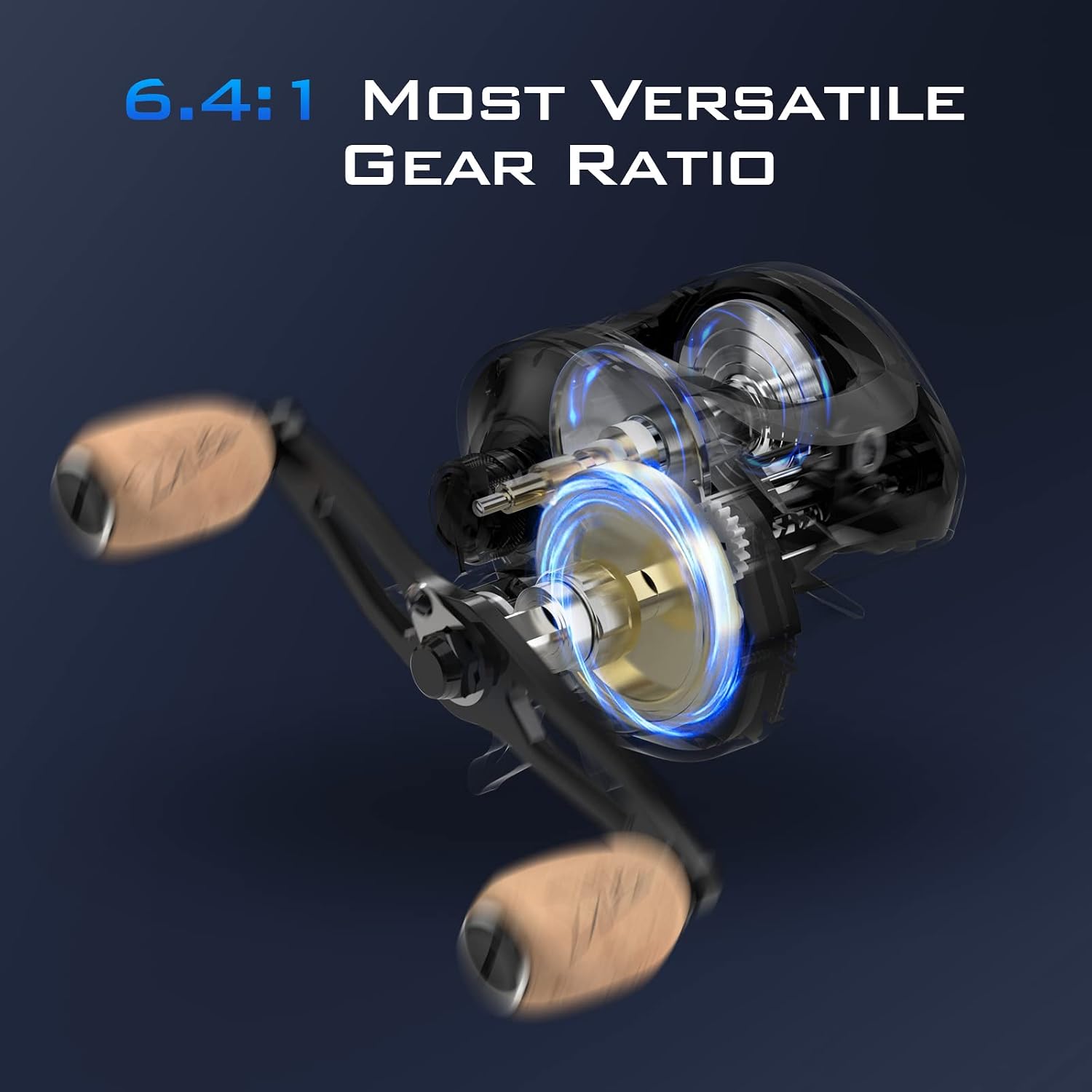

Image: Illustration of the 6.4:1 gear ratio mechanism within the KastKing Megatron Baitcasting Reel.

3.3 Drag Adjustment

The triple disc carbon drag system provides up to 28.6 lbs of maximum drag. Adjust the star drag knob, located next to the handle, to set the desired drag tension. It is recommended to set the drag to approximately one-third of your line's breaking strength. This allows for fighting fish effectively while protecting your line from breaking.

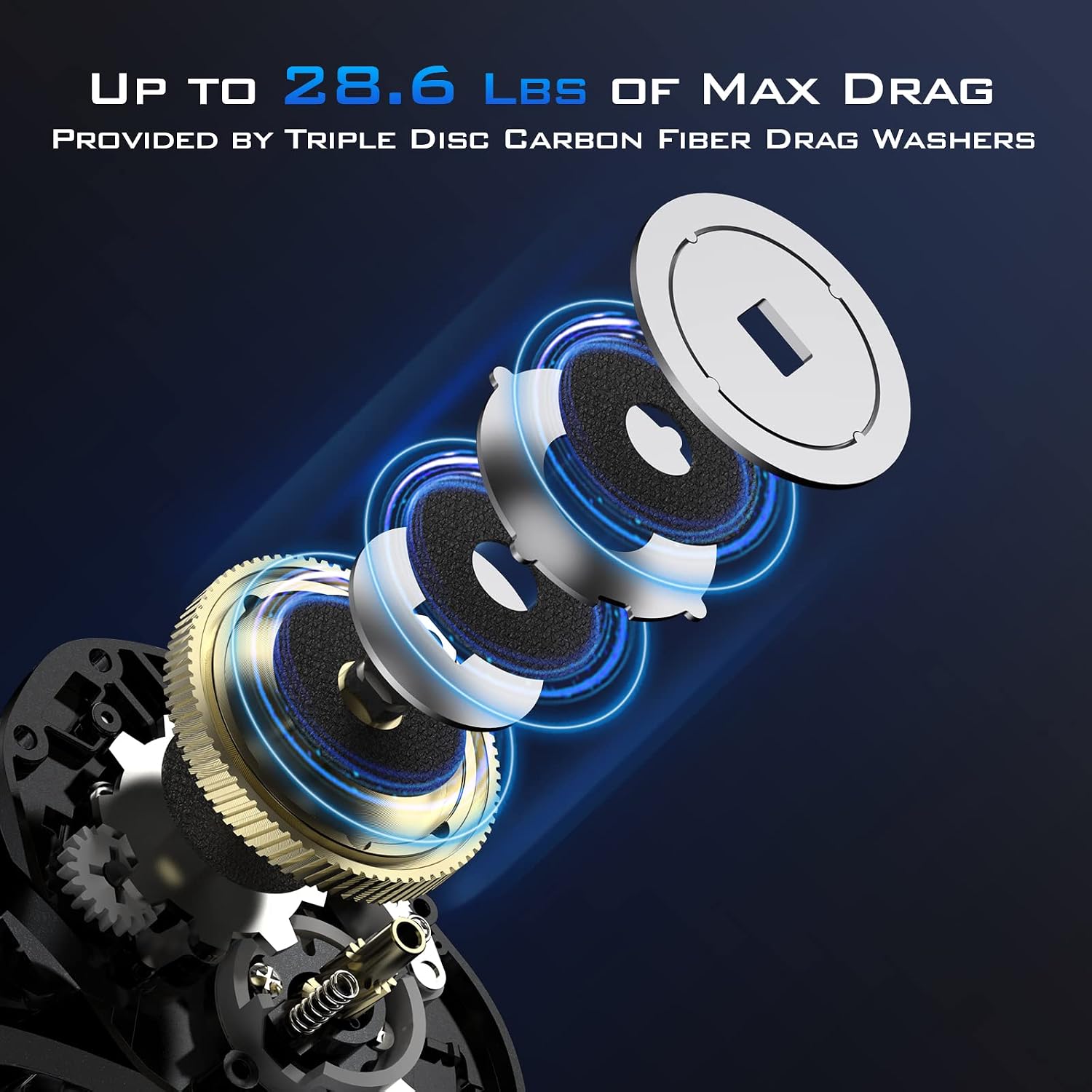

Image: Exploded view illustrating the triple disc carbon fiber drag washers providing up to 28.6 lbs of max drag.

4. Maintenance

4.1 Cleaning

After each use, especially in saltwater, rinse your reel with fresh water to remove salt, sand, and debris. Avoid using high-pressure sprays directly on the reel. Wipe the reel dry with a soft cloth. Periodically, clean the exterior with a mild soap solution and a soft brush.

4.2 Lubrication

The KastKing Megatron reel includes a lubrication service port for easy maintenance of the main gear. Apply a small amount of high-quality reel grease through this port as needed. Additionally, apply a light coat of reel oil to the ball bearings and other moving parts to ensure smooth operation and prevent corrosion.

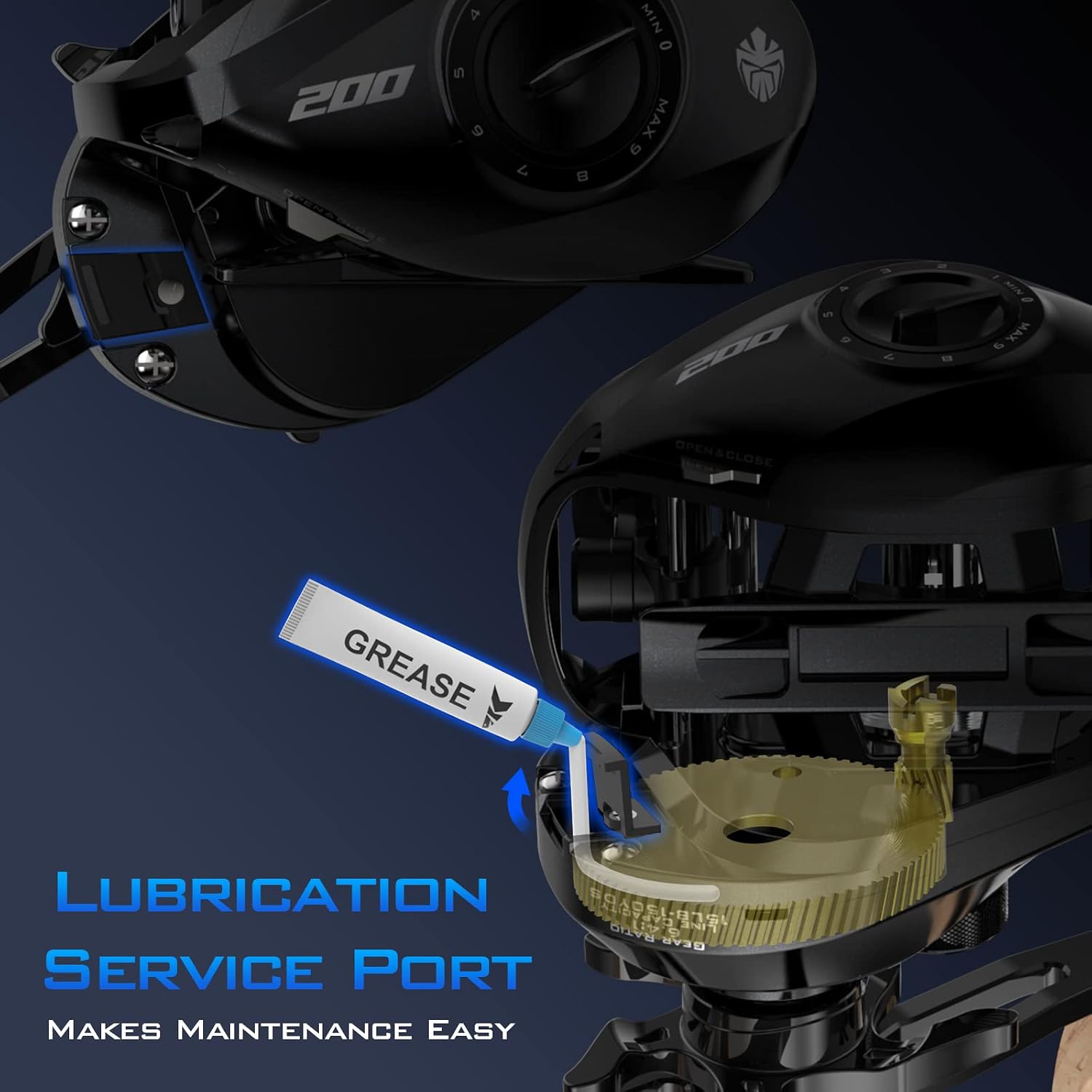

Image: Illustration showing the lubrication service port on the KastKing Megatron Baitcasting Reel, designed for easy maintenance.

4.3 Storage

Store your reel in a dry, cool place away from direct sunlight and extreme temperatures. Consider using a reel cover or case to protect it from dust and physical damage during storage and transport.

5. Troubleshooting

5.1 Backlash Issues

If you experience frequent backlashes (tangles in the line during casting), check the following:

• Braking System: Increase the magnetic brake setting.
• Spool Tension: Ensure the spool tension knob is properly adjusted for your lure weight.
• Casting Technique: Practice smooth casting motions and thumb control on the spool.

5.2 Stiff Operation or Grinding Noise

If the reel feels stiff or makes grinding noises during retrieve:

• Cleaning: The reel may require thorough cleaning to remove dirt or debris.
• Lubrication: Apply fresh grease to gears and oil to bearings.
• Inspection: Check for any bent or damaged components. If issues persist, professional service may be required.

5.3 Drag Slipping or Inconsistent

If the drag system is not performing correctly:

• Drag Adjustment: Ensure the star drag knob is tightened sufficiently.
• Cleaning: Dirt or debris on the drag washers can cause slippage. Disassemble and clean the drag system if comfortable, or seek professional help.
• Wear: Drag washers may be worn and require replacement after extensive use.

6. Specifications

7. Warranty and Support

For detailed warranty information and customer support, please refer to the official KastKing website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

You can also visit the KastKing Store on Amazon for additional product information and accessories.
