Bushnell AR Optics 1-4x24mm Illuminated BDC Reticle User Manual

Product Overview

The Bushnell AR Optics 1-4x24mm Illuminated BDC Reticle is designed for versatile short to mid-range shooting. It features fully multi-coated optics for bright, clear views and a durable, waterproof construction suitable for rugged conditions. The illuminated Ballistic Drop Compensated (BDC) reticle assists with holdover shooting up to 600 yards, and an adjustable throw lever allows for rapid magnification changes.

Front view of the Bushnell AR Optics 1-4x24mm Illuminated BDC Reticle scope.

Setup and Installation

Proper setup is crucial for optimal performance. This riflescope is designed for Picatinny mounts. Ensure the scope is securely mounted and leveled on your firearm.

Mounting

Attach the scope to a compatible Picatinny rail using appropriate rings (not included). Ensure proper eye relief and a consistent cheek weld for comfortable and accurate aiming. Tighten all mounting screws according to the torque specifications provided by your mount manufacturer.

Adjustable Throw Lever Installation

The scope includes an adjustable throw lever for quick magnification changes. Attach the lever to the magnification ring as desired for ease of use, especially when wearing gloves.

Detailed view of the scope highlighting key features including the fast-focus diopter, throw lever, illumination settings, waterproof construction, mil-based elevation and windage turrets, 30mm tube, and fully multi-coated optics.

Operating Instructions

Magnification Adjustment

Rotate the magnification ring to adjust between 1x and 4x power. The included throw lever facilitates rapid changes. For precise aiming, ensure the magnification is set appropriately for your target distance.

Reticle Illumination

The BDC reticle features illumination for enhanced visibility in various lighting conditions. Use the illumination knob to select your desired brightness level. Turn off illumination when not in use to conserve battery life.

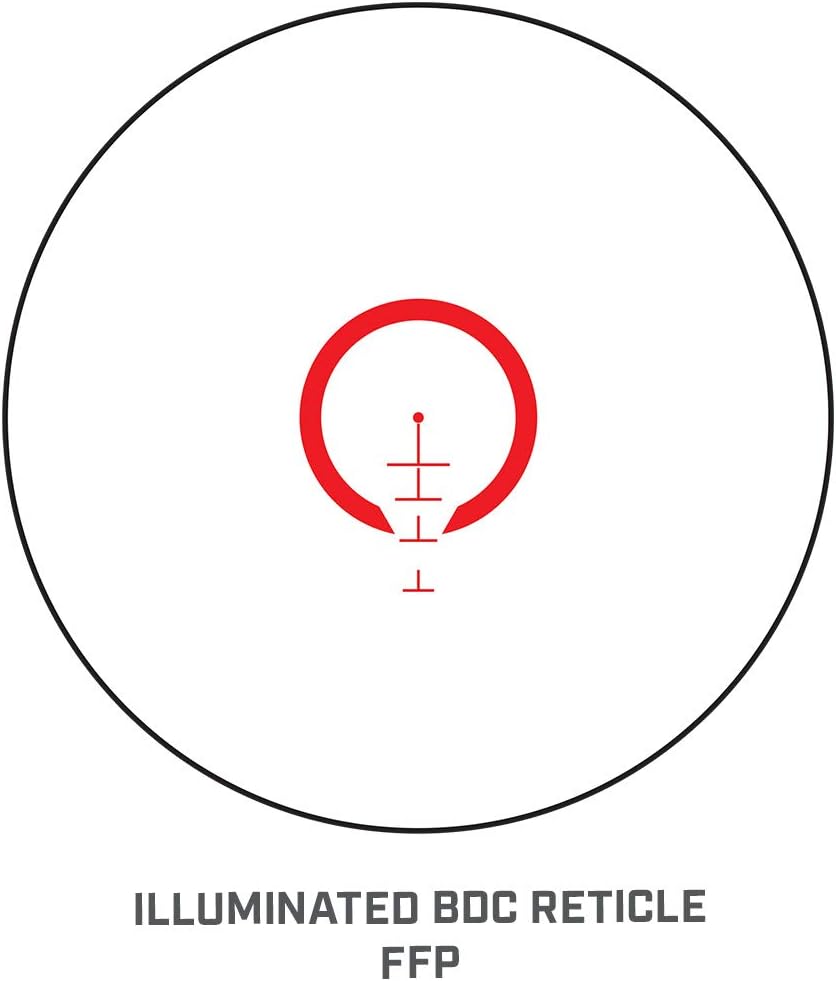

A visual representation of the Illuminated BDC Reticle (First Focal Plane).

Windage and Elevation Adjustments

The scope features mil-based elevation and windage turrets with 1/10 mil per click adjustments. These turrets allow for precise zeroing and adjustments for bullet drop and wind drift. The scope comes with multiple interchangeable turrets pre-calibrated for specific ammunition types (e.g., 6.5 Creedmoor, .224 Valkyrie, .223 REM 55gr FMJBT). To change turrets, carefully remove the existing turret and replace it with the one corresponding to your ammunition. Ensure the new turret is properly seated and aligned.

Top view of the scope, highlighting the elevation and windage turrets for precise adjustments.

Maintenance and Care

To ensure the longevity and performance of your Bushnell AR Optics riflescope, follow these maintenance guidelines:

• Lens Cleaning: Use a soft, lint-free cloth or lens brush to remove dust and debris. For smudges, use a lens cleaning solution specifically designed for optics and a microfiber cloth. Avoid using abrasive materials or harsh chemicals.
• Body Cleaning: Wipe the exterior of the scope with a damp cloth to remove dirt. Dry thoroughly.
• Storage: Store the scope in a cool, dry place, ideally in its original packaging or a protective case. Ensure lens caps are in place to protect the lenses from dust and scratches.
• Waterproof Construction: While waterproof, avoid prolonged submersion. If the scope gets wet, wipe it dry as soon as possible.

A close-up view of the Bushnell branding on the scope's body.

Troubleshooting

If you encounter issues with your Bushnell AR Optics riflescope, consider the following common troubleshooting steps:

• Blurred Image: Adjust the fast-focus diopter on the eyepiece until the reticle is sharp. Ensure the target is in focus by adjusting the magnification.
• Reticle Not Illuminating: Check the battery. Ensure it is correctly installed and has sufficient charge. Replace if necessary.
• Inconsistent Zero: Verify that the scope is securely mounted and all screws are tightened to specification. Check for any loose components on the firearm or mount.
• Turret Adjustment Issues: Ensure turrets are not cross-threaded and click positively. If using interchangeable turrets, confirm the correct turret for your ammunition is installed and properly seated.

For persistent issues, refer to the warranty and support section for contact information.

Specifications

Diagram illustrating the weight (18 oz / 510 g) and length (9.4 in / 238.7 mm) of the scope.

Warranty and Support

Bushnell products are engineered to deliver to your expectation and manufactured to withstand the rigors of the outdoors for the lifetime of the product. In the event that your product fails you, Bushnell will stand behind it and repair it at no cost to you. If they can't repair it, they will replace it with a product of equal or better value. No receipt is required, and the warranty is fully transferable.

For detailed warranty information or to contact support, please visit the official Bushnell website or refer to the included Riflescopes Instructions manual.

Bushnell's Lifetime Ironclad Warranty provides comprehensive coverage for their products.
