MCombo Dual Motor Power Lift Recliner Chair

1. Important Safety Information

Please read all instructions carefully before using the MCombo Dual Motor Power Lift Recliner Chair. Retain this manual for future reference.

• Always keep the chair in the upright position when not in use.
• In case of emergency, use the 'HOME' button on the remote control to return the chair to the upright position.
• Do not attempt to stand up while the chair is in a reclined position.
• Ensure all power cords are securely connected and not pinched or damaged.
• Keep children and pets away from the chair's moving parts.
• Do not exceed the maximum weight recommendation of 350 pounds.

2. Assembly Instructions

The MCombo Power Lift Recliner Chair is designed for easy assembly, requiring no special tools. Assembly typically takes approximately 20 minutes for a novice.

2.1 Unpacking and Component Check

Carefully unpack all components from the boxes. It is recommended to have two people for handling the heavier base unit. Verify that all parts listed in the manual are present and undamaged.

Image: All components of the recliner chair laid out for assembly, including the backrest, armrests, base, and accessory box.

2.2 Assembly Steps

1. Place the chair base in the desired location. The base is heavy and may require assistance to move.
2. Slide the backrest into the slots on the chair base until it clicks securely into place.
3. Connect the color-coded electrical cables from the backrest and armrests to the corresponding ports on the chair base. Ensure all connections are firm.
4. Zip the arm cushions onto the chair frame if they are not pre-attached.
5. Plug the power adapter into the chair and then into a wall outlet.

Once assembled, test all functions of the chair using the remote controls before initial use.

3. Operating Instructions

The MCombo Dual Motor Power Lift Recliner Chair offers independent control of the backrest and footrest, along with massage and heating functions.

3.1 Power Lift and Recline Functions

This chair features a dual motor design, allowing the backrest and footrest to be adjusted independently. Use the dedicated remote control for these functions.

Image: Remote control for adjusting chair position, showing buttons for lift, recline, and a 'HOME' button to return to upright.

• Lift Function: Press the 'Lift' button to gently raise the chair, assisting the user to a standing position.
• Recline Function: Press the 'Recline' button to adjust the backrest and footrest. The backrest can recline up to 165 degrees.
• Independent Adjustment: Use the separate backrest and footrest control buttons to adjust each component independently to achieve your desired position.
• Home Button: Press the 'HOME' button to return the chair to its default upright position.

Image: A person demonstrating the full recline position with the footrest extended.

3.2 Full-Body Vibration and Lumbar Heating

The chair includes 8 vibrating points and 1 lumbar heating point for enhanced comfort. These functions are controlled by a separate remote.

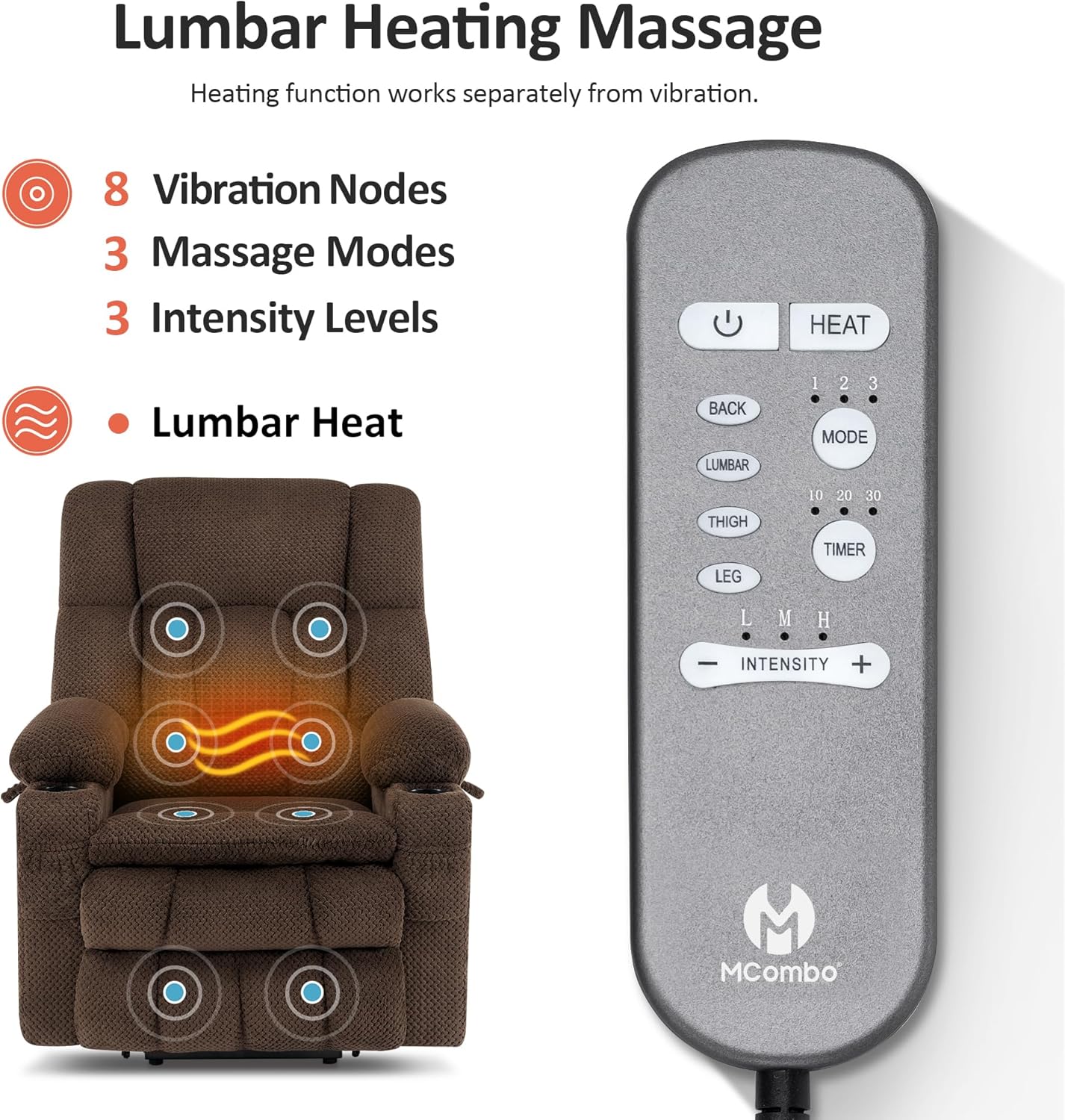

Image: Remote control for massage and heat, showing controls for vibration nodes, massage modes, intensity levels, and lumbar heat activation.

• Vibration: Activate the 8 vibration nodes located throughout the chair. Choose from 3 massage modes and 3 intensity levels (Low, Medium, High).
• Lumbar Heating: The lumbar heating function operates independently of the vibration. Press the 'HEAT' button to activate.
• Timer: Set the massage function to automatically turn off after 10, 20, or 30 minutes.

3.3 USB Charging Ports and Cup Holders

Conveniently located features for user comfort.

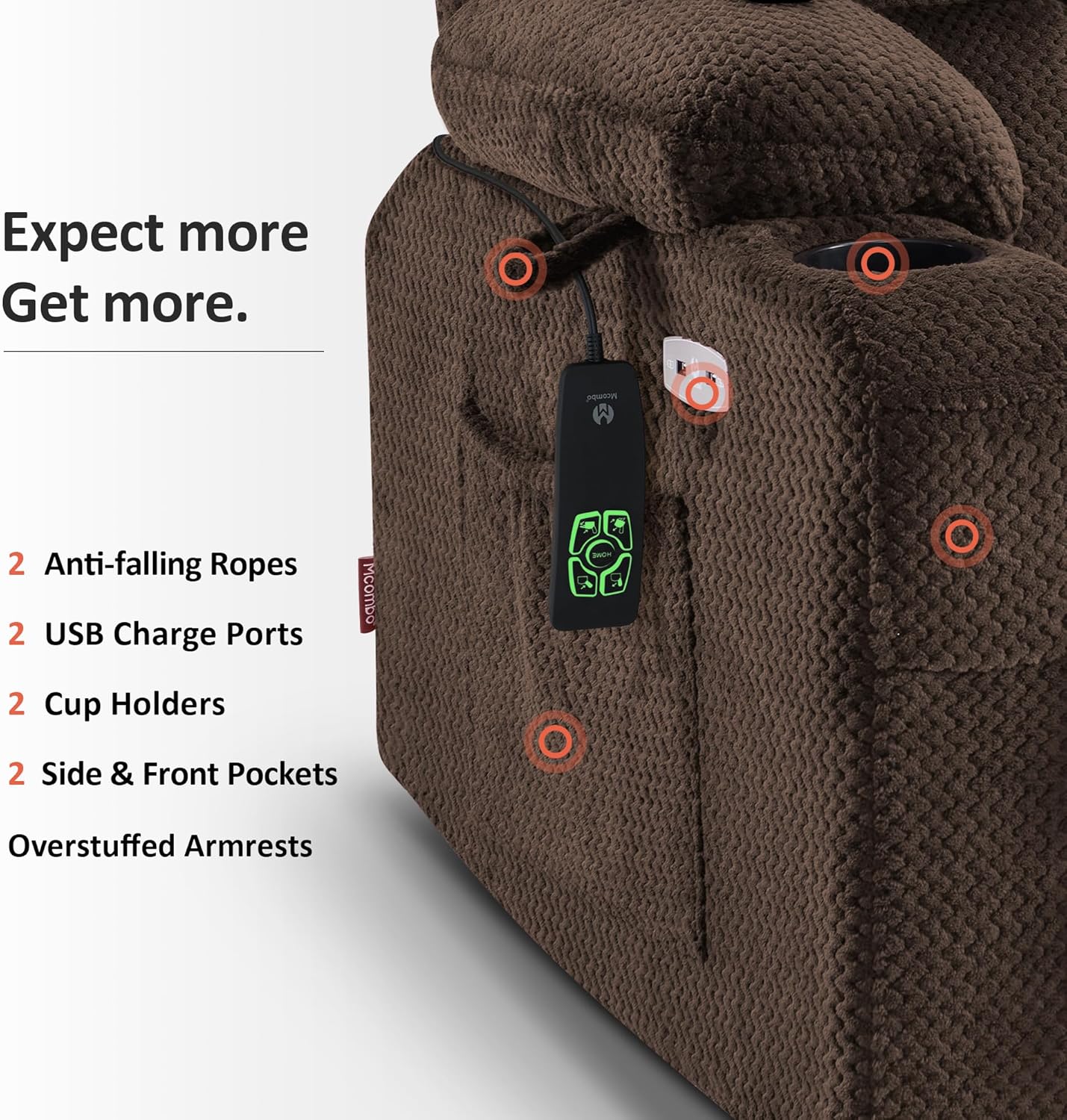

Image: Close-up of the chair's side, highlighting the dual USB ports, cup holders, and spacious side pockets.

• USB Ports: Two USB charging ports are available to charge mobile devices.
• Cup Holders: Two cup holders are integrated into the armrests for beverages.
• Side Pockets: Two spacious side pockets provide storage for remotes, magazines, or other small items.

3.4 Extended Footrest

The chair features a 4.7-inch extended footrest to provide full leg support and prevent circulation issues. This is particularly beneficial for users between 5'3" and 5'9" in height.

4. Maintenance

Proper care will extend the life and appearance of your recliner chair.

• Cleaning: For general cleaning, spot clean the fabric upholstery as needed. Use a mild detergent and a damp cloth. Do not saturate the fabric.
• Inspection: Periodically check all connections and moving parts for wear or damage. Ensure all screws and bolts are tight.
• Power Cord: Inspect the power cord regularly for any signs of damage. If damaged, discontinue use and contact customer support.

5. Troubleshooting

If you encounter any issues with your MCombo Power Lift Recliner Chair, refer to the following common troubleshooting tips:

• Chair Not Responding: Ensure the power cord is securely plugged into both the chair and a working wall outlet. Check for any tripped circuit breakers.
• Remote Control Issues: Verify that the remote control cable is firmly connected to the chair. If the chair does not respond after a power outage, press the 'Lift' button to attempt to reset its position, then try the 'HOME' button. If issues persist, unplug the chair for a few minutes and then plug it back in to reset the system.
• Unusual Noises: If you hear grinding or unusual noises, immediately stop using the chair and inspect the moving mechanisms for any obstructions or loose parts. Contact customer support if the noise continues.
• Uneven Movement: If the chair lifts or reclines unevenly, check for any obstructions under the chair or ensure it is placed on a level surface.

For issues not resolved by these steps, please contact MCombo customer support.

6. Specifications

Detailed specifications for the MCombo Dual Motor Power Lift Recliner Chair, Model 6160-7890Fabric.

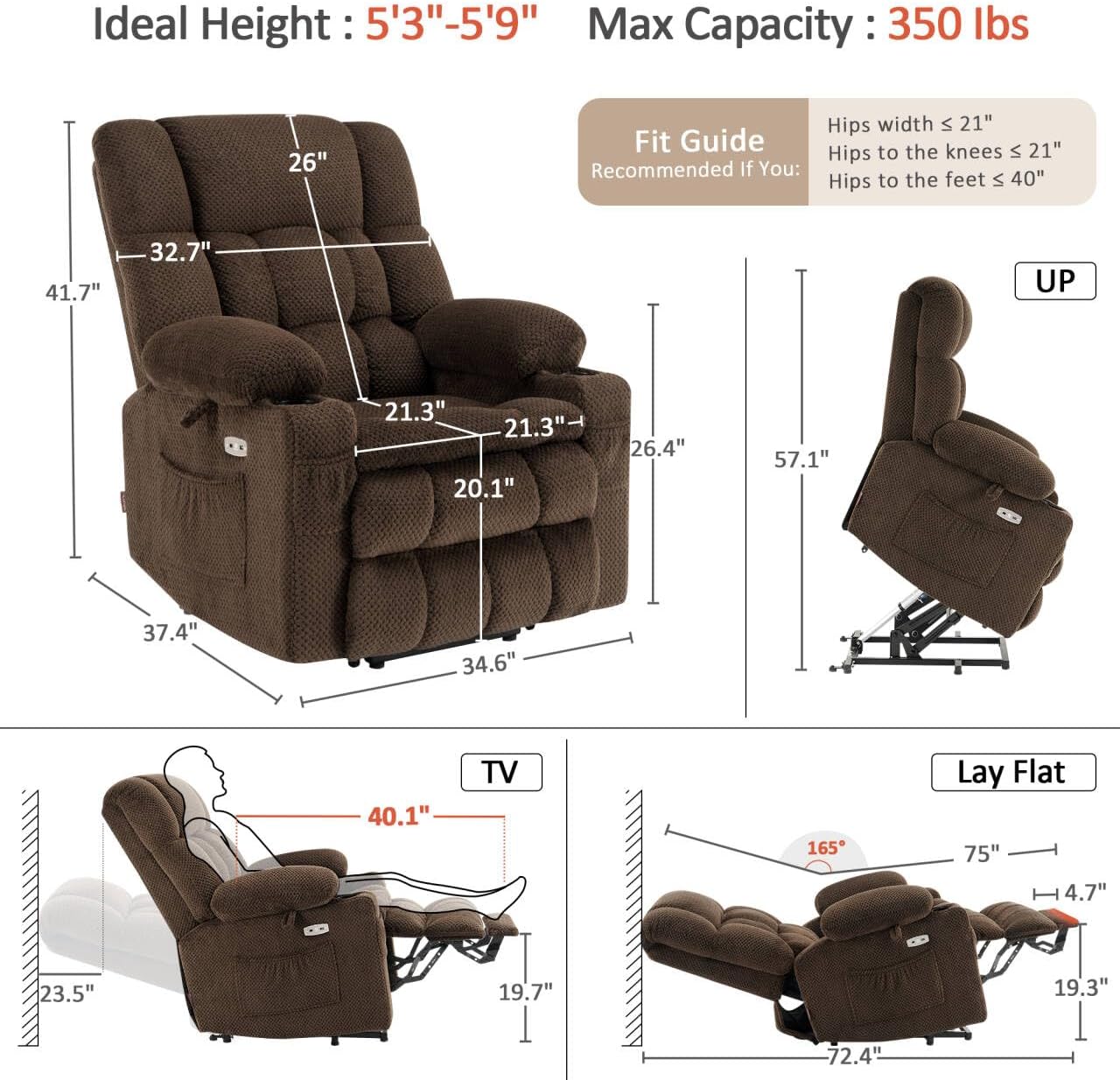

Image: Detailed diagram illustrating the dimensions of the recliner chair, including height, width, and depth.

6.1 Certifications

•

  CertiPUR-US Certified Foam: Ensures the foam is made without harmful chemicals, providing safe and comfortable support.
•

  OEKO-TEX Standard 100 Certified Fabric: Guarantees the fabric is skin-friendly and free from harmful substances.

•

  FSC Certified Wood: Indicates the wood is sourced from sustainably managed forests, promoting durability and eco-friendliness.

7. Product Videos

Watch these videos for visual demonstrations of the chair's features and operation.

8. Warranty and Support

MCombo stands behind the quality of its products.

• 2-Year Limited Warranty: Your MCombo Power Lift Recliner Chair is covered by a 2-year limited warranty. This warranty includes free replacements for Reclining/Lifting Mechanisms, Electrical Systems, Upholstery & Cushions, and Wood/Metal Frame Structures.
• Customer Support: For any questions, concerns, or warranty claims, please contact MCombo customer support. Refer to your purchase documentation for specific contact details.
