iGeelee HT-1950E Hydraulic Press Tool Instruction Manual

Model: HT-1950E | Brand: iGeelee

1. Safety Information

Please read and understand all safety warnings and instructions before operating this tool. Failure to follow these instructions may result in serious injury.

  • Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when operating the tool.
  • Ensure the work area is clean, well-lit, and free from obstructions.
  • Do not operate the tool if you are fatigued or under the influence of drugs or alcohol.
  • Keep hands and fingers clear of the crimping jaws during operation.
  • Use only dies specifically designed for the material and size of pipe/fitting being crimped.
  • Inspect the tool and dies for damage before each use. Do not use damaged equipment.
  • Store the tool and accessories in a dry, secure location away from children.

2. Package Contents

Verify all items are present upon unboxing:

iGeelee HT-1950E Hydraulic Press Tool package contents

Image: The iGeelee HT-1950E Hydraulic Press Tool kit, showing the main tool, universal jaws, PEX cutter, pipe cutter, copper crimping dies, F1807 crimping dies, gloves, instruction manual, and a Chinese knot.

  1. Hydraulic Crimping Tool (HT-1950E)
  2. Universal Jaws
  3. PEX Cutter
  4. Pipe Cutter
  5. Copper Crimping Dies: 1/2", 3/4", 1"
  6. ASTM F1807 PEX Crimping Dies: 3/8", 1/2", 5/8", 3/4", 1"
  7. Gloves
  8. Instruction Manual
  9. Spare Seals

3. Product Overview

The iGeelee HT-1950E Hydraulic Press Tool is designed for creating secure, leak-free connections in copper and PEX piping systems. Its robust construction and versatile die sets make it suitable for various plumbing applications.

iGeelee HT-1950E Hydraulic Press Tool in use with copper and PEX pipes

Image: The iGeelee HT-1950E Hydraulic Press Tool shown in a plumbing environment, demonstrating its use for both copper and PEX pipe connections, highlighting its 360° rotating head feature.

Key Features:

  • 360° Rotating Head: Allows for flexible adjustments and access in tight spaces, including 'T' fittings.
  • Leak-Free Connections: Achieves precise crimping without the need for brazing, soldering, or flaring.
  • Lightweight & Durable: Constructed from aluminum alloy for ease of use and longevity.
  • Wide Compatibility: Supports copper pipe sizes 1/2", 3/4", 1" and ASTM F1807 PEX pipe copper rings sizes 3/8", 1/2", 5/8", 3/4", 1".
  • Automatic Locking: Ensures precision crimping in seconds.

4. Die Installation & Exchange

The tool comes with various die sets for different pipe materials and sizes. Ensure the correct dies are installed for your application.

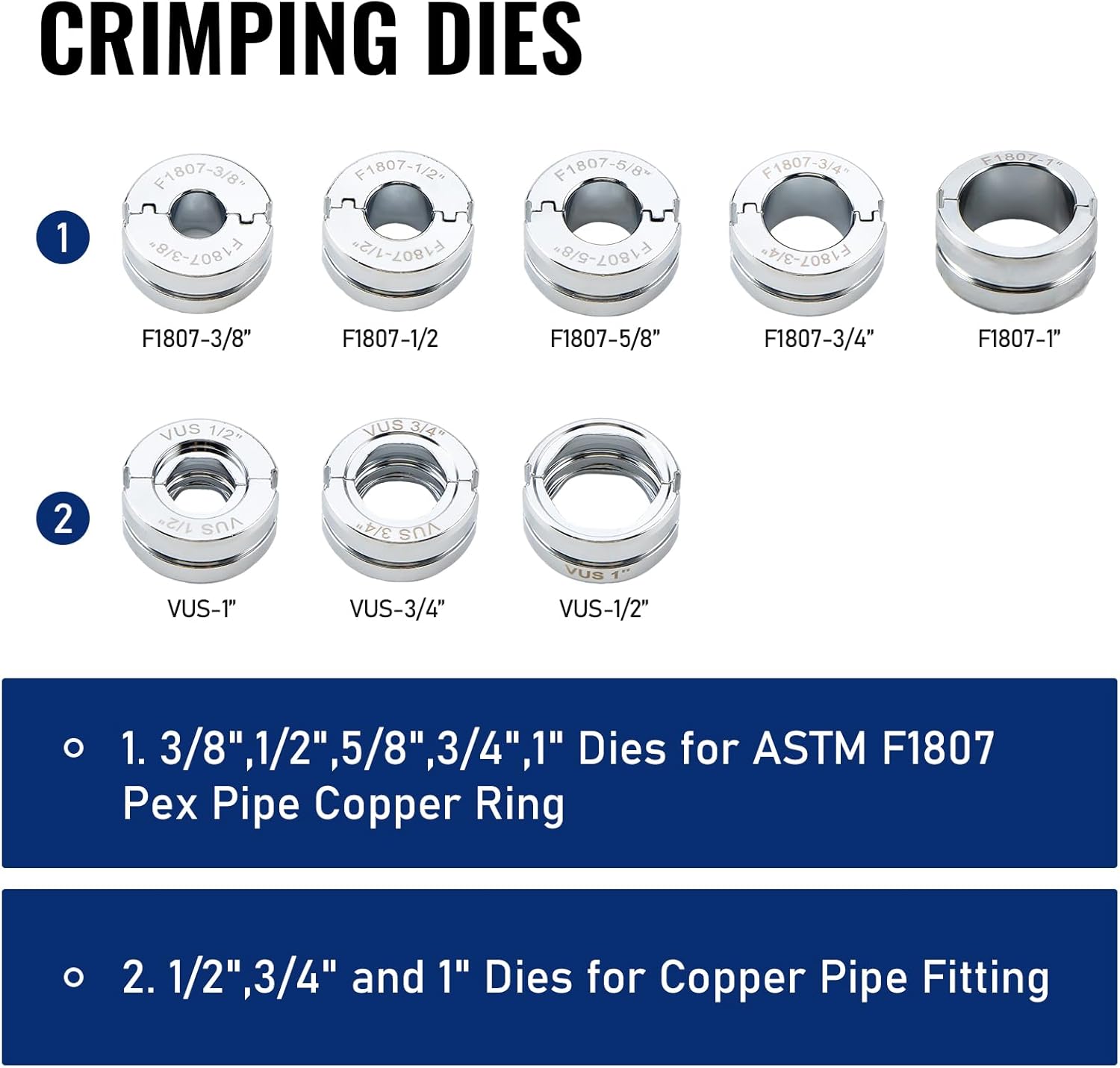

Various crimping dies for copper and PEX pipes

Image: A selection of crimping dies, including F1807 dies for PEX pipe copper rings (3/8", 1/2", 5/8", 3/4", 1") and VUS dies for copper pipe fittings (1/2", 3/4", 1").

Steps for Die Installation:

  1. Open the tool handles to their maximum position.
  2. Identify the appropriate die set for your pipe size and material (Copper or PEX F1807).
  3. Pull out the locking bolt on the tool head.
  4. Insert the selected die halves into the tool head, ensuring they are correctly seated.
  5. Push the locking bolt back into place to secure the dies.

Video: Die Installation and Usage Example

Video Description: An official iGeelee video demonstrating the installation of dies into the Pex Copper Press Tool and its application for crimping connections.

5. Operating Instructions (Crimping)

Follow these steps for successful and secure crimping:

iGeelee HT-1950E Hydraulic Press Tool operation diagram

Image: A six-step diagram illustrating the operation of the hydraulic crimping tool, from installing dies to completing a crimp.

  1. Prepare the Pipe: Cut the pipe to the desired length using the provided pipe cutter. Deburr the edges to ensure a smooth surface.
  2. Install Fitting: Slide the appropriate fitting onto the pipe end.
  3. Select Dies: Install the correct crimping dies for the pipe size and fitting type as described in Section 4.
  4. Position the Tool: Place the tool's jaws squarely over the fitting. Ensure the fitting is centered within the dies.
  5. Engage Hydraulic System: Turn the valve on the tool to the 'Work' position (clockwise) to prepare for crimping.
  6. Crimp the Fitting: Repeatedly operate the handle to apply pressure. The jaws will close, crimping the fitting. Continue until the tool automatically releases or the handles meet.
  7. Release Pressure: Turn the valve to the 'Reset' position (counter-clockwise) to release the pressure and open the jaws.
  8. Inspect Crimp: Remove the tool and visually inspect the crimped connection for completeness and security.
Crimping effect display for PEX and copper pipes

Image: Before and after examples of crimped connections on both PEX and copper pipes, demonstrating the secure and leak-free results.

Video: Hydraulic Pipe Crimping Demonstration

Video Description: A demonstration of a hydraulic pipe crimping tool in action, showing the process of crimping both copper and F1807 PEX copper ring fittings.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your tool:

  • Cleaning: After each use, wipe down the tool and dies with a clean, dry cloth to remove any dirt or debris.
  • Lubrication: Periodically apply a light coat of machine oil to the moving parts of the tool and the dies to prevent rust and ensure smooth operation.
  • Inspection: Regularly check for any signs of wear, damage, or loose components. Pay close attention to the dies for any deformation.
  • Seal Replacement: If you notice any hydraulic fluid leaks or decreased pressure, the internal seals may need replacement. Refer to the spare seals provided or contact customer support.

7. Troubleshooting

If you encounter issues, try these common troubleshooting steps:

  • Incomplete Crimp: Ensure the correct dies are used for the fitting size and material. Verify the pipe and fitting are properly seated. Check for sufficient hydraulic fluid.
  • Tool Not Building Pressure: Ensure the 'Work' valve is fully closed (clockwise). Check for any visible hydraulic fluid leaks, which may indicate a faulty seal.
  • Jaws Not Opening: Ensure the 'Reset' valve is fully open (counter-clockwise). If the issue persists, there might be an internal hydraulic blockage or a mechanical issue.
  • Stuck Dies: Do not force the dies. Ensure the pressure is fully released. If necessary, gently tap the dies to loosen them.

For persistent issues, please contact iGeelee customer support.

8. Specifications

  • Brand: iGeelee
  • Model Number: HT-1950E
  • Color: Chrome Or Nickel (Tool head), Blue (Handle)
  • Item Weight: 4 Pounds
  • Product Dimensions: 40.6L x 15.2W Centimetres
  • Handle Material: Aluminum alloy
  • Grip Type: Ergonomic
  • Handle Length: 10.6 Inches
  • Included Components: Case, various dies, cutters, gloves, seals.
  • Specific Uses For Product: Professional copper and PEX pipe crimping.

9. Storage

Proper storage protects your tool and extends its lifespan:

iGeelee HT-1950E Hydraulic Press Tool in its storage case

Image: The iGeelee HT-1950E Hydraulic Press Tool and its accessories neatly organized within a durable black carrying case.

  • Always clean the tool and dies before storing.
  • Store the tool and all accessories in the provided durable carrying case.
  • Keep the case in a cool, dry place, away from direct sunlight and extreme temperatures.
  • Ensure the tool is in the 'Reset' position (jaws open) before storing to relieve pressure on the hydraulic system.

10. Warranty & Support

For warranty information, technical support, or replacement parts, please refer to the warranty card included in your package or contact iGeelee customer service directly. Keep your purchase receipt as proof of purchase.
