Introduction
This manual provides comprehensive instructions for the installation, maintenance, and care of your JASCODE Plinth Filter Replacement for Miele T1 Dryer. Adhering to these guidelines will ensure optimal performance and extend the lifespan of your dryer.
Image: Two JASCODE Plinth Filters, ready for use.
Product Overview
The JASCODE Plinth Filter is designed as a direct replacement for Miele T1 Heat Pump Tumble Dryers, specifically model 9164761. This filter is crucial for maintaining the efficiency and longevity of your appliance by preventing lint and debris buildup.
- Enhanced Filtration: Features two layers of filtration to effectively capture both thick fluff and small particles.
- Optimal Performance: Regular replacement ensures your dryer operates at peak efficiency, preventing overheating and potential damage.
- Durability: Constructed from high-quality materials for consistent performance.

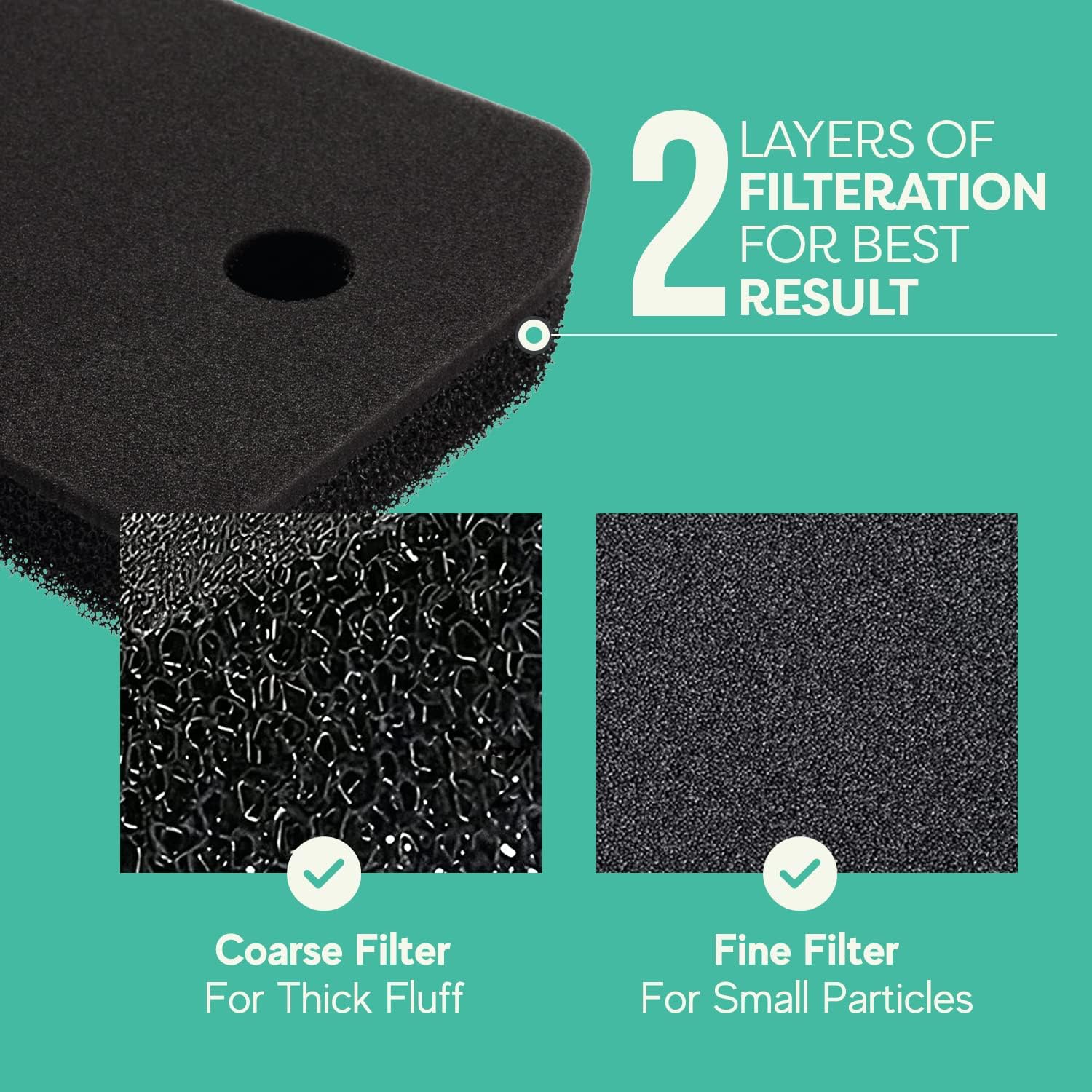

Image: Detailed view of the filter's two-layer filtration system.
Compatibility
This plinth filter replacement is compatible with all Miele T1 Dryer models, including but not limited to: Excellence, ECO, Silence, and SpeedCare series. It is designed to replace Miele part number 9164761.
Installation Instructions
Follow these steps to correctly replace the plinth filter in your Miele T1 dryer:
- Step 1: Remove Old Filter
Locate the plinth filter compartment at the bottom front of your Miele T1 dryer. Open the hatch and carefully remove the old, soiled filter. - Step 2: Attach Handle & Insert New Filter
If your new filter requires a handle, attach it securely. Insert the new JASCODE plinth filter into the compartment, ensuring it sits flush and correctly aligned. - Step 3: Close The Hatch
Close the plinth filter compartment hatch firmly until it clicks into place.
Image: Step-by-step guide for plinth filter replacement.
Maintenance
Regular maintenance of your plinth filter is essential for optimal dryer performance and energy efficiency.
- Cleaning: The JASCODE plinth filter is reusable and washable. Rinse the filter under clear running water to remove accumulated lint and debris. Ensure the filter is completely dry before reinserting it into the dryer. This process can take several hours.
- Replacement Frequency: For best results and to prevent excessive lint buildup, it is recommended to replace your plinth filter every 2 months. Having a spare filter allows for immediate replacement while the soiled filter dries.
Image: Demonstrating how to wash the reusable plinth filter.
Troubleshooting
If you encounter issues after replacing your plinth filter, consider the following:
- Dryer Error Message: Ensure the filter is correctly seated and the compartment hatch is fully closed. A loose or improperly installed filter can trigger error codes.
- Reduced Drying Performance: A partially clogged or wet filter can reduce drying efficiency. Ensure the filter is clean and completely dry before use.
- Unusual Noises: Verify that the filter is properly installed and not obstructing any moving parts within the compartment.
If problems persist, consult your Miele dryer's main instruction manual or contact a qualified service technician.
Specifications
| Feature | Detail |
|---|---|
| Brand | JASCODE |
| Model Number | 9164761 |
| Compatible With | Miele T1 Dryers (Excellence, ECO, Silence, SpeedCare, etc.) |
| Item Weight | 5.6 ounces |
| Product Dimensions | 8.26 x 6.1 x 1.18 inches |
| Item Package Quantity | 1 (contains 2 filters) |
| Material | Foam |
| Reusable | Yes, washable |
Image: Plinth filter dimensions for precision fit.
Warranty and Support
The JASCODE Plinth Filter Replacement comes with a 1-Year Warranty. For any questions, concerns, or support needs regarding your product, please refer to the contact information provided with your purchase or visit the JASCODE official website.
Your satisfaction is backed by a 30-Days Satisfaction Guarantee.
