1. Introduction
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your DELIPOP 12 Inch 24W Surface Flat LED Ceiling Light. Please read this manual thoroughly before installation and retain it for future reference.
Image 1.1: Overview of the DELIPOP 12 Inch 24W Surface Flat LED Ceiling Light.
2. Safety Information
To prevent personal injury or product damage, always observe the following safety precautions:
- Electrical Safety: Always turn off the power at the circuit breaker or fuse box before beginning installation, maintenance, or cleaning. Ensure proper grounding.
- Qualified Personnel: Installation should be performed by a qualified electrician or a person with adequate knowledge of electrical wiring.
- Voltage Compatibility: Ensure the supply voltage matches the light fixture's requirements (110 Volts AC).
- Handling: Handle the light fixture with care to avoid damage to components.
- Environment: Do not install in areas with excessive heat, humidity, or corrosive substances unless specified for such conditions. This fixture has an IP54 rating, suitable for damp locations.
3. Package Contents
Verify that all components are present before proceeding with installation:
- LED Ceiling Light Fixture (with integrated LED Chip)
- Shade
- User Installation Guide (this manual)
4. Specifications
| Feature | Specification |
|---|---|
| Brand | DELIPOP |
| Model Number | 309257 |
| Dimensions (L x W x H) | 10.24" x 10.24" x 1.77" (26cm x 26cm x 4.5cm) |
| Wattage | 24W (20 watts listed in some specs, 24W in title/features, using 24W as primary) |
| Brightness | 2100 Lumens |
| Color Temperature | 6500K (Cool White) |
| Voltage | 110 Volts (AC) |
| IP Rating | IP54 (Waterproof) |
| Material | Plastic |
| Light Source Type | LED |
| Lifespan | Up to 30,000 hours |
| CRI (Color Rendering Index) | 80.00 (some images suggest 90+) |

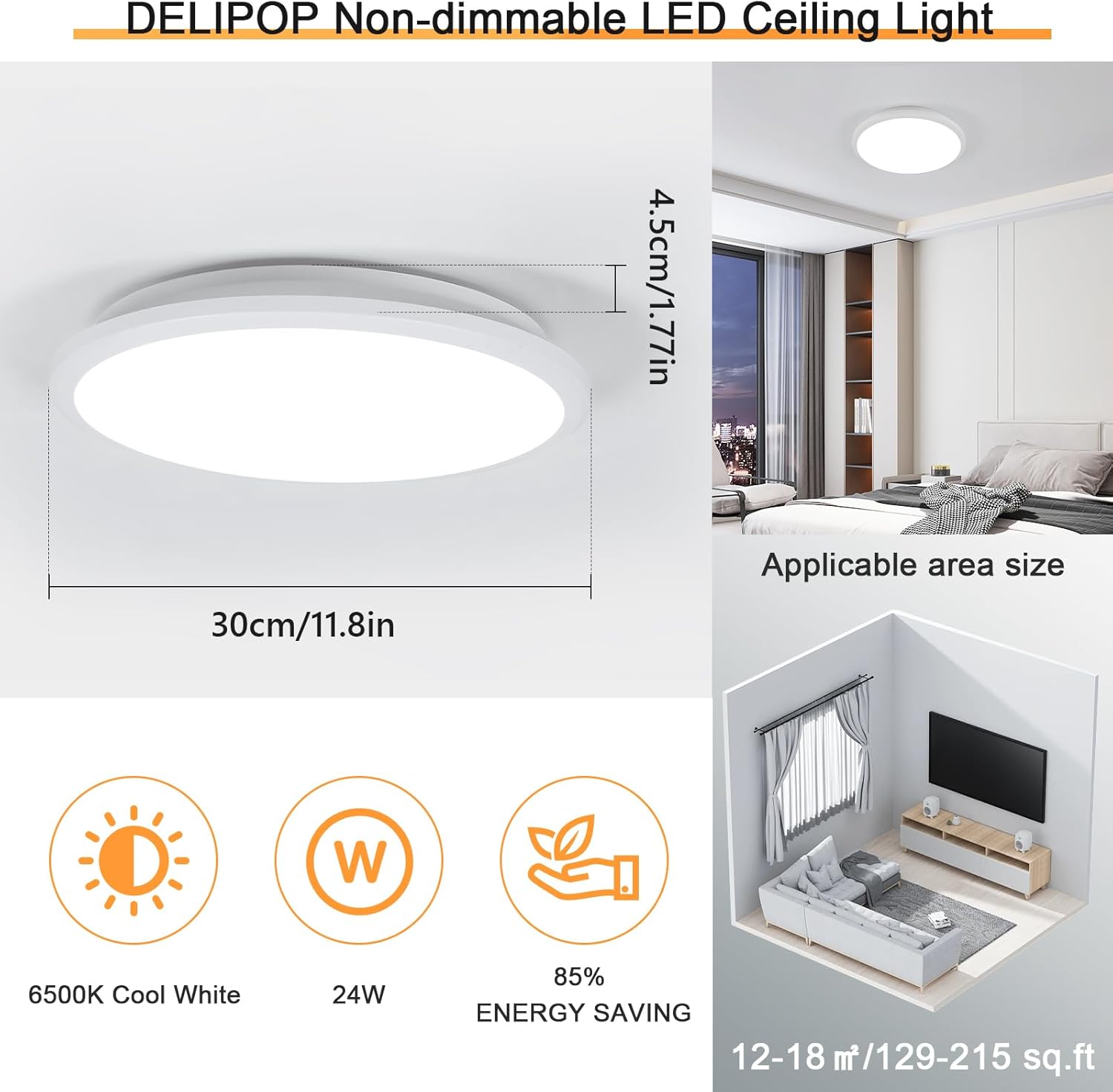

Image 4.1: Product dimensions and key specifications including 6500K cool white, 24W power, and 85% energy saving.
Image 4.2: Comparison illustrating the high Color Rendering Index (CRI) of the DELIPOP light, providing accurate color representation.
5. Setup and Installation
Follow these steps for a safe and correct installation of your ceiling light. Ensure power is OFF at the circuit breaker before starting.
- Prepare the Lamp Holder: Rotate the lamp holder counter-clockwise to detach it from the main light body.
- Mount the Bracket: Fix the detached bracket securely onto the ceiling or wall using appropriate screws and anchors (not included, typically supplied by installer based on surface type).
- Connect Wiring: Connect the electrical wires from your ceiling to the wiring ports inside the light fixture's base. Ensure correct polarity (live to live, neutral to neutral, ground to ground). Carefully place the connected wires into the box.
- Attach Light Body: Align the main light body with the mounted bracket and rotate it clockwise until it is securely fastened.
Once installation is complete, restore power at the circuit breaker.

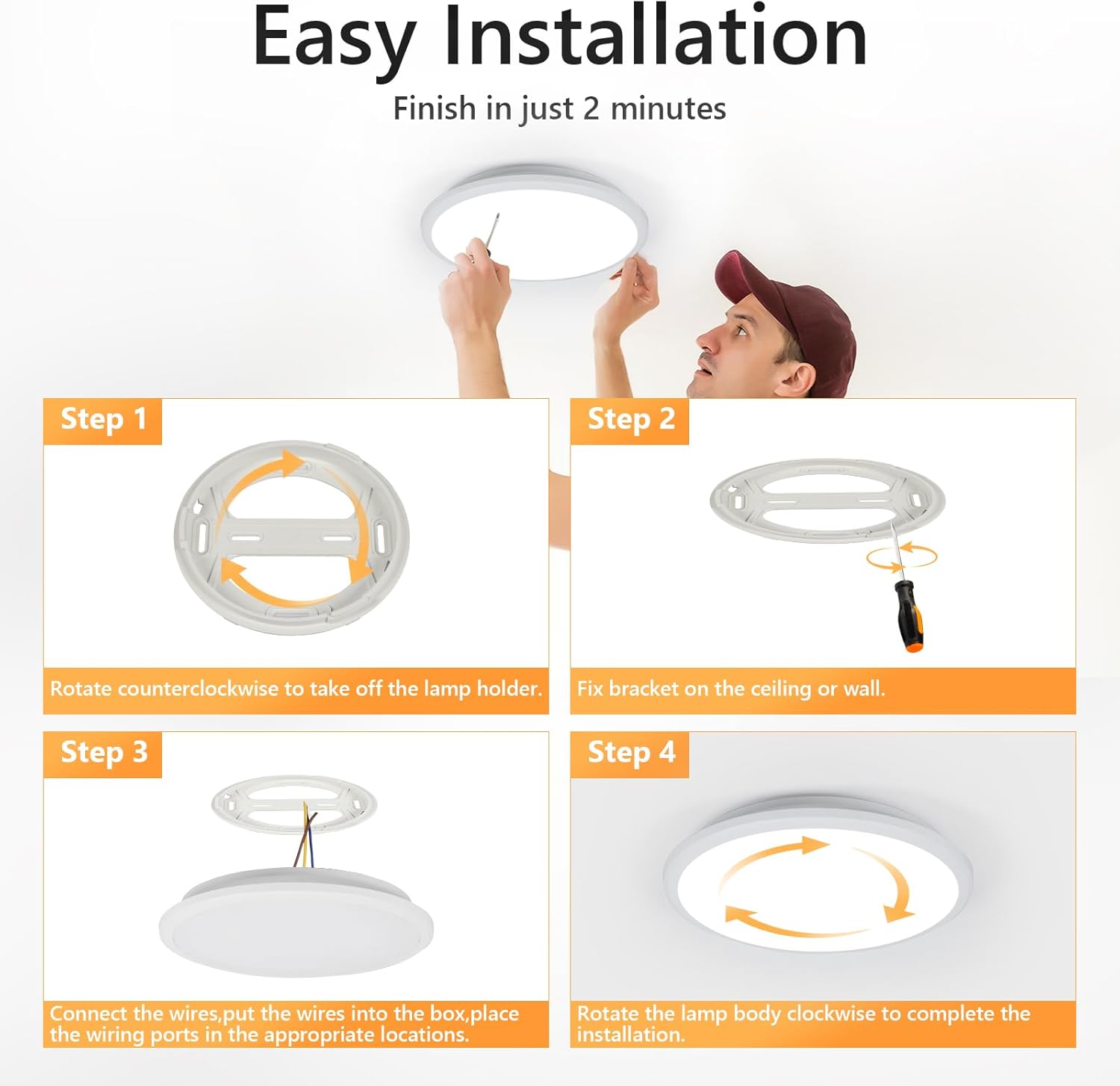

Image 5.1: Visual guide for the four-step installation process of the ceiling light.
6. Operating Instructions
The DELIPOP 12 Inch LED Ceiling Light is designed for simple operation.
- Power On/Off: Control the light using a standard wall switch connected to the fixture.
- Non-Dimmable: This model is a non-dimmable fixture and should not be connected to dimmer switches. Connecting to a dimmer switch may cause damage or malfunction.
- Light Quality: The light provides a consistent 6500K cool white illumination without flickering, designed for eye comfort.
Image 6.1: Illustration demonstrating the flicker-free operation of the DELIPOP LED Ceiling Light, promoting eye protection.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your DELIPOP LED Ceiling Light.
- Cleaning: Before cleaning, ensure the power is turned off. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Sealed Design: The IP54 waterproof rating and sealed design protect the internal components from dust and insects, reducing the need for frequent internal cleaning.
- Bulb Replacement: This fixture uses integrated LED chips and does not require bulb replacement. The LEDs are designed for a long lifespan.
Image 7.1: Depiction of the sealed design, highlighting its resistance to mosquitos and dust for reduced maintenance.
8. Troubleshooting
If you encounter issues with your DELIPOP LED Ceiling Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply; Loose wiring; Faulty switch; Damaged fixture. | Check circuit breaker/fuse. Ensure all wiring connections are secure. Test the wall switch. If issues persist, consult a qualified electrician. |
| Light flickers | Incompatible dimmer switch; Loose wiring; Voltage fluctuations. | Ensure the light is not connected to a dimmer switch (this model is non-dimmable). Check wiring connections. If flickering continues, consult an electrician. |
| Light is dim | Incorrect voltage; Dust accumulation on shade. | Verify correct voltage supply. Clean the shade. |
If these solutions do not resolve the issue, please contact customer support.
9. Warranty and Support
Warranty: The DELIPOP 12 Inch 24W Surface Flat LED Ceiling Light comes with a 2-year warranty from the date of purchase, covering defects in materials and workmanship under normal use.
Customer Support: For any questions, concerns, or warranty claims, please contact DELIPOP customer service. Refer to your purchase documentation or the DELIPOP brand store on Amazon for contact details.
