EMKK 6' x 4' Outdoor Storage Shed Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your EMKK 6' x 4' Outdoor Storage Shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper assembly and maintenance will ensure the longevity and optimal performance of your storage shed.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury or property damage.

• Always wear appropriate personal protective equipment (PPE) during assembly, including gloves and eye protection.
• Ensure the assembly area is clear of obstructions and level.
• Do not attempt to assemble the shed alone. Two or more people are recommended for safe assembly.
• Keep children and pets away from the assembly area.
• Be cautious of sharp edges on metal panels.
• Secure the shed to a solid foundation to prevent wind damage.
• Do not store flammable materials or hazardous chemicals inside the shed.
• Regularly inspect the shed for loose fasteners or damage and address them promptly.

3. Package Contents

Before starting assembly, verify that all parts listed below are present. Refer to the included parts list in your package for specific component codes.

• Galvanized Steel Panels (Walls, Roof, Doors)
• Aluminum Frame Components
• Hardware (Screws, Nuts, Washers, Plastic Protective Shells)
• Double Hinged Doors
• Base Frame
• Padlock
• Gloves (2 pairs)
• Garage Hooks (3 pieces)
• Instruction Manual

Figure 3.1: Overview of all shed components before assembly.

4. Assembly Instructions

Follow these steps carefully for proper assembly. It is highly recommended to have at least two people for this process.

4.1. Base Frame Assembly

Begin by assembling the base frame. Ensure all pieces are correctly oriented and securely fastened. The base frame provides the foundation for the entire shed structure.

4.2. Wall Panel Installation

Attach the wall panels to the assembled base frame. Pay close attention to the orientation of each panel and ensure they are aligned properly before securing them with screws. The panels are made of galvanized steel for durability.

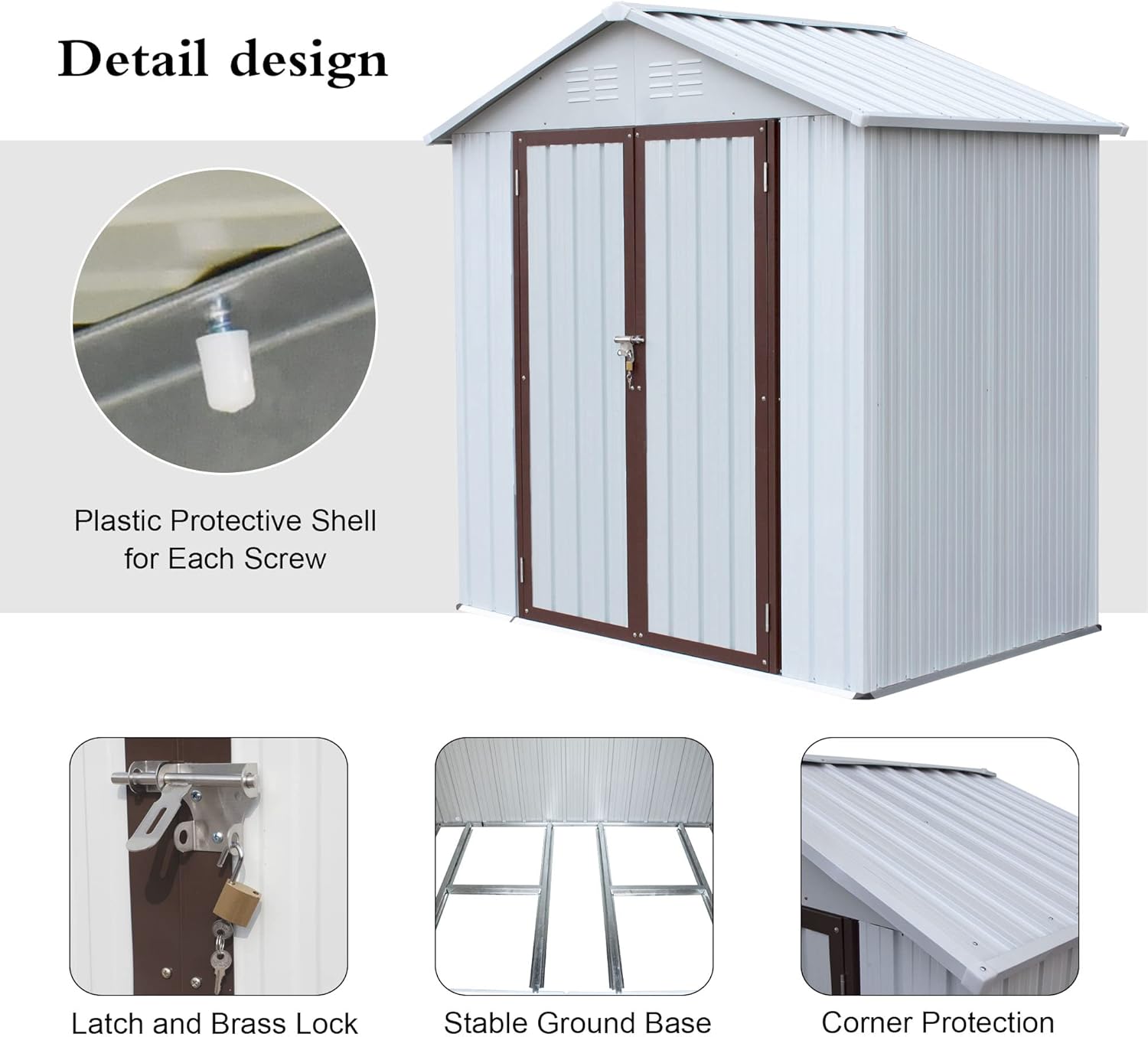

Figure 4.2: Detail of the plastic protective shells for screws, the latch and brass lock mechanism, the stable ground base, and corner protection features.

Ensure all screws are tightened, and plastic protective shells are used where indicated to prevent corrosion and enhance stability.

4.3. Roof Assembly and Installation

Assemble the roof panels according to the diagrams. The roof features punched vents for air circulation. Carefully lift and secure the assembled roof onto the wall structure, ensuring all connections are tight and weatherproof.

Figure 4.3: Close-up of key design elements including anti-collision corner protection, the tall door with its latch, integrated shutter vents, and the hinged door mechanism with handles.

4.4. Door Installation

Install the double hinged doors. Ensure they swing freely and align correctly. Attach the provided door latch and padlock for security. The doors are designed to increase air circulation and light when open.

Figure 4.4: The EMKK 6' x 4' shed with its double doors closed, providing a secure and tidy appearance in a garden environment.

5. Operating Instructions

5.1. Door Operation

The shed features double hinged doors. To open, unlatch the bolt and pull the doors outwards. To close, push the doors shut and secure the latch. For added security, use the provided padlock.

Figure 5.1: The shed with one door open, illustrating the ease of access for placing or retrieving items.

5.2. Storage Capacity

The 6' x 4' dimensions provide ample space for storing bicycles, lawnmowers, barbecues, and various garden tools. Utilize the included garage hooks to optimize vertical storage space on the interior walls.

Figure 5.2: The shed interior demonstrating its capacity to store a bicycle, ladder, shovels, and boots, highlighting its practical use.

6. Maintenance

Regular maintenance will extend the life of your EMKK storage shed.

• Cleaning: Clean the exterior with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized steel coating.
• Inspection: Periodically check all screws and fasteners for tightness. Re-tighten as necessary. Inspect the roof and walls for any signs of damage or wear.
• Rust Prevention: The shed is constructed from anti-corrosion galvanized steel. However, promptly address any scratches or chips in the paint to prevent rust.
• Vents: Ensure the punched vents on the roof are clear of debris to maintain proper air circulation.

Figure 6.1: Visual representation of the shed's rainproof and sun protection capabilities, showcasing its weather resistance.

7. Troubleshooting

Below are common issues and their potential solutions:

• Difficulty during Assembly: Some users report that assembly can be challenging and time-consuming. Carefully review the instruction manual diagrams and ensure all parts are correctly identified before proceeding. Having a second person assist is highly recommended.
• Door Latch Misalignment: If the door latch does not align perfectly, slight adjustments to the door or latch placement may be necessary. Ensure the shed is on a level surface, as an uneven base can affect door alignment.
• Water Leakage: While designed to be waterproof, ensure all screws are tightly secured, especially on the roof panels. Applying a silicone sealant to roof seams or around screw heads can provide additional protection against leaks.
• Thin Metal Panels: The shed uses galvanized steel panels. Handle them carefully during assembly to avoid bending or damage. Once fully assembled and secured, the structure is robust.
• Plastic Film Removal: Some panels may come with a thin protective plastic film. This film can be difficult to remove. Patience and careful peeling are advised.
• Missing Parts: In the event of missing components, contact EMKK customer support with your product model and a detailed list of missing parts.

8. Specifications

Figure 8.1: Detailed dimensions of the shed, including length, width, and height measurements in both centimeters and inches.

9. Warranty and Support

For warranty information, missing parts, or technical assistance, please refer to the contact information provided with your purchase or visit the official EMKK website. Keep your proof of purchase for any warranty claims.

For additional support, you may visit the EMKK Store on Amazon.
