Arcchio Albiona LED Pendant Light Instruction Manual

Model: 9939023

1. Introduction

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Arcchio Albiona LED Pendant Light. Please read this manual thoroughly before installation and keep it for future reference. The Arcchio Albiona is a modern, round LED pendant light designed for indoor use, featuring a black metal finish and integrated LED lighting.

Arcchio Albiona LED Pendant Light installed in a modern kitchen setting
Figure 1: Arcchio Albiona LED Pendant Light in a kitchen environment. This image shows the sleek, circular design of the black metal pendant light suspended over a kitchen island, providing ambient illumination.

2. Safety Instructions

  • Electrical Safety: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Always disconnect power at the circuit breaker before installation, maintenance, or cleaning.
  • Voltage: Ensure the supply voltage matches the product's specified voltage (230 Volts).
  • Indoor Use Only: This product has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. Do not install in damp or wet locations.
  • Handling: Handle the light fixture with care to avoid damage. Do not bend or apply excessive force to the LED components.
  • Light Source: The LED light source is integrated and not user-replaceable. Do not attempt to disassemble the LED module.
  • Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.

3. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

  • Arcchio Albiona LED Pendant Light fixture (with integrated LED)
  • Mounting hardware (screws, anchors, etc.)
  • Instruction Manual (this document)

4. Setup & Installation

This pendant light is designed for ceiling mounting. Professional installation is recommended.

  1. Prepare for Installation:
    • Turn off power at the main circuit breaker.
    • Ensure the mounting surface is structurally sound to support the fixture's weight (1.98 kg).
  2. Mount the Ceiling Canopy:
    • Attach the mounting bracket to the ceiling junction box using appropriate screws.
    • Secure the ceiling canopy to the mounting bracket.

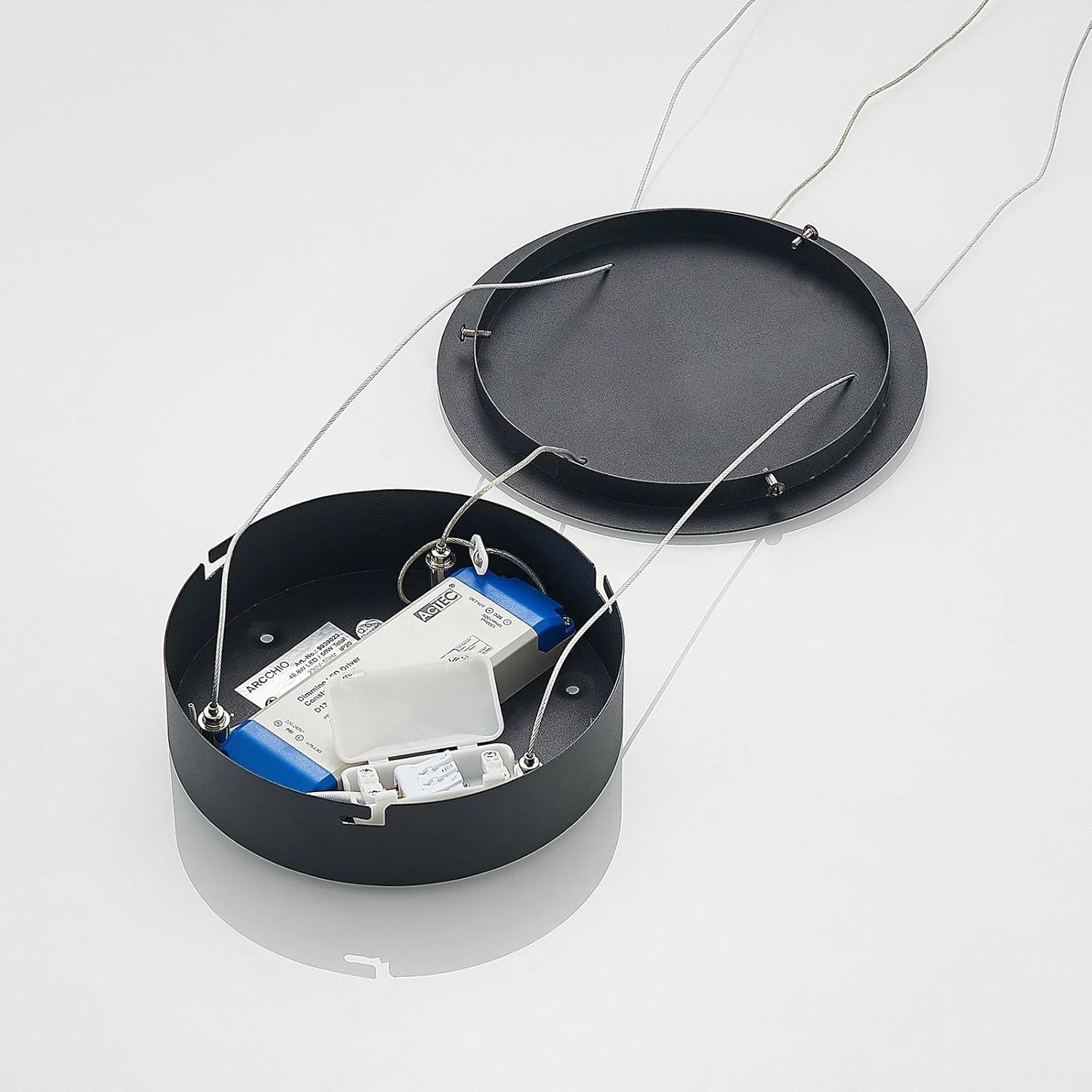

    Internal view of the Arcchio Albiona LED Pendant Light's ceiling canopy showing wiring connections
    Figure 2: Internal view of the ceiling canopy. This image illustrates the wiring compartment and connection points within the light's ceiling mount, where electrical connections are made.
  3. Adjust Suspension Wires:
    • Adjust the length of the suspension wires to achieve the desired hanging height. The maximum suspension length is approximately 2500mm.
    Diagram showing dimensions of the Arcchio Albiona LED Pendant Light, including diameter and suspension length
    Figure 3: Product dimensions. This diagram provides key measurements including the light's diameter (800mm), canopy diameter (185mm), and maximum suspension length (2500mm).
  4. Electrical Connection:
    • Connect the household electrical wires to the fixture's wires according to standard wiring practices (Live to Live, Neutral to Neutral, Ground to Ground). Ensure all connections are secure.
  5. Secure the Fixture:
    • Carefully tuck all wires into the ceiling canopy and secure the canopy to the mounting bracket.
  6. Restore Power:
    • Turn the power back on at the circuit breaker.

5. Operating Instructions

The Arcchio Albiona LED Pendant Light is operated via a remote control (if supplied with the specific model) or a standard wall switch.

  • Power On/Off: Use the wall switch or the designated button on the remote control to turn the light on or off.
  • Brightness/Color Temperature (if applicable): If your model includes dimming or color temperature adjustment features, use the remote control buttons as indicated in the remote's specific instructions. This model features an integrated LED light source.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pendant light.

  • Cleaning:
    • Before cleaning, ensure the power supply to the fixture is disconnected.
    • Wipe the fixture with a soft, dry, or slightly damp cloth.
    • Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or electrical components.
  • LED Light Source: The LED light source is integrated and designed for a long lifespan. It is not intended for user replacement. If the LED fails, the entire fixture may need professional servicing or replacement.

7. Troubleshooting

If you encounter issues with your pendant light, refer to the following common problems and solutions:

Problem Possible Cause Solution
Light does not turn on.
  • No power supply.
  • Loose wiring connection.
  • Faulty wall switch or remote.
  • Check circuit breaker and wall switch.
  • Verify all electrical connections are secure (ensure power is off first).
  • Test with a different switch or remote if possible.
Light flickers.
  • Loose wiring.
  • Incompatible dimmer switch (if used).
  • Check wiring connections (ensure power is off first).
  • Ensure any dimmer switch used is compatible with LED lighting.
Light is dim.
  • Dimmer setting too low.
  • Incorrect voltage.
  • Adjust dimmer to a higher setting.
  • Verify correct voltage supply (230V).

If problems persist, contact a qualified electrician or customer support.

8. Specifications

Brand Arcchio
Model Number 9939023
Manufacturer Lampenwelt
Product Dimensions 80 x 80 x 3.5 cm (Length x Width x Height)
Weight 1.98 kg
Material Metal
Colour Black (nero), White (bianco)
Shape Round
Finish Type Matt black
Light Source Type Integrated LED
Number of Lights 1
Wattage 46.8 Watts
Voltage 230 Volts
Power Source Mains-powered
Control Method Remote
Installation Type Semi-recessed mounting (Ceiling mounting)
Area Lighting Classification IP20
Indoor/Outdoor Usage Indoor
Specific Uses Home (Kitchen, Dining Room, Living Room)
EU Energy Efficiency Label 49.14 lumens/watt (Class E, based on 2019/2015 regulation)
EU Energy Efficiency Label for Prios L9001915, showing Class E and 10 kWh/1000h
Figure 4: EU Energy Efficiency Label. This label indicates the energy efficiency class of the light fixture, which is Class E under the 2019/2015 regulation, consuming 10 kWh per 1000 hours.
For more details, visit: https://eprel.ec.europa.eu/qr/744999

9. Warranty & Support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. Arcchio stands for high quality and customer satisfaction.

Manufacturer: Lampenwelt

© 2023 Arcchio. All rights reserved.
