1. Introduction

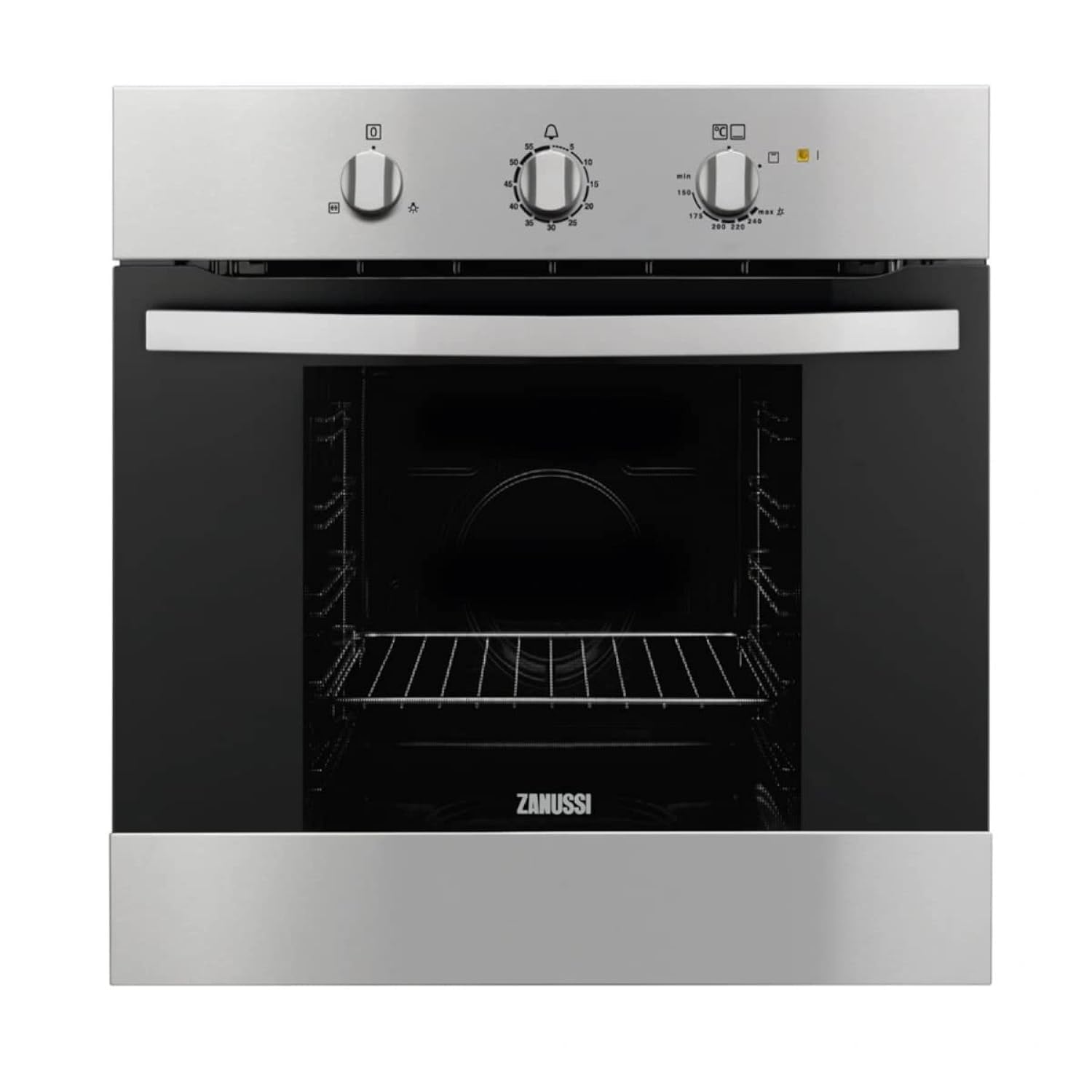

Thank you for choosing a Zanussi appliance. This user manual provides important information for the safe and efficient operation of your new 60 cm Built-in Gas Oven, Model ZQENG1X1. Please read these instructions carefully before installation and use, and keep them for future reference.
1.1 Safety Information
Always prioritize safety. This appliance uses gas for heating and electricity for ignition and other functions. Improper installation, use, or maintenance can be dangerous. Ensure all safety warnings and instructions are followed to prevent personal injury or property damage.
- This appliance is intended for domestic use only.
- Installation and gas connection must be performed by a qualified technician in accordance with local regulations.
- Keep children away from the appliance during operation.
- Do not store flammable materials in or near the oven.
2. Setup and First Use
2.1 Installation
Your Zanussi ZQENG1X1 oven is designed for built-in installation. Ensure the cabinet dimensions are appropriate for the oven's size (60 cm width, 60 cm height, 57 cm depth). The electrical and gas connections must be made by a certified professional. Refer to the separate installation guide for detailed instructions.
2.2 Before First Use
Before using your oven for the first time, follow these steps:
- Remove all packaging materials, stickers, and accessories from inside the oven cavity.
- Clean the oven interior with a damp cloth and mild detergent. Dry thoroughly.
- To burn off any manufacturing residues, operate the empty oven at its maximum temperature for approximately 30-60 minutes. Ensure the kitchen is well-ventilated during this process, as some smoke and odor may be produced.
- Allow the oven to cool completely before its first cooking use.
3. Operating Instructions
Your Zanussi ZQENG1X1 oven offers various functions for versatile cooking. It features 5 shelf levels for flexible placement of dishes.
3.1 Controls
The oven is controlled via rotary knobs for function selection and temperature setting. An audible signal and minute minder feature assist with cooking times.
3.2 Oven Functions
- Bottom Heat: Ideal for baking dishes with a crispy base, such as pizzas or tarts.
- Grill: For grilling thin cuts of meat, toast, or browning dishes.
- Grilling with Turnspit (Rotisserie): Perfect for roasting poultry or larger cuts of meat evenly. The oven includes a rotisserie function.
- Oven Light: Illuminates the oven interior for monitoring cooking progress without opening the door.
3.3 Electric Ignition
The oven features electric ignition for convenient and safe lighting of the gas burner. To ignite, press and turn the control knob to the desired temperature while simultaneously pressing the ignition button (if separate) or holding the knob in (if integrated ignition). Hold for a few seconds until the flame is stable.
3.4 Minute Minder
The minute minder allows you to set a countdown timer for your cooking. An audible signal will sound once the set time has elapsed. This function does not turn off the oven.
4. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Zanussi oven.
4.1 Cleaning the Oven Interior
The oven interior features a high-gloss enamel lining, designed for easy cleaning. After each use, once the oven has cooled, wipe down the interior with a damp cloth and a mild, non-abrasive cleaning agent. For stubborn stains, specialized oven cleaners can be used, following the product instructions carefully. Ensure all cleaning agent residues are removed.
4.2 Cleaning the Oven Door
The oven door is designed for easy cleaning. You may be able to remove the inner glass panels for thorough cleaning. Refer to the full instruction manual for specific steps on how to safely remove and reattach the door components.
4.3 Stainless Steel Exterior
The oven features an anti-fingerprint stainless steel finish. Clean the exterior surfaces with a soft cloth and a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain to avoid streaks. Avoid using harsh chemicals or abrasive pads that could damage the finish.
4.4 Cooling Fan
The integrated cooling fan helps to keep the external surfaces of the oven cool during operation. Ensure the ventilation openings are not blocked.
5. Troubleshooting
Before contacting customer service, please refer to the following common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven not heating | No gas supply; Power outage; Incorrect function/temperature setting. | Check gas valve; Check household circuit breaker; Verify settings. |
| Gas burner not igniting | No gas supply; Ignition electrode dirty/damaged; Power outage. | Check gas valve; Clean electrode carefully; Check power supply. |
| Uneven cooking | Incorrect shelf level; Overcrowding the oven; Door opened too frequently. | Use recommended shelf level; Avoid overcrowding; Minimize door openings. |
| Oven light not working | Bulb faulty. | Replace bulb (ensure oven is cool and disconnected from power). |
If the problem persists after attempting these solutions, please contact Zanussi customer support or a qualified service technician.
6. Specifications
Technical details for the Zanussi ZQENG1X1 Built-in Gas Oven.
| Feature | Detail |
|---|---|
| Brand Name | Zanussi |
| Model | ZQENG1X1 |
| Product Type | Oven |
| Installation Type | Built-in |
| Size | 60 cm |
| Color | Stainless Steel |
| Finish Type | Polished |
| Fuel Type | Gas (with Electric Ignition) |
| Heating Method | Convection |
| Capacity | 68 Liters |
| Power | 1000 Watts (for electrical components) |
| Voltage | 220 Volts |
| Product Dimensions (D x W x H) | 57D x 60W x 60H cm |
| Item Weight | 37 Kilograms |
| Included Components | Oven |
| ASIN | B0BM5YWH4H |
7. Warranty and Support
7.1 Warranty Information
This Zanussi ZQENG1X1 Built-in Gas Oven comes with a 3-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, accidents, or unauthorized repairs.
7.2 Customer Support
For technical assistance, service requests, or to inquire about spare parts, please contact Zanussi customer support. You can typically find contact details on the official Zanussi website for your region or on your warranty card.
When contacting support, please have the following information ready:
- Model number (ZQENG1X1)
- Serial number (found on the appliance rating plate)
- Date of purchase
- A clear description of the issue
