Toro Genuine OEM 135-1873 V-Belt Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, maintenance, and troubleshooting of your Toro Genuine OEM 135-1873 V-Belt. This V-belt is designed for specific 60-inch Toro Titan and Z Master riding lawn mower models. Adhering to these instructions will help ensure optimal performance and longevity of your equipment.

Always refer to your specific mower's owner's manual for detailed safety precautions and model-specific belt routing diagrams before attempting any installation or maintenance.

2. Product Overview

The Toro Genuine OEM 135-1873 V-Belt is a high-quality replacement part engineered to meet the exact specifications of your Toro riding lawn mower. It features a durable Kevlar construction, providing superior strength and resistance to stretching, ensuring reliable power transmission to the mower deck.

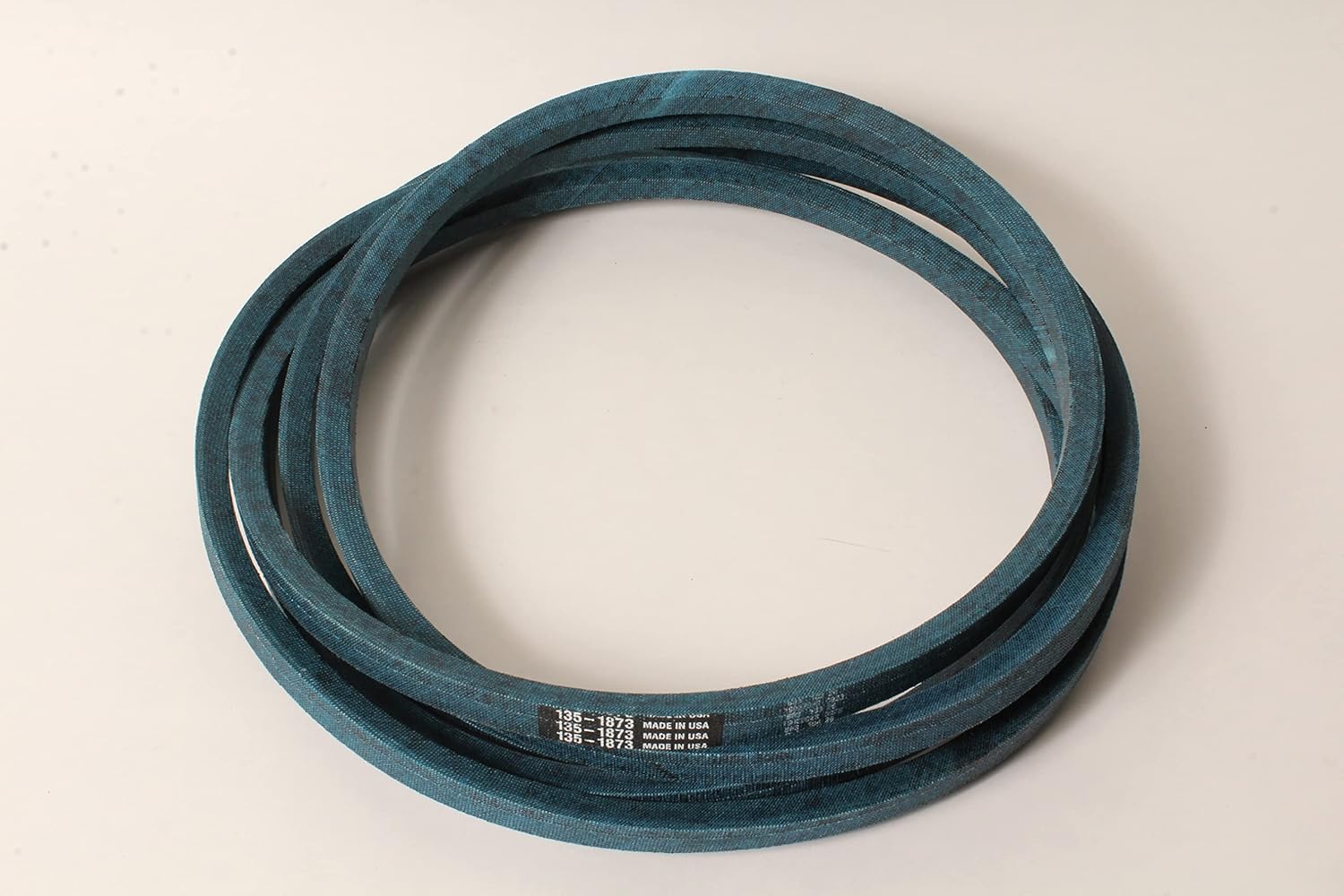

Image 1: The Toro Genuine OEM 135-1873 V-Belt, shown coiled. This belt is designed for durability and precise fit.

• Part Number: 135-1873
• Material: Kevlar reinforced for enhanced strength and durability.
• Application: Designed for 60-inch cutting decks on compatible Toro Titan and Z Master riding lawn mowers.

3. Compatibility

This V-belt is compatible with the following Toro 60-inch Titan and Z Master riding lawn mower models and their specified serial number ranges. Always verify your mower's model and serial number before purchasing and installing replacement parts.

4. Installation / Setup

Replacing a V-belt on a riding lawn mower requires careful attention to safety and proper procedure. Always consult your mower's specific owner's manual for detailed instructions and diagrams, as procedures may vary slightly between models.

Safety Precautions:

• Disconnect Spark Plug: Always remove the spark plug wire to prevent accidental engine starting.
• Engage Parking Brake: Ensure the mower is stable and cannot move.
• Wear Protective Gear: Use gloves and eye protection.
• Allow Engine to Cool: Hot engine components can cause burns.

General Installation Steps:

1. Prepare the Mower: Park the mower on a flat, level surface. Disengage the PTO (Power Take-Off), lower the cutting deck to its lowest position, and remove the ignition key. Disconnect the spark plug wire.
2. Access the Deck: Depending on your model, you may need to remove the mower deck from the tractor or lift the mower to access the underside. Refer to your mower's manual for deck removal instructions if necessary.
3. Document Old Belt Routing: Before removing the old belt, take photos or draw a diagram of its exact routing around all pulleys and tensioners. This is critical for correct installation of the new belt.
4. Relieve Tension: Locate the belt tensioner pulley. Use a wrench or pry bar to relieve tension on the old belt, allowing it to be removed from the pulleys.
5. Remove Old Belt: Carefully remove the old belt from all pulleys. Inspect pulleys for wear or damage.
6. Install New Belt: Route the new Toro 135-1873 V-Belt exactly as the old one was routed, using your diagram or photos. Start by placing the belt around the fixed pulleys, then use the tensioner to guide it onto the last pulley. Ensure the belt is seated correctly in all pulley grooves.
7. Check Tension: Once installed, release the tensioner. The belt should feel snug but not overly tight. Rotate the blades by hand to ensure the belt moves freely and does not bind.
8. Reassemble and Test: Reattach the mower deck if it was removed. Reconnect the spark plug wire. Start the mower and engage the PTO briefly to ensure the belt operates smoothly without unusual noises or vibrations.

Image 2: A closer view of the Toro Genuine OEM 135-1873 V-Belt, highlighting its construction and part number markings.

5. Maintenance

Proper maintenance of your V-belt can significantly extend its lifespan and ensure consistent mower performance.

• Regular Inspection: Periodically inspect the belt for signs of wear, cracking, fraying, glazing, or stretching. Replace the belt if any damage is observed.
• Keep Clean: Ensure the belt and pulleys are free from grass clippings, dirt, oil, and other debris. Debris can cause premature wear and slippage.
• Check Pulleys: Inspect all pulleys for proper alignment, free rotation, and wear. Worn or misaligned pulleys can damage the belt.
• Proper Storage: When not in use for extended periods, store the mower in a dry, cool place to prevent belt degradation from extreme temperatures or moisture.

6. Troubleshooting

If you experience issues with your mower's deck drive system, consider the following common troubleshooting steps related to the V-belt:

• Belt Slipping:
  • Check belt tension. It might be too loose due to stretching or a faulty tensioner.
  • Inspect for oil or grease on the belt or pulleys. Clean thoroughly if present.
  • Examine pulleys for wear or glazing that reduces grip.
• Excessive Noise (Squealing/Screeching):
  • Often indicates a loose belt or misaligned pulleys.
  • Could also be a worn or seized idler pulley bearing.
• Belt Breaking Prematurely:
  • Check for sharp edges or burrs on pulleys or belt guides that could be cutting the belt.
  • Ensure all pulleys are aligned and rotate freely. A seized pulley will quickly destroy a belt.
  • Verify the correct belt size and type (OEM 135-1873) is being used.
• Blades Not Engaging/Spinning:
  • Confirm the belt is properly routed and seated in all pulley grooves.
  • Check for obstructions preventing blade rotation.
  • Inspect the PTO clutch for proper operation.

If troubleshooting does not resolve the issue, it is recommended to consult a qualified service technician or refer to your mower's comprehensive service manual.

7. Specifications

• Part Number: Toro Genuine OEM 135-1873
• Material: Kevlar
• Belt Style: V-Belt
• Compatible Devices: 60-inch Toro Titan and Z Master Riding Lawn Mowers
• Product Dimensions: Approximately 10 x 10 x 2 inches (packaged)
• Item Weight: Approximately 8 pounds
• Color: Blue

8. Warranty and Support

As a Genuine OEM part, the Toro 135-1873 V-Belt is manufactured to Toro's quality standards. For specific warranty information regarding this part, please refer to the warranty documentation provided with your original Toro equipment or contact Toro customer support directly.

For technical assistance, parts inquiries, or to locate an authorized service dealer, please visit the official Toro website or contact their customer service department. Always provide your mower's model and serial number when seeking support.

Toro Official Website: www.toro.com
