Introduction
Thank you for choosing the KADAX Ceiling Clothes Dryer. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new clothes dryer. Please read these instructions carefully before use and retain them for future reference.
The KADAX Ceiling Clothes Dryer is designed to offer a space-saving solution for drying laundry indoors or in covered outdoor areas. It features six polyethylene-coated steel bars, a pulley system for easy height adjustment, and a maximum load capacity of 12 kg.
Product Overview
The KADAX Ceiling Clothes Dryer consists of the following main components:
- Mounting Brackets: Two main brackets for ceiling or wall installation.
- Drying Bars: Six steel bars, each 130 cm long, coated with polyethylene for durability and corrosion resistance.
- Pulley System: Ropes and pulleys for individually raising and lowering each drying bar.
- Rope Lock: A mechanism to secure the ropes and hold the bars at the desired height.
- End Caps: Protective caps for the drying bars.
Setup and Installation
Proper installation is crucial for the safe and effective operation of your KADAX Ceiling Clothes Dryer. We recommend having two people for installation.
Tools Required:
- Drill
- Measuring Tape
- Pencil
- Screwdriver
- Level
Installation Steps:
- Choose Location: Select a suitable location on your ceiling or wall that can support the weight of the dryer and wet laundry (up to 12 kg). Ensure there is enough clearance for the bars to be lowered.

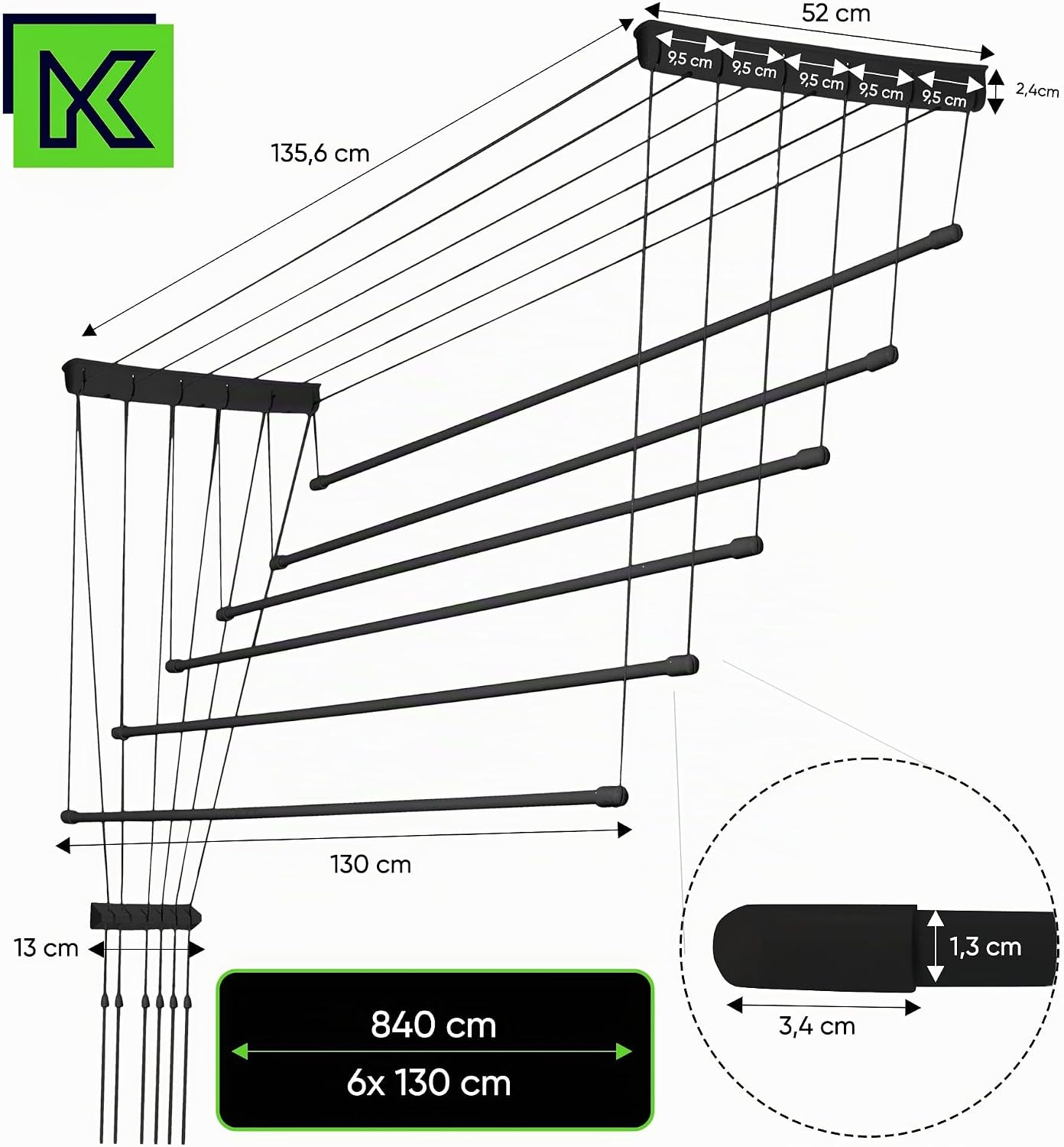

- Mark Drilling Points: Hold the mounting brackets against the ceiling/wall at the desired positions. Use a pencil to mark the drilling points for the screws. Ensure the brackets are parallel and at the correct distance to accommodate the 130 cm bars. Refer to the dimension diagram for precise measurements.
- Drill Holes: Drill holes at the marked points. Insert appropriate wall plugs (if necessary for your wall/ceiling material).
- Attach Brackets: Securely fasten the mounting brackets to the ceiling/wall using screws.
- Assemble Bars and Ropes: Insert the polyethylene-coated steel bars into the rope loops. Thread the ropes through the pulleys on the mounting brackets. Each bar should have two ropes attached, one at each end, running through the pulley system.
- Install Rope Lock: Attach the rope lock mechanism to a convenient height on the wall, allowing easy access to adjust the bars.
- Adjust Ropes: Thread the free ends of the ropes through the rope lock. Adjust the length of each rope to ensure the bars can be raised and lowered smoothly and remain level.
Operating Instructions
The KADAX Ceiling Clothes Dryer is designed for simple and convenient use.
- Lowering a Bar: To lower a drying bar, gently pull the corresponding rope away from the rope lock to release it. Slowly lower the bar to the desired height.
- Loading Laundry: Hang your laundry evenly across the drying bar. Do not exceed the maximum load capacity of 12 kg.
- Raising a Bar: To raise a drying bar, pull the rope downwards until the bar reaches the desired height. Secure the rope firmly in the rope lock.
- Important: Always ensure the ropes are securely fastened in the rope lock to prevent bars from falling unexpectedly. Avoid letting ropes slip quickly through your hands to prevent tangling or damage.
Maintenance
To ensure the longevity and optimal performance of your KADAX Ceiling Clothes Dryer, follow these maintenance guidelines:
- Cleaning: Wipe the polyethylene-coated steel bars with a damp cloth and mild detergent as needed. Avoid abrasive cleaners that could damage the coating.
- Rope Inspection: Regularly inspect the ropes for any signs of wear, fraying, or damage. Replace worn ropes immediately to prevent accidents.
- Pulley Check: Ensure the pulleys move freely and are not obstructed. Clean any dust or debris that may accumulate.
- Mounting Security: Periodically check that the mounting brackets are securely fastened to the ceiling/wall. Tighten screws if necessary.
- Load Capacity: Adhere to the maximum load capacity of 12 kg to prevent strain on the system.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drying bars do not stay at desired height. | Rope not properly secured in the rope lock, or rope lock is worn. | Ensure the rope is fully engaged in the rope lock. If the lock is worn, consider replacing it. |
| Ropes are frayed or broken. | Normal wear and tear, or excessive force/friction. | Replace the damaged ropes immediately. Use durable, high-quality replacement ropes. |
| Bars are difficult to raise or lower. | Pulleys are stiff or obstructed, or ropes are tangled. | Check pulleys for debris and clean if necessary. Ensure ropes are not tangled and run smoothly through the pulleys. |
| Dryer feels unstable after installation. | Mounting brackets not securely fastened, or incorrect wall plugs used. | Re-check all mounting screws and ensure they are tight. Verify that the wall plugs are appropriate for your ceiling/wall material. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | K5041 |
| Material | Steel Alloy, Polyethylene Coating |
| Color | Black |
| Product Dimensions (D x W x H) | 52 cm x 130 cm x 150 cm (approximate maximum height) |
| Drying Bar Length | 130 cm (each bar) |
| Number of Drying Bars | 6 |
| Total Drying Surface | Approximately 10 meters |
| Maximum Weight Capacity | 12 kg |
| Mounting Type | Ceiling or Wall Mount |
| Item Weight | 1620 Grams |
Warranty and Support
KADAX products are designed for quality and durability. For any questions regarding your KADAX Ceiling Clothes Dryer, please refer to the retailer's return policy or contact KADAX customer support directly.
Please retain your proof of purchase for any warranty claims or support inquiries. The standard return policy for this product is 14 days from the date of purchase.
For further assistance, you may visit the official KADAX store: KADAX Store on Amazon.
