Hipa Air Filter and Tune-Up Kit User Manual

1. Introduction

This user manual provides essential information for the installation, maintenance, and troubleshooting of your Hipa Air Filter and Tune-Up Kit. This kit is designed to replace key components in compatible lawn mower engines, ensuring optimal performance and longevity. Regular replacement of air filters and spark plugs is crucial for engine health and efficiency.

2. Product Components

The Hipa Air Filter and Tune-Up Kit includes the following components:

• 1 x Hipa 951-10298 Air Filter
• 1 x Pre-filter
• 1 x Fuel Filter (951-10358A)
• 1 x Spark Plug

Image: The complete Hipa Air Filter and Tune-Up Kit, showing the air filter, pre-filter, fuel filter, and spark plug.

3. Compatibility

This kit is compatible with various lawn mower models and engines. Please verify your engine's specifications before installation.

Air Filter Compatibility:

• Replaces MTD Cub Cadet part numbers: 951-10298, 951-14632, 751-10298, 751-14632.
• Replaces Kohler part numbers: 14 083 01-S, 14 083 01-S-1, 14 083 02-S, 14 083 04-S, 14 083 19-S.
• Replaces Honda part numbers: 17218-ZG9-M00, 17211-ZG9-M00, 08170-ZG9-M00, 08170-ZG9-M01.
• Fits MTD Cub Cadet models: SC100, CC46ES, SC100HW, ST100 (159cc, 173cc, 4.5 - 6.5 HP OHV engine, 11A 12A series push lawn mower / tractor element).
• Fits Kohler 149cc Courage XT6, XT7, XT149, XT173, XT675, XT800 engines.
• Fits Honda GXV140, HR215, HRB215, HRC215, HRM215, HRM195.

Fuel Filter Compatibility:

• Replaces part numbers: 951-10358, 951-10358A, 951-12296, 951-12296A.

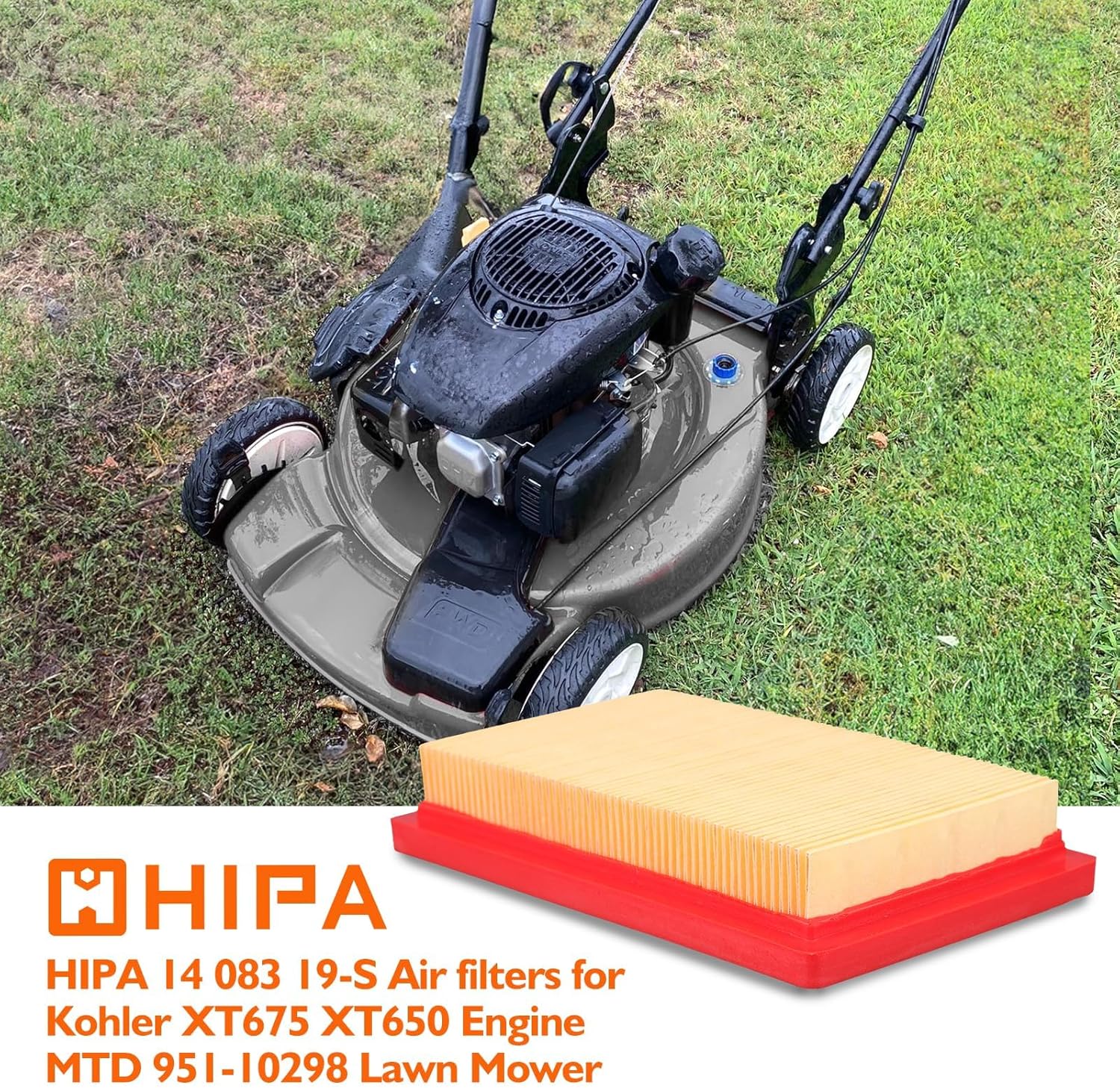

Image: Hipa air filter positioned next to a lawn mower, illustrating its intended use for engine maintenance.

4. Installation and Setup

Before beginning any maintenance, ensure the engine is cool and the spark plug wire is disconnected to prevent accidental starting.

4.1 Air Filter Replacement:

1. Locate the air filter housing on your engine. It is typically a plastic cover secured by clips or screws.
2. Open or remove the air filter housing cover.
3. Carefully remove the old air filter and pre-filter. Note their orientation.
4. Clean any debris from inside the air filter housing.
5. Place the new pre-filter onto the new air filter.
6. Insert the new air filter and pre-filter into the housing, ensuring it fits securely and correctly.
7. Close and secure the air filter housing cover.

Image: A hand demonstrating the easy installation of the Hipa air filter into a lawn mower's air filter housing.

4.2 Spark Plug Replacement:

1. Locate the spark plug on the engine. It will have a thick wire connected to it.
2. Gently pull the spark plug wire boot off the spark plug.
3. Use a spark plug wrench to loosen and remove the old spark plug. Turn counter-clockwise.
4. Inspect the new spark plug for any damage. Ensure the gap is correct for your engine (refer to your engine's specific manual if unsure).
5. Thread the new spark plug into the engine by hand to avoid cross-threading.
6. Once hand-tight, use the spark plug wrench to tighten it an additional 1/4 to 1/2 turn. Do not overtighten.
7. Reconnect the spark plug wire boot firmly onto the new spark plug.

4.3 Fuel Filter Replacement:

Fuel filter replacement procedures can vary significantly by engine model. Consult your engine's specific service manual for detailed instructions. Generally, it involves:

1. Locate the fuel line and existing fuel filter.
2. Use clamps to pinch off the fuel line on both sides of the filter to prevent fuel leakage.
3. Carefully remove the old fuel filter and install the new one, ensuring the flow direction arrow (if present) points towards the engine.
4. Remove the clamps and check for leaks.

5. Maintenance

Regular maintenance of your air filter and spark plug is vital for engine performance and longevity. It is recommended to inspect your air filter regularly and replace it at least once per mowing season or every 25 hours of operation, whichever comes first. Spark plugs should typically be replaced annually or as recommended by your engine manufacturer.

Image: Close-up of the Hipa air filter's multi-fiber, high-density media, designed for efficient filtration and superior dirt holding capacity.

6. Specifications

Image: Detailed diagram illustrating the precise dimensions of the Hipa air filter and its accompanying pre-filter for accurate fitment.

7. Troubleshooting

If you experience issues after replacing components, consider the following common troubleshooting steps:

• Engine Not Starting:
  • Ensure the spark plug wire is securely connected.
  • Check if the new spark plug is properly gapped and tightened.
  • Verify the fuel filter is installed correctly and not clogged.
• Engine Running Rough/Loss of Power:
  • Confirm the air filter housing is sealed properly and the filter is seated correctly. Unfiltered air can cause issues.
  • Re-check spark plug connection and condition.
• Excessive Smoke:
  • While less common with these parts, ensure no oil or debris entered the engine during filter replacement.

If problems persist, consult a qualified service technician or your engine's specific service manual.

8. Warranty and Support

For warranty information or technical support regarding your Hipa product, please refer to the contact details provided on the product packaging or visit the official Hipa website. Keep your purchase receipt as proof of purchase.
