Eapmic 1.7HP 43CC 2-Stroke Gas Powered Sweeper Instruction Manual

1. Introduction

Thank you for choosing the Eapmic 1.7HP 43CC 2-Stroke Gas Powered Sweeper. This robust walk-behind turf lawn broom is designed for efficient outdoor cleaning, capable of clearing leaves, soil, grit, snow, and other debris from various surfaces. Featuring a powerful 2-stroke 43CC engine and a 60cm (23.6 inch) sweeping width, this machine offers reliable performance for both professional and private use. Please read this manual thoroughly before assembly, operation, or maintenance to ensure safe and effective use of your sweeper.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury or death. Always read and understand the entire manual before operating the sweeper.

• Always operate in a well-ventilated area to avoid carbon monoxide poisoning.
• Wear appropriate protective clothing, including gloves and eye protection, when operating the machine.
• Keep the machine away from flammable materials when refueling.
• Never leave the machine running unattended.
• Always turn off the machine and allow it to cool before cleaning or performing maintenance.
• Store the machine in a dry, well-ventilated area away from heat sources and flammable materials.
• Never store the machine with fuel in the tank.
• Keep children and bystanders away from the operating area.
• Ensure all guards and safety devices are in place and functioning correctly before use.

3. Package Contents

Carefully unpack all items and check against the list below. If any parts are missing or damaged, contact your retailer immediately.

• 1x Gas Powered Lawn Sweeper (main unit, partially disassembled)
• 1x Tool Kit (for assembly and basic maintenance)

4. Setup and Assembly

The Eapmic Gas Powered Sweeper features a folding design for compact storage and transport. Assembly is required before first use.

4.1 Unpacking and Initial Inspection

Remove all components from the packaging. Inspect for any visible damage. Ensure all parts listed in Section 3 are present.

4.2 Handle Assembly

Attach the ergonomic curved handle to the main unit. Secure it using the provided bolts and nuts from the tool kit. Ensure the handle is firmly attached and does not wobble.

Overhead view of the sweeper, illustrating the handle design and engine placement. This image helps visualize the handle attachment points.

4.3 Brush Head Attachment

Connect the sweeping brush assembly to the main shaft. Ensure it is securely fastened. The brush head is designed for easy installation and removal for maintenance or replacement.

Close-up of the dense nylon brush head and one of the large wheels, designed for effective sweeping. This shows the brush head's connection point.

4.4 Wheel Installation

Attach the large ball-bearing wheels to the chassis. These wheels facilitate easy maneuverability of the sweeper.

Diagram showing the key dimensions of the Eapmic gas-powered sweeper, including length, height, and sweeping width. This image also illustrates the overall assembled structure.

5. Operating Instructions

Follow these steps for safe and effective operation of your gas-powered sweeper.

5.1 Fueling the Sweeper

The sweeper uses a 2-stroke engine. It requires a mixture of gasoline and 2-stroke engine oil at a ratio of 25:1 (Gasoline:Oil). Use fresh, unleaded gasoline and high-quality 2-stroke engine oil. The fuel tank capacity is 1.2 liters.

1. Ensure the engine is off and cool before refueling.
2. Mix gasoline and 2-stroke oil in a separate, approved fuel container.
3. Carefully pour the mixed fuel into the sweeper's fuel tank, avoiding spills.
4. Securely close the fuel cap.

5.2 Starting the Engine

1. Place the sweeper on a flat, stable surface.
2. Set the ON/OFF switch to the 'ON' position.
3. Engage the choke (if cold start).
4. Pull the starter cord firmly and smoothly until the engine starts.
5. Once the engine starts, gradually disengage the choke.
6. Allow the engine to warm up for a few moments before beginning operation.

Detailed view of the 2-stroke engine and control handles, including the throttle and on/off switch, essential for starting and operating the machine.

5.3 Sweeping Operation

The sweeper is designed as a walk-behind unit with an ergonomic curved handle for comfortable operation. It features stepless speed adjustment, allowing you to control the sweeping intensity.

• Adjust the engine speed using the throttle control on the handle to match the task.
• Push the sweeper forward at a steady pace, allowing the rotating brushes to clear debris.
• The 60cm sweeping width allows for efficient coverage of large areas.
• The dense nylon brush head is effective for various materials, including leaves, soil, grit, and even light snow.
• The mounted fender above the roller protects the operator from dirt and dust during operation.

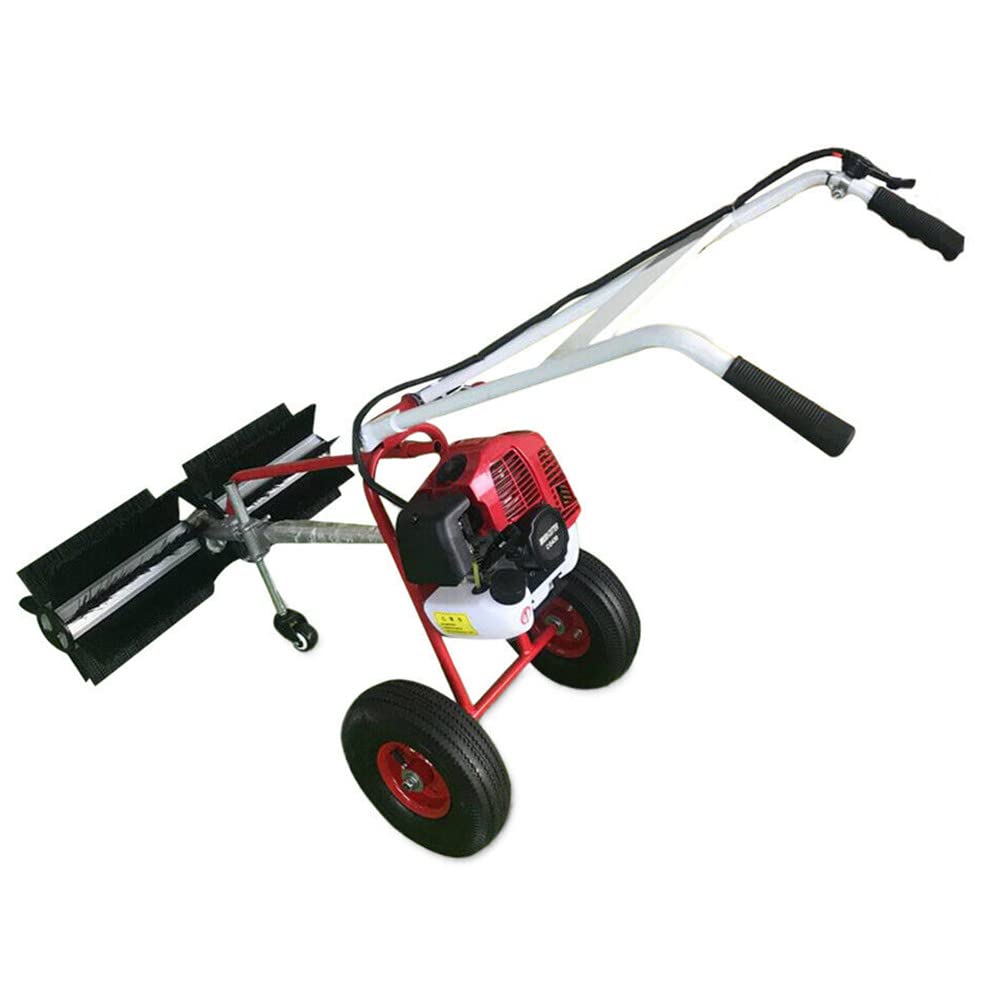

Eapmic 1.7HP 43CC Gas Powered Sweeper, fully assembled and ready for use on a green surface, demonstrating its walk-behind design.

5.4 Stopping the Engine

To stop the engine, simply move the ON/OFF switch to the 'OFF' position. Allow the engine to cool down before storage or maintenance.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your sweeper. Always ensure the engine is off and cool before performing any maintenance.

6.1 Engine Maintenance

• Spark Plug: Inspect and clean the spark plug regularly. Replace if worn or fouled.
• Air Filter: Clean the air filter after every few hours of operation, or more frequently in dusty conditions. A clogged air filter can reduce engine performance.
• Fuel Filter: Periodically check and replace the fuel filter to prevent fuel system blockages.

6.2 Brush Head Maintenance

The sweeper features replaceable 600 mm universal year-round brushes.

• Cleaning: Remove any tangled debris (e.g., string, wire, leaves) from the brush head after each use.
• Inspection: Regularly inspect the bristles for wear. If bristles are significantly worn, replace the brush head to maintain effective sweeping performance.
• Replacement: Refer to the assembly instructions for guidance on detaching and attaching a new brush head.

Another perspective of the dual brush heads, emphasizing their robust construction and ease of access for cleaning.

6.3 Storage

When storing the sweeper for extended periods:

• Drain all fuel from the tank and carburetor to prevent fuel degradation issues.
• Clean the entire machine thoroughly.
• Store in a dry, well-ventilated area, away from direct sunlight and heat sources.
• The folding design allows for space-saving storage.

7. Troubleshooting

This section addresses common issues you might encounter with your sweeper.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact your retailer or the manufacturer, VONZOER. Keep your purchase receipt as proof of purchase.

Manufacturer: VONZOER
Brand: Eapmic
