White Shark Shinobi GK-2022 Mechanical Keyboard User Manual

Introduction

Thank you for purchasing the White Shark Shinobi GK-2022 Mechanical Keyboard. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your new keyboard. Please read this manual thoroughly before using the product to ensure proper function and longevity.

Safety Information

• Keep the keyboard away from liquids and excessive moisture.
• Avoid exposing the keyboard to extreme temperatures.
• Do not attempt to disassemble or modify the keyboard. This may void the warranty and cause damage.
• Use only the provided USB cable for connection.
• Clean the keyboard with a soft, dry cloth. Avoid harsh chemicals.

Package Contents

• White Shark Shinobi GK-2022 Mechanical Keyboard
• Detachable USB Type-C to USB 2.0 Cable
• User Manual (this document)

Product Overview

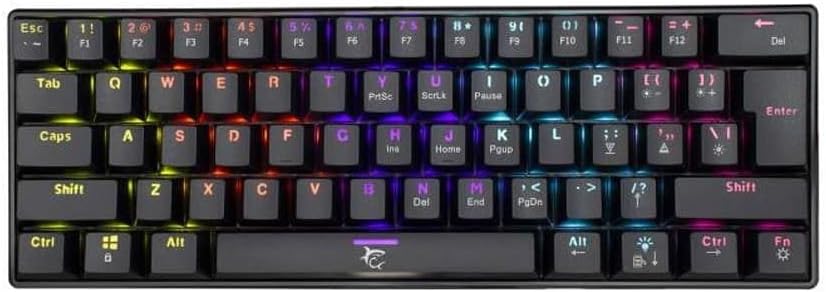

Top-Down View

This image displays the full layout of the White Shark Shinobi GK-2022 mechanical keyboard from a top-down perspective. It features a compact 61-key US layout with visible RGB backlighting under the keycaps.

Angled View

An angled view of the keyboard, highlighting its compact form factor and the slight curvature of the keycap rows, designed for ergonomic typing.

Side Profile

This image shows the side profile of the keyboard, demonstrating its overall height and the angle of the keycaps from the side.

Key Switch Detail

A detailed close-up of one of the mechanical key switches, revealing the red switch stem, which indicates the type of switch used in this keyboard (Bella Red switches).

Adjustable Feet

This image shows the adjustable feet located on the underside of the keyboard, which can be flipped out to change the typing angle for user comfort.

USB-C Port

A close-up view of the detachable USB Type-C port on the keyboard, along with the end of the braided USB cable, illustrating the connection point.

Setup

1. Connect the Cable: Insert the USB Type-C end of the provided cable into the port on the keyboard.
2. Connect to Computer: Plug the USB-A end of the cable into an available USB 2.0 port on your computer.
3. Driver Installation: The keyboard is plug-and-play. Your operating system (e.g., Windows 10) should automatically detect and install the necessary drivers. No additional software installation is typically required.
4. Adjust Feet (Optional): Flip out the adjustable feet on the underside of the keyboard to achieve your preferred typing angle.

Operating Instructions

Basic Functions

The Shinobi GK-2022 functions as a standard 61-key US layout keyboard. Simply type as you would on any other keyboard. All standard alphanumeric keys, modifiers (Shift, Ctrl, Alt), and the Enter key are present.

Function Layer (Fn Key)

Due to its compact 61-key layout, many functions typically found on a full-sized keyboard are accessed via a secondary function layer using the Fn key. Hold down the Fn key and press the corresponding key to activate its secondary function.

• Fn + 1-0, -, =: F1-F12 keys (e.g., Fn + 1 = F1, Fn + 2 = F2, etc.)
• Fn + Q/W/E/R/T/Y/U/I/O/P: Various media controls and shortcuts (specific mappings may vary, refer to keycap legends).
• Fn + A/S/D/F/G/H/J/K/L: Navigation keys like Home, End, Page Up, Page Down.
• Fn + Z/X/C/V/B/N/M: Arrow keys and other special functions.
• Fn + Spacebar: Cycle through RGB lighting modes.
• Fn + Right Shift: Adjust lighting brightness.
• Fn + Enter: Change lighting color.

Refer to the legends printed on the keycaps for specific secondary functions.

Maintenance

• Cleaning: Use a can of compressed air to remove dust and debris from between the keycaps. For surface cleaning, gently wipe the keycaps and frame with a slightly damp, lint-free cloth. Ensure the keyboard is disconnected before cleaning.
• Storage: When not in use for extended periods, store the keyboard in a dry, cool place, away from direct sunlight.
• Cable Care: Avoid sharp bends or kinks in the USB cable to prevent internal damage.

Troubleshooting

Specifications

Warranty and Support

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official White Shark website. Keep your proof of purchase for warranty claims.

If you encounter any issues not covered in this manual, please contact White Shark customer support for assistance.
