Whirlpool WFC 3C34 P X Freestanding Dishwasher User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Whirlpool WFC 3C34 P X freestanding dishwasher. Please read these instructions carefully before using the appliance and keep them for future reference.

2. Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Ensure the appliance is properly grounded.
• Do not operate the dishwasher if it is damaged.
• Keep children away from the dishwasher, especially when it is operating.
• Use only detergents and rinse aids specifically designed for dishwashers.
• Do not touch the heating element during or immediately after use.
• The Aquastop system provides hydraulic safety to prevent water leaks.

3. Setup and Installation

This section guides you through the initial setup and installation of your dishwasher.

3.1 Unpacking

Carefully remove all packaging materials. Check the appliance for any transport damage. Report any damage immediately to your retailer.

3.2 Positioning

The Whirlpool WFC 3C34 P X is a freestanding dishwasher. Position it on a flat, stable surface. Ensure there is adequate space for opening the door and for water and electrical connections.

Figure 1: Front view of the Whirlpool WFC 3C34 P X dishwasher. This image shows the appliance's exterior, including the control panel and door handle.

3.3 Dimensions

• Height: 85 cm
• Width: 60 cm
• Depth: 59 cm
• Weight: 47 kg

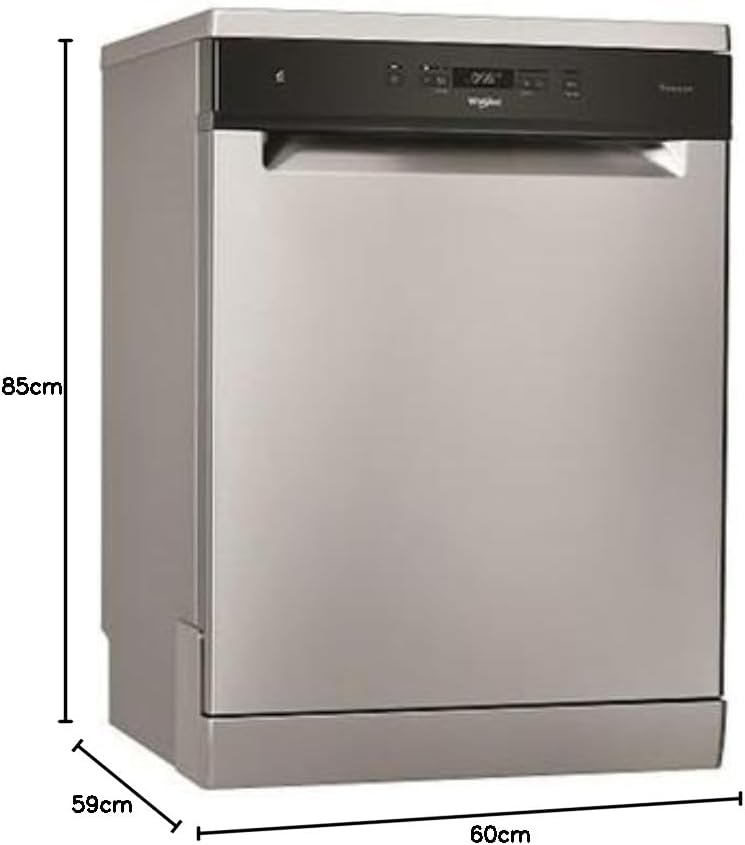

Figure 2: Dimensional diagram of the Whirlpool WFC 3C34 P X dishwasher, indicating height (85cm), width (60cm), and depth (59cm) for installation planning.

3.4 Water Connection

Connect the water inlet hose to a cold water tap with a 3/4-inch thread. The inlet hose length is 155 cm. Ensure all connections are tight to prevent leaks. The dishwasher features an Aquastop system for hydraulic safety.

3.5 Drain Connection

Connect the drain hose to a suitable drain pipe. Ensure the drain hose is not kinked or obstructed.

3.6 Electrical Connection

Connect the appliance to a grounded electrical outlet. The dishwasher operates on 240 Volts. Do not use extension cords or adapters.

4. Operating Instructions

This section details how to use your Whirlpool dishwasher effectively.

4.1 Control Panel

The dishwasher features an electronic display and touch controls for easy program selection and monitoring.

4.2 Loading the Dishwasher

Load dishes according to the manufacturer's recommendations for optimal cleaning. The dishwasher has a capacity of 14 place settings and includes a cutlery basket.

4.3 Adding Detergent and Rinse Aid

Fill the detergent dispenser with the appropriate amount of dishwasher detergent. Check the rinse aid indicator and refill as needed.

4.4 Program Selection

The dishwasher offers 8 washing programs, including:

• 6th Sense Power Clean: Automatically detects the level of soiling and adjusts the wash cycle accordingly for optimal results and resource efficiency.
• Normal: Standard program for daily soiled dishes.
• Intensive: For heavily soiled dishes and pots.
• Rapid: Quick wash for lightly soiled items.
• Eco: Energy-efficient program for normally soiled dishes.
• Half Load: Reduces water and energy consumption when the dishwasher is not fully loaded.

4.5 Starting a Wash Cycle

1. Load the dishwasher and add detergent.
2. Select the desired program using the touch controls.
3. Close the dishwasher door.
4. Press the Start button.

4.6 Delayed Start

You can delay the start of a wash cycle by up to 24 hours using the delayed start function.

4.7 Natural Dry Technology

The Natural Dry feature automatically opens the dishwasher door at the end of the cycle to improve drying performance and save energy.

5. Maintenance and Cleaning

Regular maintenance ensures the longevity and optimal performance of your dishwasher.

5.1 Cleaning the Filters

Regularly clean the dishwasher filters to prevent blockages and ensure efficient washing. Refer to the detailed instructions in the full manual for filter removal and cleaning.

5.2 Cleaning the Spray Arms

Check the spray arm nozzles for blockages and clean them if necessary.

5.3 Exterior and Interior Cleaning

Wipe the exterior with a soft, damp cloth. Clean the interior periodically with a dishwasher cleaner.

5.4 Salt Dispenser

If your water is hard, ensure the salt dispenser is filled with dishwasher salt to prevent limescale buildup.

6. Troubleshooting

Before contacting customer service, refer to this section for common issues and their solutions.

• Dishwasher does not start: Check power supply, door closure, and selected program.
• Dishes are not clean: Ensure proper loading, sufficient detergent, and clean filters/spray arms.
• Water not draining: Check drain hose for kinks and ensure filters are clean.
• Error codes: Consult the full manual for specific error code interpretations.

7. Technical Specifications

8. Warranty Information

Whirlpool appliances come with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. Keep your proof of purchase for warranty claims.

Availability of spare parts in the EU is guaranteed for 10 years.

9. Customer Support

For further assistance, technical support, or to schedule a service appointment, please contact Whirlpool customer service. Contact details can be found on the official Whirlpool website or in the documentation provided with your appliance.

You can also visit the official Whirlpool Store on Amazon for more product information and support resources.
