Product Overview
The Kärcher wall-mounted cold water electric pressure washer is engineered for commercial applications, particularly in environments such as the food industry. It features a robust steel frame and a quiet 1,725 RPM motor, making it suitable for in-shop use. This unit is designed for efficiency and durability, capable of accepting hot water up to 180°F.

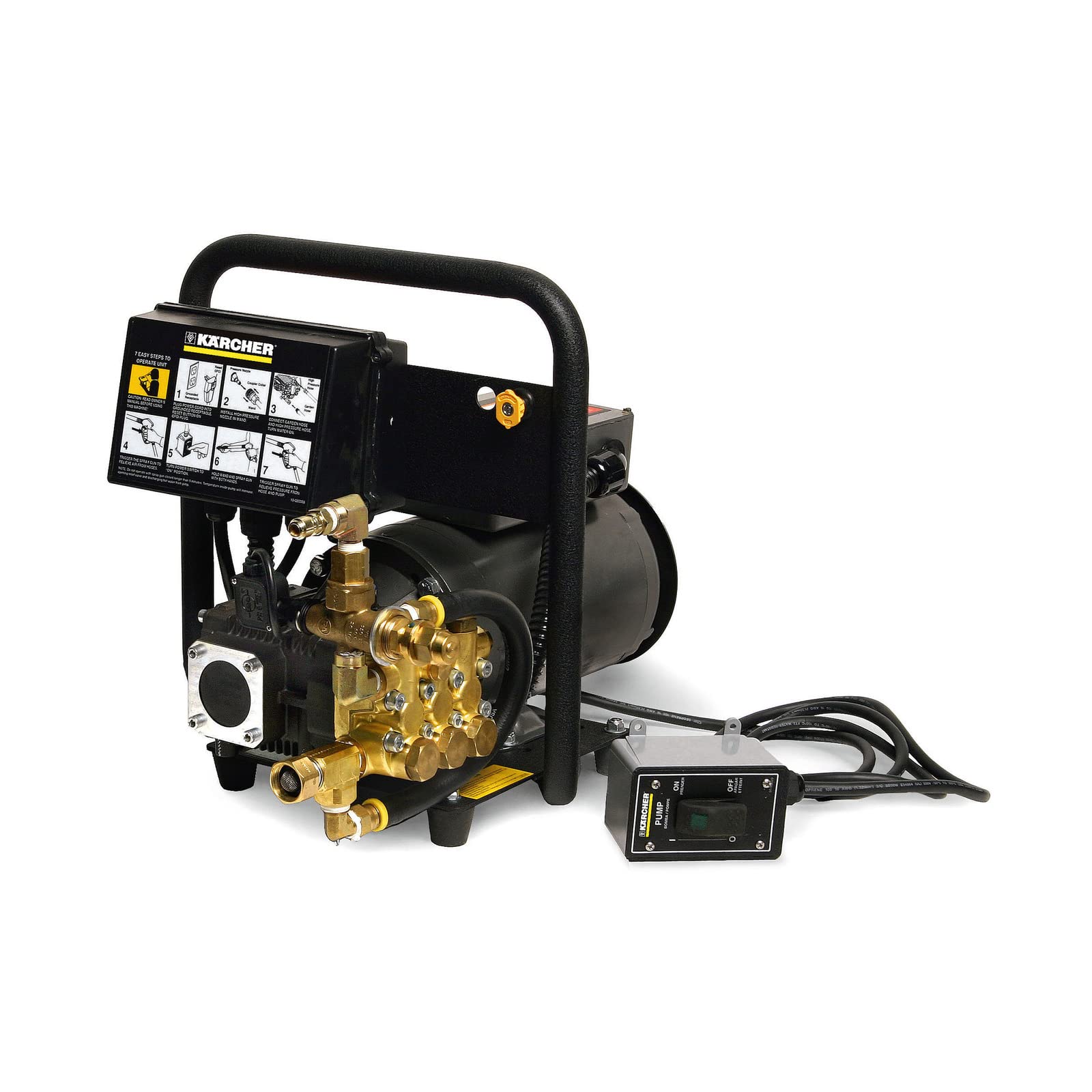

Image: Kärcher Commercial Cold Water Electric Pressure Washer, showcasing its compact design and wall-mountable form factor.
- Purpose: Wall Mounted Electric Pressure Washer, ideal for in-shop uses.
- Design: Conveniently designed for installation directly high up on a wall.
- Pump: Accepts hot water up to 180 degrees and comes with a 7-year Kärcher triplex crankcase pump.
- Control: Features a remote On/Off switch with a 10-foot electrical cord.
- Motor: Equipped with a 1725 RPM motor.
Setup Instructions
- Unpacking: Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present.
- Mounting: Select a suitable wall location for mounting the pressure washer. Ensure the wall can support the unit's weight (approximately 118 pounds) and is near a water source and electrical outlet. An optional wall mount bracket may be required (sold separately). Consult a qualified professional for secure installation if unsure.
- Water Connection: Connect a water supply hose to the inlet of the pressure washer. This unit can accept water temperatures up to 180°F. Ensure all connections are tight to prevent leaks.
- Electrical Connection: Connect the 10-foot electrical cord from the remote On/Off switch to a grounded electrical outlet. Ensure the power supply matches the unit's requirements.
- Hose and Wand Assembly: Attach the high-pressure hose to the pressure washer's outlet and then to the spray wand. Securely fasten all connections.
Operating Instructions
- Prepare Water Supply: Turn on the water supply to the pressure washer. Allow water to flow through the system to purge any air before starting the motor.
- Power On: Use the remote On/Off switch to power on the pressure washer. The 1725 RPM motor will start.
- Begin Cleaning: Hold the spray wand firmly and direct the nozzle towards the surface to be cleaned. Maintain a safe distance to avoid damage to the surface or injury. The unit delivers 1400 PSI and 2.0 GPM for effective cleaning.
- Adjust Nozzle (if applicable): If your wand has adjustable nozzles, select the appropriate spray pattern for the task.
- Power Off: After cleaning, turn off the pressure washer using the remote On/Off switch.
- Release Pressure: Squeeze the trigger on the spray wand to release any remaining pressure in the system before disconnecting hoses.
- Disconnect: Turn off the water supply and disconnect the electrical cord, water hose, and high-pressure hose.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your Kärcher pressure washer.
- Pump Inspection: Periodically inspect the triplex crankcase pump for any signs of wear, leaks, or damage. Refer to the pump's specific maintenance schedule for detailed instructions.
- Nozzle Cleaning: Clean the spray nozzle regularly to prevent blockages and maintain consistent spray patterns. A clogged nozzle can cause pressure fluctuations.
- Hose Inspection: Check high-pressure hoses for cuts, abrasions, or bulges before each use. Replace damaged hoses immediately.
- Water Filter: Inspect and clean the water inlet filter to prevent debris from entering the pump.
- Winterization (if applicable): If storing the unit in freezing temperatures, ensure it is properly winterized to prevent damage from ice expansion.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No pressure or low pressure | Clogged nozzle, insufficient water supply, air in pump, worn pump seals | Clean nozzle, ensure full water flow, purge air from system, inspect pump. |
| Motor not starting | No power, faulty remote switch, thermal overload | Check power connection, inspect remote switch, allow motor to cool. |
| Water leaks | Loose connections, damaged O-rings, cracked housing | Tighten connections, replace O-rings, contact service for housing repair. |
If issues persist after attempting these solutions, contact Kärcher customer support.
Specifications
| Specification | Value |
|---|---|
| Brand | Kärcher |
| Model Number | 1.107-088.0 |
| Power Source | Electric |
| Maximum Pressure | 1400 PSI |
| Maximum Flow Rate | 2.0 GPM (Gallons Per Minute) |
| Motor Speed | 1725 RPM |
| Max Water Temperature | 180°F |
| Pump Type | Triplex Crankcase Pump |
| Item Weight | 118 Pounds |
| Product Dimensions | 21.5"L x 15"W x 18"H |
| Wand Length | 17 Inches |
| Remote Cord Length | 10 Feet |
| Certifications | ETL certified to CSA safety standards |
Warranty and Support
This Kärcher pressure washer comes with a 7-year warranty on the triplex crankcase pump, demonstrating the manufacturer's commitment to quality and durability.
For technical assistance, troubleshooting, or warranty claims, please contact Kärcher Customer Support. Refer to the contact information provided in your product packaging or visit the official Kärcher website.
