Kaleinavi 6-Channel Industrial Wireless Remote Control System

Model: 03 - User Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Kaleinavi 6-channel industrial wireless remote control system. This system is designed for reliable wireless control of various electrical devices, such as lights, electric doors, motors, and other industrial equipment, operating on DC12V, 24V, or 36V.

The system consists of a receiver unit and a remote control transmitter. It utilizes RF technology for stable signal transmission over distances up to 300 meters in open environments.

Kaleinavi 6-Channel Industrial Wireless Remote Control System, showing the receiver board with antenna and the yellow remote control with six buttons.

Image: Overview of the Kaleinavi 6-Channel Industrial Wireless Remote Control System, featuring the green receiver board with its antenna and the yellow handheld remote control unit.

Package Contents

Specifications

FeatureDescription
Working VoltageDC 12V - 36V
Quiescent CurrentLess than 10mA
Working Current30mA (per relay)
Working Temperature-40°C to +80°C
Receiving SensitivityGreater than -105dBm
Working Frequency433MHz
Max Load10A Relay (Resistive load less than 8A, Inductive load less than 3A)
PCB Size87mm x 92.6mm x 16.4mm
Case Size90mm x 115mm x 40mm
Remote DistanceUp to 300m (in open field)
Number of Channels6 Channels

Setup and Wiring

Before connecting the receiver, ensure that the power supply is disconnected to prevent electrical shock or damage to the device. The receiver supports a wide voltage input from DC12V to 36V.

Close-up view of the Kaleinavi receiver board, showing relays, capacitors, and terminal blocks.

Image: Detailed view of the receiver's circuit board, highlighting the six blue relays and various electronic components.

Wiring Diagram

The receiver provides dry contact relay outputs (NO, NC, COM) for each channel. Connect your devices according to the desired functionality. Below is a general wiring diagram for connecting loads.

Wiring diagram for the Kaleinavi 6-channel receiver, showing connections for DC 12-36V power input and six output loads.

Image: A schematic diagram illustrating how to connect DC 12-36V power and six independent loads to the receiver's terminal blocks.

Important: If you are unsure about the wiring process, it is recommended to consult a qualified electrician or contact customer support for assistance.

Operating Modes

The receiver supports multiple working modes, which determine how the relays respond to remote control button presses. These modes can be set during the learning process.

Combined Working Modes

The system also supports combined working modes, allowing different behaviors for different sets of channels:

Programming (Learning Way and Steps)

To pair the remote control with the receiver and set the desired working mode, follow these steps:

  1. Enter Learning Mode: Press the "Learning Button" on the receiver board. The buzzer will start beeping continuously, indicating that the receiver has entered learning mode.
  2. Select Working Mode: On the remote control, press the button corresponding to the desired working mode (e.g., "1" for 1-6CH Momentary, "2" for 1-6CH Latched, "3" for 1-6CH Toggle, etc.).
  3. Confirm Learning: The buzzer on the receiver will emit three "Be Be Be" sounds, indicating successful learning. After this, you can press the transmitter button, and you should hear the relay actuate. The receiver will automatically exit learning mode if no action is taken within 32 seconds.

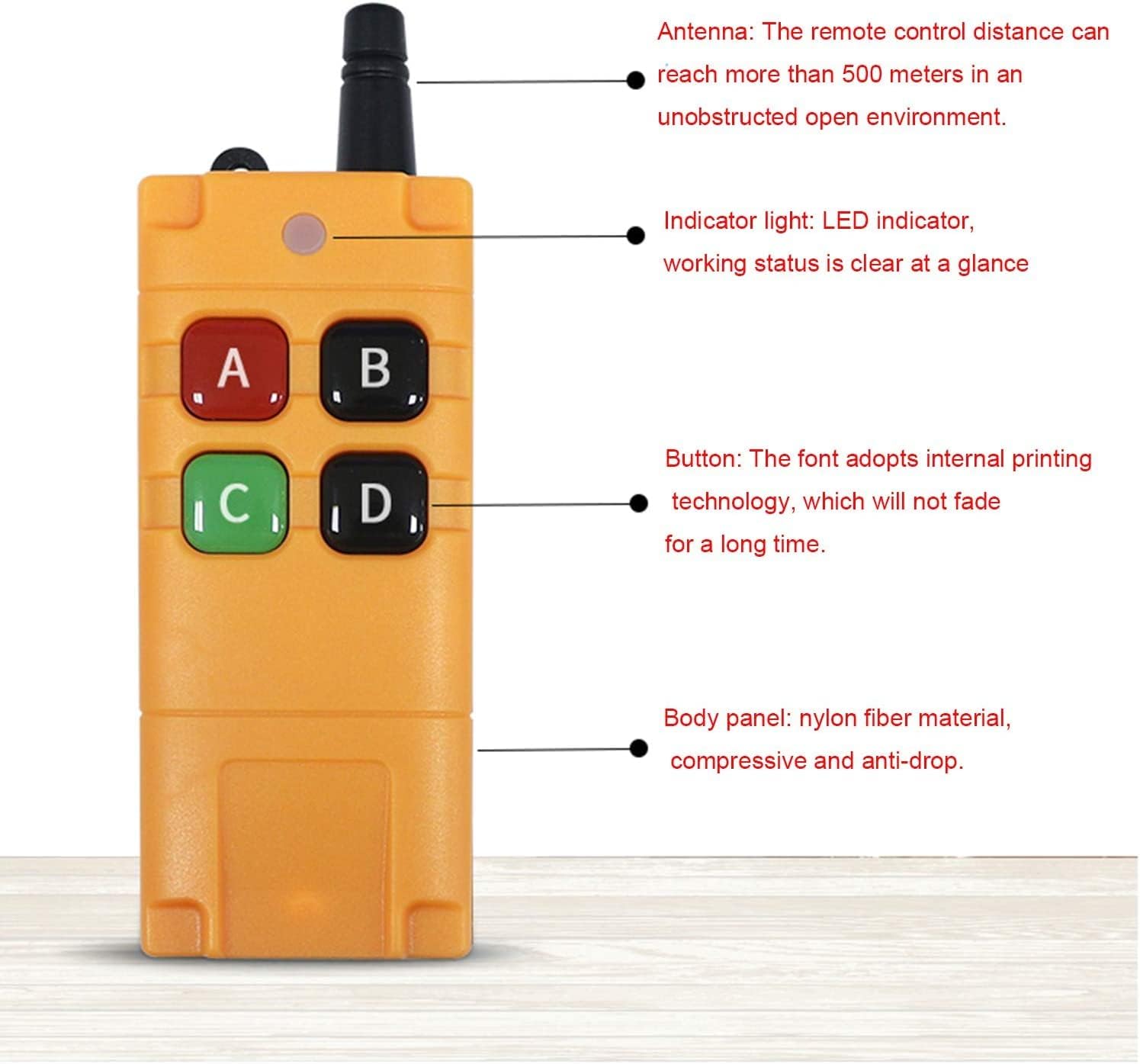

Close-up of the Kaleinavi remote control, highlighting the antenna, indicator light, and buttons labeled A, B, C, D.

Image: Features of the remote control, including the antenna for extended range, an indicator light for operational status, and durable buttons with internal printing.

Delete Memory Message (Clear Codes)

It is necessary to clear existing codes before learning a new working mode or pairing with a different remote control. To delete all stored memory messages from the receiver:

  1. Initiate Deletion: Press and hold the "Learning Button" on the receiver.
  2. Confirm Deletion: The buzzer will beep continuously. Continue holding the button until the buzzer emits a "Be Be Be Be" sound (four beeps). Release the button immediately after these four beeps. Do not wait for six beeps.
  3. Verification: All previously learned remote control codes are now deleted. The receiver is ready to learn new codes.

Maintenance

To ensure the longevity and optimal performance of your Kaleinavi remote control system, follow these maintenance guidelines:

Troubleshooting

If you encounter issues with your remote control system, refer to the following common problems and solutions:

Warranty and Support

This product comes with a one-year warranty from the date of purchase. The warranty covers defects in materials and workmanship under normal use.

For technical assistance, troubleshooting, or warranty claims, please contact Kaleinavi customer support. When contacting support, please have your product model number (03) and purchase details available.

Contact Information: Please refer to your purchase documentation or the seller's contact details on the platform where you purchased the product.
