MageGee Star98 Mechanical Keyboard User Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your MageGee Star98 Mechanical Keyboard. Designed for gaming and daily use, this 98-key wired keyboard features blue mechanical switches, customizable backlighting, and a hot-swappable design for personalized key switch replacement.

2. Package Contents

• MageGee Star98 Mechanical Keyboard
• USB Cable
• Additional Red Keycaps (15 pieces)

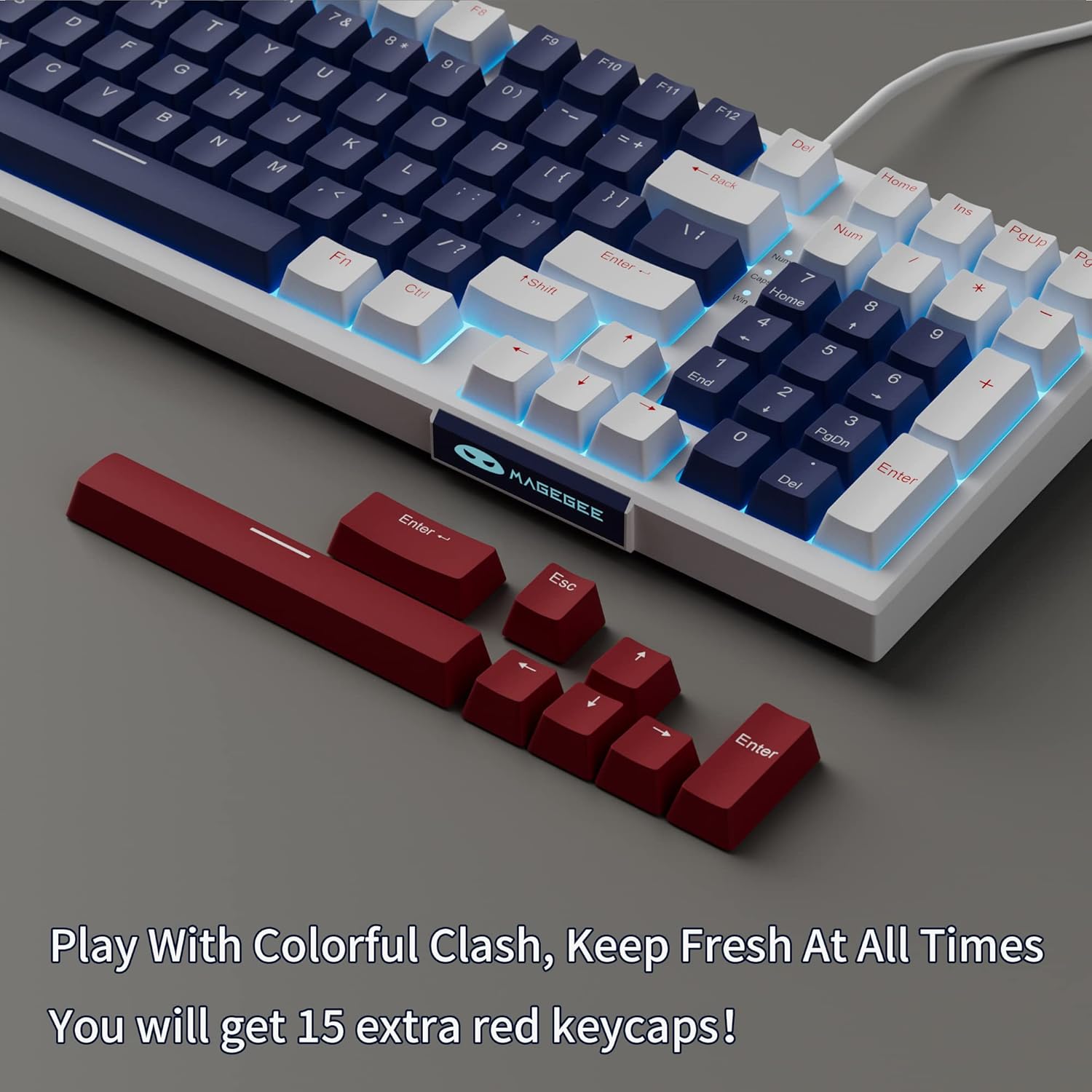

Image: The MageGee Star98 keyboard displayed with a set of 15 additional red keycaps, highlighting the customization option.

3. Product Features

• Comfortable Typing Experience: Equipped with blue mechanical switches for tactile feedback and a stepped layout for ergonomic typing.
• 98-Key Anti-Ghosting: All 98 keys can be pressed simultaneously without conflict, ensuring fast and accurate input.
• Mixed Keycaps & Adjustable Tilt Legs: Features 3-color mixed double injection keycaps for clear backlighting and foldable brackets for adjustable typing angles.
• Hot-Swappable Design: Compatible with most 3-pin and 5-pin mechanical switches, allowing for easy customization and replacement.
• Solid Sea Blue Backlight: Multiple backlight modes with a solid sea blue color, which can also be turned off.
• Wide Compatibility: Supports Win2000, Win XP, Win ME, Vista, Win7, Win8, Win10, Android, Linux, Mac operating systems. Plug and play functionality via USB.

Image: A diagram illustrating the compact 98-key layout of the MageGee Star98 keyboard, highlighting its space-saving design while retaining full functionality.

4. Setup Instructions

1. Connect the Keyboard: Locate the USB cable provided in the package. Plug one end into the USB port on the back of the keyboard and the other end into an available USB port on your computer.
2. System Recognition: Your operating system should automatically detect and install the necessary drivers for the keyboard. This is a plug-and-play device, so no additional software installation is typically required.
3. Adjust Tilt Legs: For ergonomic comfort, unfold the adjustable tilt legs located on the underside of the keyboard to achieve your preferred typing angle.

Image: The MageGee Star98 keyboard connected to a laptop, demonstrating the USB connection point and overall setup.

5. Operating Instructions

5.1 Backlight Control

The keyboard features a solid sea blue backlight with multiple operating modes. Use the following key combinations to control the backlighting:

• Fn + [Key]: Specific key combinations for changing backlight modes are typically indicated on the keycaps themselves (e.g., Fn + Ins, Fn + Home, Fn + PgUp, Fn + Del, Fn + End, Fn + PgDn). Refer to the keycap legends for exact functions.
• Fn + Up/Down Arrow: Adjust backlight brightness.
• Fn + Left/Right Arrow: Adjust backlight speed (for dynamic modes).
• Fn + Win: Locks the Windows key to prevent accidental presses during gaming.

5.2 Hot-Swappable Switches

The MageGee Star98 keyboard supports hot-swappable mechanical switches, allowing you to change switches without soldering. This feature is compatible with most 3-pin and 5-pin mechanical switches on the market.

1. Remove Keycap: Use a keycap puller (not included) to gently remove the desired keycap.
2. Remove Switch: Use a switch puller (not included) to carefully grip the switch and pull it straight up.
3. Insert New Switch: Align the pins of the new switch with the holes on the PCB. Press down firmly until the switch clicks into place. Ensure the pins are not bent.
4. Replace Keycap: Place the keycap onto the new switch stem and press down.

Image: A close-up view of the keyboard demonstrating the hot-swappable switch feature, with several keycaps and switches removed to show the underlying mechanism.

6. Maintenance

• Cleaning Keycaps: Use a soft, damp cloth to wipe down keycaps. For deeper cleaning, keycaps can be removed using a keycap puller (not included) and washed with mild soap and water. Ensure they are completely dry before reattaching.
• Cleaning Switches: Use compressed air to remove dust and debris from between the switches. Avoid spraying liquids directly into the switches.
• Cable Care: Avoid sharp bends or kinks in the USB cable to prevent damage.
• Storage: Store the keyboard in a clean, dry environment away from extreme temperatures and direct sunlight.

7. Troubleshooting

• Keyboard Not Responding:

  Ensure the USB cable is securely connected to both the keyboard and the computer. Try plugging the keyboard into a different USB port or a different computer to rule out port issues.
• Keys Not Working:

  If individual keys are not responding, check if any debris is lodged under the keycap or switch. For hot-swappable switches, try removing and re-inserting the switch, or replacing it with a known working switch.

• Backlight Not Working/Flickering:

  Ensure the backlight is not turned off (check Fn key combinations). Try adjusting brightness. If flickering persists, ensure the keyboard is connected to a stable USB port providing sufficient power.

• Windows Key Locked:

  Press Fn + Win to toggle the Windows key lock function.

8. Specifications

9. Warranty and Support

The MageGee Star98 Mechanical Keyboard comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use.

For technical support, warranty claims, or any questions regarding your product, please contact MageGee customer service through the retailer's platform or the official MageGee website. Please have your purchase receipt and product model number (Star98) ready when contacting support.
